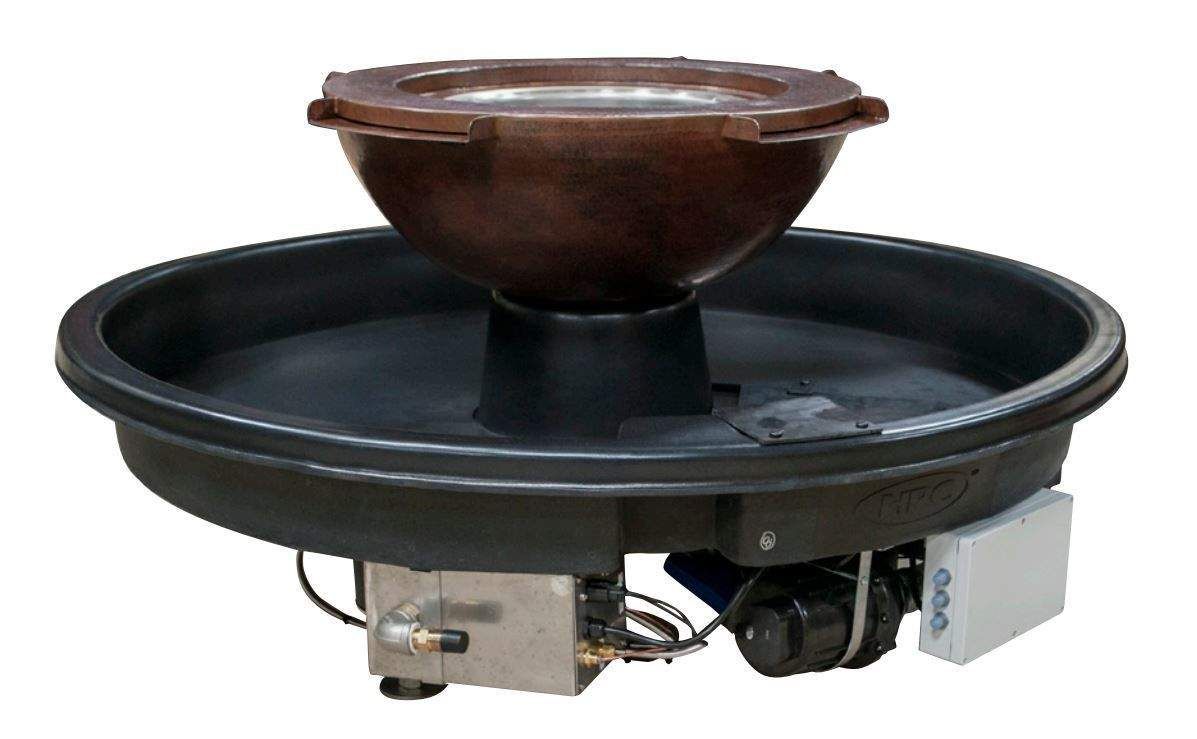

HPC Fire WB52R-Temp4-EI Evolution 360 Series Fire and Water Insert, 4 Scupper Water Feature provides a high quality water basin designed to be used with a fire feature to produce an elegant fire and water feature. The black polyethylene water basin is engineered to provide a long lasting and durable unit while the 3,200 gallon/hour water pump features a low level sensor that can automatically add water when needed and an auto filtration system to maintain crystal clear water. The basin features a diameter of 52", an adjustable sidewall height between 14"-18", and a 10" diameter center tower to mount the fire bowl. Also featuring bright blue LED lights, the Evolution 360 results as one of the most advanced outdoor products available and is sure to impress. Note: This kit includes HPC's improved, CSA certified valve box that's designed in a smaller profile to be easier to install and features a new solenoid design making it more reliable and easier to service.

The included Tempe Hammered Copper Fire Bowl features a (4) sided water scupper system to continuously fountain water as the 90,000 BTU fire pit insert provides a beautiful flame presence to contrast the flowing water. The fire pit measures 11" tall with an 8" base diameter and a 31" top diameter while the exterior of the fire pit enclosure features an oil rubbed bronze finish with a hammered copper textured finish for a unique look and long lasting durability. The round enclosure opening provides space for the 13" round bowl pan featuring a 12" round burner with electronic ignition for complete electronic control over the fire and water features.

Technical Downloads

• Evolution 360 Installation & Operation Instructions

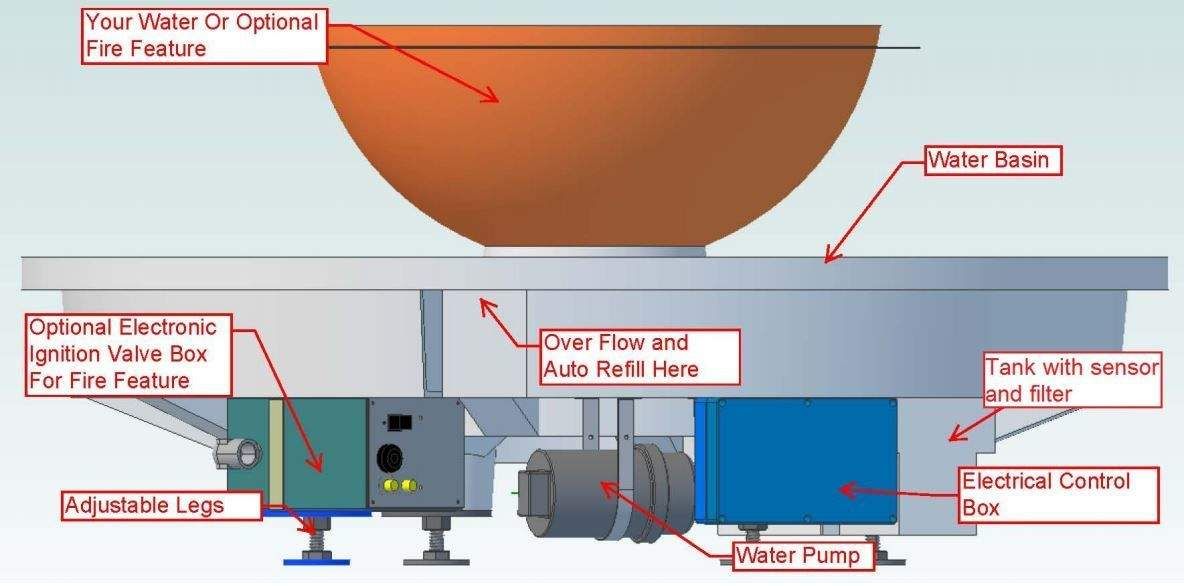

• Fire and Water Insert Drawing

Brochures

About the Manufacturer

HPC is on the cutting edge of outdoor gas fire pit technology and offers a wide variety of burners to fit the need of any construction or do-it-yourself project. All HPC fire pit rings have staggered burner ports for a more natural-looking flame pattern and presence. Both stainless steel and cold rolled steel burners are available, and both feature ports that are drilled, not punched, for optimal quality; the burner hub is raised above the concentric rings to reduce the risk of water in the valve or gas line.
