Renogy 3000W 12V Pure Sine Wave Inverter Charger w/ LCD Display R-INVT-PCL1-30111S-US


DESCRIPTION

【COMPATIBLE WITH VARIOUS BATTERIES】 Powerful versatility, it is ready for 12V Gel, AGM, Sealed Lead Acid (SLA), Flooded (FLD), Calcium (CAL), Lithium-iron Phosphate (LI), and programmable for custom batteries through the USER type.
【POWERFUL OUTPUT】 With a conversion efficiency greater than 90%, adjustable 50/60Hz output, the inverter charger provides 3000W continuous power, and 9000W surge power to easily power your daily electrical appliances.
【PROTECT YOUR ELECTRONICS】 Advanced Pure Sine Wave technology provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, which is especially suitable for sensitive electrical appliances.
【4-STAGE CHARGING】 The Renogy 3000W pure sine wave inverter charger is equipped with a 4-Stage(Bulk stage, Boost stage, Float stage, and Equalization) battery charger to make sure it optimally and automatically charge to 100%.
【MULTIPLE SAFETY PROTECTIONS】 Offers under-voltage protection, overvoltage protection, overload protection, overheating protection, and short circuit protection to ensure safety.

THE BENEFITS

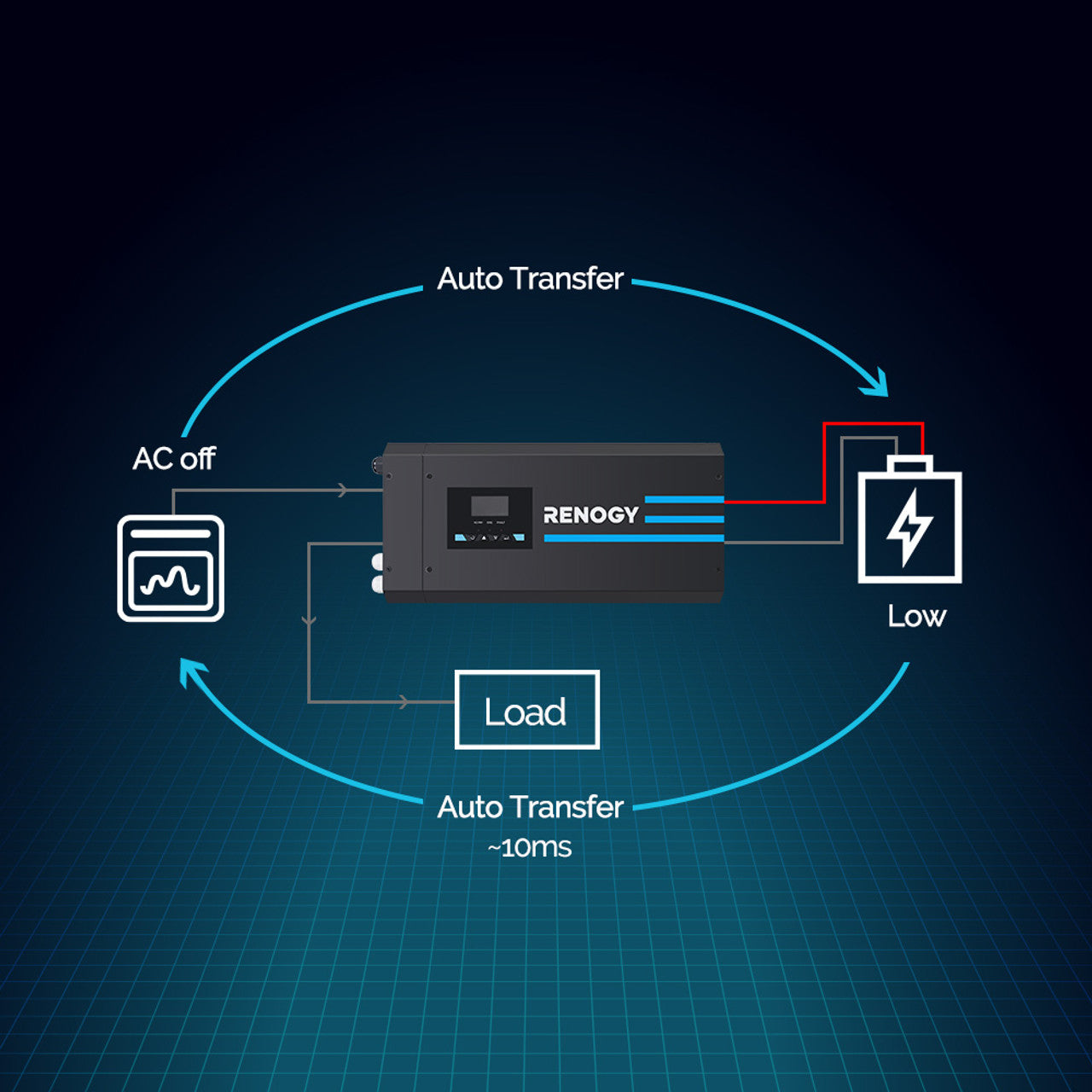

The Renogy 3000W Pure Sine Wave Inverter Charger w/ LCD Display is ideal for RV or standalone. The Renogy 3000W Pure Sine Wave Inverter Charger not only acts as a DC to AC inverter that allows you to power your household appliances but also charges and maintains a battery bank when connected to shore power and is now compatible with Lithium batteries. With a low transfer time, power remains uninterrupted when switching from the battery to shore power. The advanced Renogy Pure Sine Wave technology will protect and extend the life of your electronics and appliances. The Renogy 3000W Pure Sine Wave Inverter Charger is a perfect backup power source!

Please Note:

The listed dimensions we provide are solely the device body dimensions. Please do reserve space for cable grommets and installing cables.

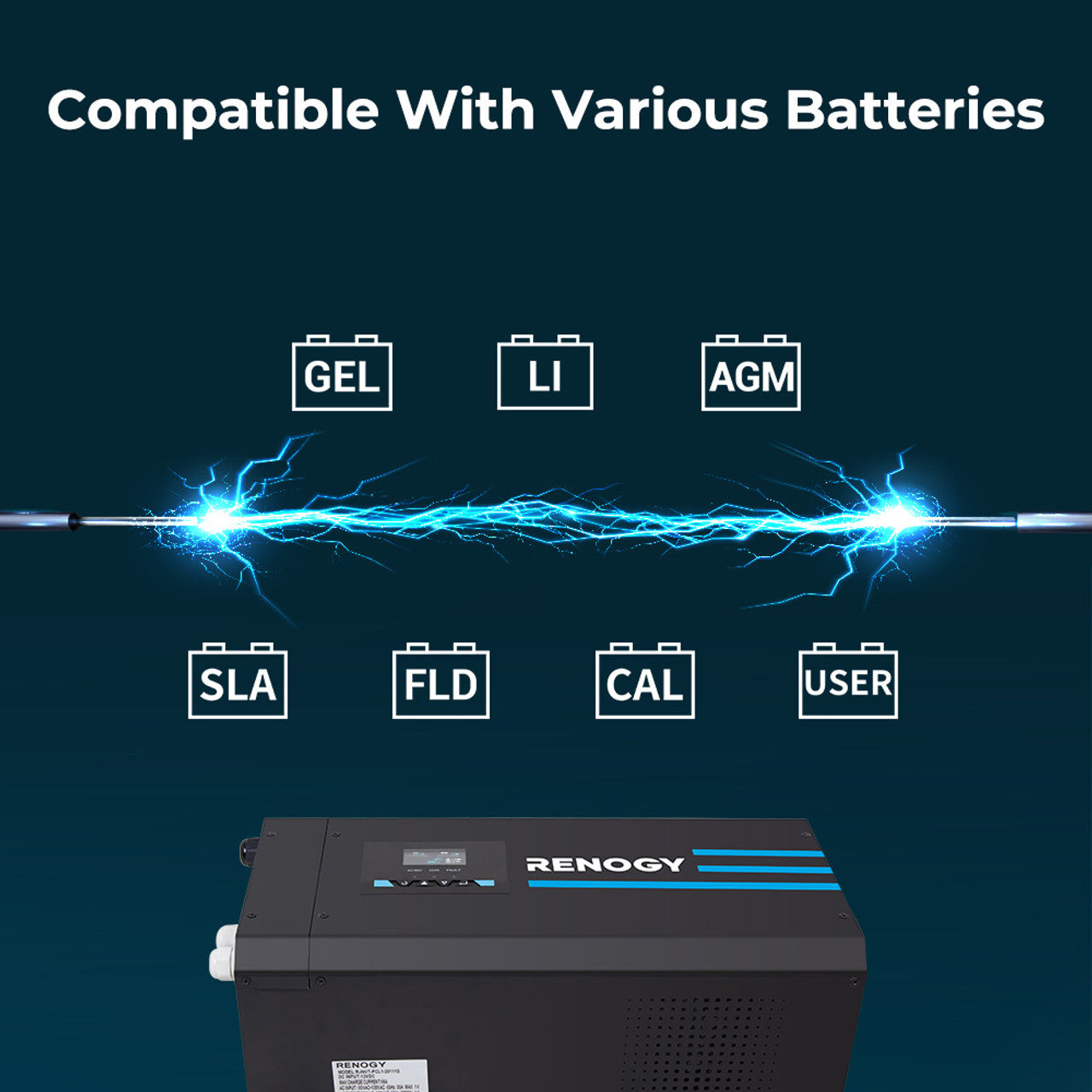

COMPATIBLE WITH VARIOUS BATTERIES

Powerful versatility, it is ready for 12V Gel, AGM, Sealed Lead Acid (SLA), Flooded (FLD), Calcium (CAL), Lithium-iron Phosphate (LI), and programmable for custom batteries through the USER type.

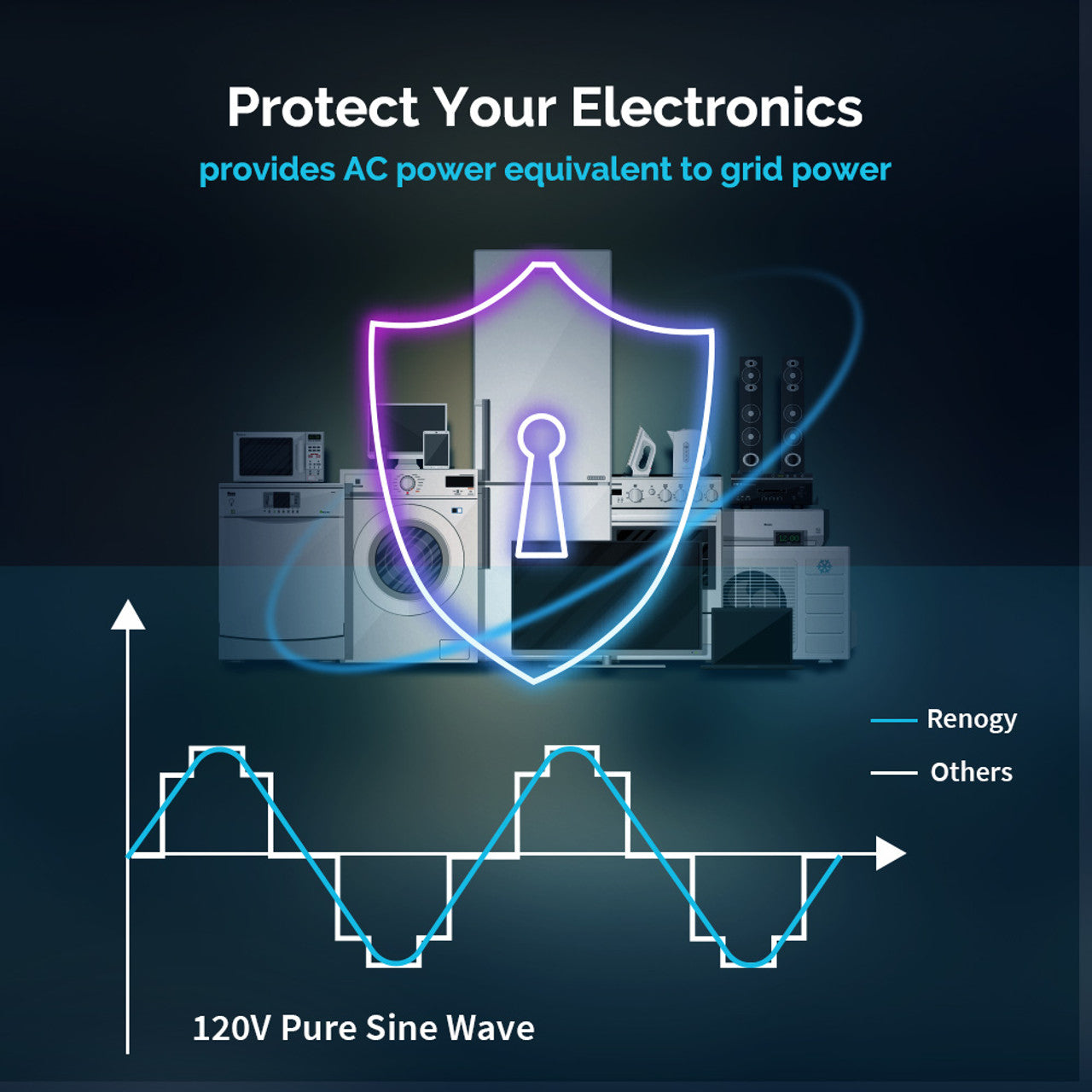

PROTECT YOUR ELECTRONICS

Advanced Pure Sine Wave technology provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, which is especially suitable for sensitive electrical appliances.

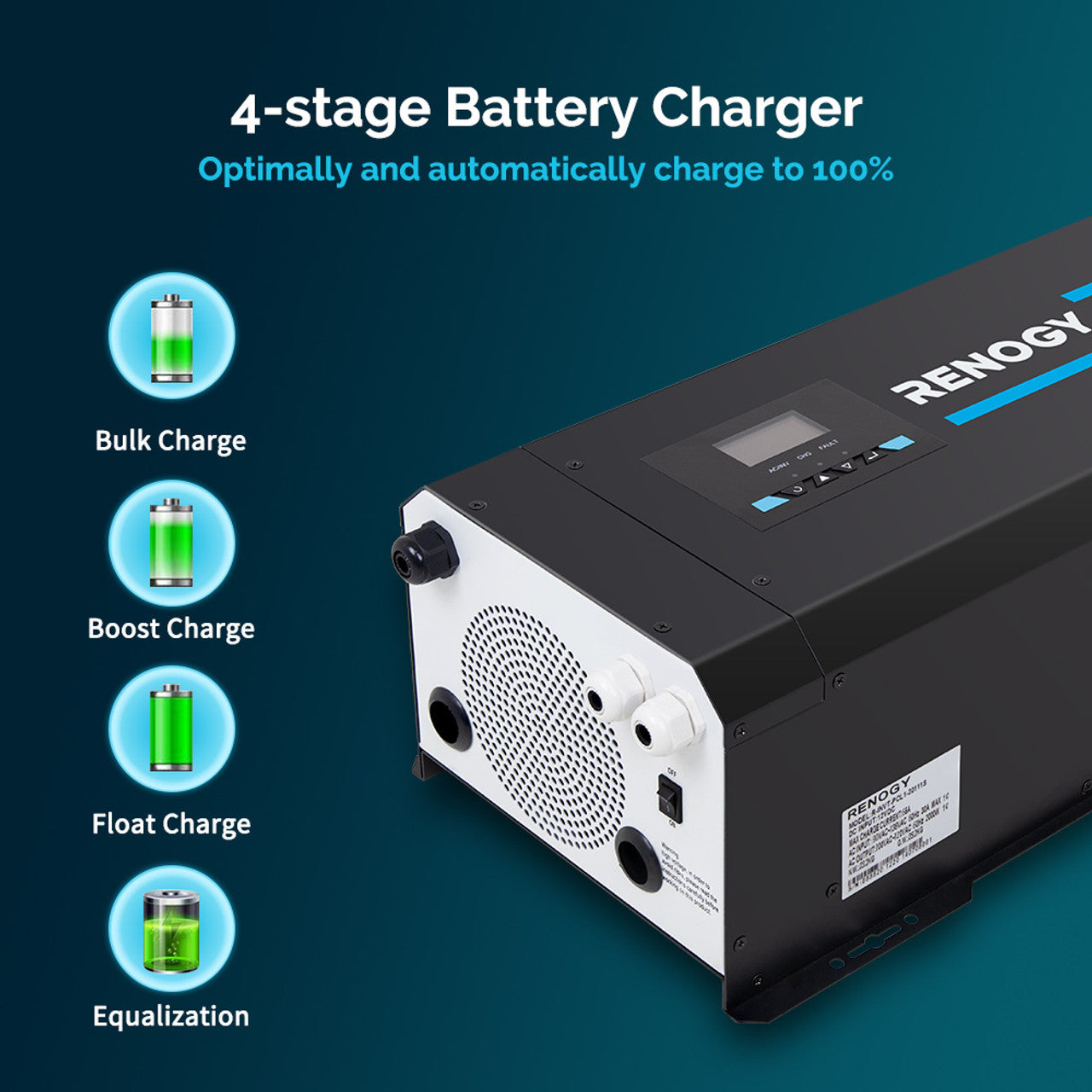

4-STAGE CHARGING

The Renogy 3000W pure sine wave inverter charger is equipped with a 4-Stage(Bulk stage, Boost stage, Float stage, and Equalization) battery charger with a configurable charging current between 5A and 75A to make sure it optimally and automatically charge to 100%. It only takes 1.5 hours to fully charge a 100Ah battery.

LCD DISPLAY PANEL

The LCD display can visually see the status of the inverter and perform programmable operations. The PCL inverter charger series is fully programmable with more than 20 features that can be customized such as input/output voltage range and battery charging current.

EASY TO USE

This inverter comes with a 16.4ft remote control and a 9.9ft battery temperature sensor.

The Temperature Sensor can compensate the battery voltage affected by temperature so that the charger recognizes the voltage more accurately and assures stable and constant charging to the battery.

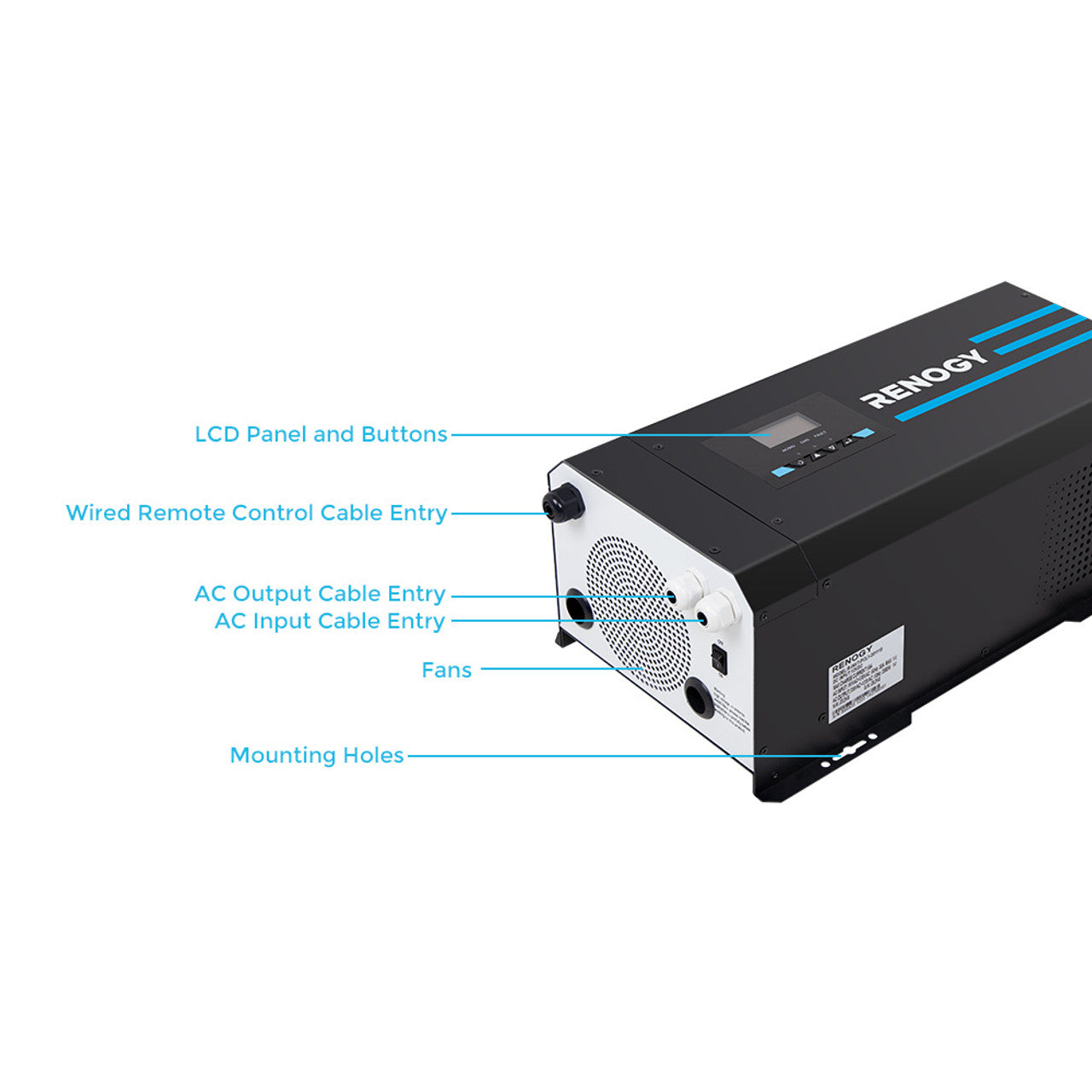

MAIN PANEL DISPLAY

To Access the main panel, unscrew the terminals on the outside of the side panel. Steps as follows:

1. Flip inverter power to the 'OFF' position

2. Unscrew the screw terminals along the edge of the side plate

3. Gently remove DC Side plate to expose DC Terminals

4. Connect the positive and negative DC Cables to their respective terminals and run them through the side panel

SPECIFICATION


INVERTER SPECIFICATIONS

Continuous Power: 3000W

AC Output Voltage Range: 100~120VAC configurable, 5V interval

DC Input Voltage Range: 10~16 VDC

Nominal Efficiency: > 90% Peak

Surge Power (1 second): 9000W

Output Frequency (Nominal): 50/60 Hz

Output Waveform: Pure Sine Wave

No Load Power Consumption: Normal: <30W; Power Saving: <15W


CHARGER SPECIFICATIONS

Output Current: 5-75A configurable, 5A intervals

Nominal Input Voltage: 120 VAC

Input Frenquency Range: 40Hz - 70Hz

Optimal Efficiency: >85%

Input Voltage Range: 90-138 VAC

Input Wave Form: Sine Wave (Utility or Generator)


TRANSFERSWITCH SPECIFICATIONS

Transfer Time: ~ 10ms

Transfer Rating: 30A Automatic Transfer Switch


GENERAL SPECIFICATIONS

Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER

Operating Temperature: 0 ~ 40°C / 32 ~ 104°F

Storage Temperature: -30 ~ 70°C / -22 ~ 158°F

Humidity: 0% ~ 95%

Noise: <50dB

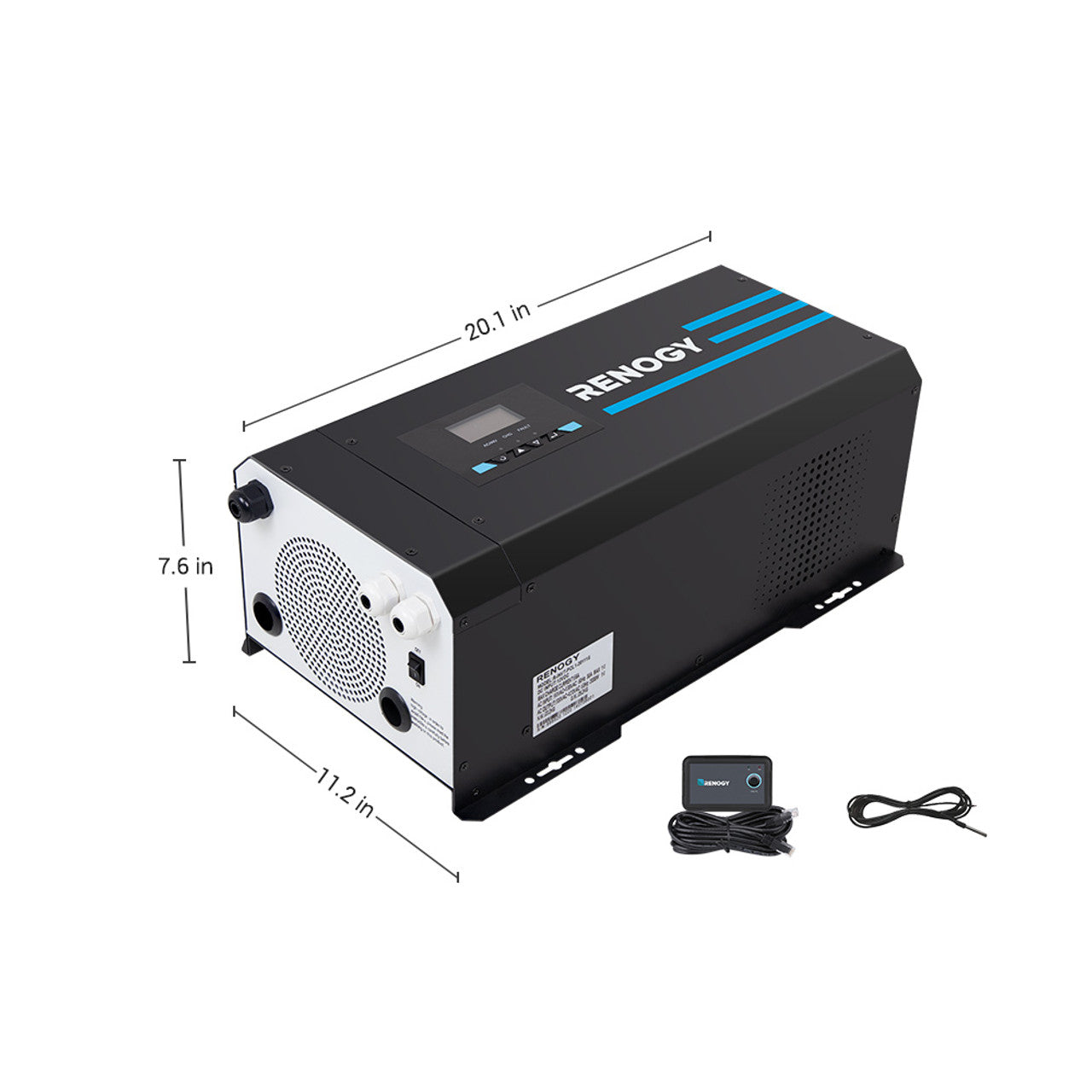

Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Weight: 63.5 lbs / 28.8 Kg
