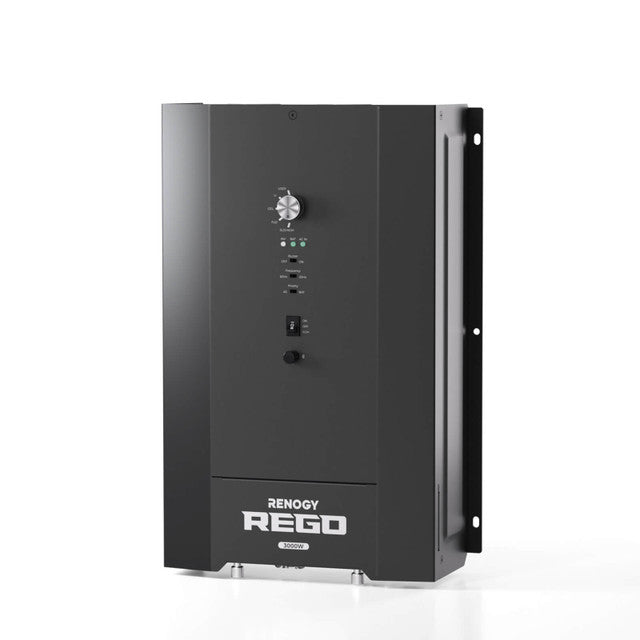

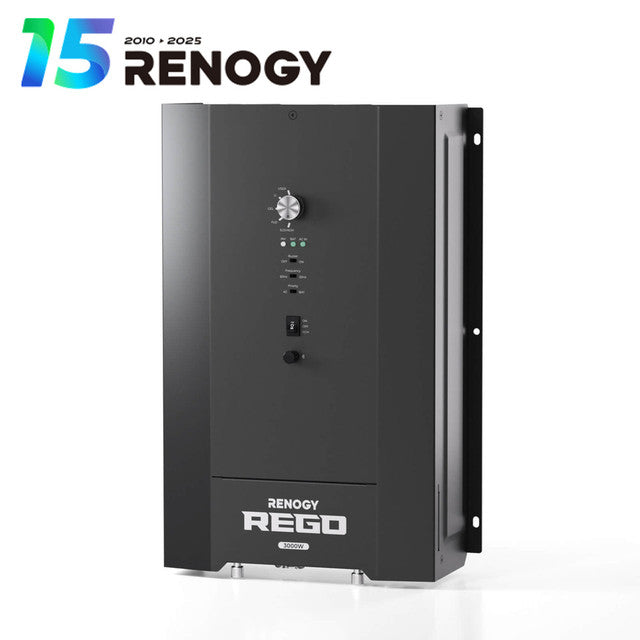

REGO 3000W 12V HF Pure Sine Wave Inverter Charger
Inverter
Continuous Power: 3000W
Surge Power(100ms): 9000VA
Surge Power(5 seconds): 4500VA
Surge Power (10 seconds): 3600W
AC Output Voltage Range: 120V± 3%
Output Frequency (Nominal): 50/60 Hz ± 0.1%

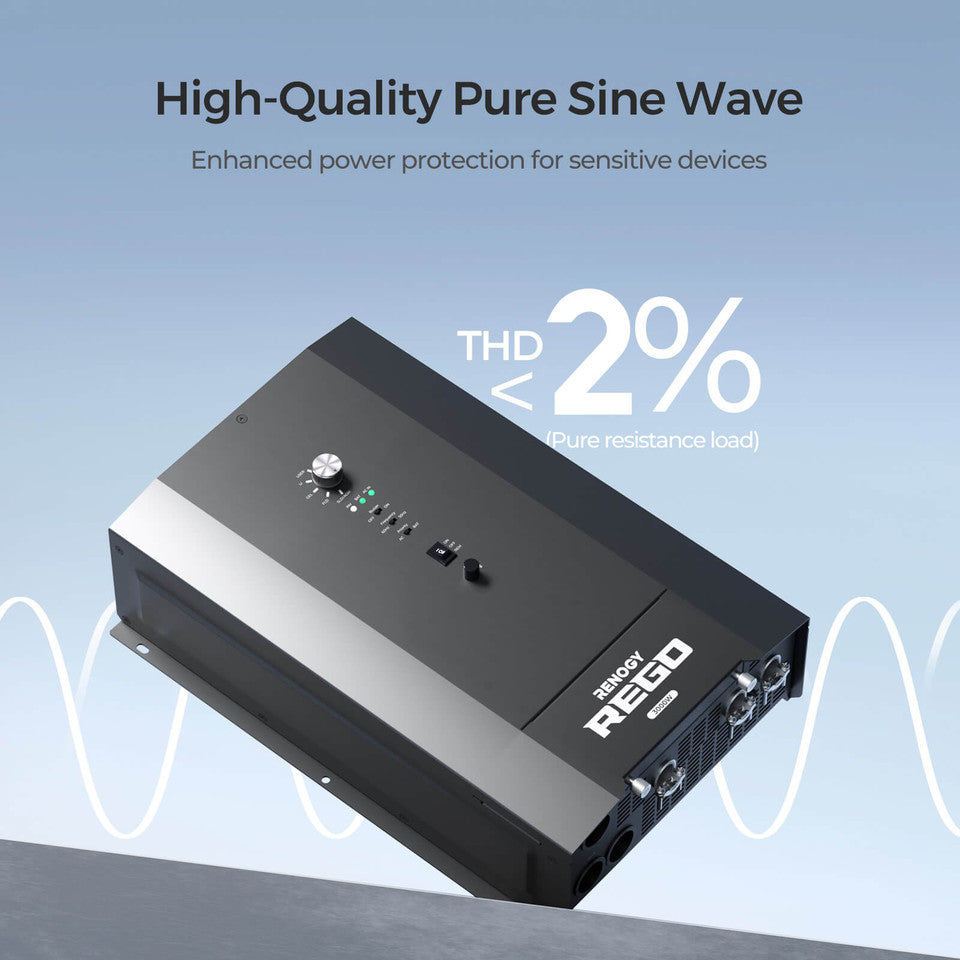

Output Waveform: Pure Sine Wave

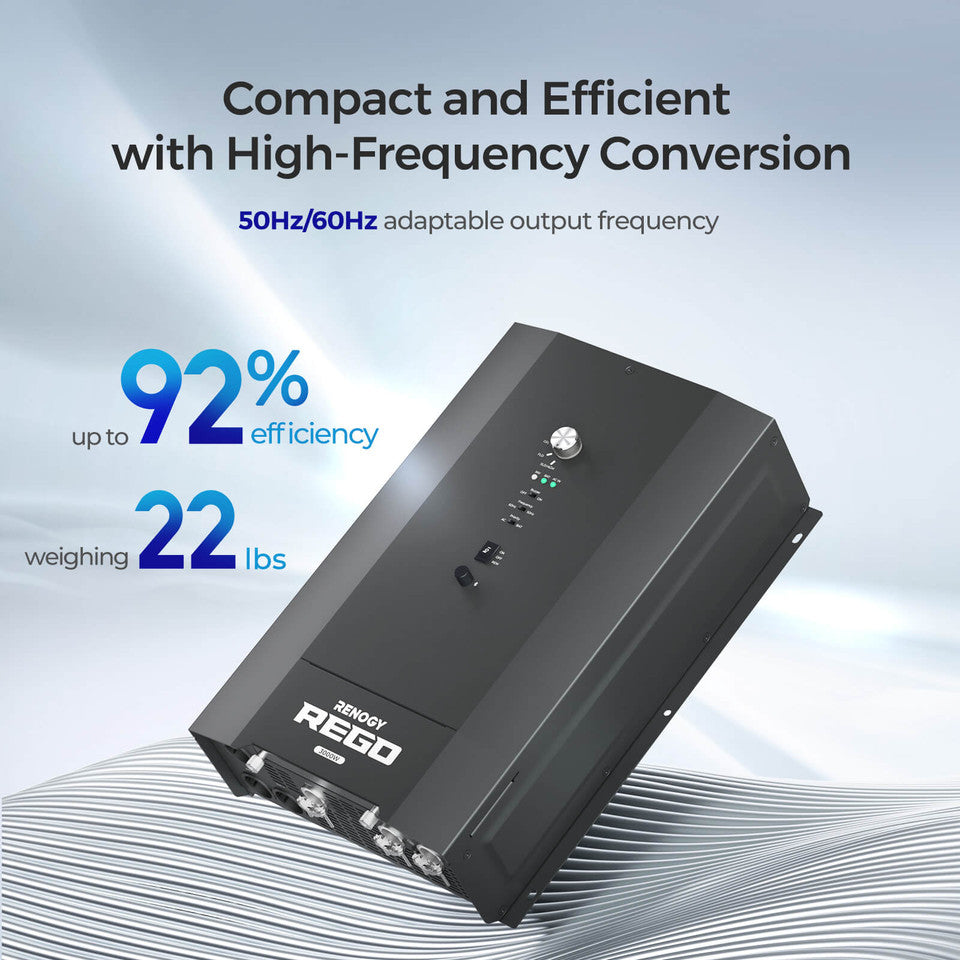

Efficiency: >92%
THD: <3%
DC Input Voltage: DC12V
DC Input Voltage Range: 9~17Vdc(Full load 11V to 15.8V DC)
No Load Current Draw: Normal: <20W; Power Saving: <10W
Charger Specifications
Output Current: 150A @25°C, 5A to 150A adjustable, 5A intervals, default 150A
Optimal Efficiency: >90%
Nominal Input Voltage: Split phase: 180-280 VAC; Single phase: 90-140 VAC
Input Frenquency Range: 50/60Hz,±5Hz
Input Wave Form: Sine Wave (Utility or Generator)
opc:
Transferswitch Specifications
Transfer Time: ~ 10ms
Transfer Rating: 50A Maximum Bypass @120V AC
General Specification

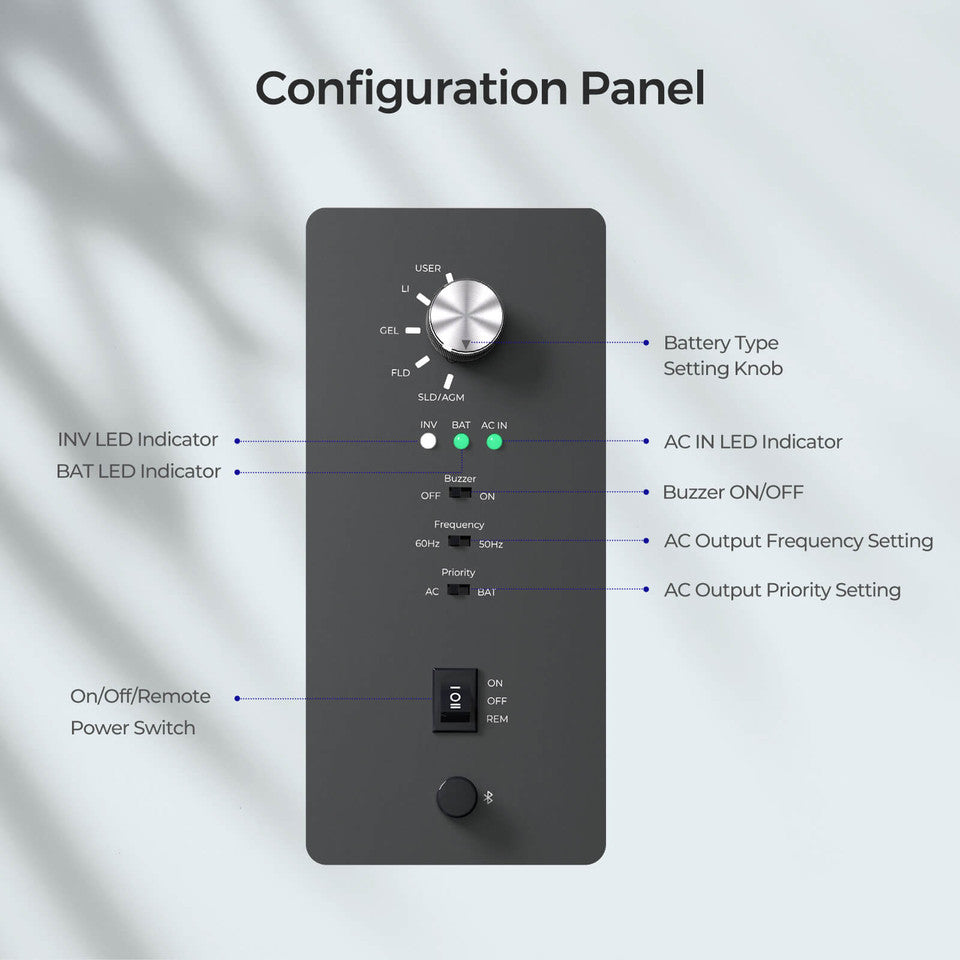

Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Noise: <47dB
Operating Temperature: Full load: -4°F to 113°F / -20°C to 45°C; Down load: 113°F to 140°F / 45°C to 60°C

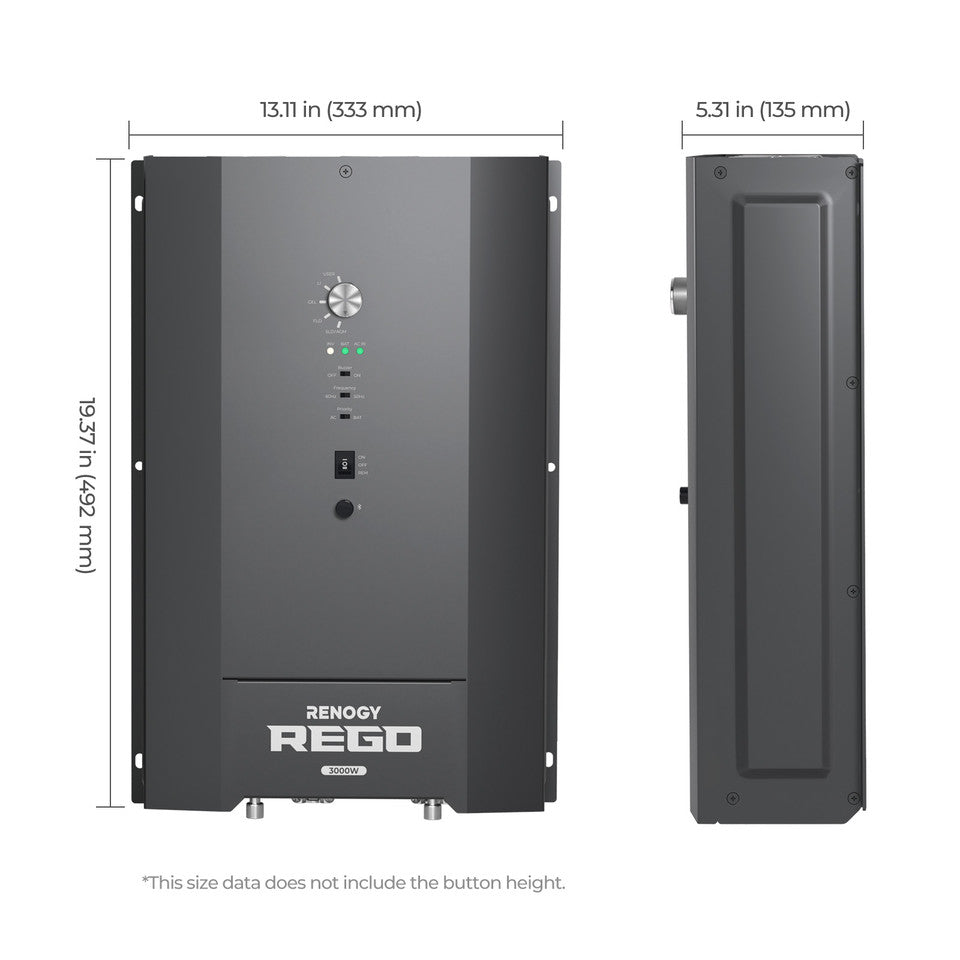

Dimensions: 19.37 x 13.11 x 5.31 in / 492 x 333 x 135 mm
Storage Temperature: -40 ~ 70°C / -40 ~ 158°F
Weight: 22.7lbs/10.3Kg
Humidity: 0% ~ 95%
opc:
Wired Remote Control
Dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
Wire length: Approx 16.4ft
Warranty
Inverters: 5 Years
Accessoreis: 1 Year
Certifications
EMC certification: FCC Prat15 Class B
Safety: UL 485 and CSA C22.2 No 107.1
