Renogy New 400 Watt 12 Volt Solar Premium Kit W/REGO Solar Charge Controller RNG-KIT-PREMIUM400D-RVR40-US
Description

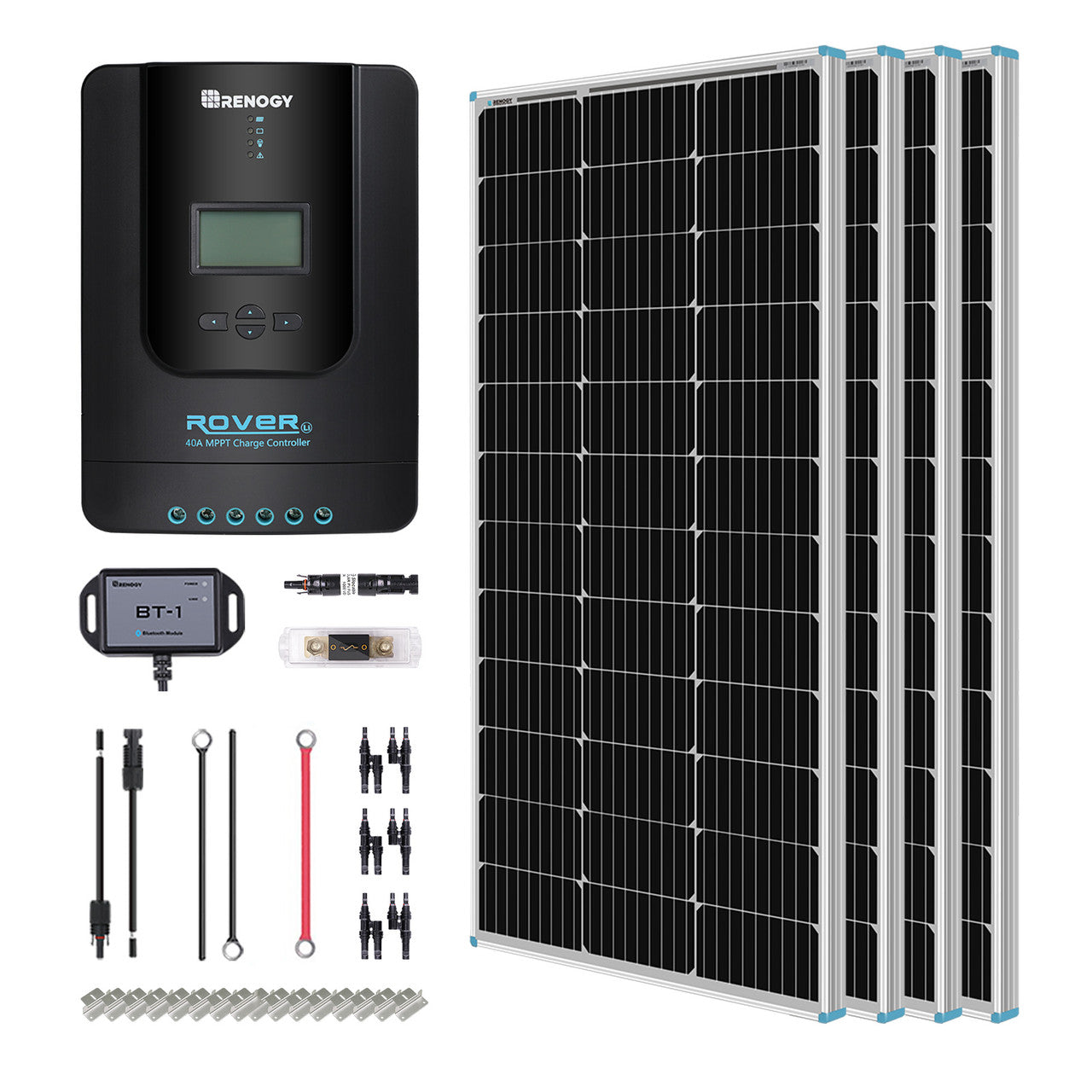

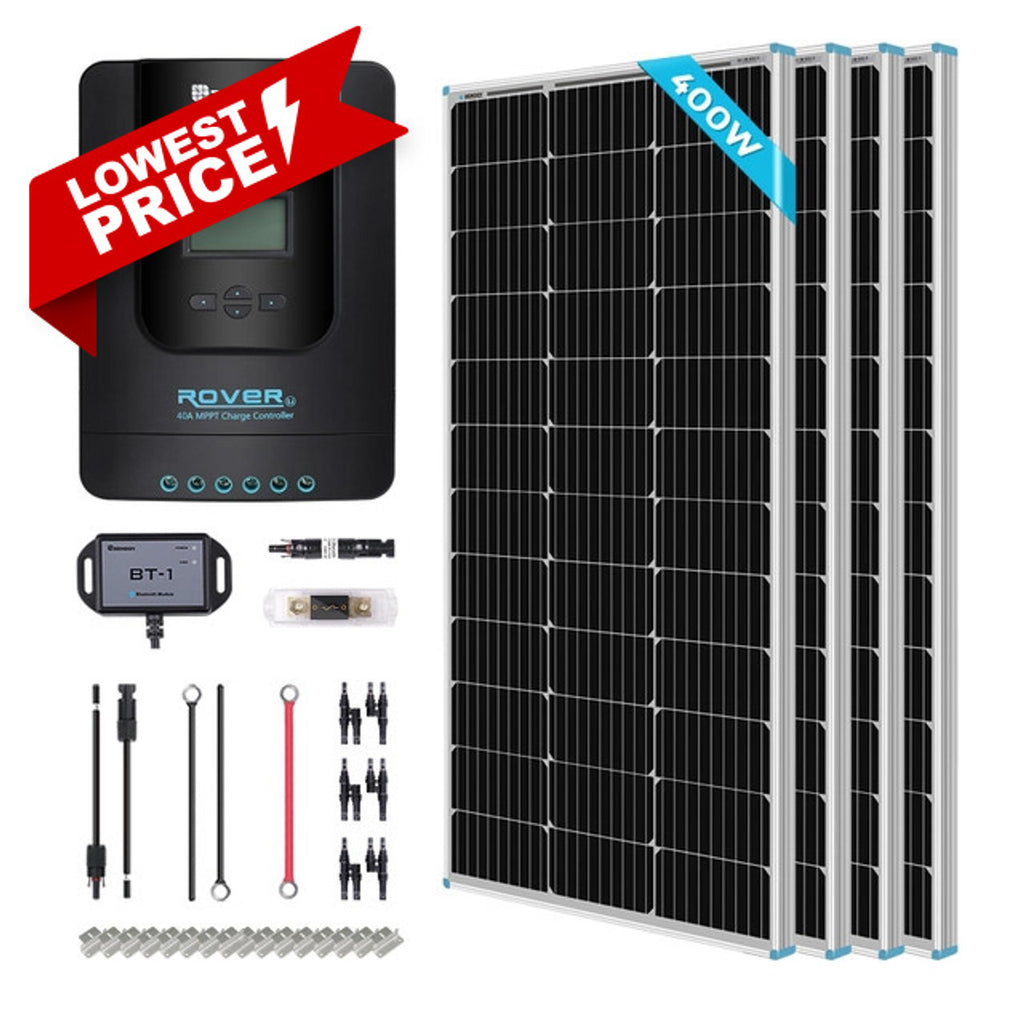

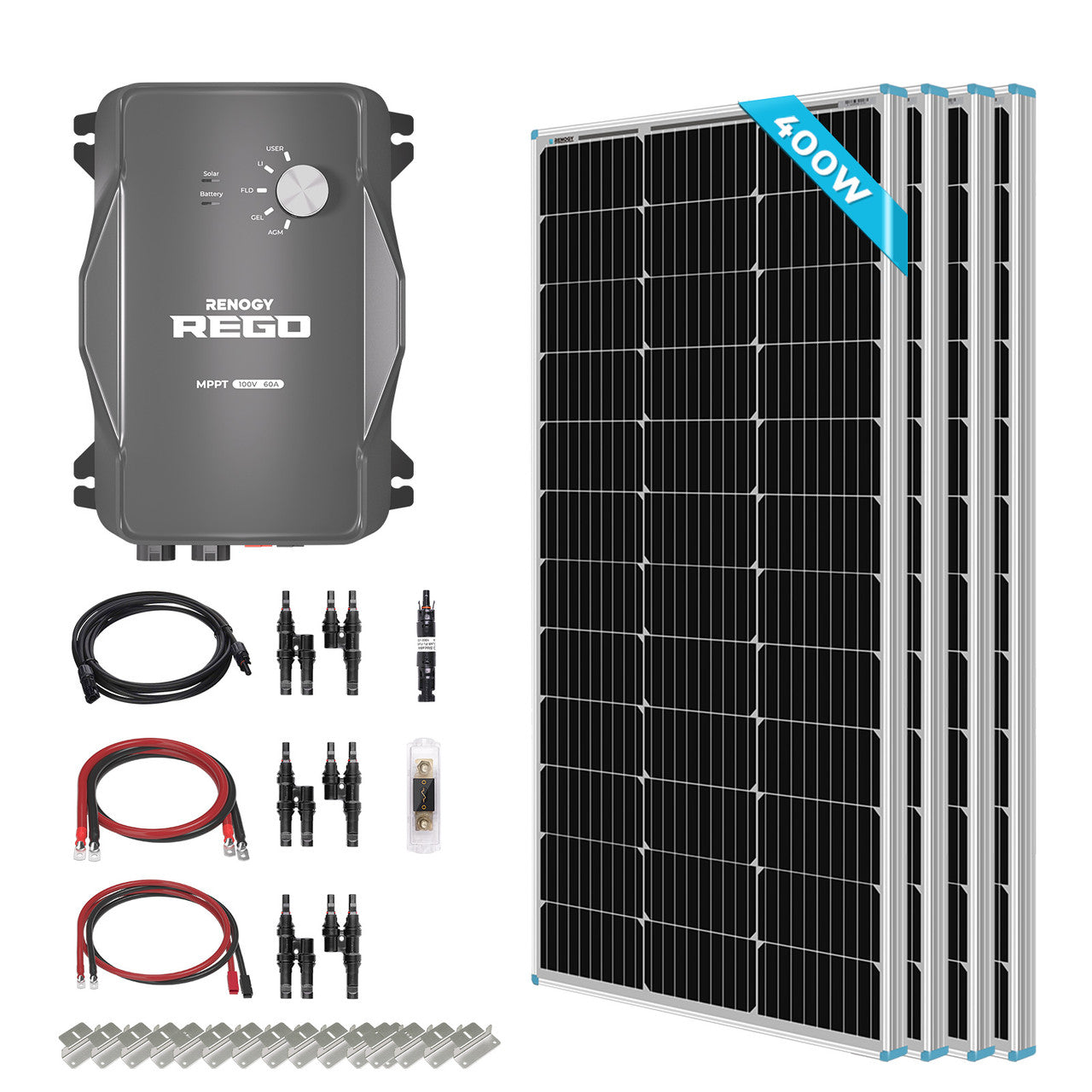

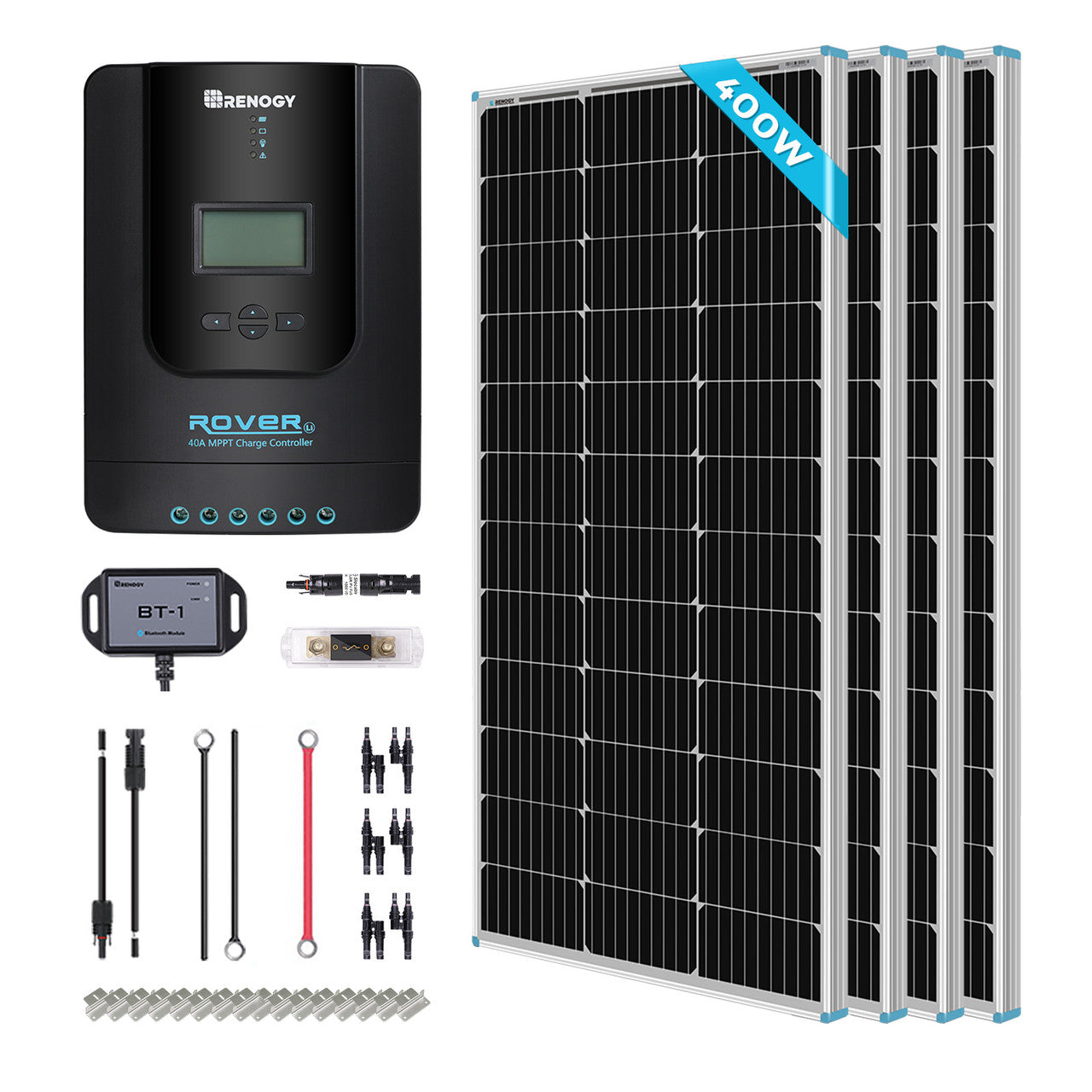

The Renogy 400W 12V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it an ideal choice for both off-grid and mobile solar power applications.

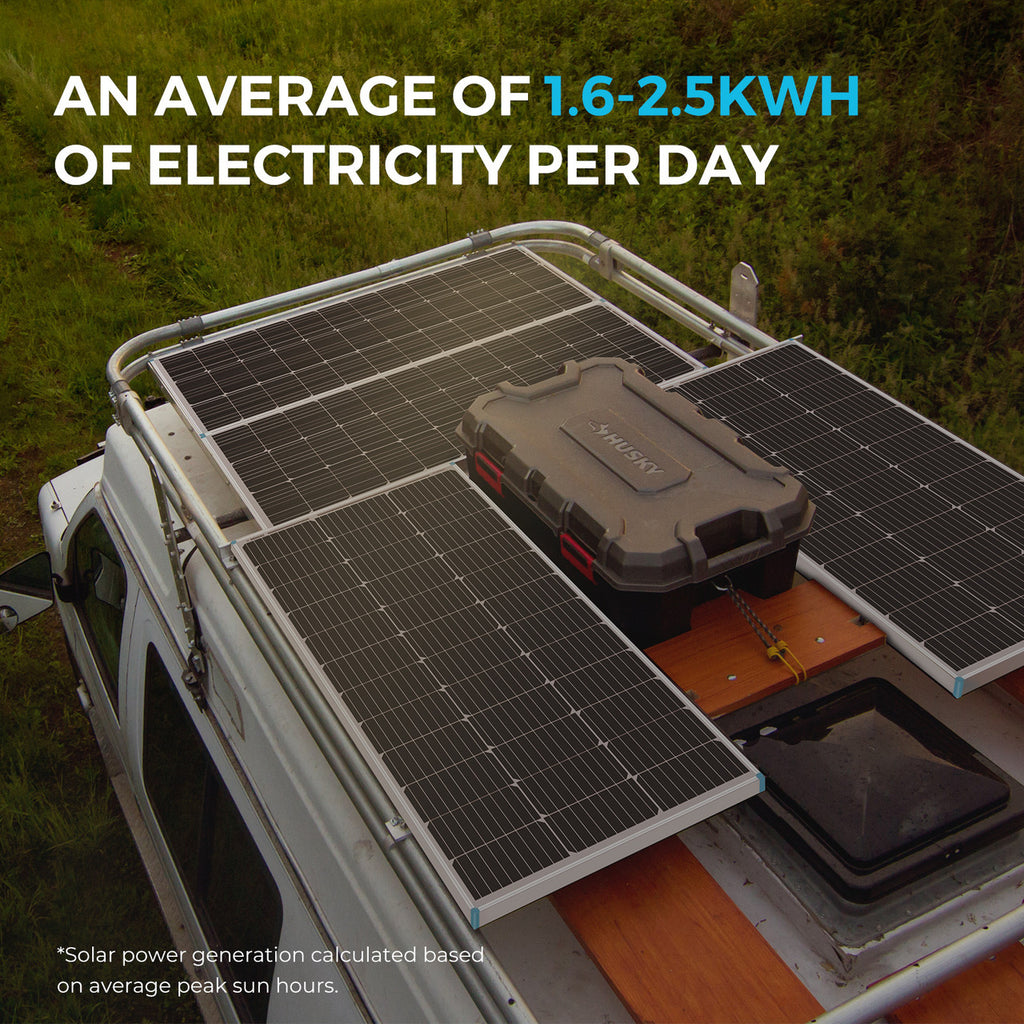

The Premium Kit will produce an average of 1.6-2.5kWh of electricity per day (depending on sun availability). The 4 x 100W solar panels don't take up much roof space, but their energy can offset small and medium-size loads such as lighting, television, and coffee maker.
The Premium Kit can build a reliable and environmentally friendly power supply, perfect for all rooftops, RVs, boats, or campers. It can also be installed in a ground mount system as a power supply for outdoor appliances, emergencies, and a stand-alone power system.
By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in low-light environments.

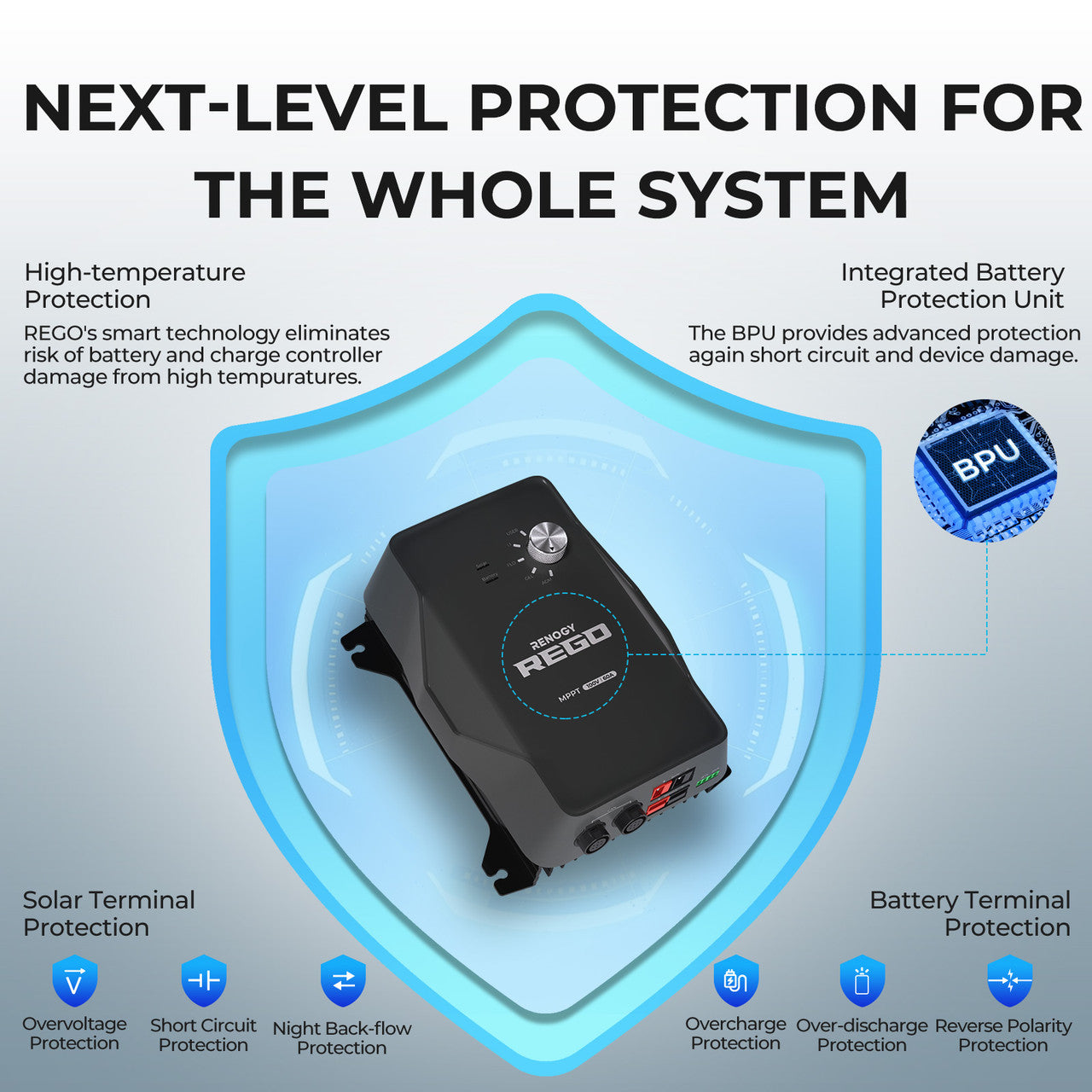

Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

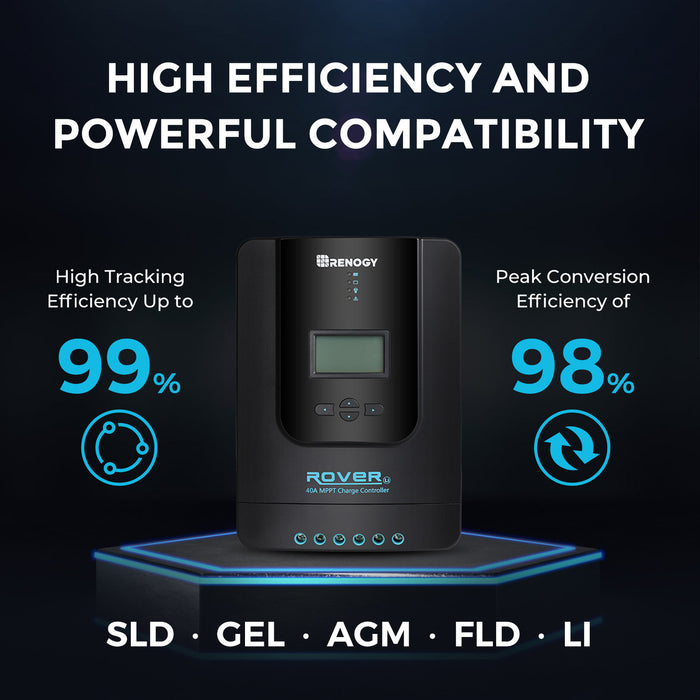

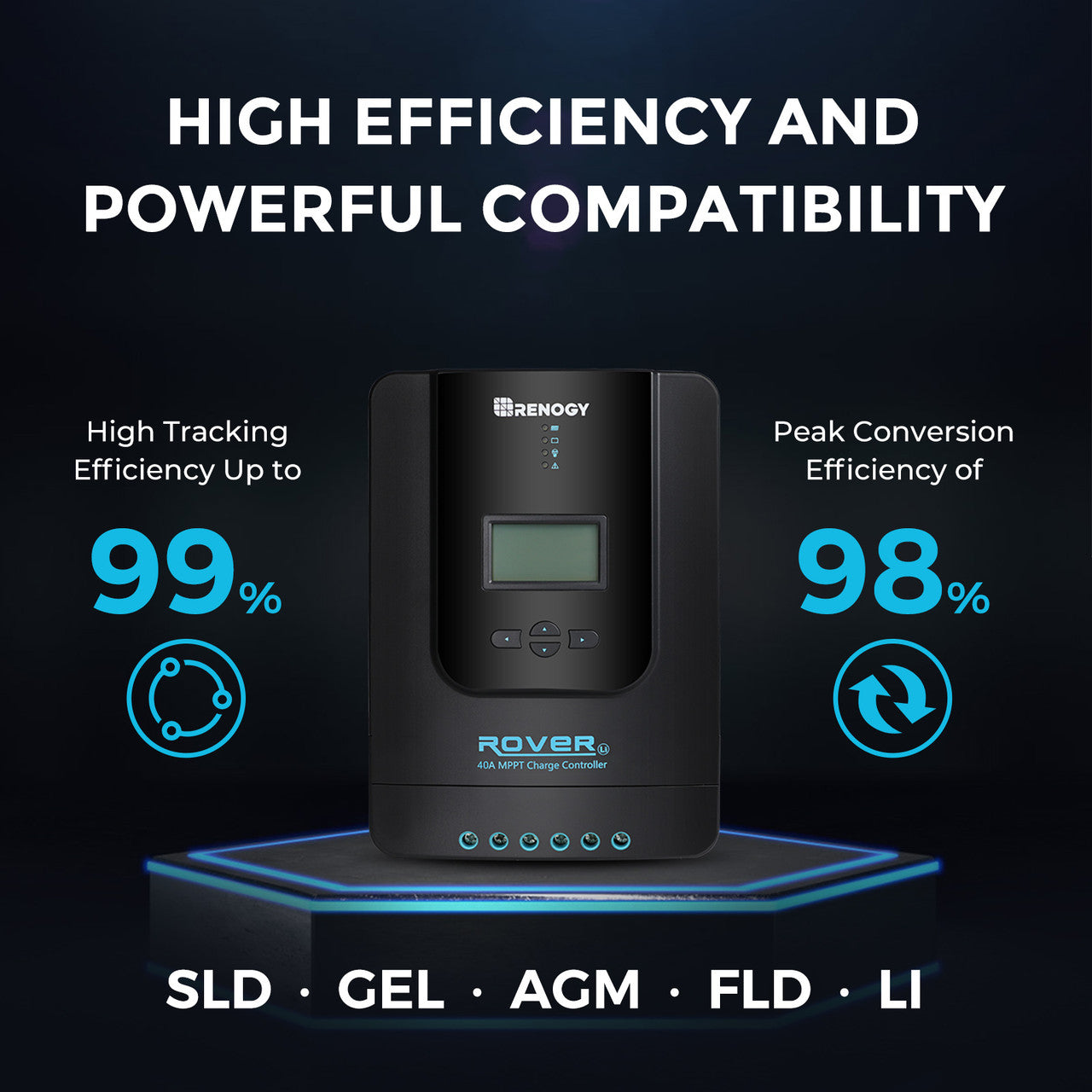

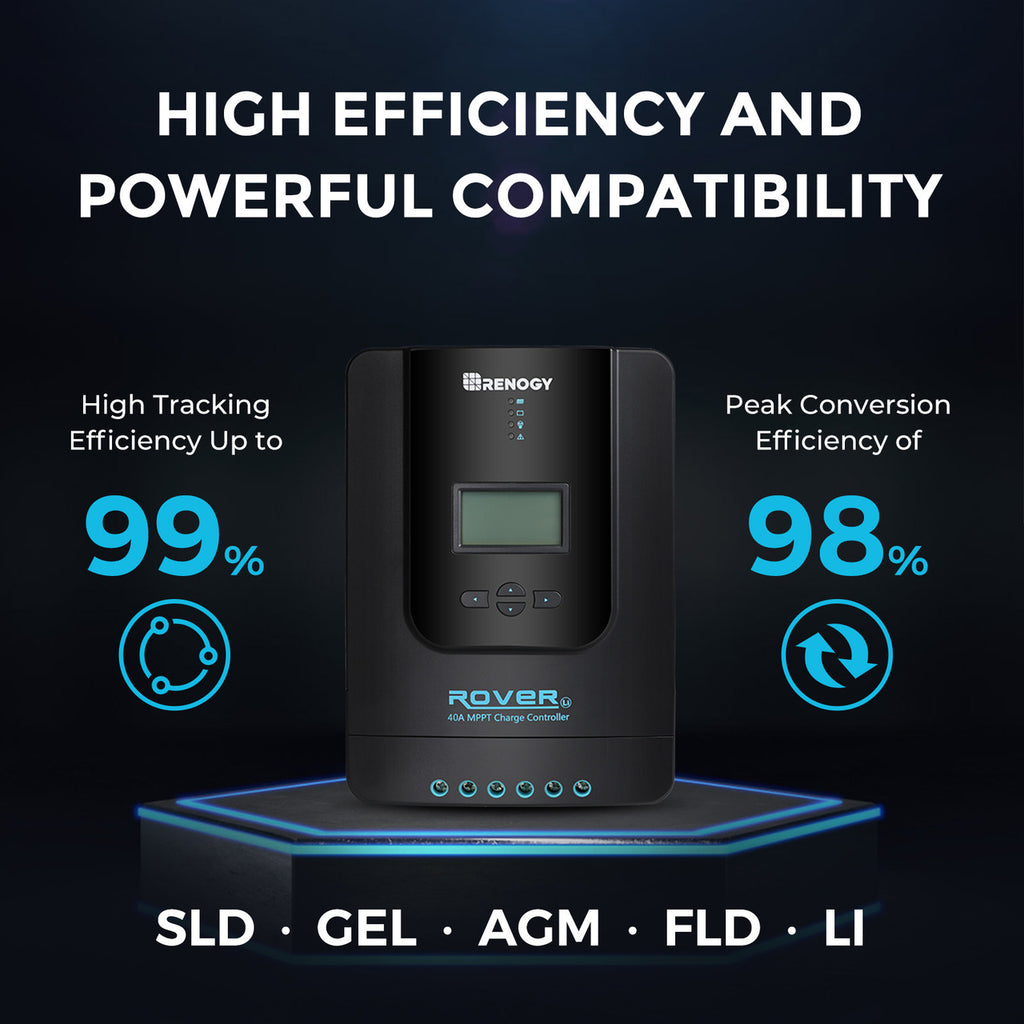

Automatically detects 12V or 24V DC system voltages, and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.
Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. EL tested, no hot-spot heating is guaranteed.
The IP65 Junction Box offers complete protection against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.
Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.
- To connect the panels in series, you do not need to use the Solar Y Branch Connectors in the kit. The included in-line fuse is intended for use ONLY with a series configuration.
- To connect the panels in parallel, you must use the included Solar Y Branch Connectors, and you will NOT be able to use the included in-line fuse.
- For a parallel configuration, we recommend installing an in-line fuse rated for a current GREATER than the sum of the short circuit current of each panel in parallel in your system.

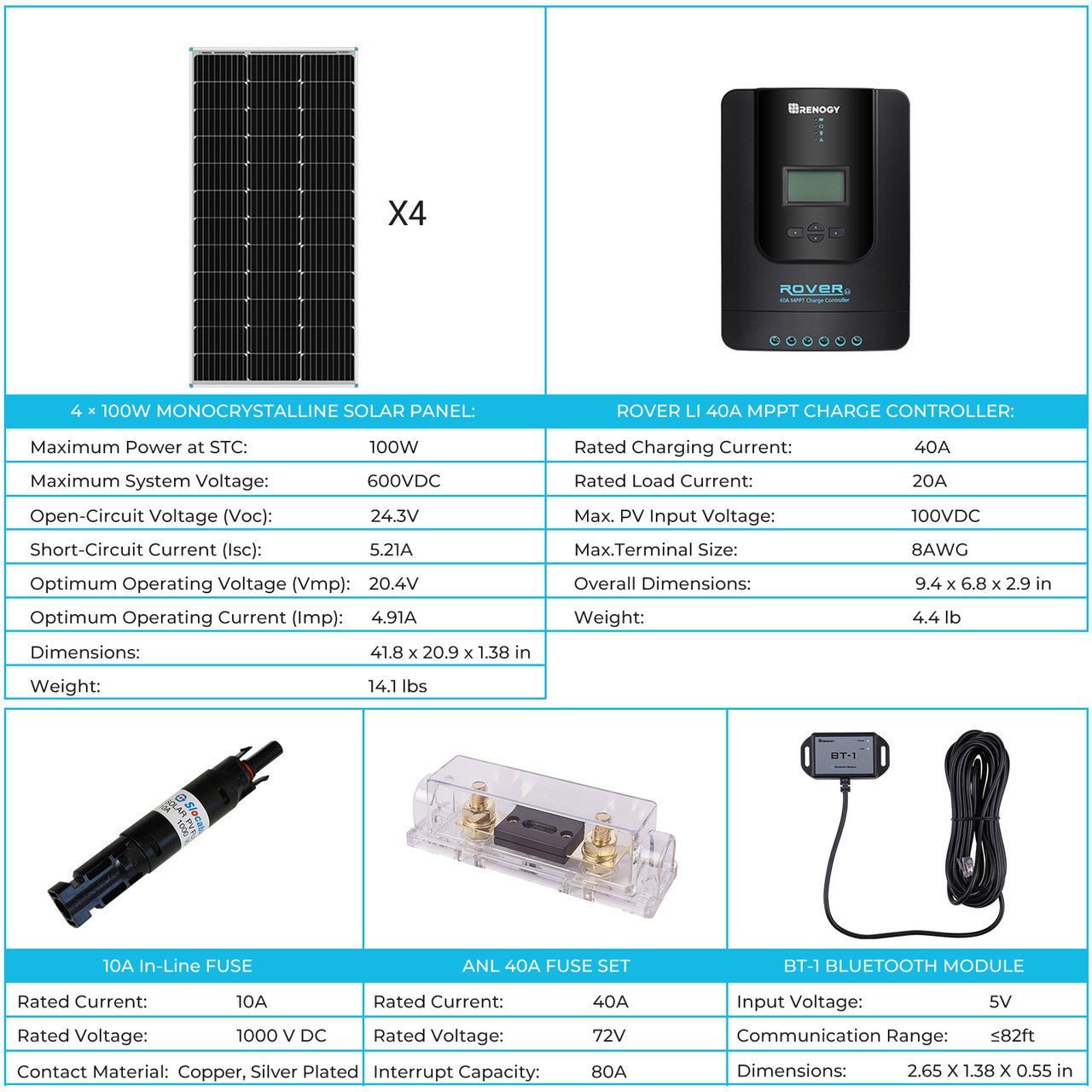

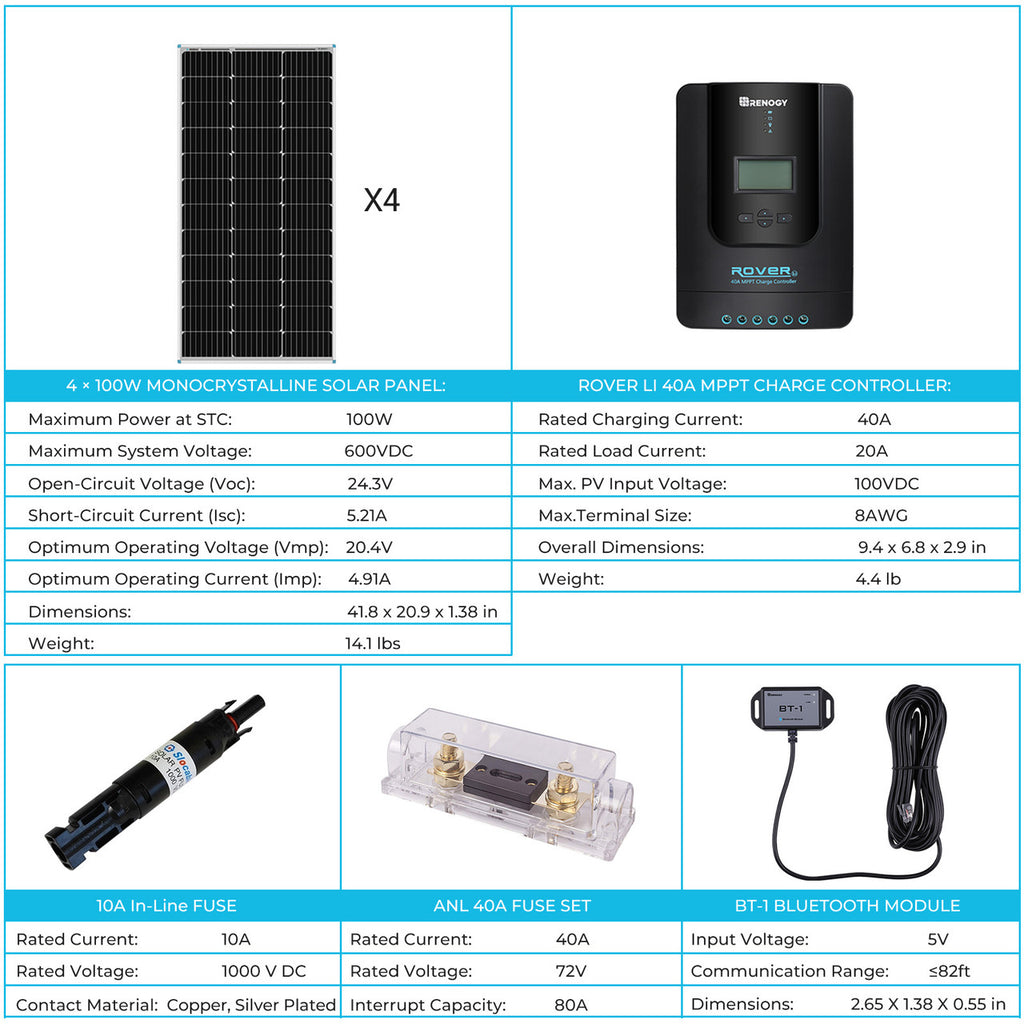

SPECIFICATION
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs/6.4kg
Nominal System Voltage: 12V/24V Auto Recognition
Rated Charge Current: 40A
Max. PV Input Voltage: 100 VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Max Battery Voltage: 32V

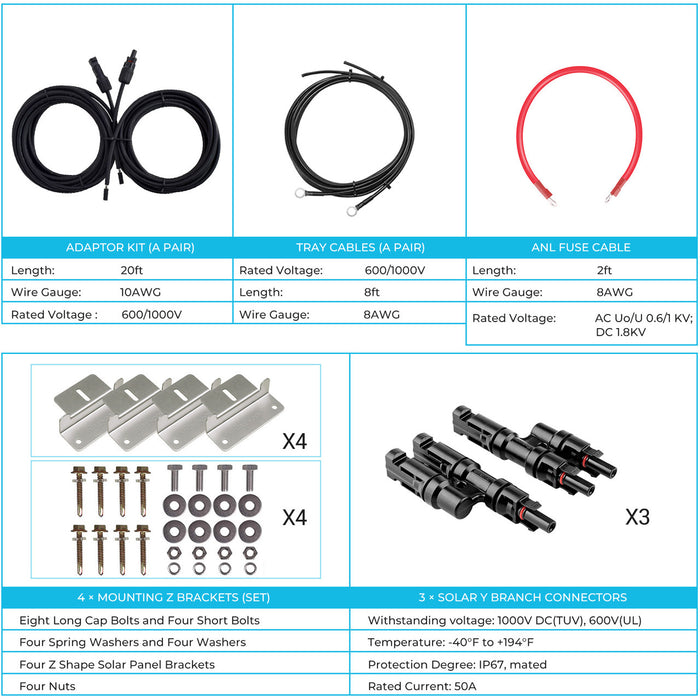

opc:

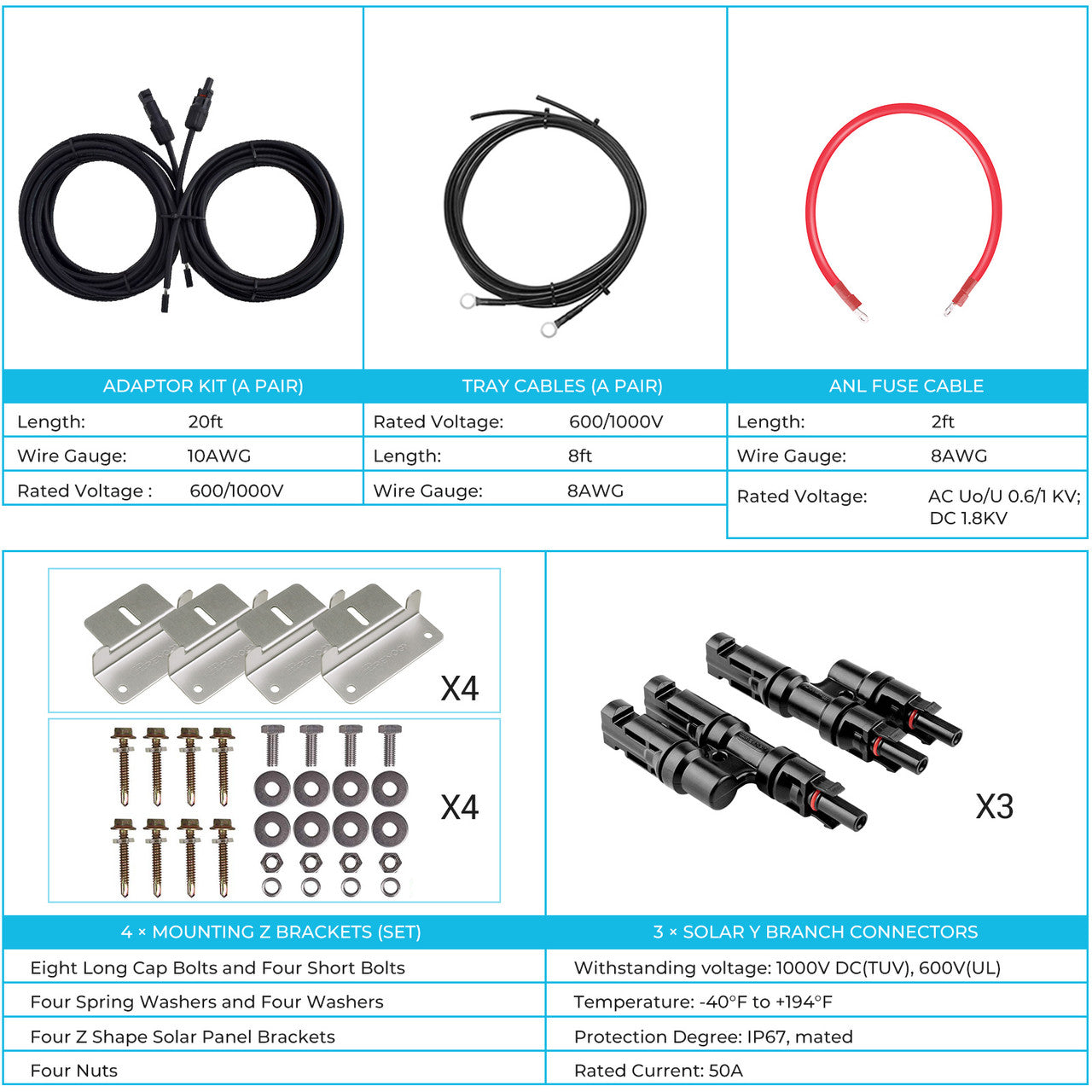

Rating Voltage: 600/1000V
Length: 8ft
Wire Gauge: 8AWG
Temperature: -40°F to +185°F
Length and Wire Gauge: 2ft and 8AWG
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature: -40°F to +194°F
opc:
Length: 20ft
Wire Gauge: 10AWG
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

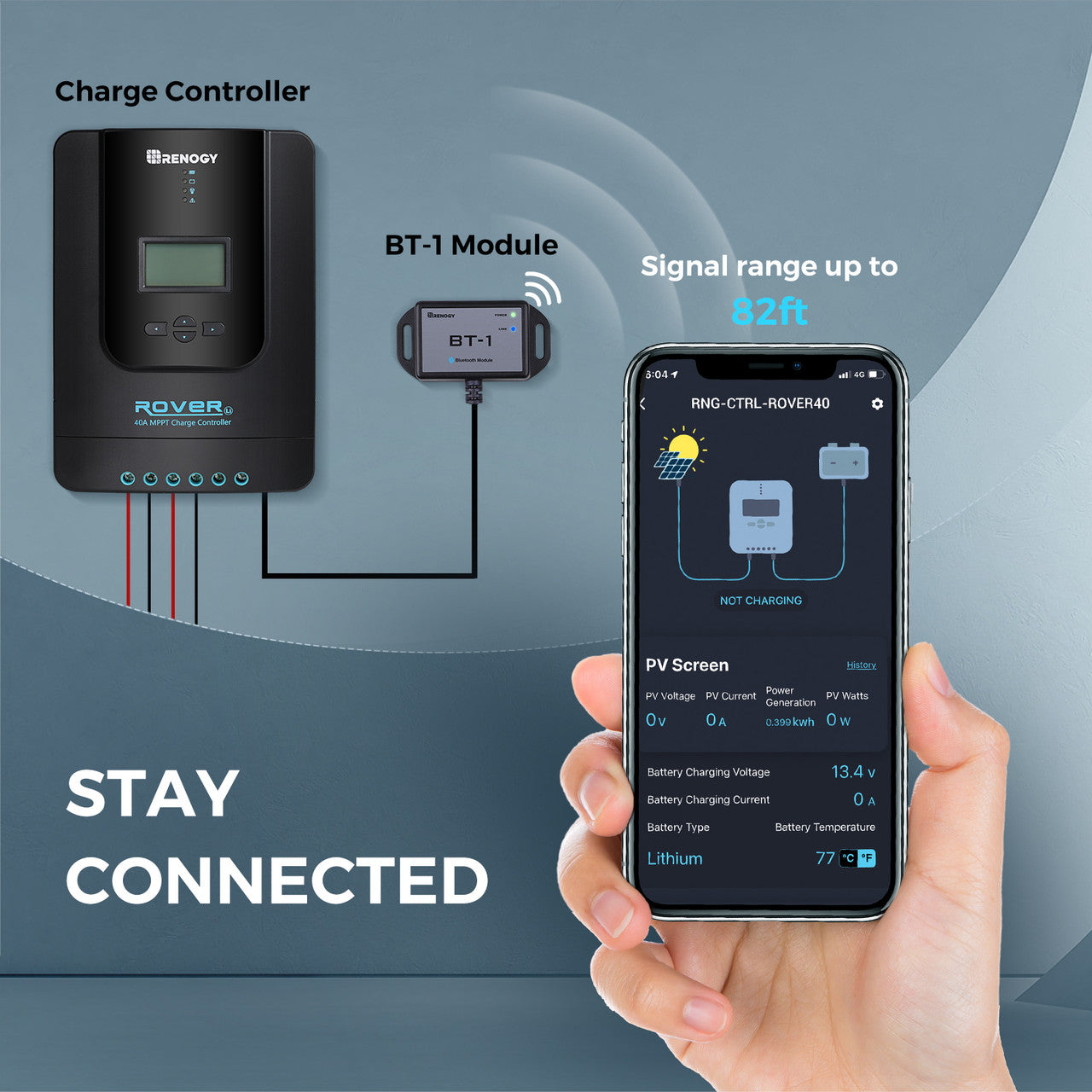

Input Voltage: 5V
Communication Range: ≤82ft
Compatibel Models: All Renogy Controllers with RJ12 port
Operation Temperature: -20℃~85℃（-4°F to 185°F）
Rated Current: 10A
Rated Voltage: 1000 V DC
Contact Material: Copper, Silver Plated
Replaceable Fuse: Cylindrical PV Fuse (10x38mm)
Current Rating: 40A
Voltage Rating: 72V
Interrupt Capacity: 80A
opc:
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Rated Current: 50A
Protection Degree: IP67, mated
Temperature : -40°F to +194°F
Protection Class: Class II
opc:
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
