DESCRIPTION

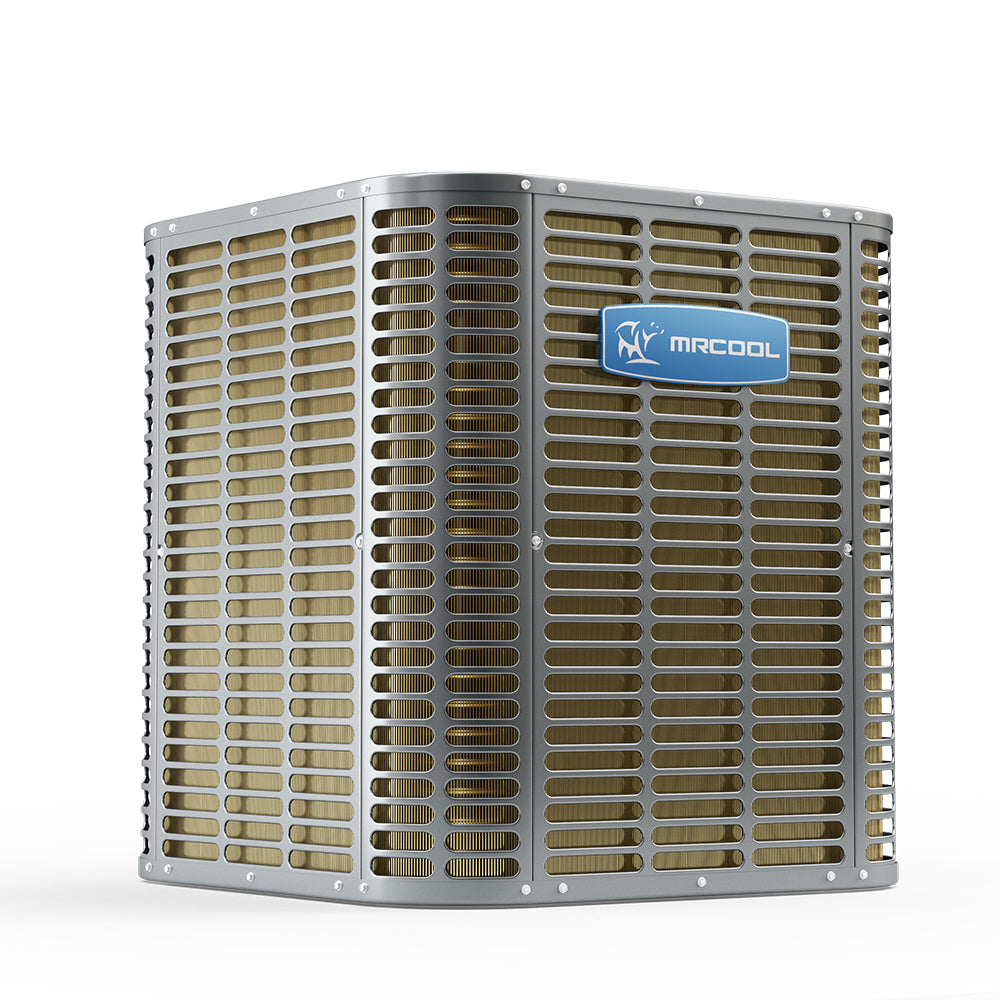

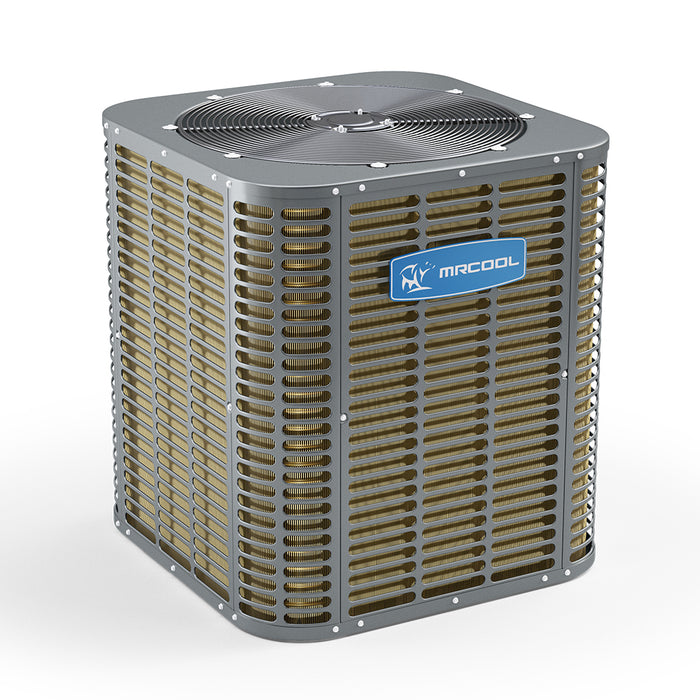

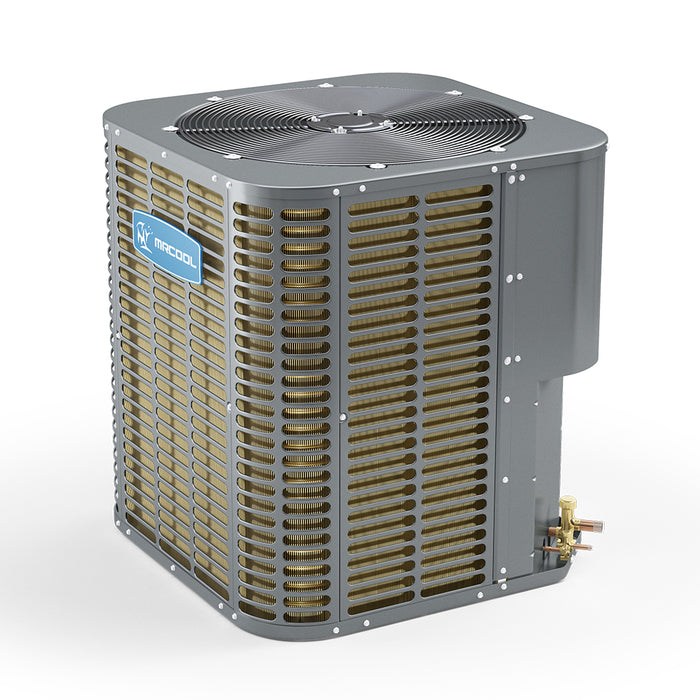

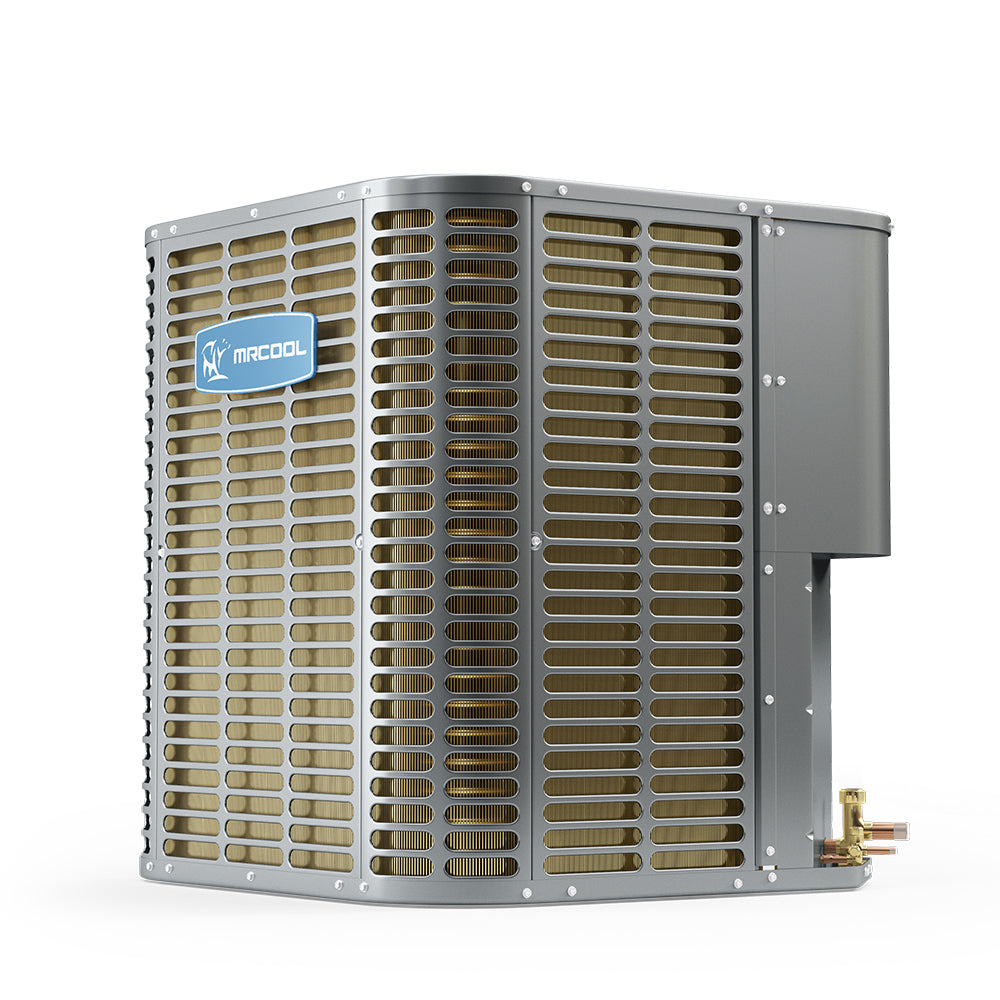

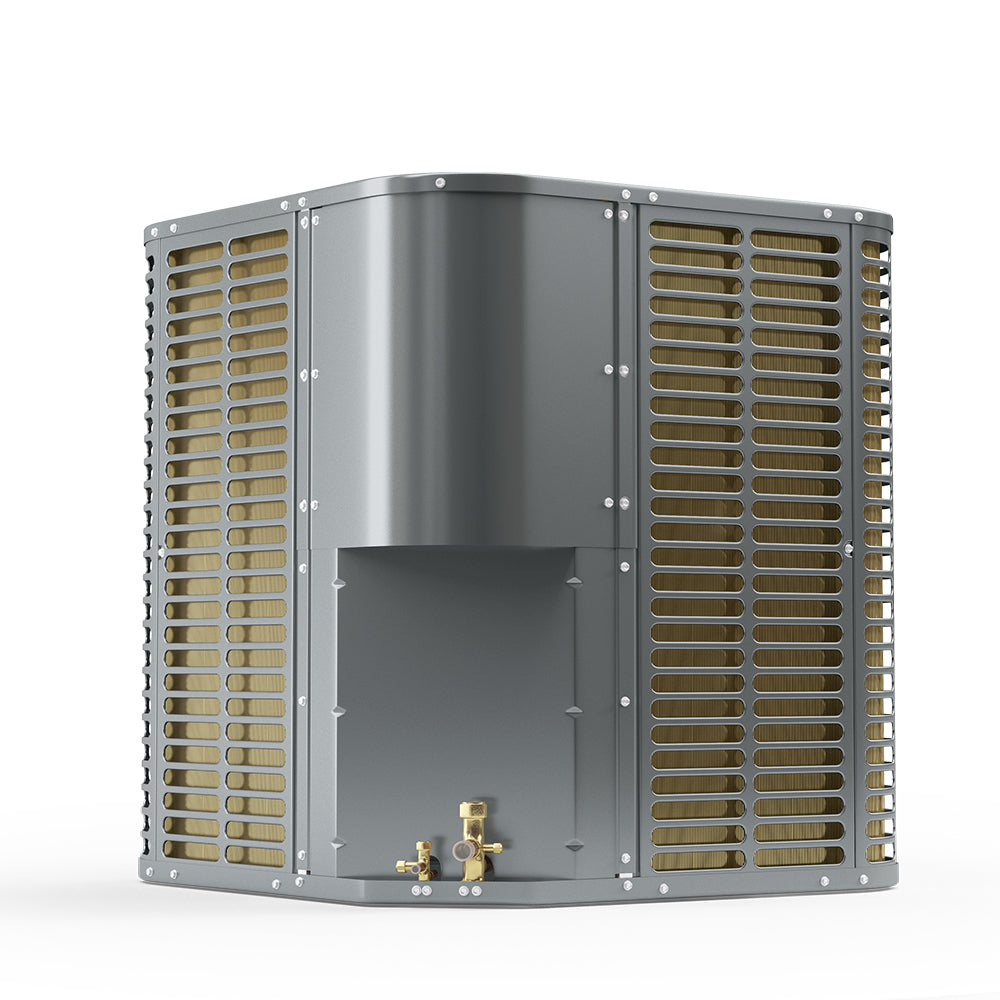

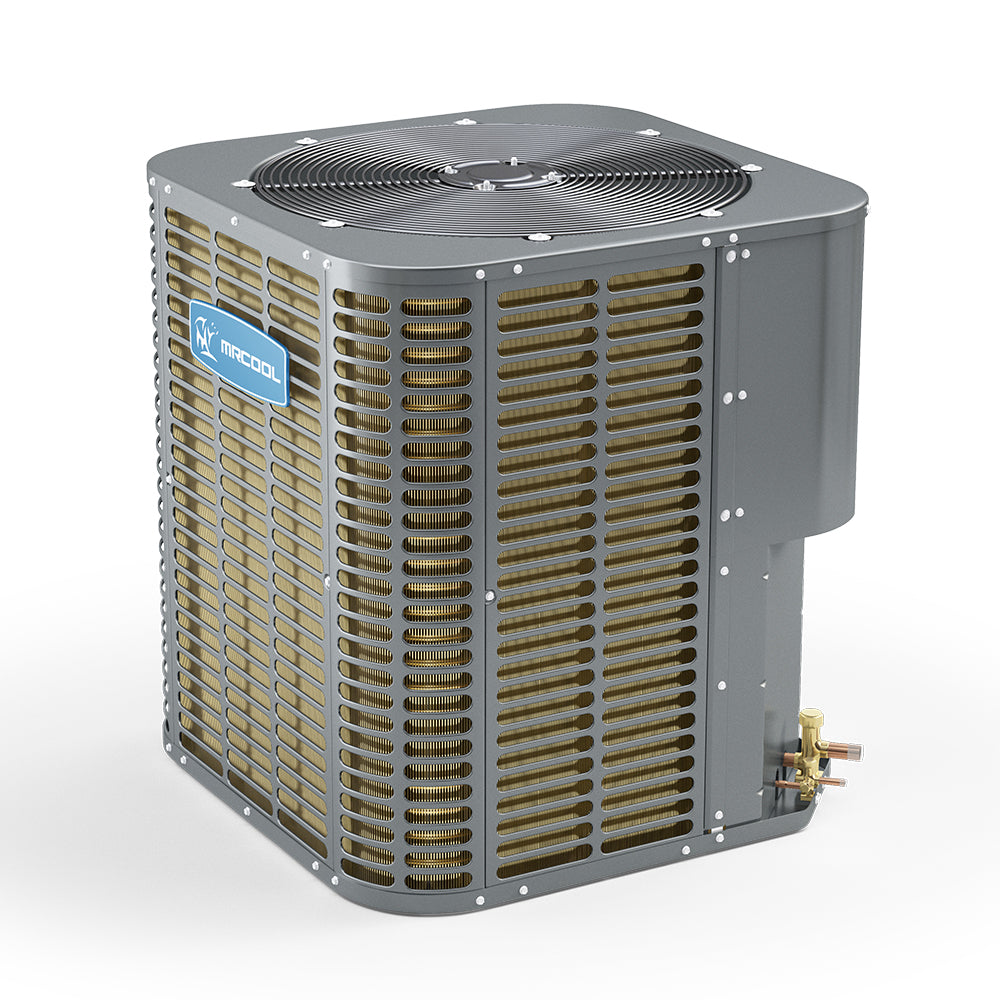

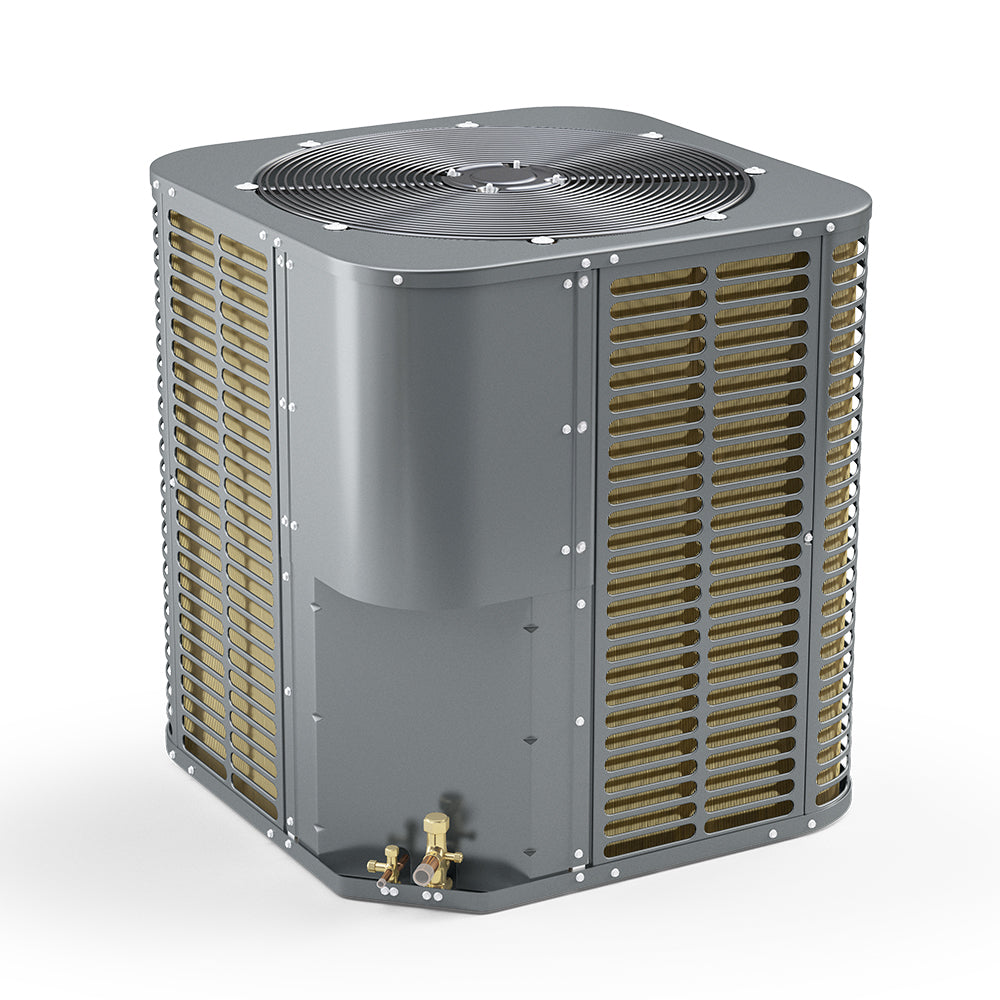

Keeping your home at a comfortable temperature is no trouble at all with the cooling power of this ProDirect 5 Ton 15 SEER Split System A/C Condenser, even in the blazing temperatures of summer. This systems scroll compressor works hard to help the R-410A refrigerant release the heat its absorbed from your home. The speed and volume of the refrigerant is also managed by the piston flow control device, which aids in boosting efficiency. This system takes comfort seriously, which is why it uses a galvanized steel cabinet to protect itself from damage, as well as a Gold Fin coating to stop water from sticking to the coils, which ensures that this system wont rust or corrode. The extra layer of insulation that this environmentally-friendly, non-toxic coating offers the system lets you enjoy better efficiency overall. Make sure to register your ETL listed, AHRI rated unit online to get your well-deserved warranty coverage. The MRCOOL ProDirect 5 Ton split system A/C condenser is the right choice for cost-effective comfort for many years to come.

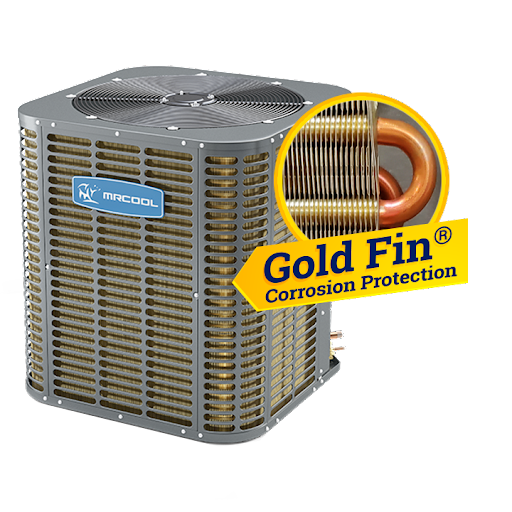

FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty15 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
32-7/8 "H x 29-1/7 "W x 29-1/7 "D |
Weight |
207 lbs |
SEER2 |
13.8 |
EER2 |
11.2 |
CFM |
3820 |
Tonnage |
5 |
Cooling Capacity |
56000 |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Refrigerant Volume |
185.18 oz |
Decibal Rating |
63 dBA |
Liquid Line Size |
3/8 in |
Suction Line Size |
7/8 in |
Compressor Motor Type |
scroll |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Parts Warranty |
10 year parts |
Proposition 65 Warning |
Yes |
Gross Depth |
29-9/10 in |
Gross Height |
34-2/5 in |
Gross Width |
29-9/10 in |
Gross Weight |
216 lbs |
PRODUCT DOCUMENTATION
BrochureInstall ManualWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
