DESCRIPTION

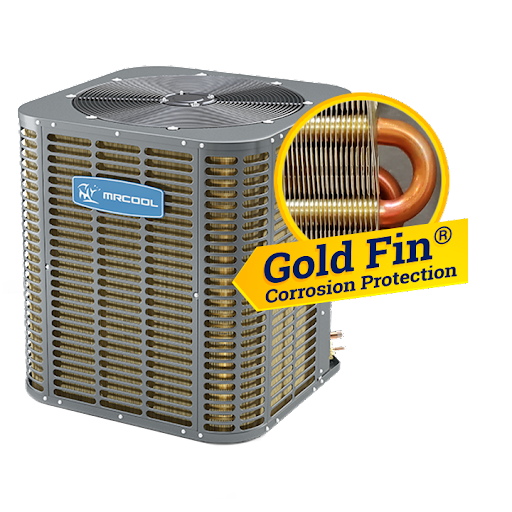

Put your comfort first for once and get rid of that old, inefficient condenser and get the MRCOOL ProDirect 3.5 Ton 15 SEER Split System Heat Pump Condenser installed for the best comfort in your home. The highly-efficient scroll compressor helps your unit bring you comfort as fast as possible with as little wasted energy as possible. The piston flow control device that manages the refrigerant also aids in increasing the systems overall efficiency. Your comfort is important, so you want a good amount of protection for the unit thats providing it for you. The galvanized steel cabinet and the Gold Fin condenser ensure that your comfort is never in danger. The gold coating is great at keeping water from the fins, meaning that rust and corrosion are never concerns. Its also environmentally friendly, non-toxic, and it improves system efficiency by providing more insulation. The warranty that you can get once you register this AHRI rated, ETL listed unit online offer further peace of mind. The MRCOOL ProDirect 3.5 ton split system heat pump condenser will offer you years upon years of total rest and relaxation.
FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty15 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
32-7/8 "H x 29-1/7 "W x 29-1/7 "D |
Weight |
207 lbs |
SEER2 |
14.3 |
EER2 |
11.7 |
HSPF2 |
7.5 |
CFM |
3820 |
Tonnage |
3.5 |
Cooling Capacity |
39000 |
Heating Capacity |
42600 |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Refrigerant Volume |
148.15 oz |
Decibal Rating |
63 dBA |
Liquid Line Size |
3/8 in |
Suction Line Size |
3/4 in |
Compressor Motor Type |
scroll |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Parts Warranty |
10 year parts |
Proposition 65 Warning |
Yes |
Gross Depth |
29-9/10 in |
Gross Height |
34-2/5 in |
Gross Width |
29-9/10 in |
Gross Weight |
207 lbs |
