DESCRIPTION

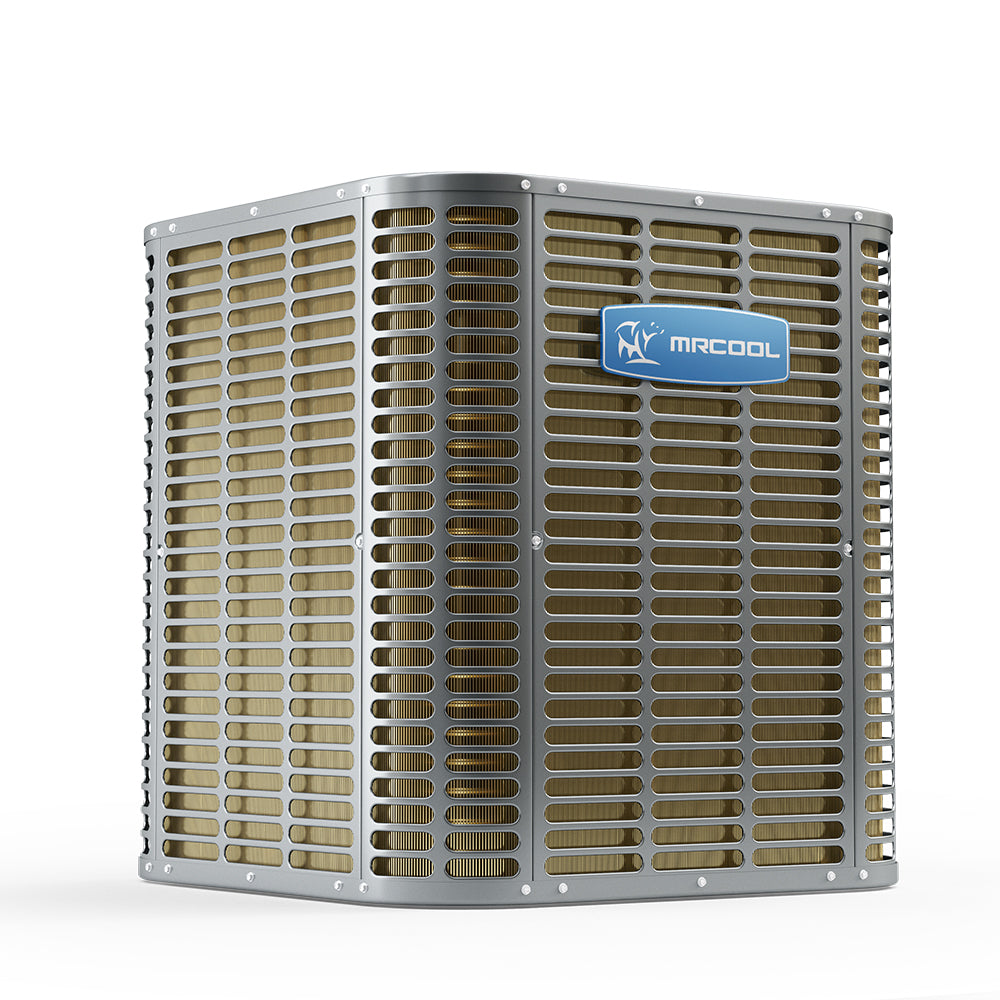

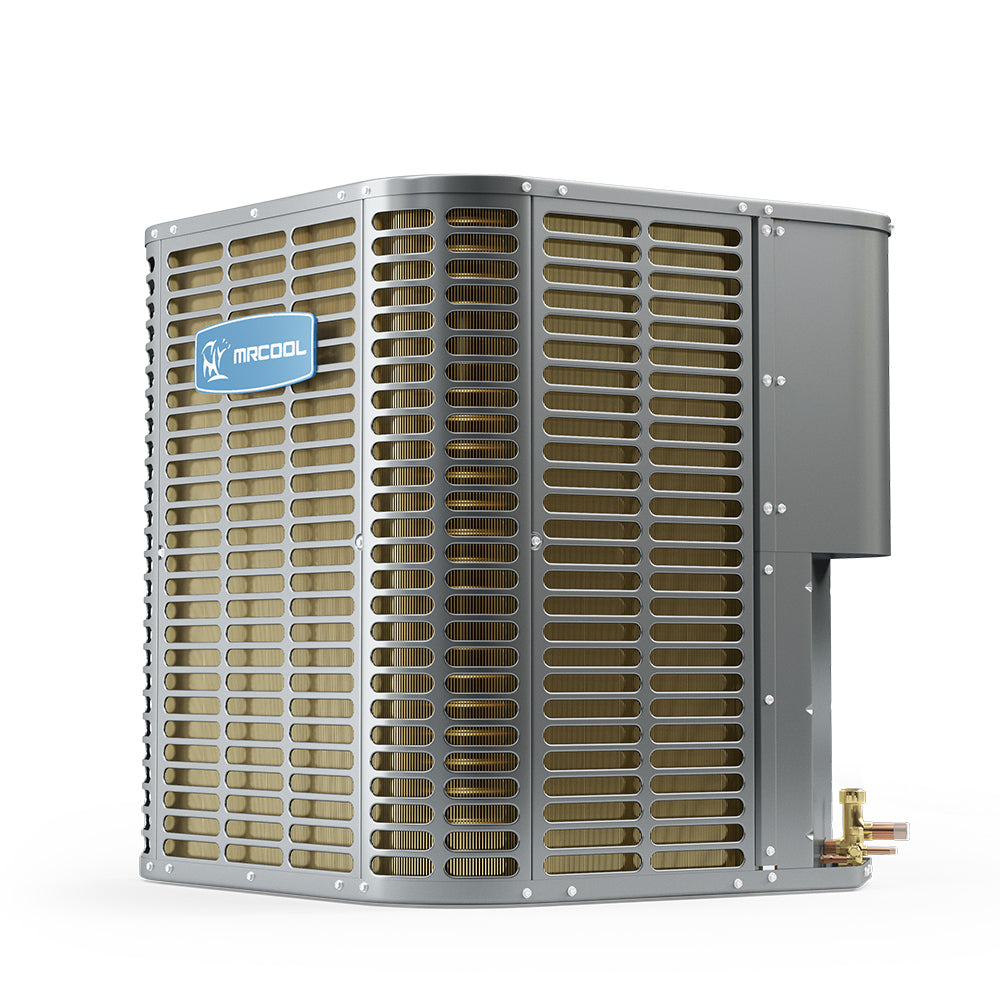

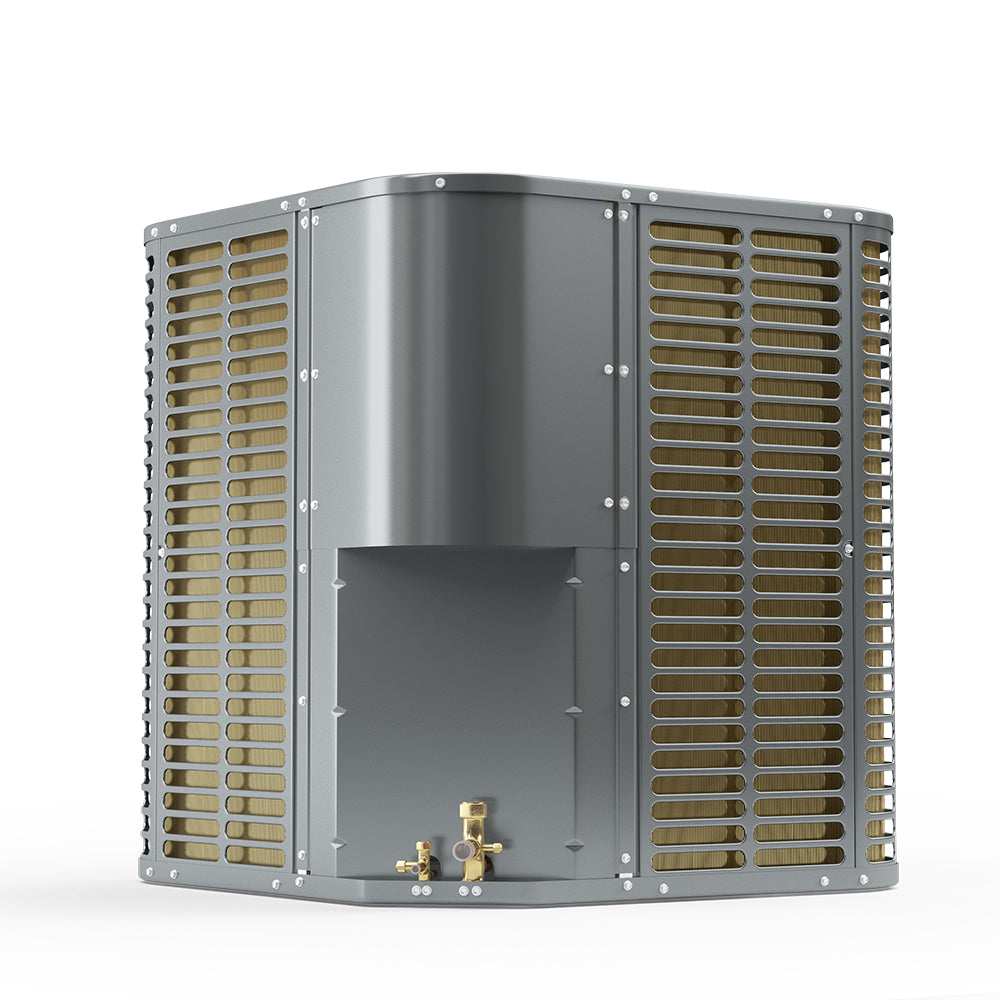

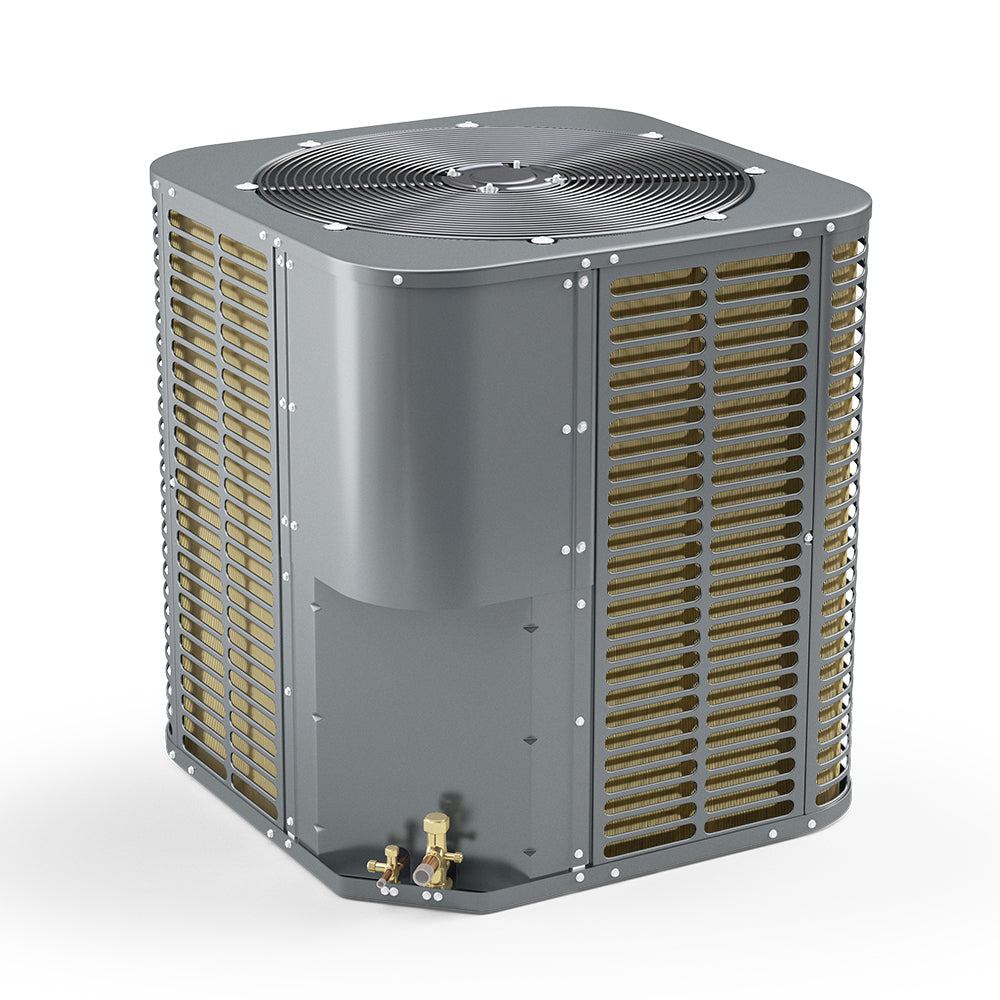

Treat yourself to the comfort youve always dreamed of, especially if youve had to endure summer after summer of sweaty discomfort, with the ProDirect 3 Ton 14 SEER Split System A/C Condenser. The rotary compressor within this system can process refrigerant extremely quickly to get your home feeling the precise temperature you prefer. The piston flow control device can bump your systems efficiency levels up significantly, too. The safety of your system is a priority, because if something happens to it, youve lost your source of comfort! Thats why you can rely on the galvanized steel cabinet and the Gold Fin coil coating to keep your unit running as if its brand new! This environmentally-friendly and non-toxic coating can keep water from sticking to the coils of your unit so rust cant form. This AHRI certified and ETL listed unit is further protected by a reliable warranty once you register it online. Dont be disappointed by an uncomfortable summer ever again with this MRCOOL ProDirect 3 Ton split system A/C condenser providing you comfort.

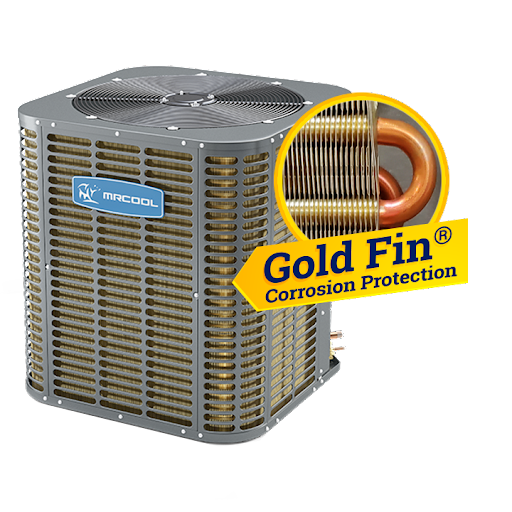

FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty14 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
24-15/16"H x 29-1/8"W x 29-1/8"D |
Weight |
157 lbs |
SEER |
14 |
EER |
11.7 |
CFM |
2800 |
Cooling Capacity |
34500 BTU |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
30 A |
Refrigerant Type |
R-410A |
Refrigerant Volume |
123.46 oz |
Decibal Rating |
60 dBA |
Air Flow Direction |
4-way |
Number of Speeds |
3 Speed |
Max Lineset Length |
50ft max |
Liquid Line Size |
3/8in |
Suction Line Size |
3/4in |
Compressor Motor Type |
Rotary |
Condenser Fan Motor RPM |
850 |
Auxiliary Heater Available |
Yes |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Warranty |
10 Year Limited Warranty |
Proposition 65 Warning |
Yes |
Gross Depth |
30-1/10in |
Gross Height |
26-1/10in |
Gross Width |
30-1/10in |
Gross Weight |
163 lbs |
Restricted States |
CA;NV;AZ;NM |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
