DESCRIPTION

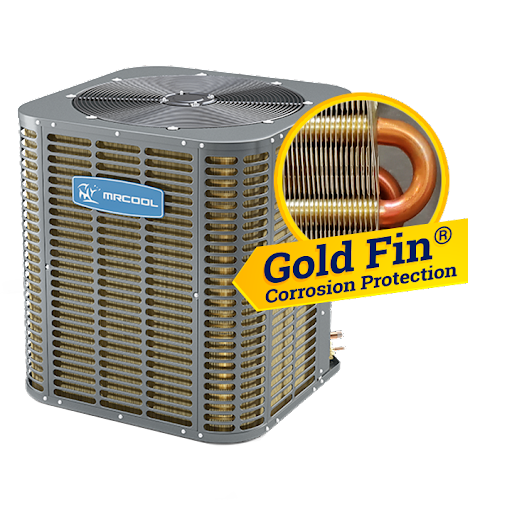

Take your comfort to the next level by replacing your current faulty comfort system with the MRCOOL ProDirect 3 Ton 15 SEER Split System Heat Pump Condenser. This condenser uses a rotary compressor, which efficiently gets the R-410A refrigerant ready to help bring you comfort, as well as a piston flow control device to heighten efficiency levels. Get ready to experience cost-effective comfort all year long. This unit has many protective features, like the galvanized steel cabinet and the Gold Fin coil coating. This attractive, environmentally-friendly, non-toxic coating is great for keeping corrosion and rust far from your unit by making the fins waterproof. It also coats the unit in another layer of insulation, making this system far more efficient than any other youve seen. Protect yourself from future stress by registering this unit online so you can benefit from MRCOOL's superior warranty support. To make your household feel as comfortable as you deserve, put the MRCOOL ProDirect 3 ton split system heat pump condenser to work in your home to give you comfort for years to come.
FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty15 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
25 "H x 29-1/7 "W x 29-1/7 "D |
Weight |
156 lbs |
SEER2 |
14.3 |
EER2 |
11.7 |
HSPF2 |
7.5 |
CFM |
3350 |
Tonnage |
3 |
Cooling Capacity |
33300 |
Heating Capacity |
32700 |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Refrigerant Volume |
123.46 oz |
Decibal Rating |
61 dBA |
Liquid Line Size |
3/8 in |
Suction Line Size |
3/4 in |
Compressor Motor Type |
scroll |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Parts Warranty |
10 year parts |
Proposition 65 Warning |
Yes |
Gross Depth |
29-9/10 in |
Gross Height |
25-9/10 in |
Gross Width |
29-9/10 in |
Gross Weight |
156 lbs |
PRODUCT DOCUMENTATION
BrochureInstall ManualWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
