DESCRIPTION

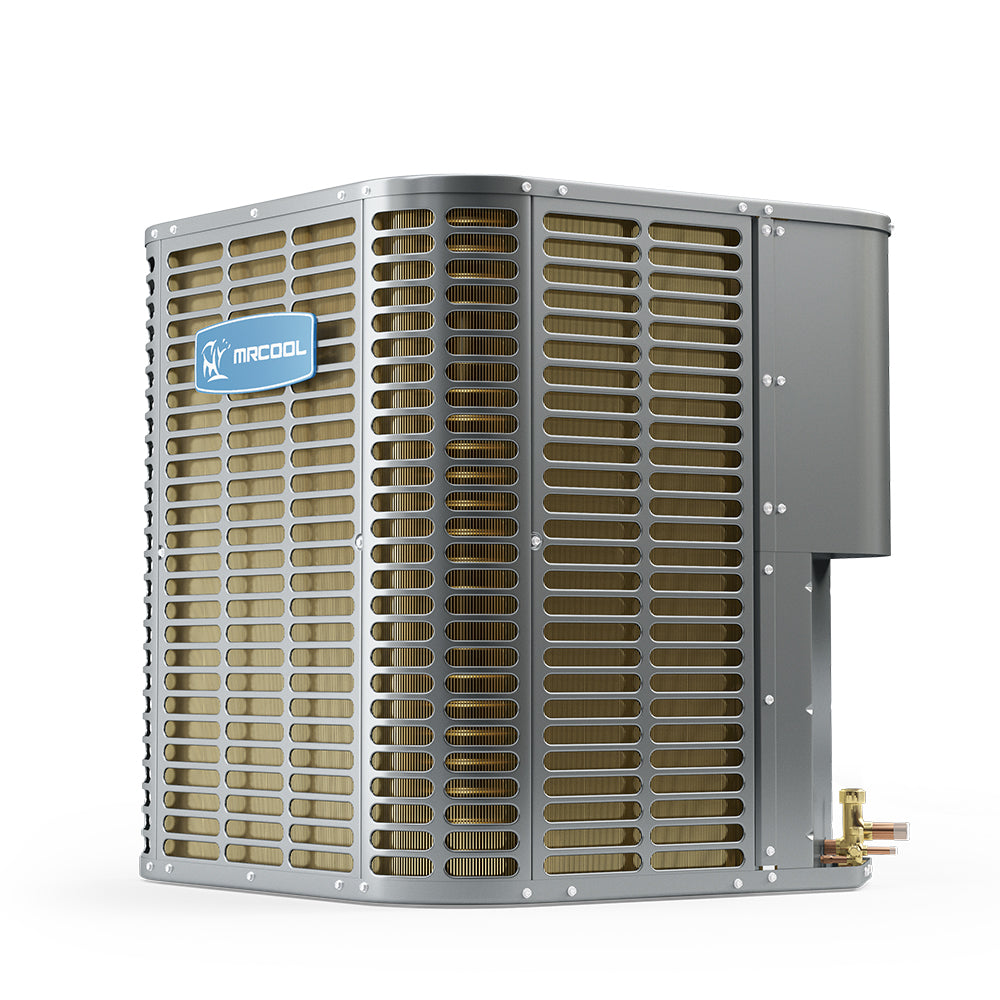

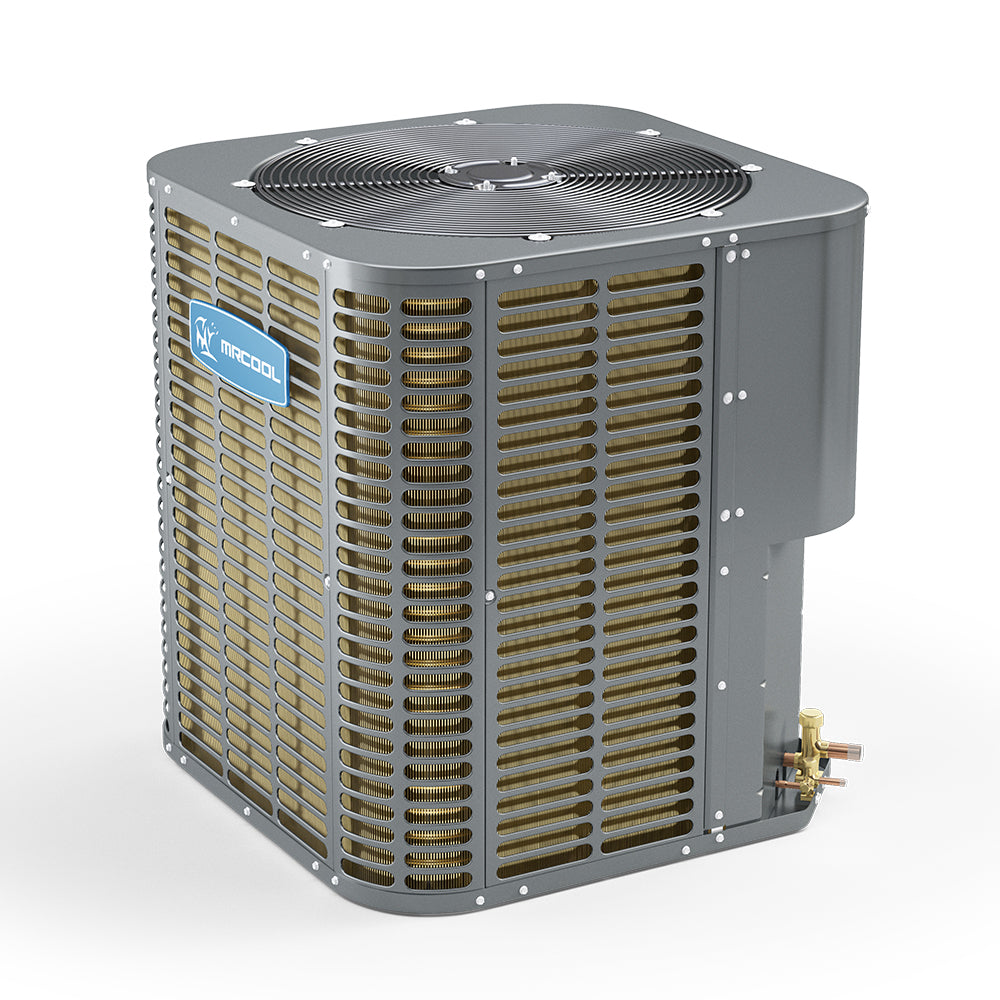

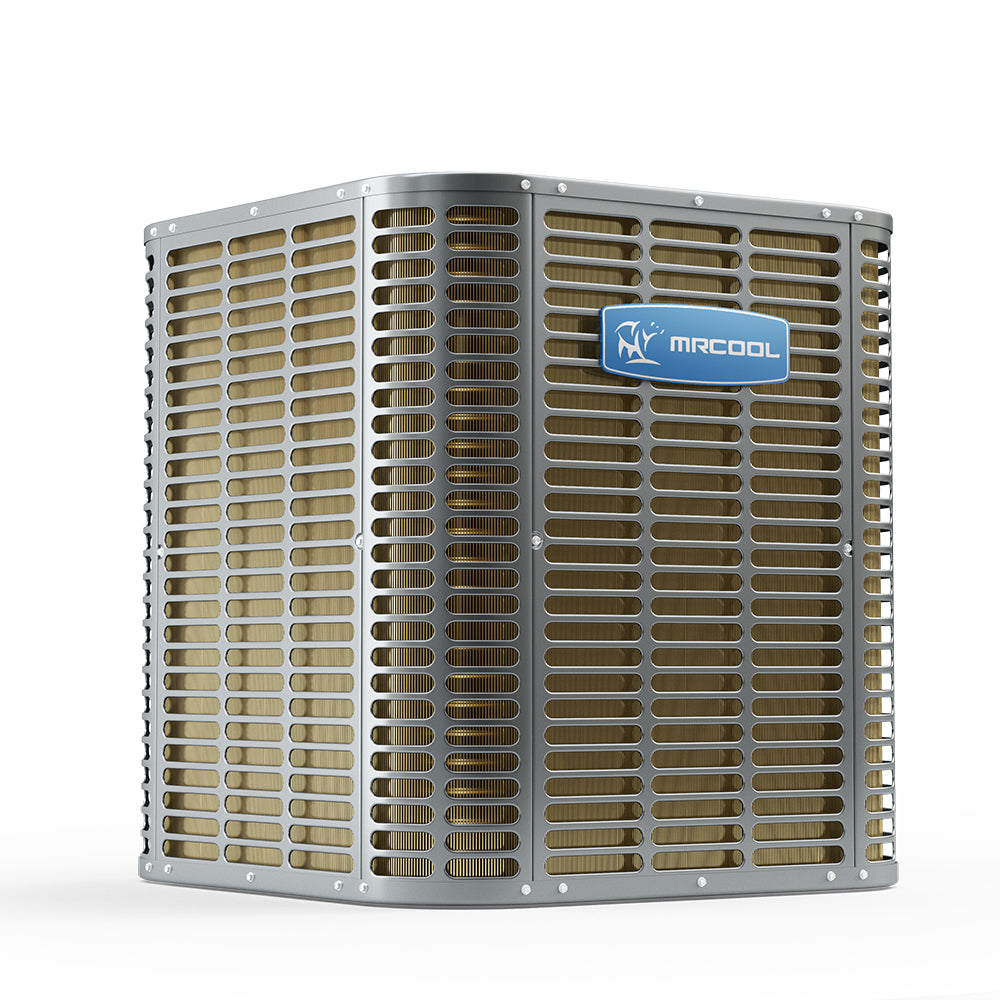

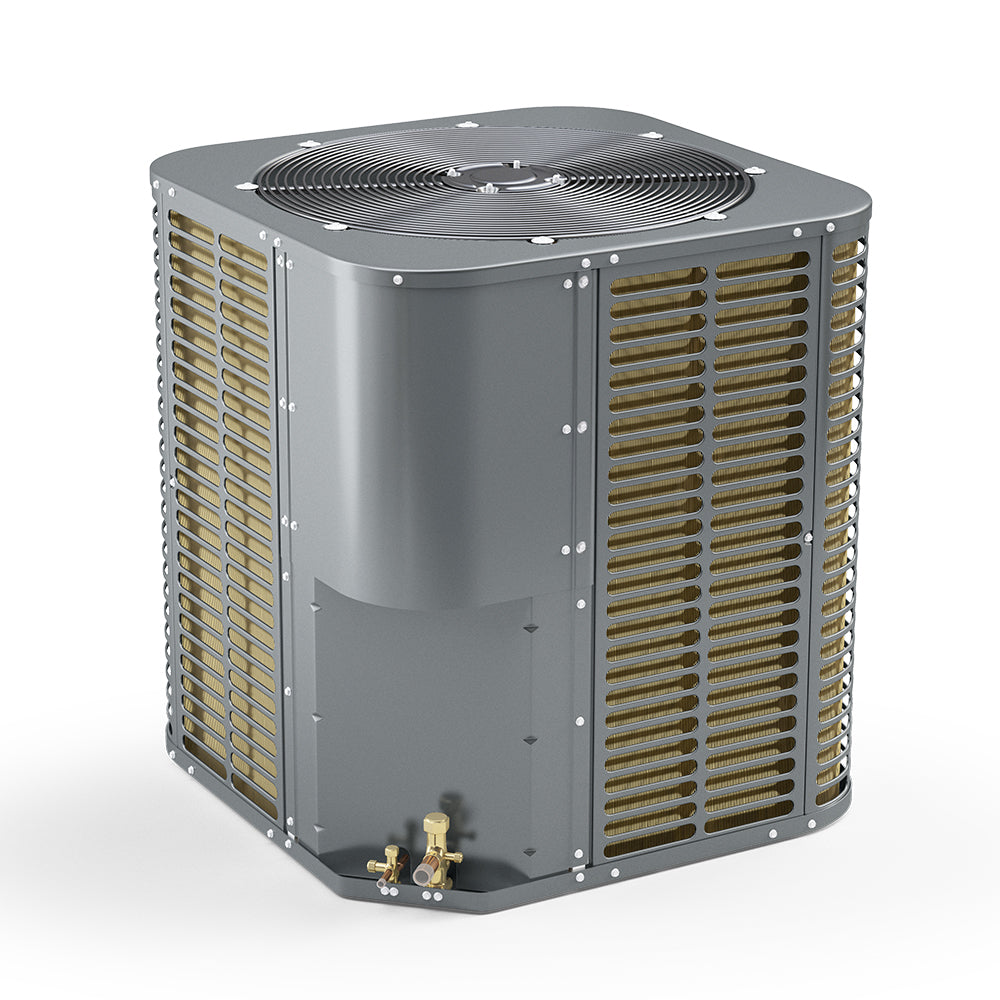

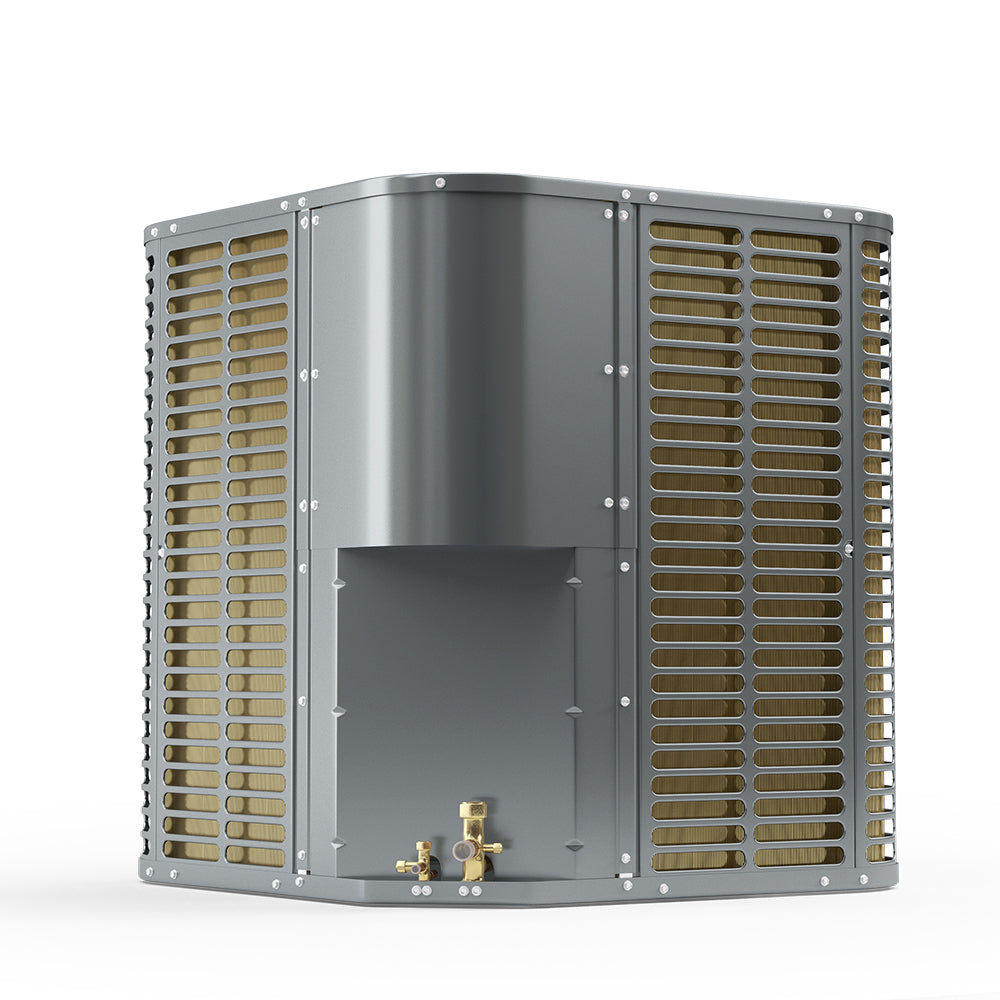

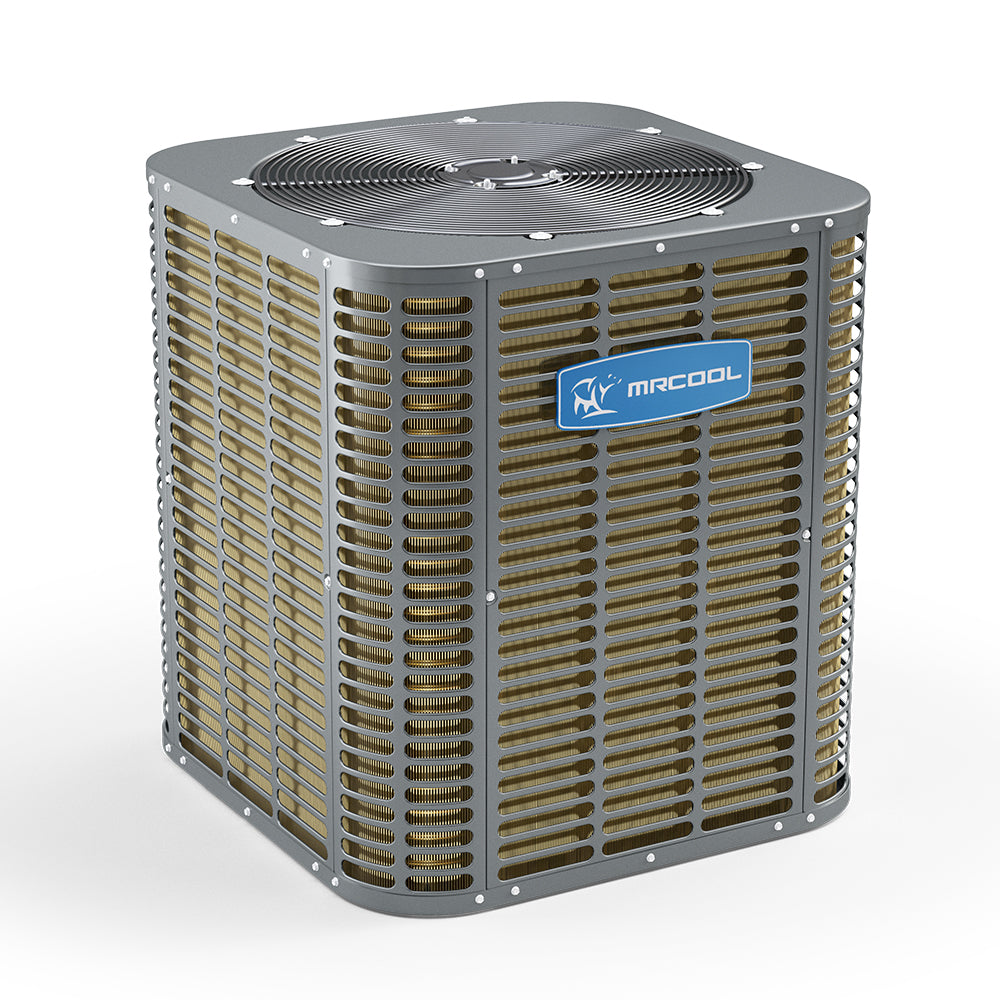

Protect your home from this and many other summers arid heat with the power of the MRCOOL ProDirect 2 Ton 15 SEER Split System A/C Condenser. The rotary compressor that works to compress and move the R-410A refrigerant throughout the system and through the piston flow control device is intensely efficient and cost-effective. The parts of this condenser will never let you break a sweat this summer. Your system is well-protected too, which means your comfort is well-protected. The galvanized steel cabinet guards the more delicate parts inside, and the Gold Fin coating completely stops water from rusting the coils. This coating, which is environmentally friendly and non-toxic, can even make your system more efficient by providing another layer of insulation. With a long term warranty, this ETL listed and AHRI rated condenser will impress you with its cooling power every single day. Take your comfort seriously and choose something that will give you many summers of consistent cooling power, like the MRCOOL ProDirect 2 ton split system A/C condenser.

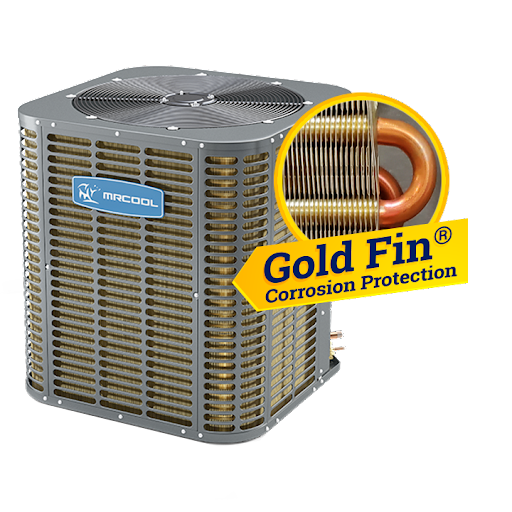

FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty15 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
25 "H x 21-4/5 "W x 21-4/5 "D |
Weight |
123 lbs |
SEER2 |
14.3 |
EER2 |
11.7 |
CFM |
1990 |
Tonnage |
2 |
Cooling Capacity |
23600 |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Refrigerant Volume |
98.76 oz |
Decibal Rating |
60 dBA |
Liquid Line Size |
3/8 in |
Suction Line Size |
3/4 in |
Compressor Motor Type |
scroll |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Parts Warranty |
10 year parts |
Proposition 65 Warning |
Yes |
Gross Depth |
22-3/5 in |
Gross Height |
25-9/10 in |
Gross Width |
22-3/5 in |
Gross Weight |
129 lbs |
PRODUCT DOCUMENTATION
BrochureInstall ManualWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
