DESCRIPTION

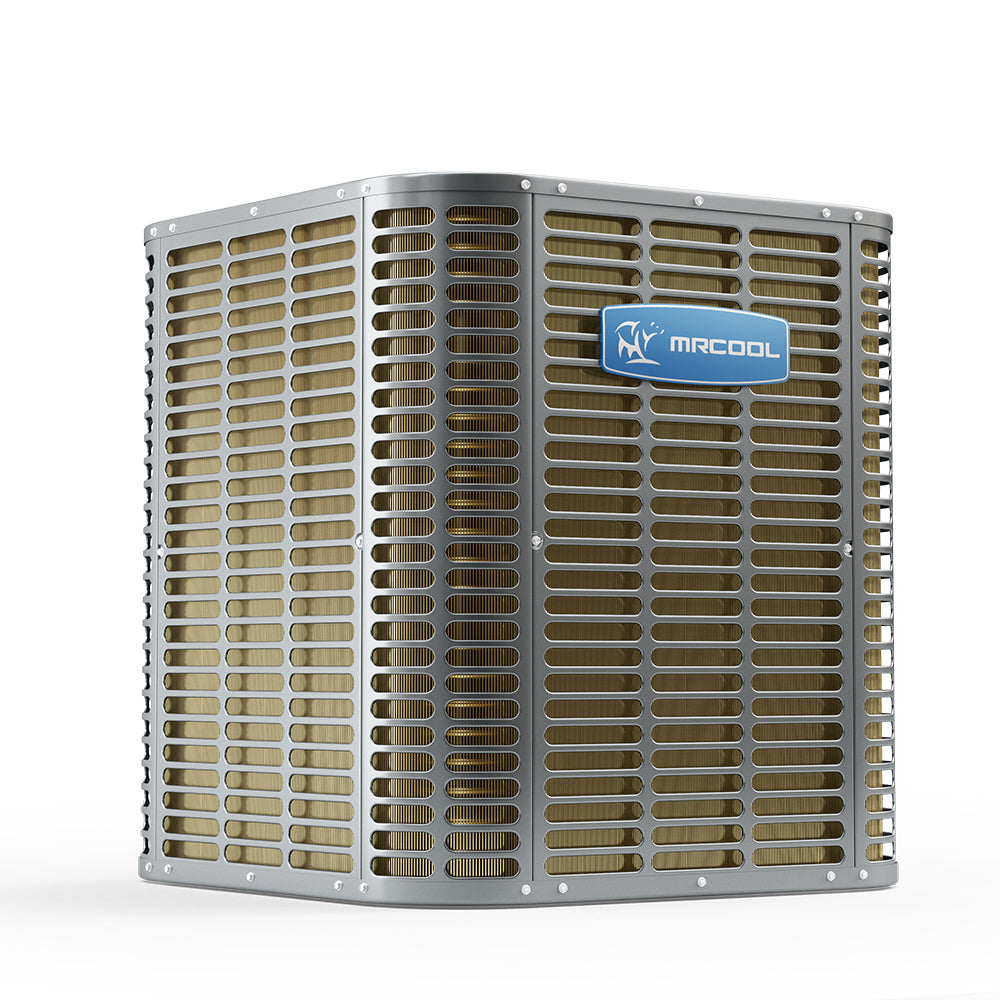

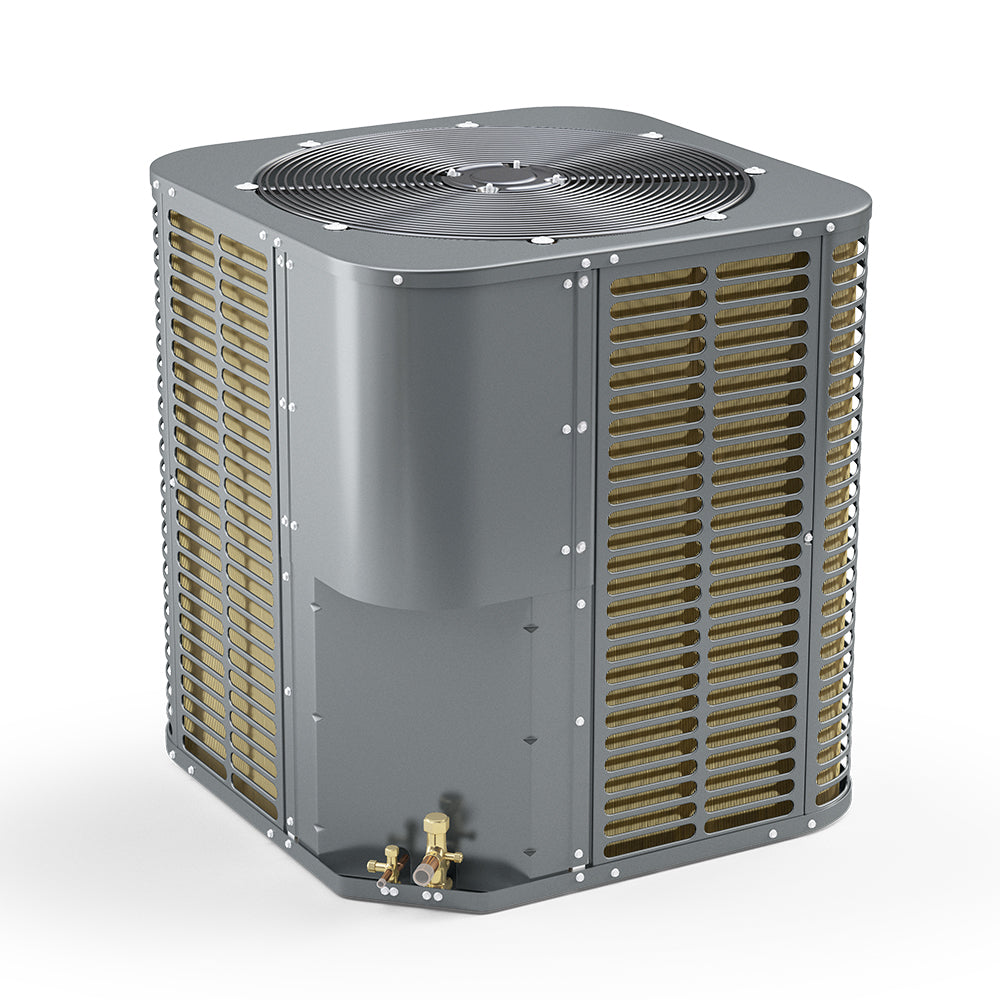

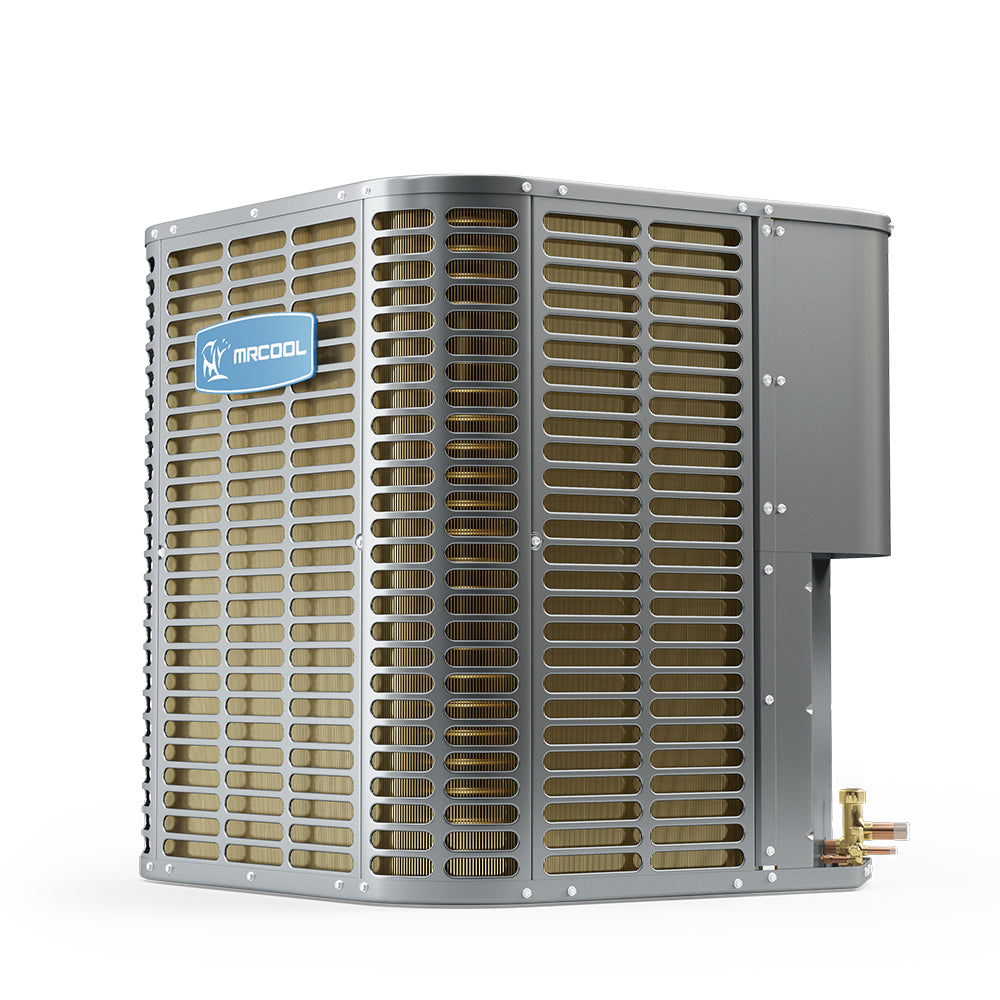

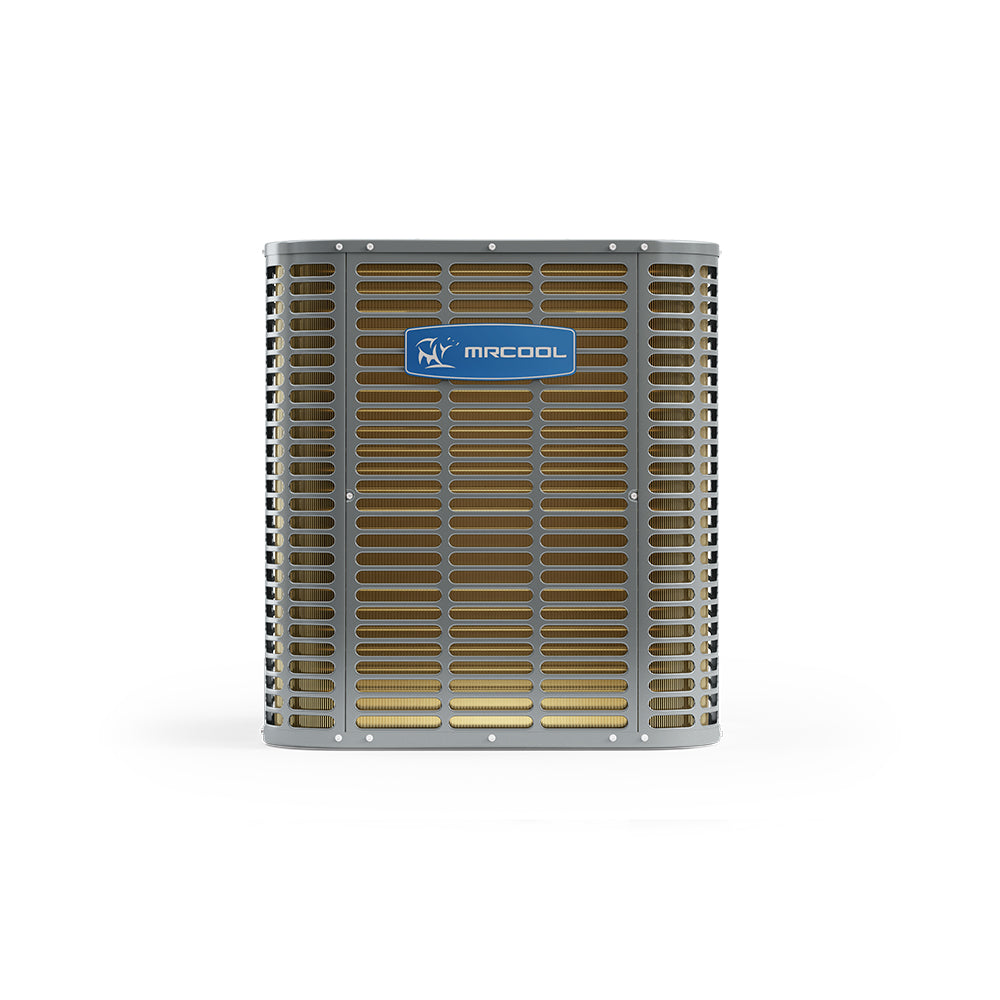

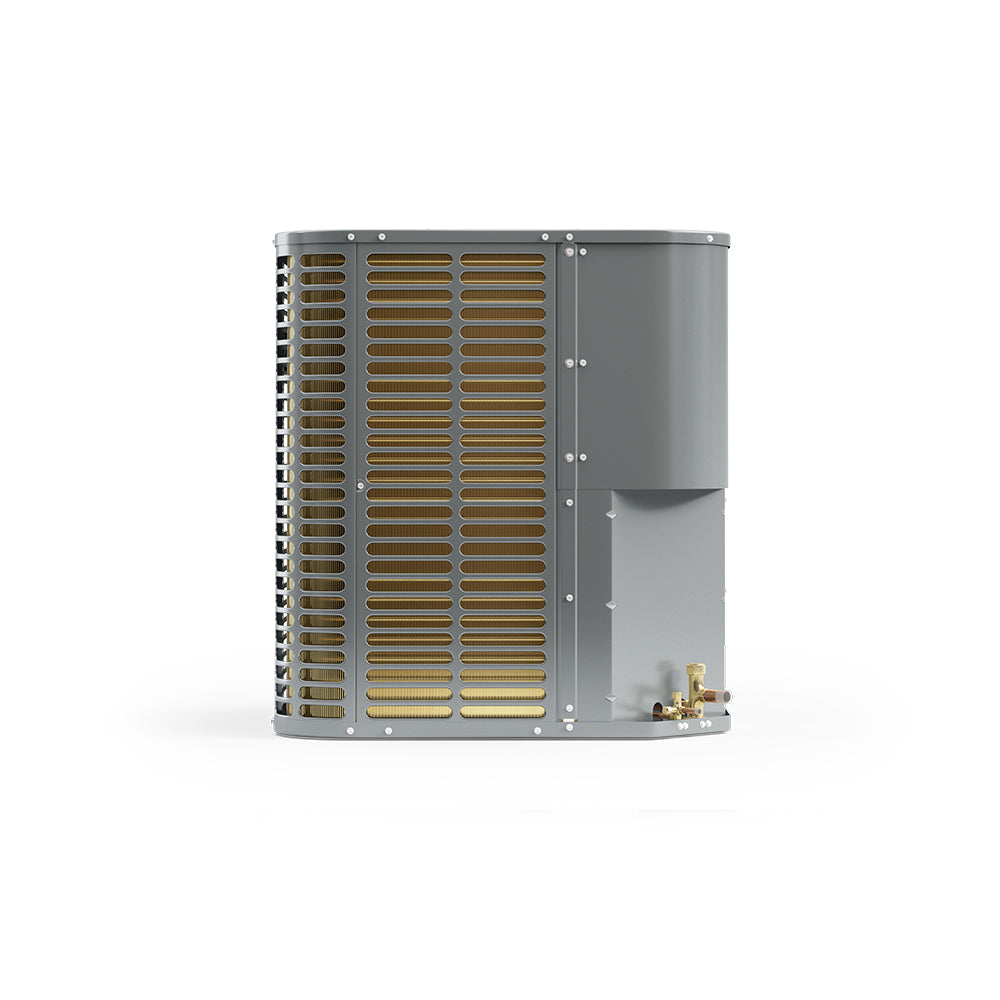

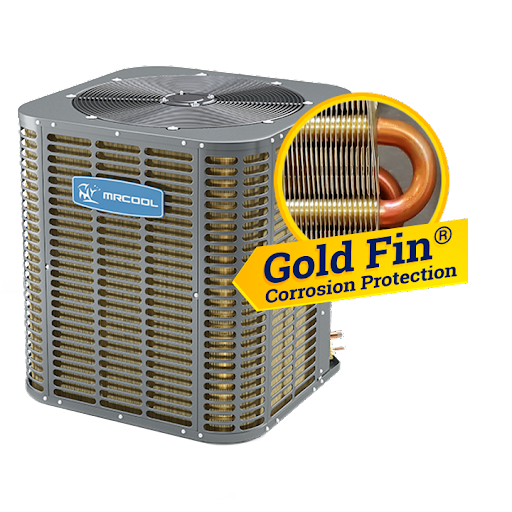

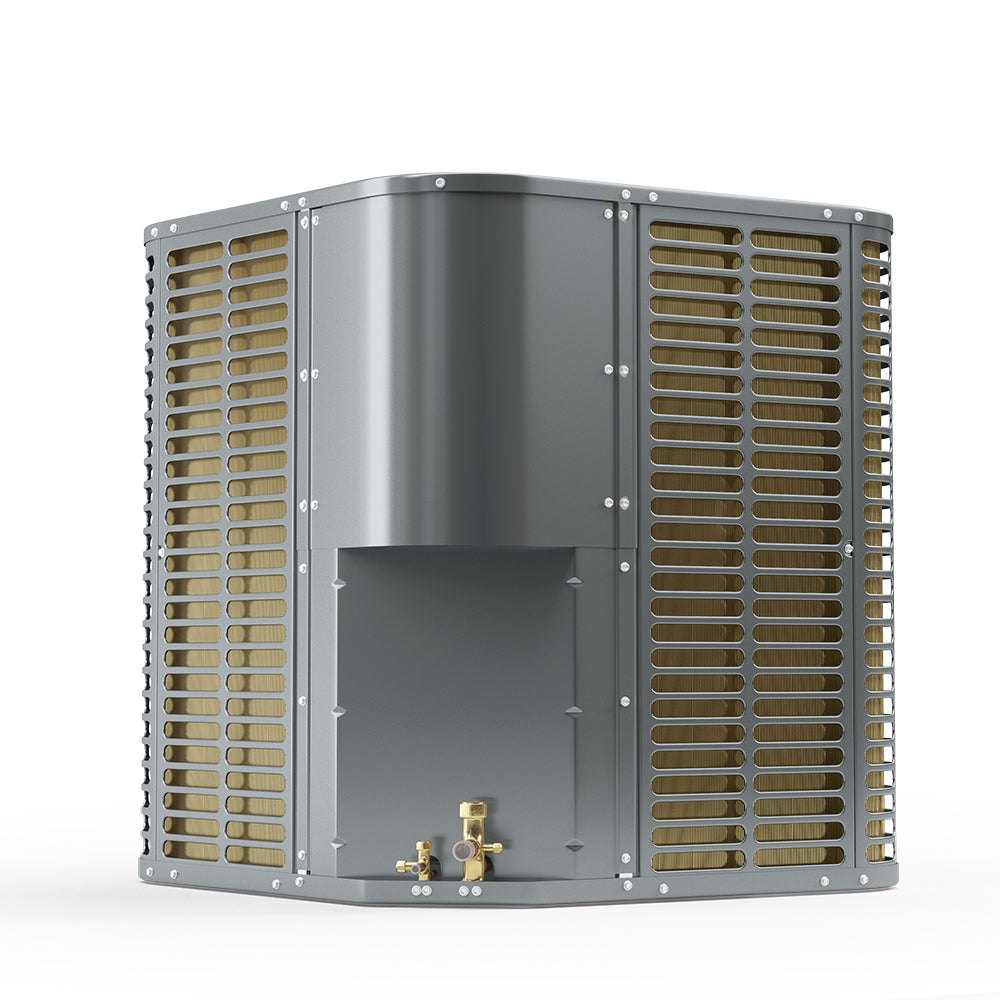

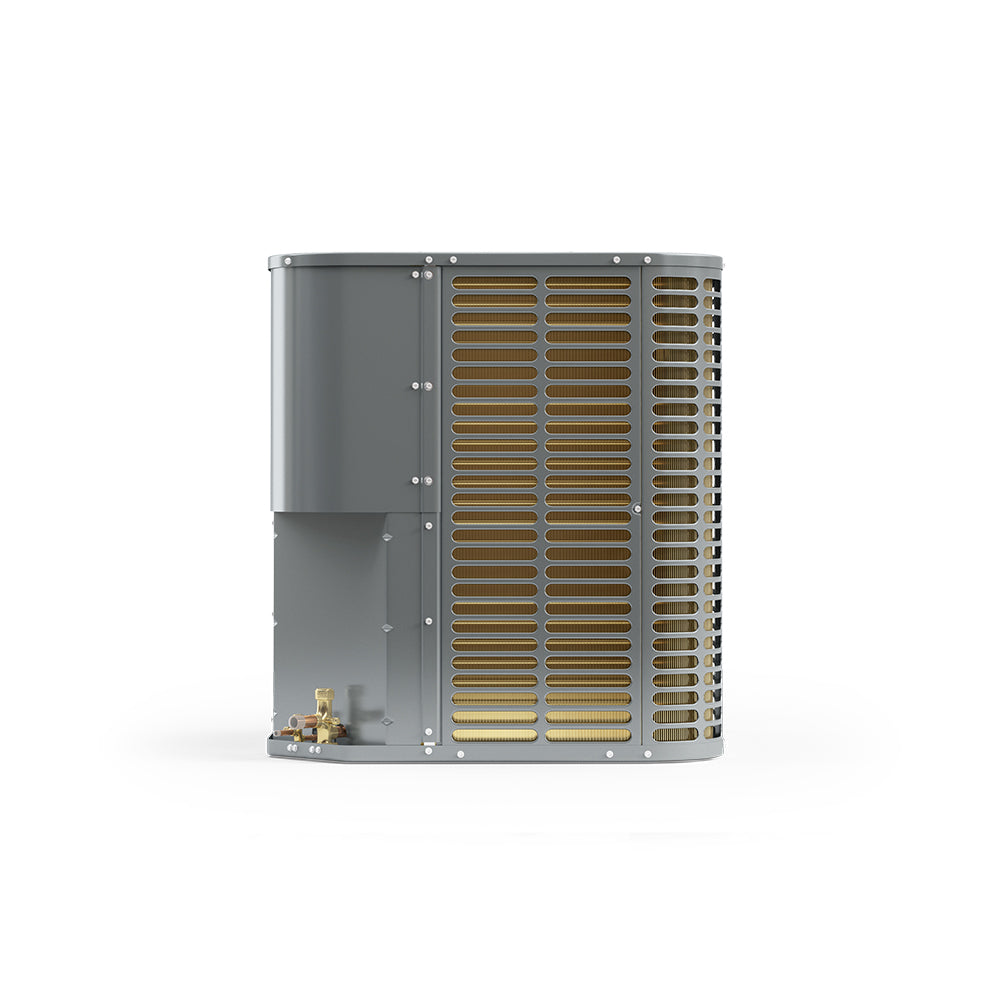

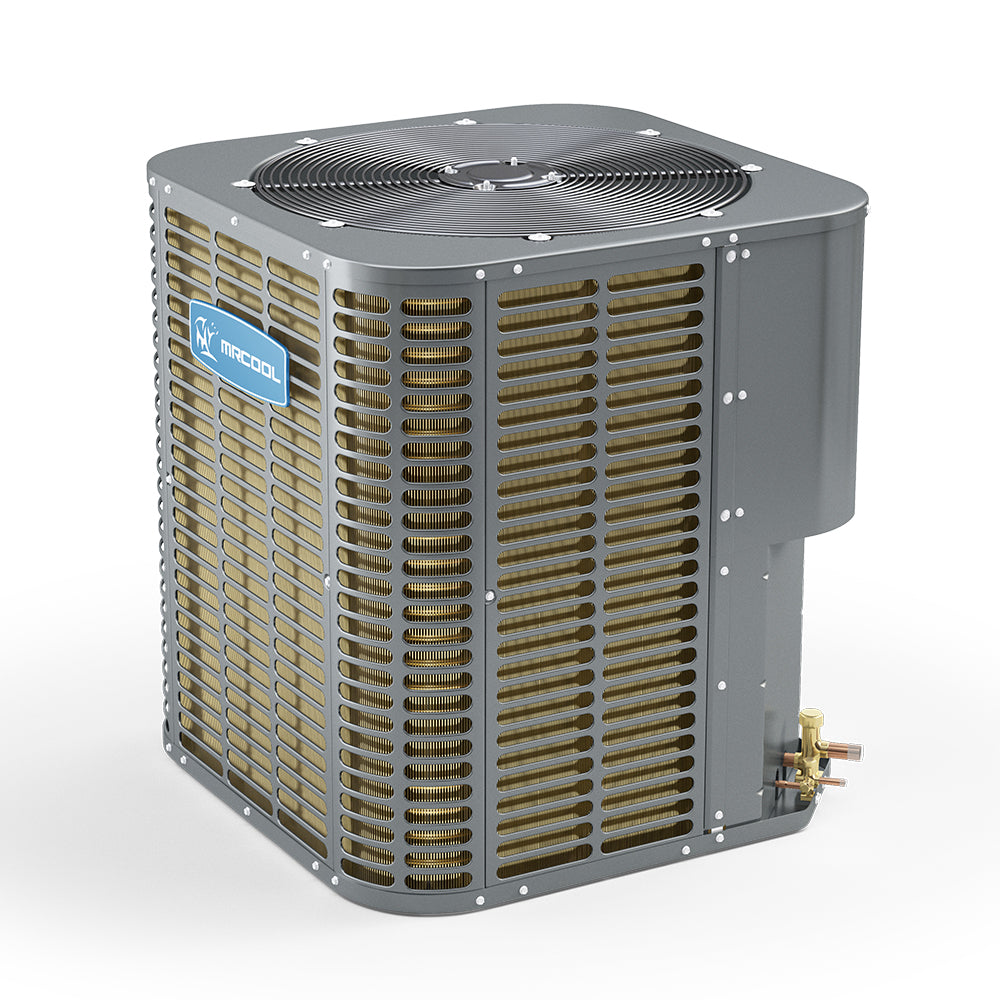

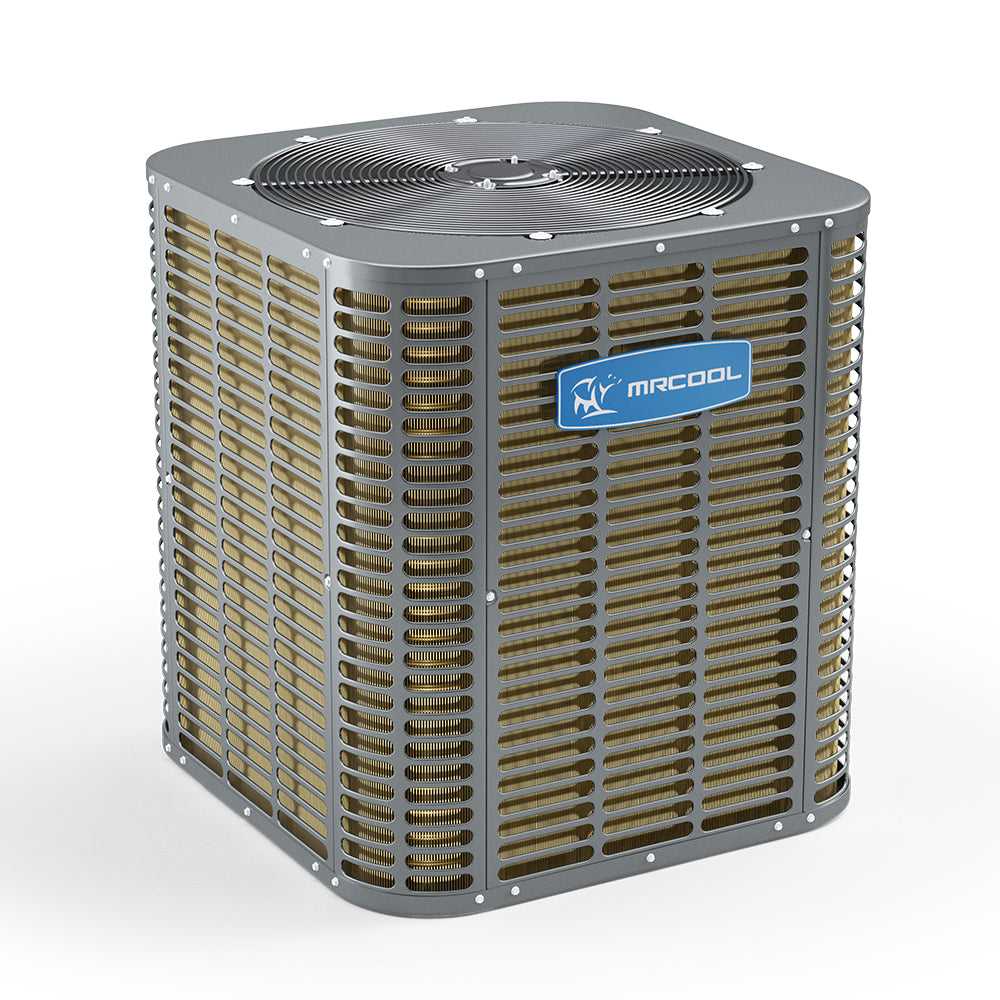

You dont want to endure another summer of sweating, so you better update your home comfort system as soon as possible with the MRCOOL ProDirect 1.5 Ton 14 SEER Split System A/C Condenser. Packed with impressive and efficient parts like the rotary compressor and the piston flow control device, this condenser ensures that the temperature never climbs too high the entire summer. Theres no reason to worry about the durability of this condenser, either, because the galvanized steel cabinet and the Gold Fin coil coating work together to completely guard your unit from damage and corrosion. The Gold Fin coating, which keeps water completely off the coils, is totally non-toxic and environmentally friendly, and it offers another layer of insulation for boosted efficiency. This ETL listed and AHRI rated condenser has long term warranty support once you register it online. The MRCOOL ProDirect 1.5 ton split system A/C condenser will be the most impressive and efficient unit youll have for many summers to come.
FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty14 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
24-15/16"H x 21-7/8"W x 21-7/8"D |
Weight |
101 lbs |
SEER |
14 |
EER |
11.7 |
CFM |
1500 |
Cooling Capacity |
18000 BTU |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
15 A |
Refrigerant Type |
R-410A |
Refrigerant Volume |
70.55 oz |
Decibal Rating |
57 dBA |
Air Flow Direction |
4-way |
Number of Speeds |
3 Speed |
Max Lineset Length |
50ft max |
Liquid Line Size |
3/8in |
Suction Line Size |
3/4in |
Compressor Motor Type |
Rotary |
Condenser Fan Motor RPM |
870 |
Auxiliary Heater Available |
Yes |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Warranty |
10 Year Limited Warranty |
Proposition 65 Warning |
Yes |
Gross Depth |
23-2/5in |
Gross Height |
26-1/10in |
Gross Width |
23-2/5in |
Gross Weight |
106 lbs |
Restricted States |
CA;NV;AZ;NM |
