DESCRIPTION
You deserve the best year-round comfort for the longest amount of time, which is why you should switch out your old, faulty condenser with the MRCOOL ProDirect 1.5 Ton 15 SEER Split System Heat Pump Condenser. This unit has a rotary compressor that pressurizes the refrigerant to get it ready to absorb more heat from your home. The piston flow control device that it runs through is great for increasing efficiency, because it regulates the speed and the volume of the refrigerant. This unit is equipped to take care of you for years to come, thanks in part to the galvanized steel cabinet and the Gold Fin condenser coating. This coating, which is environmentally friendly, completely non-toxic, and improves insulation, stops rust and corrosion from forming by keeping water from sticking to the coils. When you register your unit online, youll be able to enjoy an industry-leading warranty. Admitting you need a new heating and cooling system is a big step, so make sure you get the best with the MRCOOL ProDirect 1.5 Ton 15 SEER Split System Heat Pump Condenser.

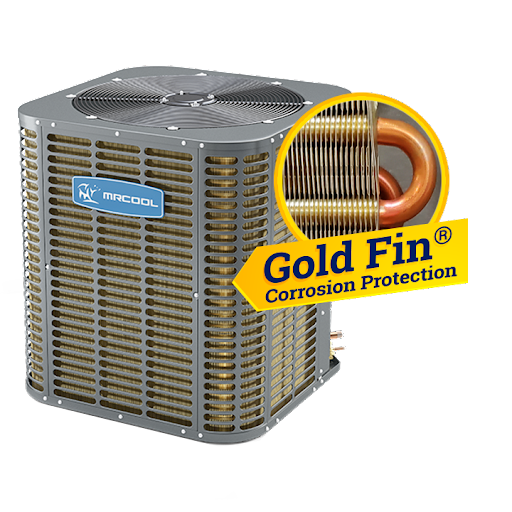

FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty15 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
25 "H x 21-4/5 "W x 21-4/5 "D |
Weight |
104 lbs |
SEER2 |
14.3 |
EER2 |
11.7 |
HSPF2 |
7.5 |
CFM |
1780 |
Tonnage |
1.5 |
Cooling Capacity |
18000 |
Heating Capacity |
17700 |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Refrigerant Volume |
91.71 oz |
Decibal Rating |
60 dBA |
Liquid Line Size |
3/8 in |
Suction Line Size |
3/4 in |
Compressor Motor Type |
scroll |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Parts Warranty |
10 year parts |
Proposition 65 Warning |
Yes |
Gross Depth |
22-3/5 in |
Gross Height |
25-9/10 in |
Gross Width |
22-3/5 in |
Gross Weight |
108 lbs |
PRODUCT DOCUMENTATION
BrochureInstall ManualWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
