DESCRIPTION

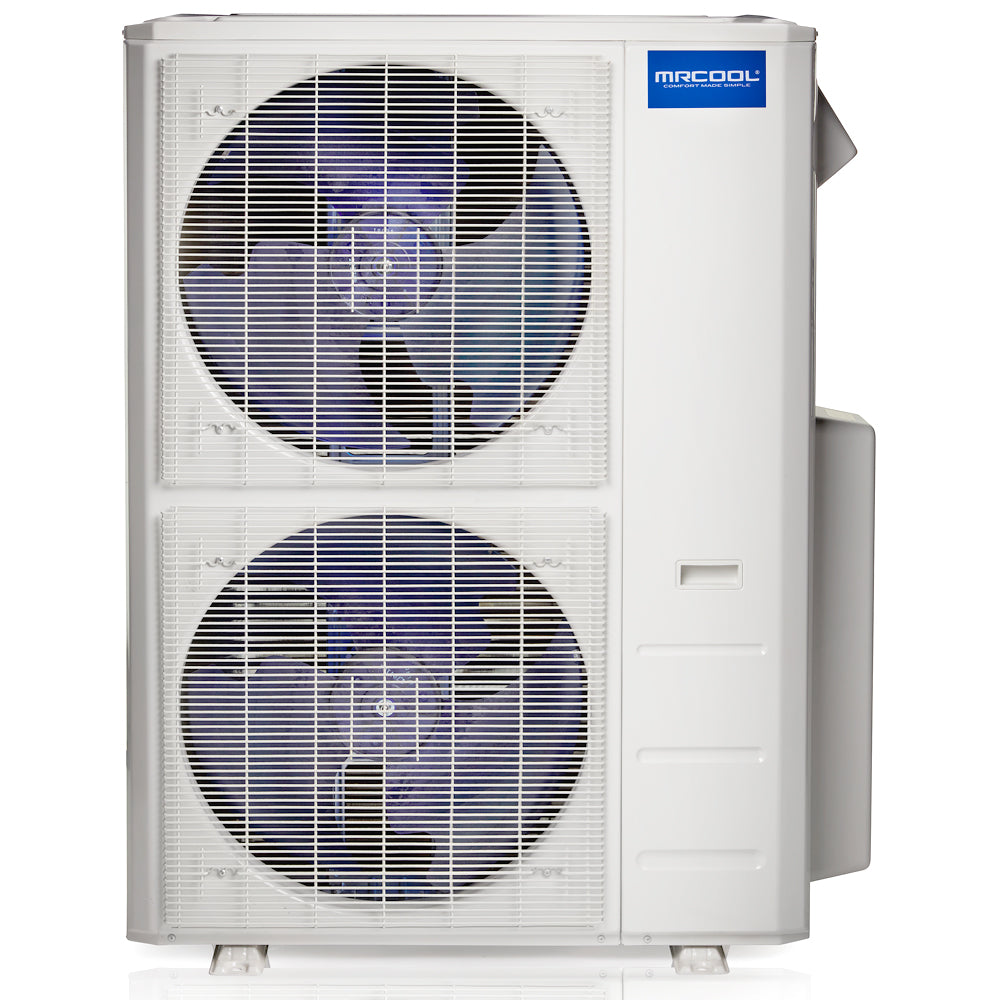

This MRCOOL Olympus 48k Ductless Mini-Split Condenser is the answer to your heating and cooling problems without breaking the bank. Rely on this Energy Star certified condenser to help save money on your utility bills thanks to its 22.4 SEER and 11 HSPF. It uses environmentally-friendly refrigerant R-410A, and features Gold Fin anti-corrosion technology. When installed by a professional and registered, you can feel confident with the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
FeaturesInstallation by a licensed professional required where applicable7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professionalR-410A environmentally friendly refrigerantEnergy Star certified
SPECIFICATIONS
Dimensions |
52.48"H x 37.48"W x 16.34"D |
Weight |
225.53 lbs |
SEER |
Up To 22.4 |
SEER2 |
23.4 |
EER |
Up To 12.5 |
EER2 |
12.5 |
HSPF |
hspf4/hspf5: 11/8.8 |
HSPF2 |
hspf4-2/hspf5-2: 8.7/6.8 |
Cooling Capacity |
48000 BTU |
Heating Capacity |
48000 BTU |
Voltage |
208/230V |
Phase |
1 |
Cycle |
60Hz |
Max Fuse Breaker |
60 A |
Min Circuit Capacity |
40 A |
Zone Capacity |
5 |
Refrigerant Type |
R410A |
Refrigerant Volume |
162 oz |
Decibal Rating |
64 dBA |
Liquid Line Size |
1/4in |
Suction Line Size |
3/8in & 1/2in |
Compressor Motor Type |
ROTARY |
Condenser Fan Motor RPM |
900/850/800/750 |
Overload Protection |
yes |
Energy Star Compliant |
yes |
Energy Star Certified |
yes |
AHRI Certified |
yes |
Registered Warranty |
5-year Parts/7-year Compressor/1-year Remote |
Registered Parts Warranty |
5-year |
Registered Compressor Warranty |
7-year |
Registered Remote Warranty |
1-year |
Has Batteries |
yes |
Contains Electronics |
yes |
Contains Chemicals |
yes |
Contains Aerosol |
yes |
Contains Compressed Gas |
yes |
Gross Depth |
19.49in |
Gross Height |
58.27in |
Gross Width |
43.11in |
Gross Weight |
256.62 lbs |
Restricted States |
GU, PR, VI |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsOwner ManualRemote ManualWarranty DocAccessory Manual RELATED CERTIFICATES
AHRI Certificate
