DESCRIPTION

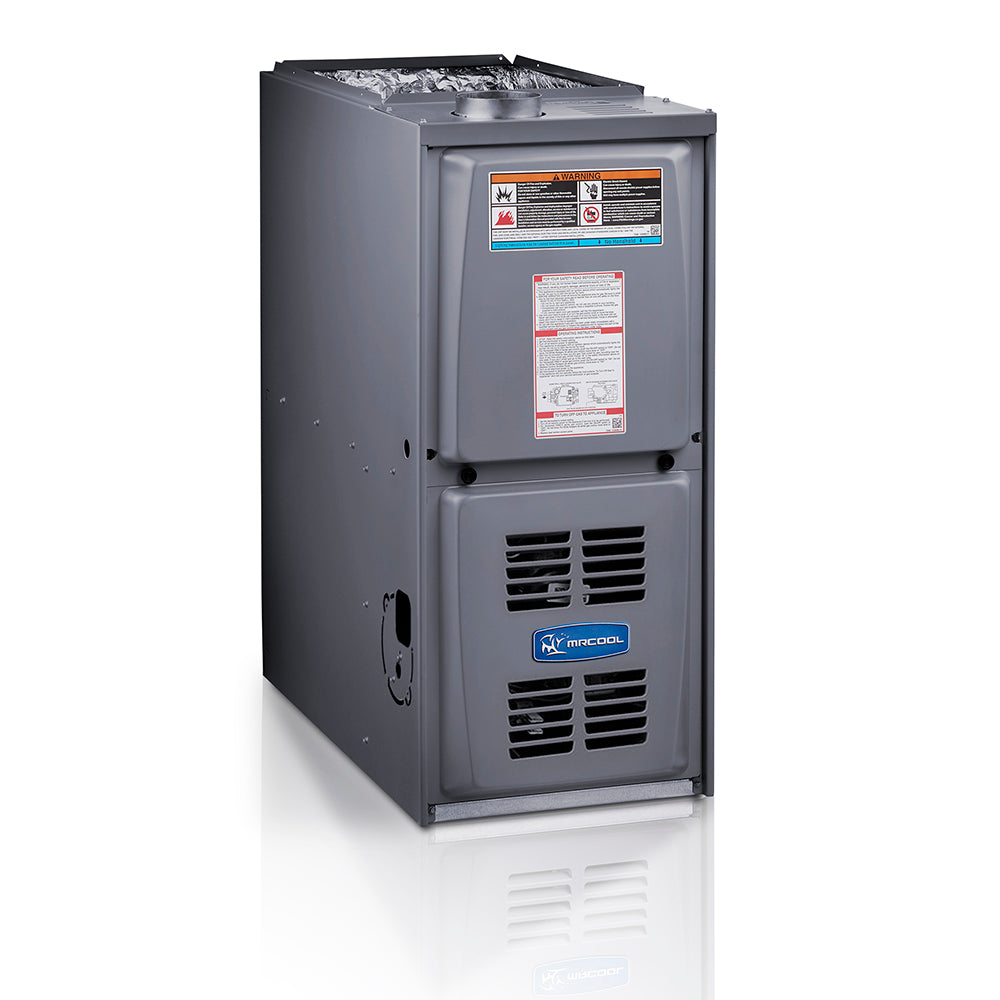

When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL single stage, 80% AFUE gas furnace. This system can be installed down flow, and is designed to operate for decades, provide powerful heating capability, and, best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.
FeaturesEasily removable slide out blower designRegistered 10-year parts warrantyRotatable draft inducer for venting flexibilityDownflow furnaceHeating efficiency of 80% AFUEAHRI CertifiedLP kit not includedAluminized steel tapered crimped non-welded clam shell heat exchanger designCompact 33" heightLeft or right utility connectionsMulti-speed high efficiency (constant torque) blower motorZero step horizontal conversion
SPECIFICATIONS
Dimensions |
33"H x 17.5"W x 28.375"D |
Weight |
140 lbs |
AFUE |
0.8 |
CFM |
1570 |
Tonnage |
4 |
Heating Capacity |
88,000 BTU |
Fuel Type |
Natural Gas |
BTU Input |
88000 |
BTU Output |
70400 |
Voltage |
120 |
Phase |
1 |
Cycle |
60 |
Stage |
Single |
Max Fuse Breaker |
15 |
Min Circuit Capacity |
8.4 |
Color |
Gray |
Color Family |
Gray |
Full Load |
8.4 |
Number of Burners |
8 |
Gas Connection Size |
1/2 |
Blower Motor Type |
ECM |
Blower Motor HP |
3/4 |
Blower Motor Speeds |
5 |
Blower Motor RPM |
945-1570 |
Heat Exchanger Type |
Aluminized steel |
Ignition Type |
Silicon Nitride Ignitor |
Vent Connector |
4 inch |
LP Kit Included |
No |
LP Kit Available |
yes |
CSA Certified |
Yes |
ISO Certified |
No |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Heat Exchanger Warranty |
Registered 20 year Heat Exchanger Warranty |
Base Heat Exchanger Warranty |
20 year Heat Exchanger Warranty |
Has Batteries |
No |
Contains Electronics |
Yes |
Contains Chemicals |
No |
Contains Aerosol |
No |
Contains Compressed Gas |
No |
Proposition 65 Warning |
Yes |
Gross Weight |
140 lbs |
Restricted States |
Yes (California) |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsOwner ManualRemote ManualWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
