MRCOOL 60K BTU, 18 SEER Ducted Air Handler and Condenser | CENTRAL-60-HP-230-00

SKU CENTRAL-60-HP-230-00

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.


Choose the affordable MRCOOL 60k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System for the most efficient, consistent, and complete comfort you could experience. This system can heat and cool up to 2500 square feet, so your entire home can be covered in the precise temperature that you deserve. This system is able to accommodate any installation requirements you might have, because it is a multi-position unit that can operate in an upflow, downflow, horizontal left or right configuration. Youll save money as this system provides you comfort, because the variable speed condenser works hard to provide the temperature you want and save energy. This system is compatible with the MRCOOL No-Vac Quick Connect line set. The panel on the handler as well as the thermostat allow you to identify any error codes. You wont have to worry if something goes wrong, because this system is covered by a 10 year parts warranty and a 10 year service warranty. If you want to feel true comfort without sacrificing your savings, get the MRCOOL 60k BTU 18 SEER Central Ducted DC Inverter Heat Pump System.


  • Includes features such as timer mode, auto cool mode, fan only mode, and more

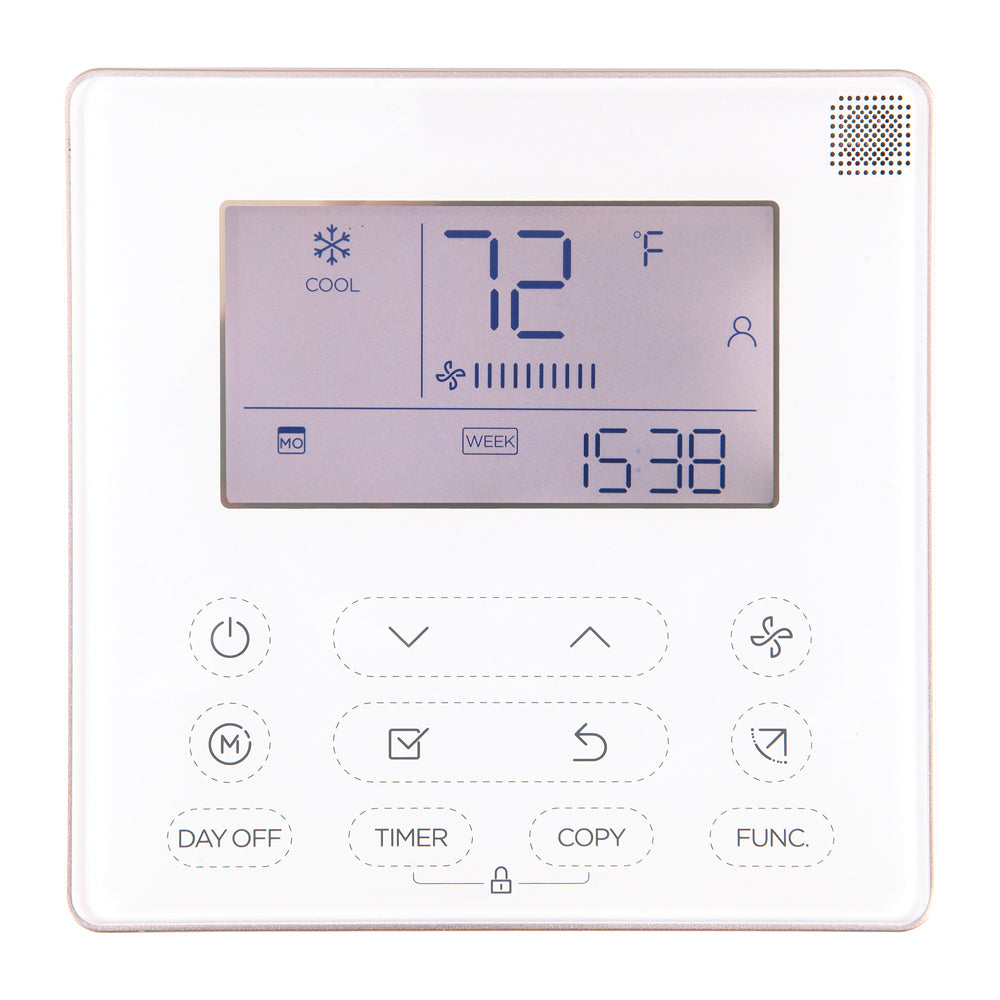

  • Wired thermostat included (.78 in x 4.72 in x 4.72in)
  • Multi position installation
  • Optional heating kit avaible
  • R-410A environmentally friendly refrigerant
  • 10 year parts and labor warranty*

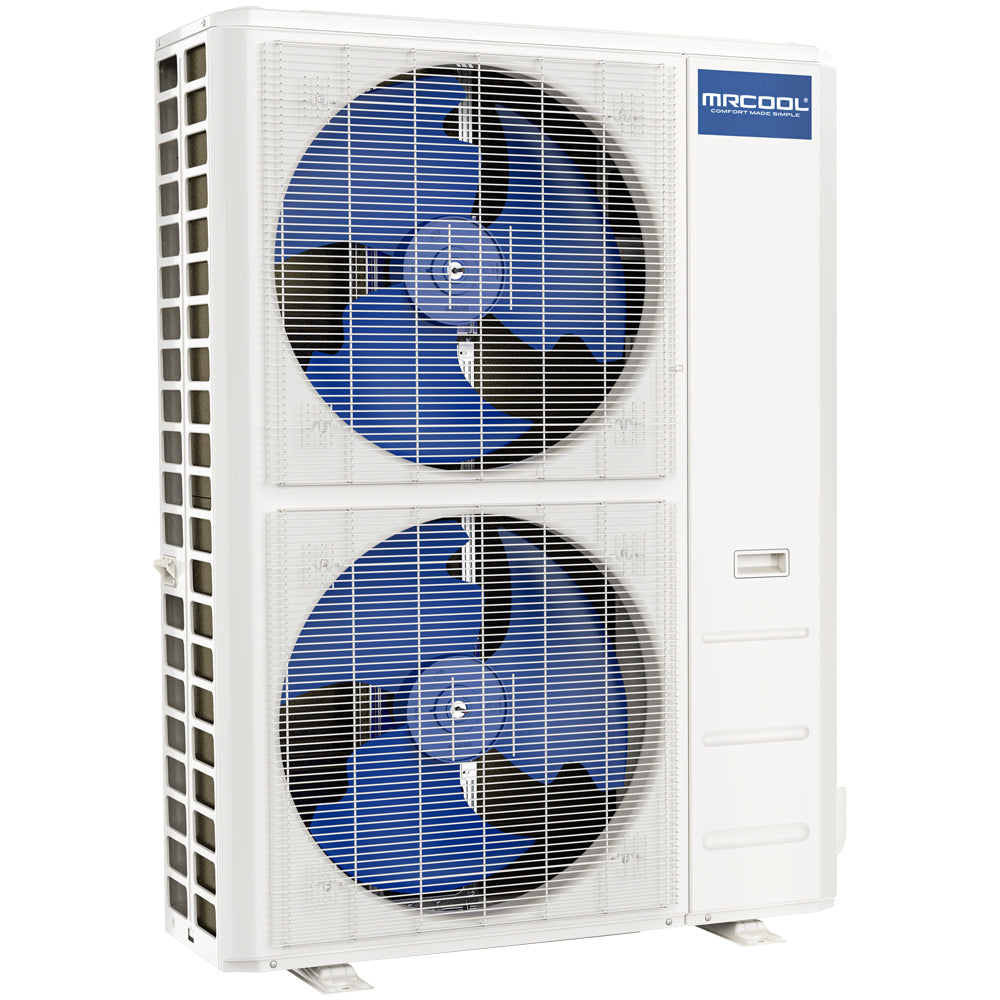

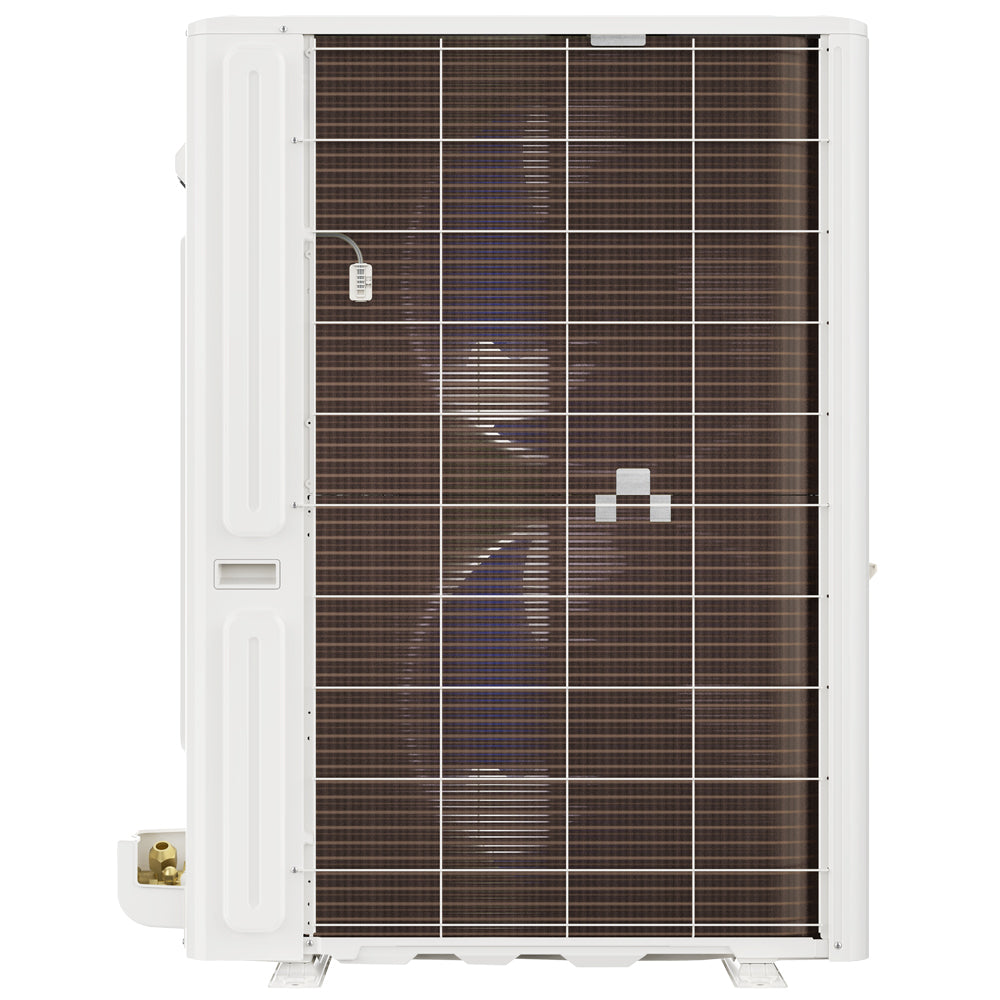

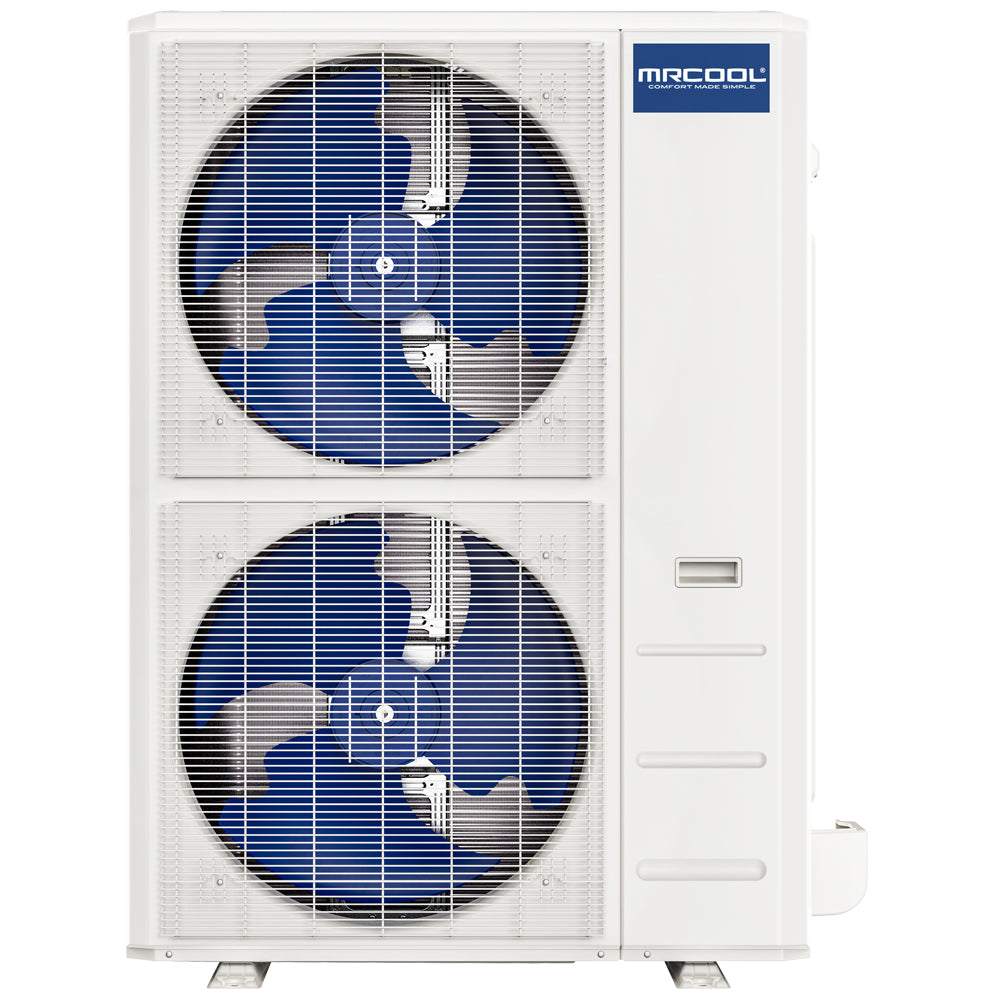

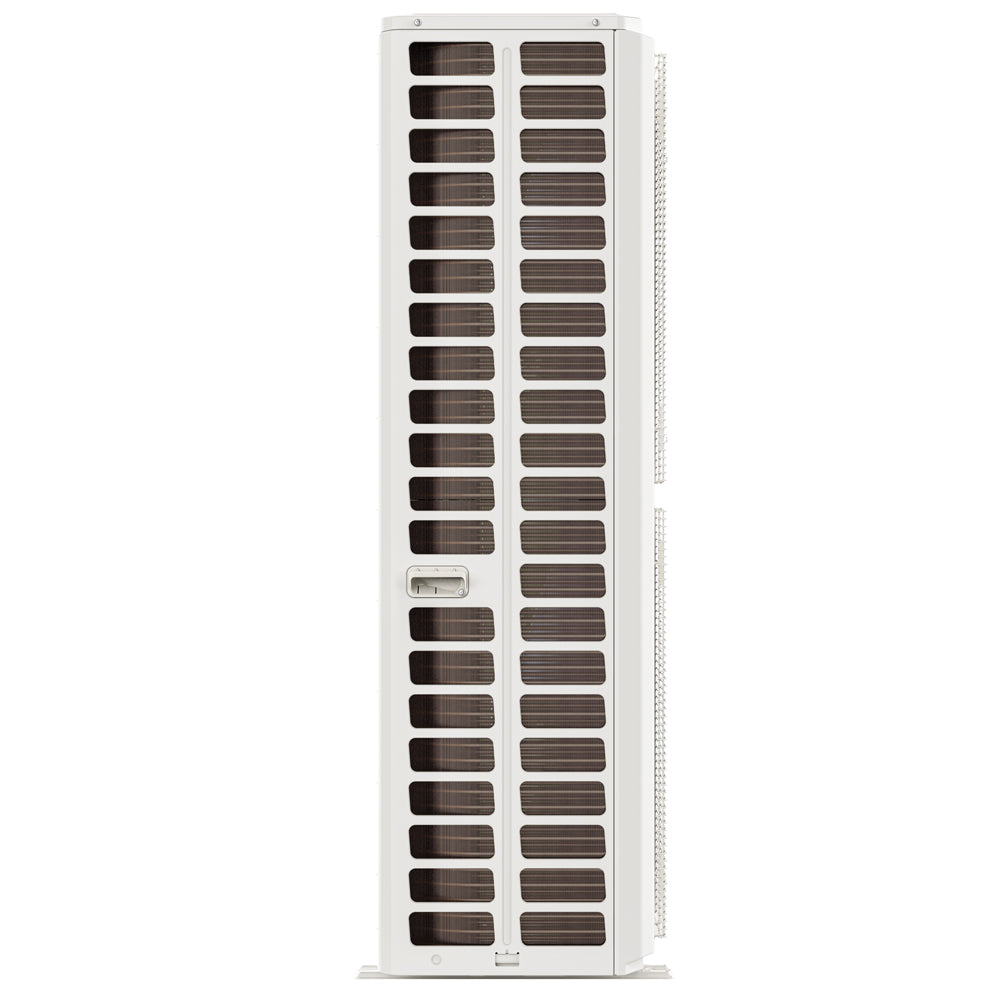

    Condenser Dimensions 52.48 "H x 37.48 "W x 16.34 "D
    Condenser Weight 217.15 lbs

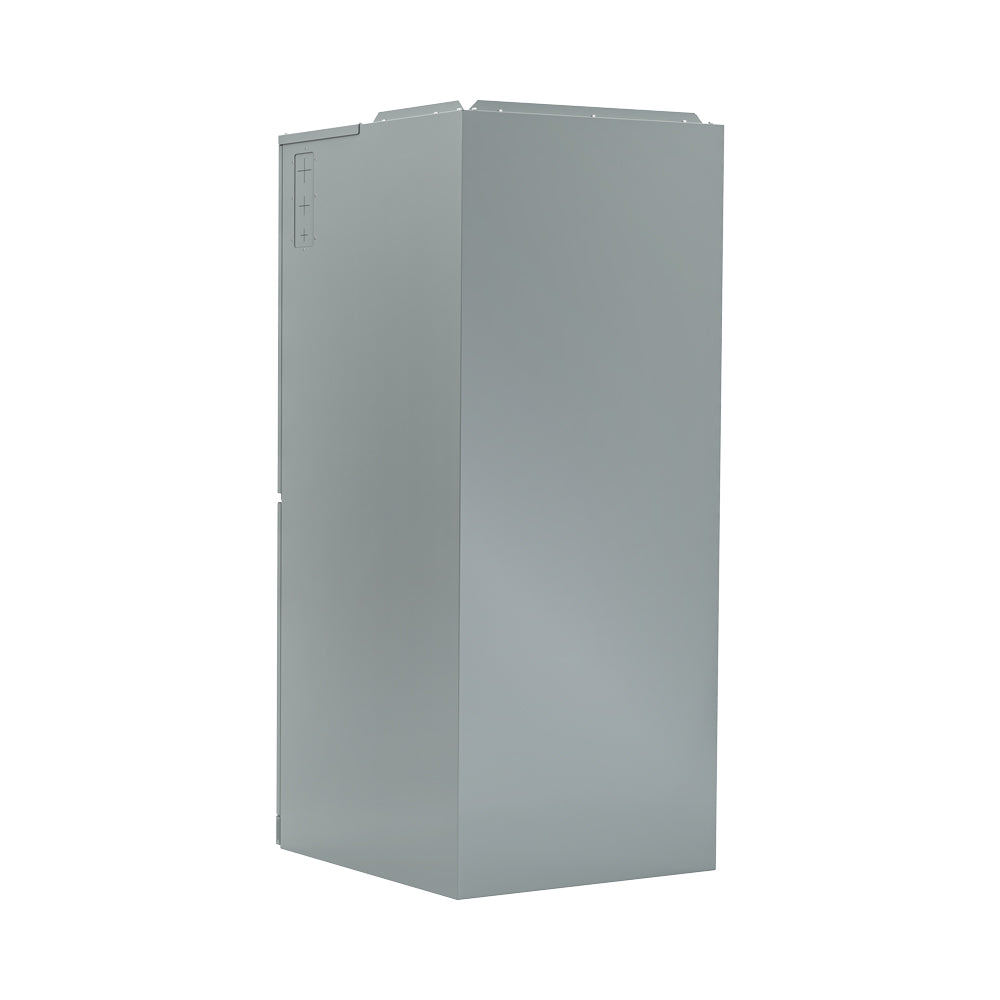

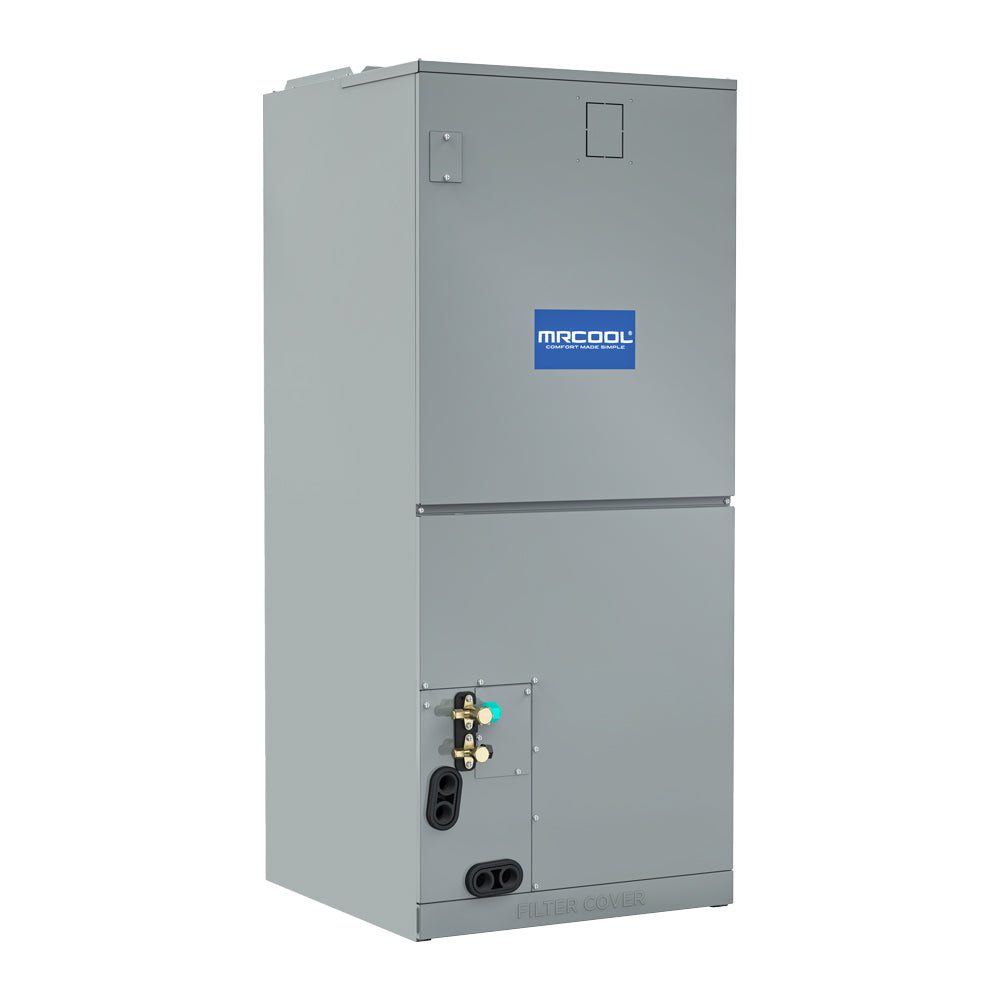

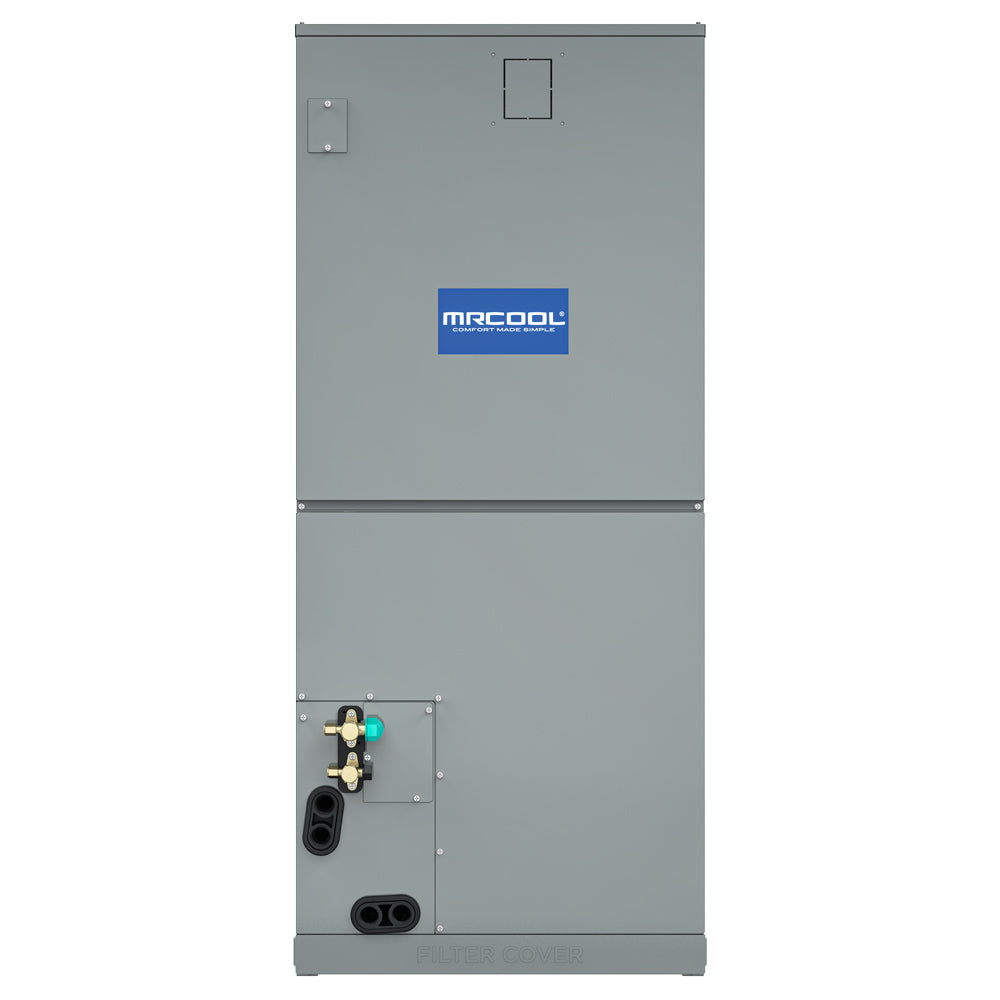

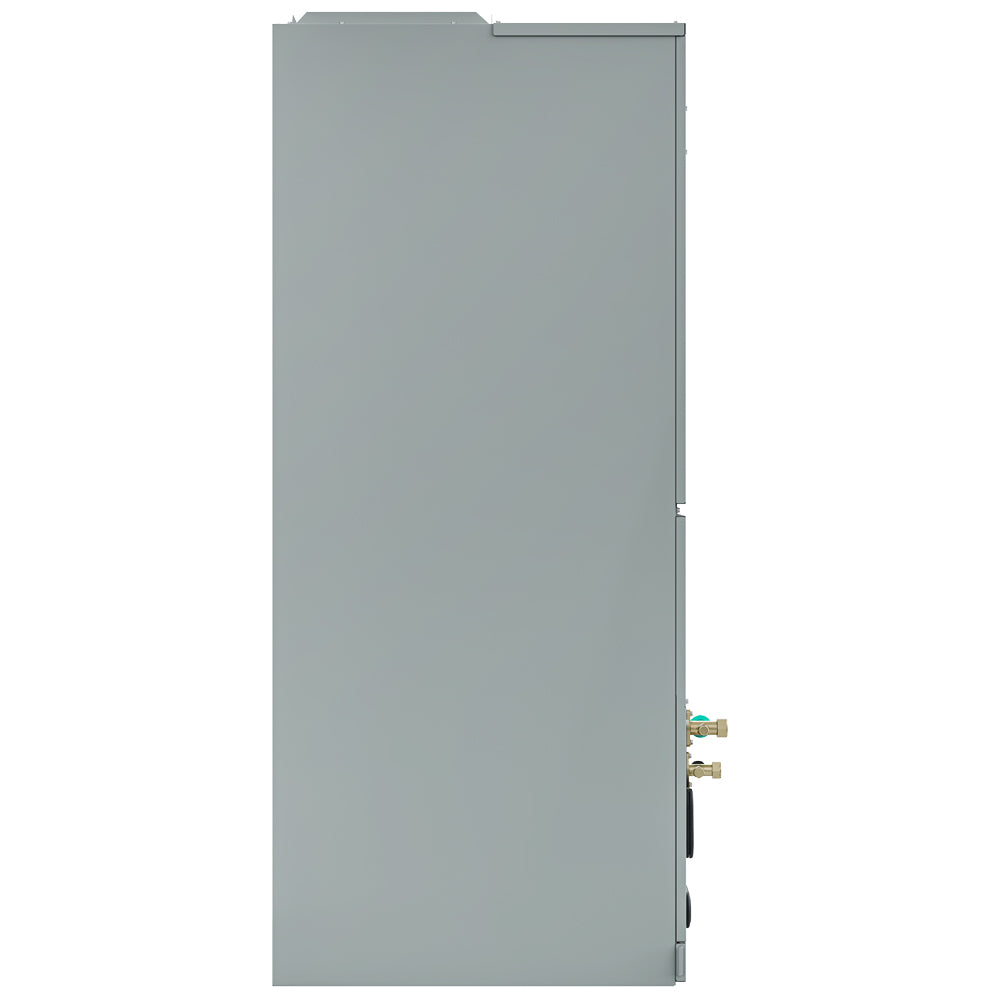

    Air Handler Dimensions 52.99 "H x 21.02 "W x 24.49 "D
    Air Handler Weight 164.02 lbs
    SEER 18
    EER 10.3
    HSPF hspf4/hspf5: 9.2/7.6
    CFM 1582.35/1358.82/1135.29
    Cooling Capacity 57000
    Heating Capacity 60000
    Voltage 208/230 V
    Phase 1
    Cycle 60 Hz
    Max Fuse Breaker 60
    Min Circuit Capacity 34
    Color Gray
    Rated Load 2.4
    Zone Capacity 1
    Refrigerant Type R410A
    Refrigerant Volume 172.84 oz
    Decibal Rating 52.5/49/44
    Decibal Rating Low 44
    Decibal Rating High 52.5
    Air Flow Direction Multi-position
    Min Ambient Cool 5~122F
    Min Ambient Heat 5~75.2F
    Lineset Included no
    Lineset Length
    Liquid Line Size 3/8in
    Suction Line Size 7/8 in
    Compressor Motor Type Rotary
    Condenser Fan Motor RPM 900/850/650
    Filter Type Replaceable
    Auxiliary Heater Included no
    Auxiliary Heater Available yes
    Auxiliary Heater Sizes 10kw,15kw, 20kw
    Adjustable Thermostat yes
    Fan Only Option yes
    Sleep Mode yes
    Auto Cool yes
    App Compatibility no

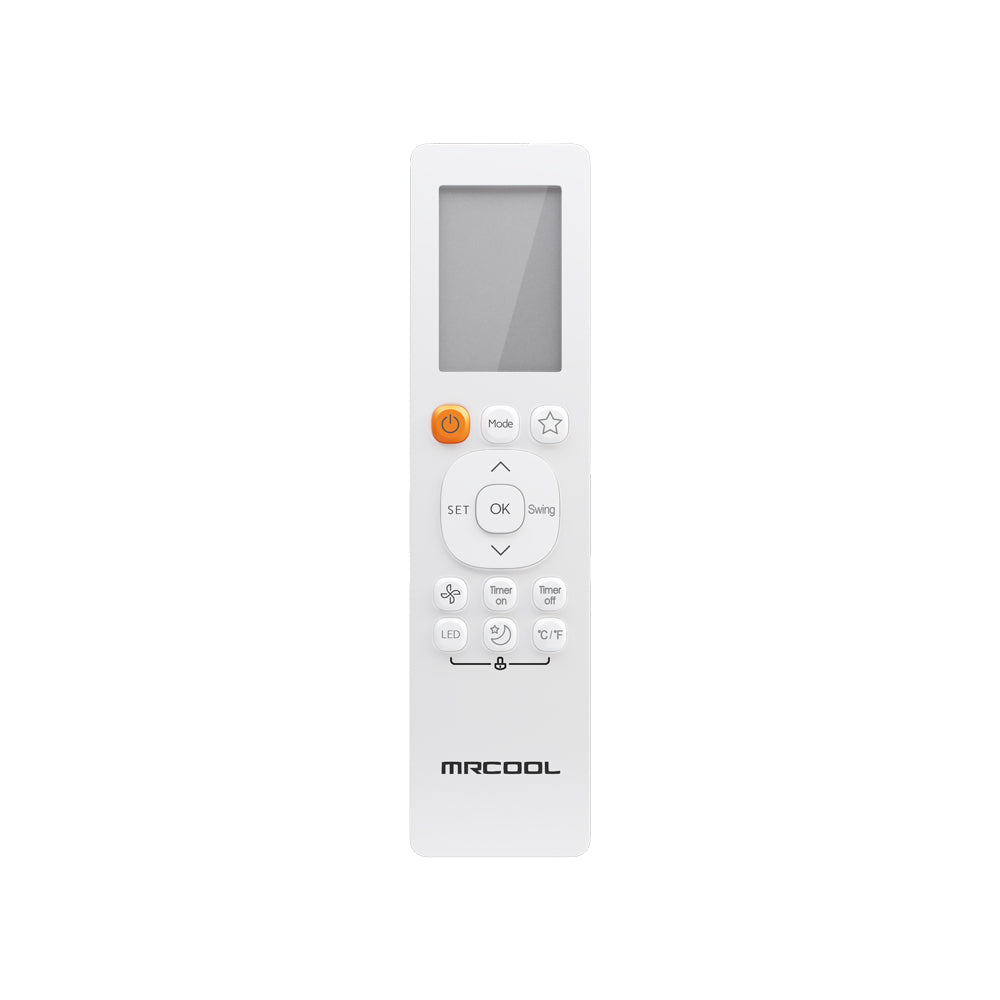

    Remote Control Included yes
    AHRI Certified yes
    Base Warranty 10 years parts and labor
