DESCRIPTION

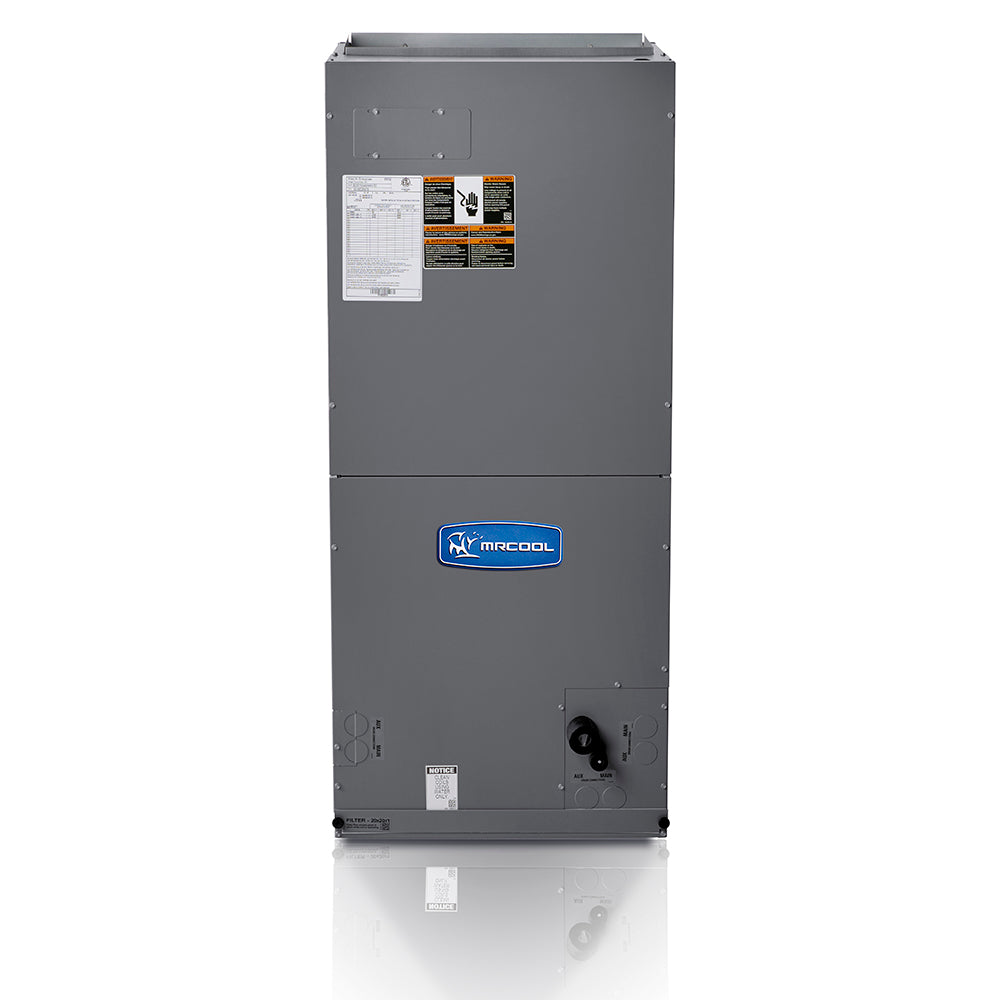

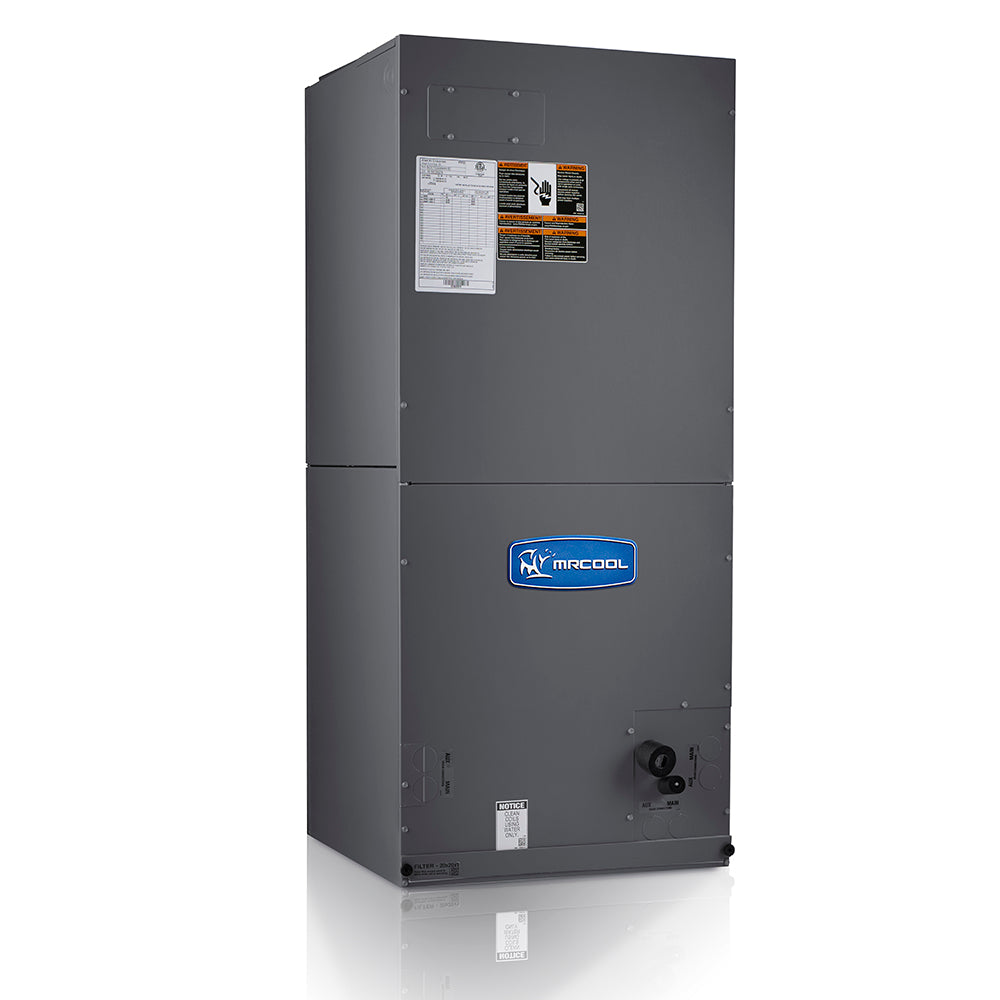

The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
FeaturesSmaller profile for closet applicationsOptional auxiliary heat kits availableBaked polyester paint finished over galvanized steel for maximum durailityAntimicrobial treated drain pan to resist mold and mildew growthFactory tested for leakproof constructionFoil faced insulation for enhanced indoor air qualityCoolGuard total corrosion protection technology designed coilBuilt-in indoor time delay for increased efficiency and comfortOne piece designHigh-strength/heat resistant/corrosion resistance SMC drain pansMulti-position = Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)AHRI certified and ETL listed
SPECIFICATIONS
Dimensions |
59.75"H x 21.5"W x 19.5"D |
Weight |
186lbs |
SEER |
Up to 16 |
CFM |
2000 |
Tonnage |
5 |
Cooling Capacity |
60000 |
Voltage |
208/230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
15 |
Min Circuit Capacity |
9.5 |
Color |
Gray |
Color Family |
Gray |
Maximum Coverage Area |
2500 |
Refrigerant Type |
R-410A |
Number of Speeds |
5 |
Inverter |
No |
Lineset Included |
No |
Lineset Length |
15ft, 25ft, 35ft, 50ft |
Max Lineset Length |
50ft |
Lineset Fitting Type |
Sweat |
Liquid Line Size |
3/8 |
Suction Line Size |
7/8 |
Blower Motor Type |
ECM |
Blower Motor HP |
1 |
Blower Motor Speeds |
5 Speed |
Blower Motor RPM |
830-1860 |
Filter Type |
replacement |
Filter Size |
18x20 |
Auxiliary Heater Included |
no |
Auxiliary Heater Available |
yes |
Auxiliary Heater Sizes |
10kw, 15kw, 20kw |
UL Recognized |
No |
UL Listed |
No |
ETL Listed |
yes |
ETL Certified |
no |
ISO Certified |
No |
LEED Certified |
No |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
Base Parts Warranty |
5 Year Parts Warranty |
Has Batteries |
No |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Gross Depth |
27 |
Gross Height |
63.3 |
Gross Width |
25.5 |
Restricted States |
No |
