DESCRIPTION

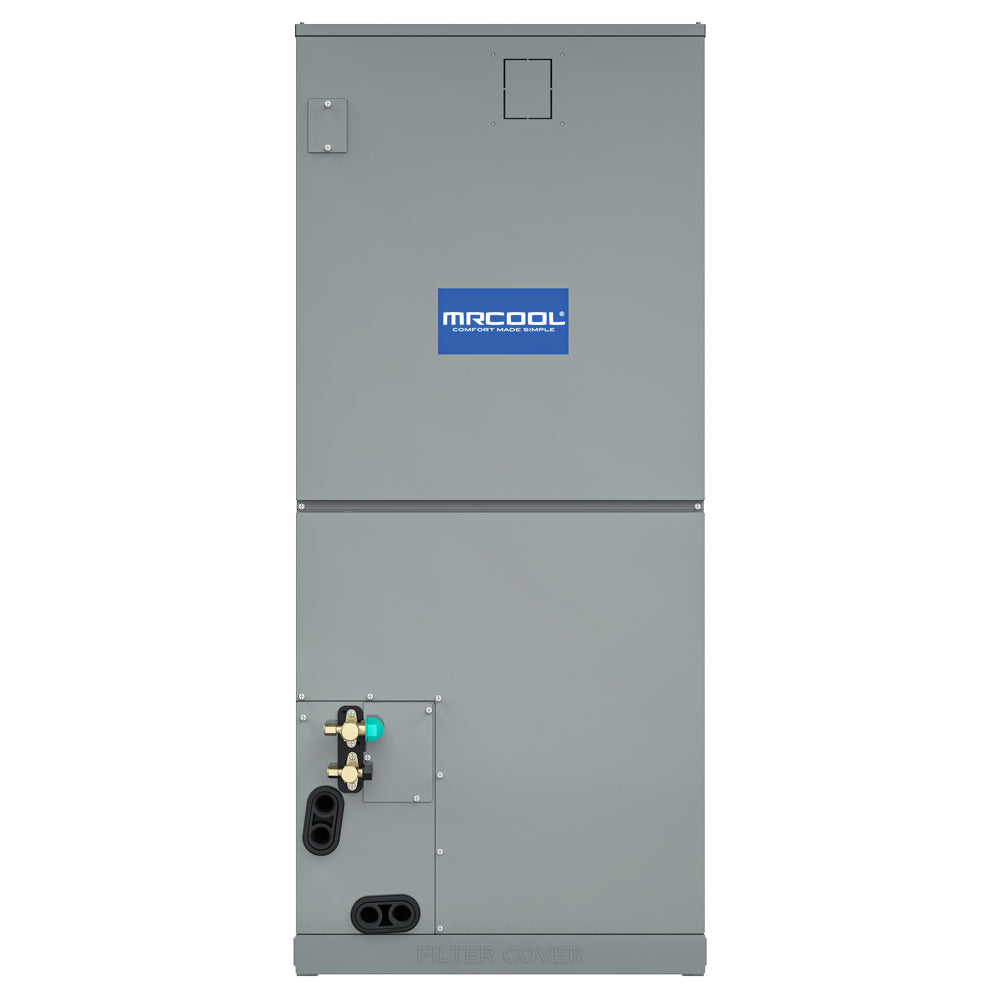

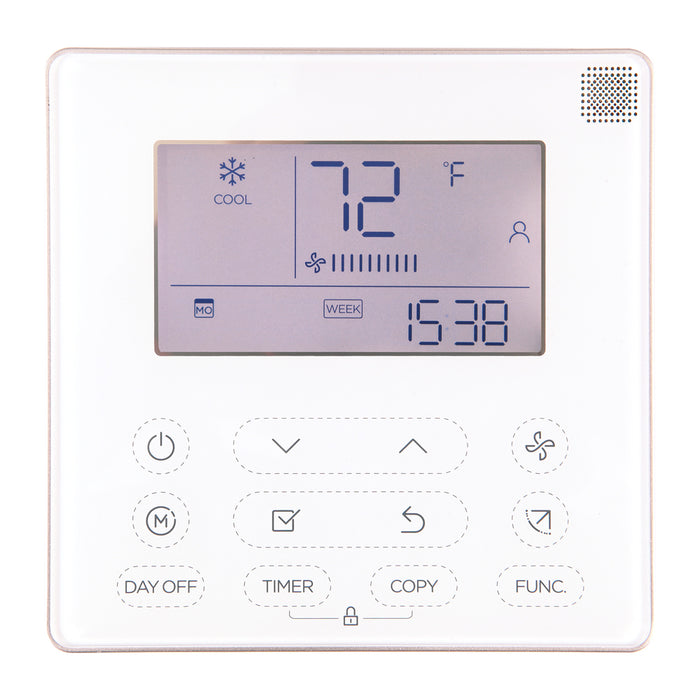

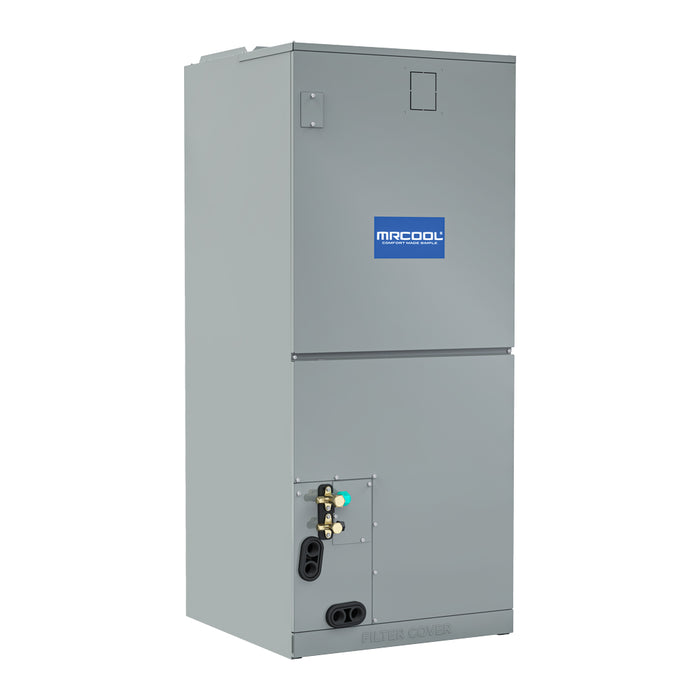

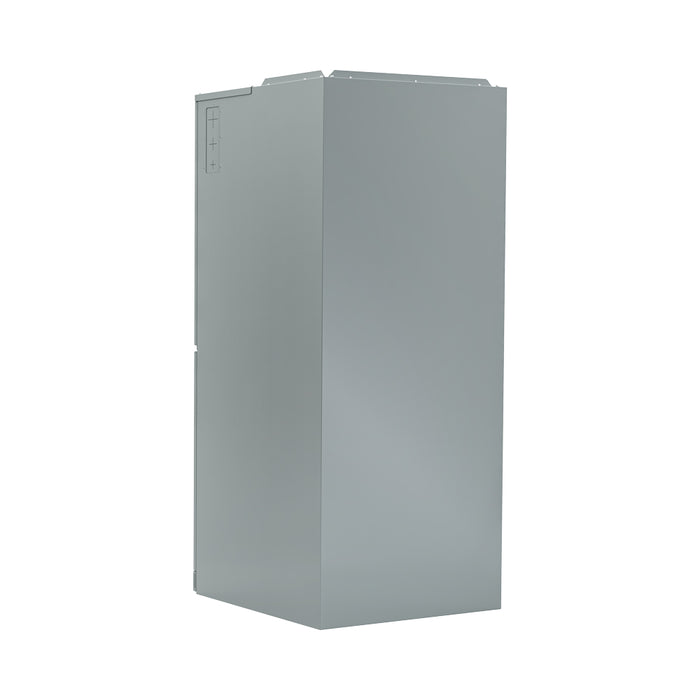

The 60K MRCOOL Hyper Heat Central Ducted Air Handler offers an exceptional solution for your home's heating and cooling needs, regardless of the outdoor climate. Its efficiency results in utility cost savings, and it boasts a remarkable SEER2 rating of up to 15.3 and an HSPF2-4 rating of up to 9.4, attributable to its advanced heating capacity. Constructed with painted galvanized steel, this sturdy unit features a side-discharge layout, slide-out blower, self-diagnostics panel, and removable filters for easy upkeep. Effortless installation is possible for an HVAC technician, as the unit is designed to work with the optional MRCOOL No-Vac Quick Connect Line Set. Pre-charged with eco-friendly R410-A refrigerant, this line set does away with the need for vacuuming or flare welding, is kink-resistant, and allows for various installation configurations. The handler also includes a wired thermostat and wireless remote, with an additional heat kit available for purchase if needed. In the rare occurrence of operational issues, the air handler is supported by a reassuring 10-year warranty for parts and labor, providing peace of mind. Moreover, there is no need for registration to access the included labor warranty.
FeaturesUp to 15.3 SEER2High Static - Mobile Home Compatible - The Central Ducted Air Handler is made to accommodate the high static requirements for manufactured and modular homes.Multi-Positional - Any Way You Want It. This unit is compatible with Upflow, downflow and horizontal configurations.Thermostat Included - Just A Touch Away. The included wired thermostat has a variety of options to keep your home the temperature you want it to be.10-year Warranty on Parts, Labor, and Compressor
SPECIFICATIONS
Dimensions |
52.99"H x 21.02"W x 24.49"D |
Weight |
164.02lbs |
CFM |
1805.88/1582.35/1358.82/1135.29 |
Cooling Capacity |
55000 |
Heating Capacity |
59000 |
Voltage |
208/230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
15 |
Min Circuit Capacity |
9 |
Refrigerant Type |
R410A |
Decibal Rating |
45.5 |
Decibal Rating Low |
41.5 |
Decibal Rating High |
51 |
Number of Speeds |
4 |
Inverter |
DC |
Max Lineset Length |
213.25 ft |
Liquid Line Size |
3/8in |
Suction Line Size |
7/8in |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
10kW, 15kW, 20kW |
AHRI Certified |
Yes |
Base Warranty |
10yrs Parts and Labor |
Proposition 65 Warning |
Yes |
Gross Depth |
27.36in |
Gross Height |
56.60in |
Gross Width |
27.76in |
Gross Weight |
190.48lbs |
