DESCRIPTION

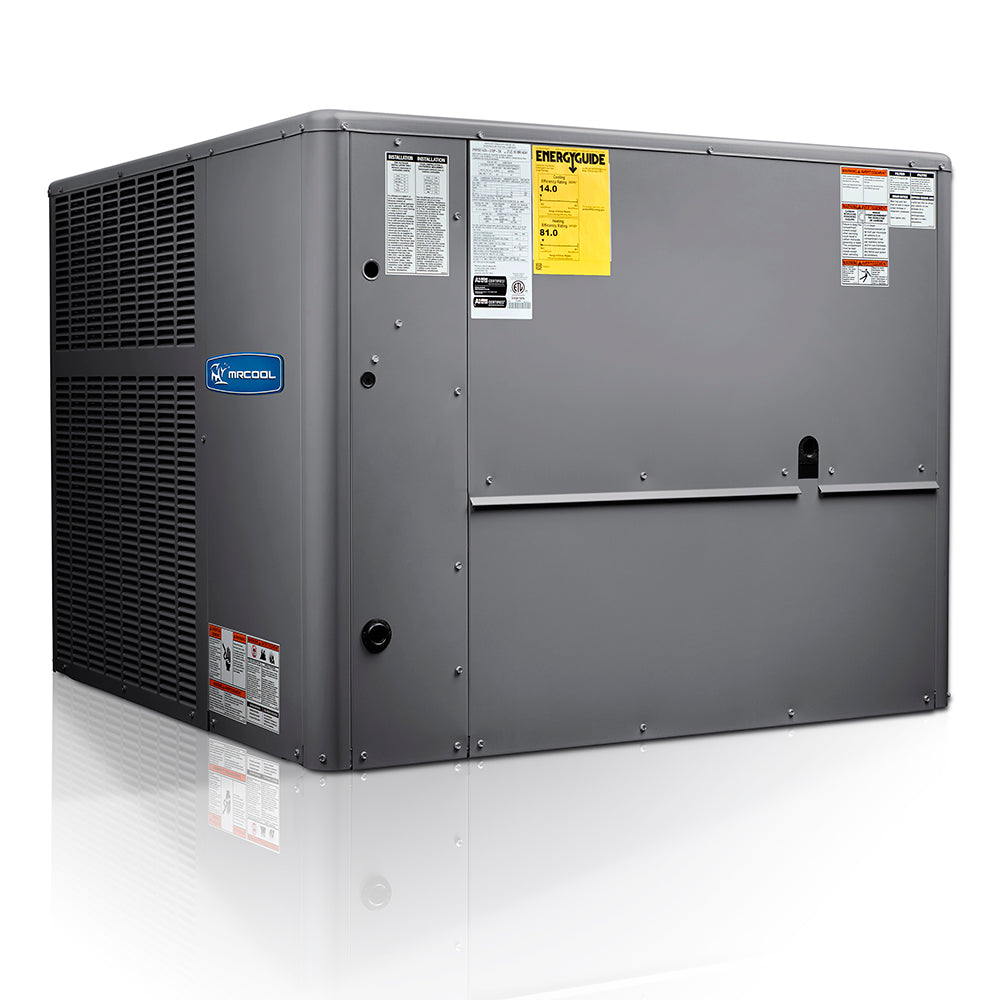

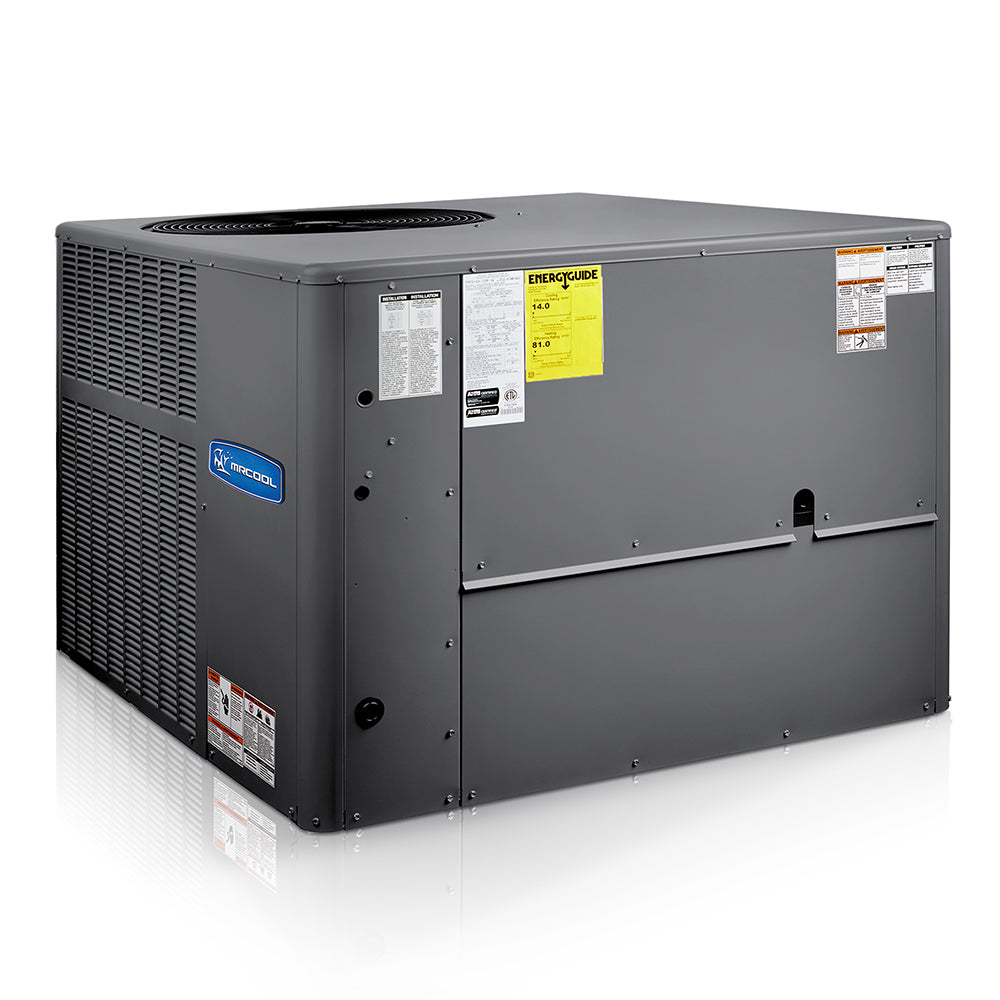

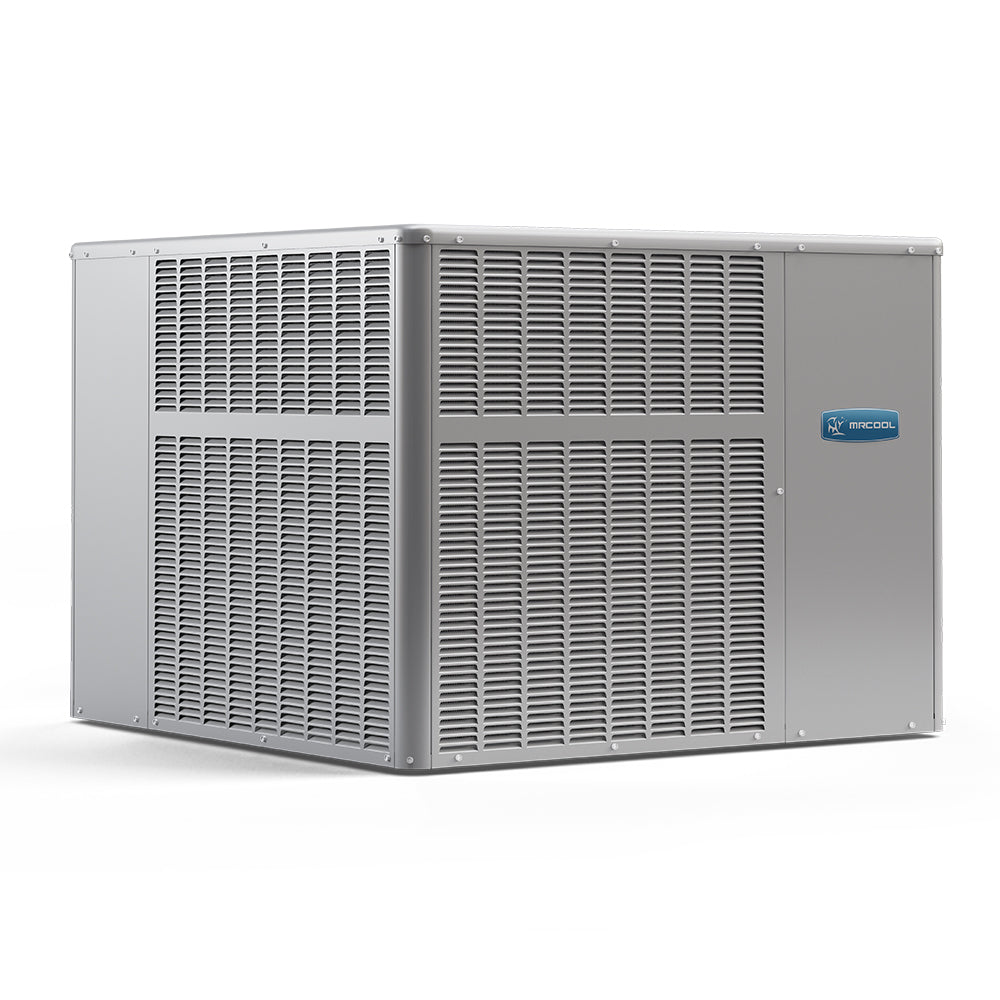

This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).
FeaturesApproved for installation in manufactured housing and mobile homesMulti-Positional ApplicationEnvironmentally friendly R410A refrigerantInsulated to minimize heat loss and reduce soundEfficient multispeed motor for wide airflow rangeLow ambient kits availableUtility connections on right sideOne piece base design for strength and stabilityRounded corners for safety and an attractive, clean appearanceAvailable in 2, 2.5, 3, 3.5, 4, and 5 TON capacitiesAll units ETL and ETLC approved and AHRI CertifiedOne piece no leak top design
SPECIFICATIONS
Dimensions |
44.89"H x 56.13"W x 47.66"D |
Weight |
445lbs |
SEER |
14 |
SEER2 |
13.4 |
EER |
11 |
EER2 |
10.6 |
CFM |
1800 |
Tonnage |
5 |
Cooling Capacity |
57000 |
Voltage |
208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
60 |
Min Circuit Capacity |
38.9 |
Color |
Gray |
Color Family |
Gray |
Rated Load |
26.4 |
Maximum Coverage Area |
2500 |
Refrigerant Type |
R-410A |
Refrigerant Volume |
125 |
Decibal Rating |
78 |
Min Ambient Heat |
0 |
Compressor Motor Type |
Single Stage |
Condenser Fan Motor Type |
ECM |
Condenser Fan Motor HP |
1/4 |
Blower Motor Type |
ECM |
Blower Motor HP |
1 |
Blower Motor Speeds |
Multi-speed |
Blower Motor RPM |
1120-2090 |
Filter Type |
Replacable |
Filter Size |
20x20 |
Metering Device |
TXV |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
5kw, 7.5kw, 10kw, 15kw, 20kw |
UL Recognized |
No |
UL Listed |
No |
ETL Listed |
Yes |
ETL Certified |
No |
LEED Certified |
No |
ASHRAE Compliant |
No |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
10-Year Parts Limited Warranty |
Base Warranty |
5 year base limited parts warranty |
Has Batteries |
No |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Gross Depth |
48 |
Gross Height |
46 |
Gross Width |
57.5 |
Gross Weight |
503 |
Restricted States |
No |
Freight Class |
125 |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsOwner ManualRemote ManualWarranty DocRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
