DESCRIPTION
Making yourself at home can be almost impossible if you dont have a reliable home comfort unit. Luckily, you can put this affordable MRCOOL 48k BTU up to 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and enjoy instant comfort and savings. This system can cover around 2,000 square feet of your home, so every inch can be filled with crisp, clean, comforting air. Youll be happy to learn that the air handler is multi-position, so it can be installed in an upflow, downflow, horizontal left or right configuration. This system is compatible with the MRCOOL No-Vac Quick Connect line set. The variable speed condenser is one of the reasons why this system is as efficient as it is, so you can enjoy comfort without increasing your bills. Identify error codes on the thermostat or on the panel on the handler. The 10 year parts warranty and 10 year service warranty help greatly in the unlikely case that something goes wrong. Put the MRCOOL 48k BTU 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and feel instant comfort results.

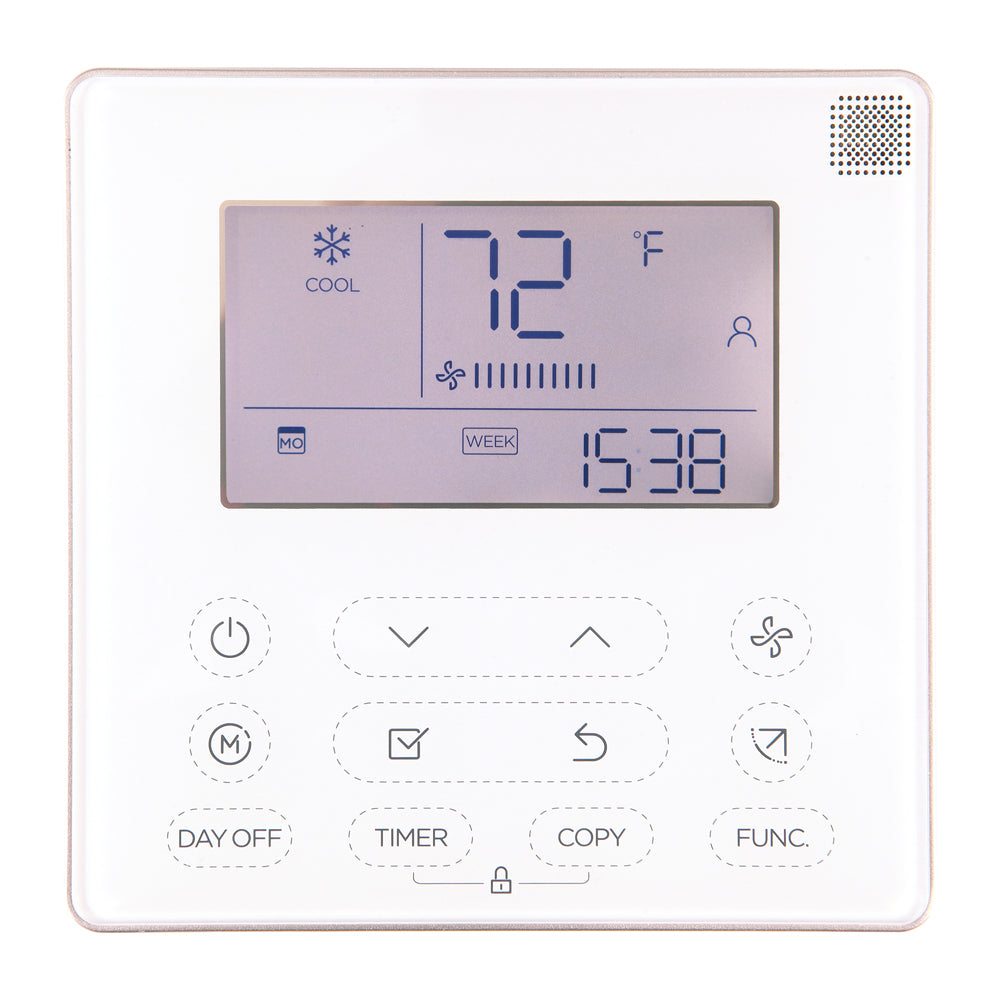

FeaturesIncludes features such as timer mode, auto cool mode, fan only mode, and moreWired thermostat included (.78 in x 4.72 in x 4.72in)Multi position installationOptional heating kit avaibleR-410A environmentally friendly refrigerant10 year parts and labor warranty*
SPECIFICATIONS

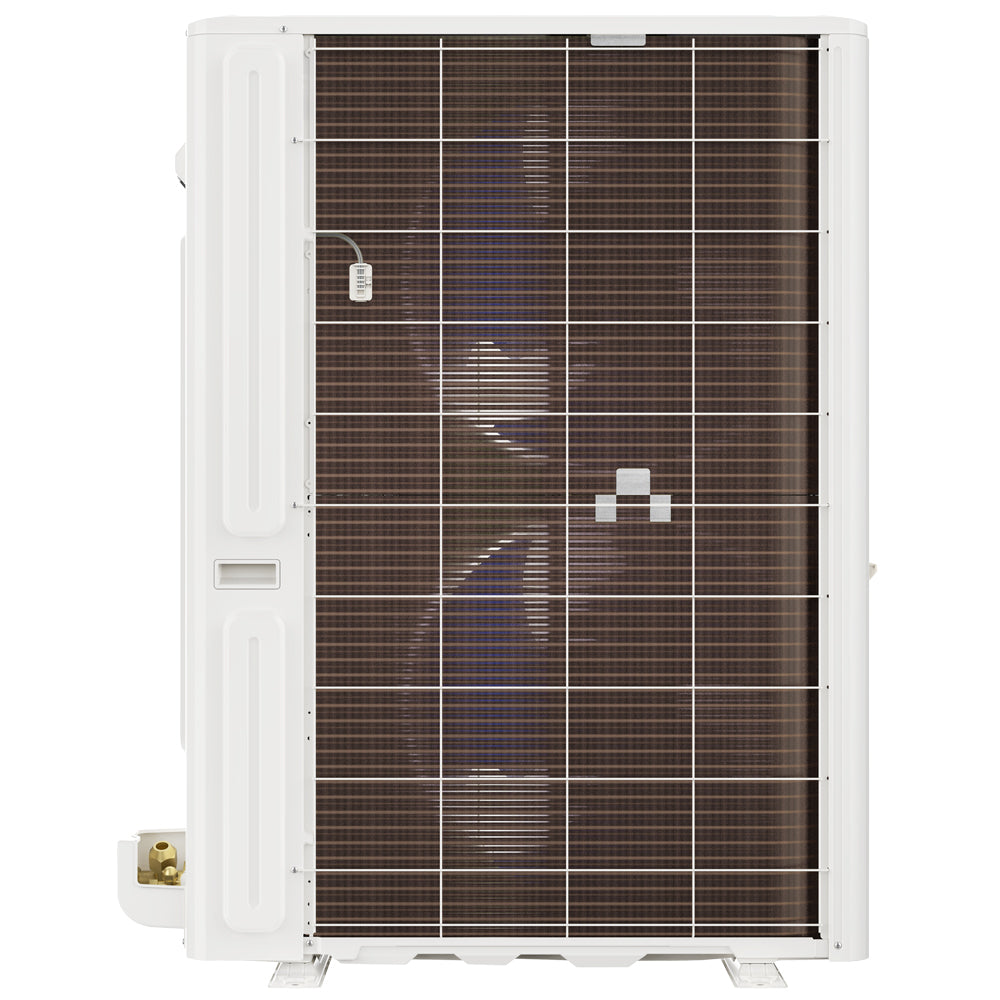

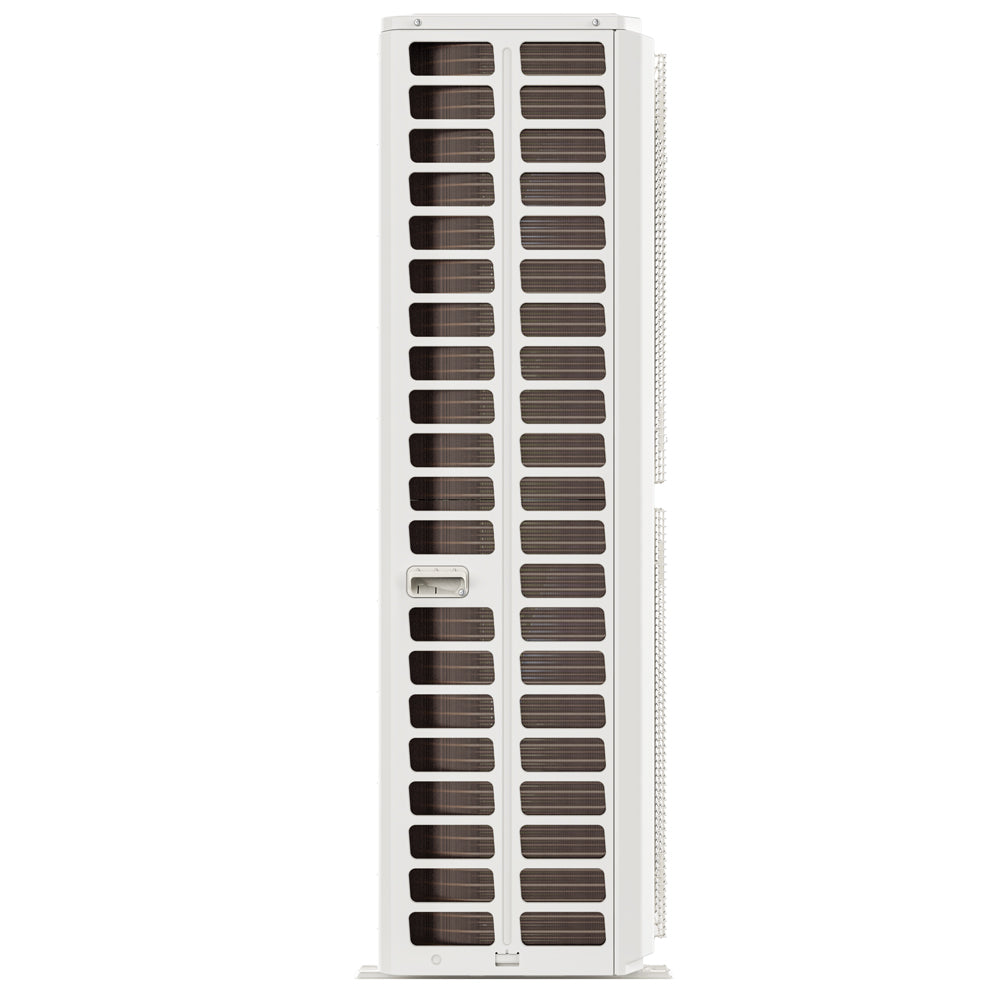

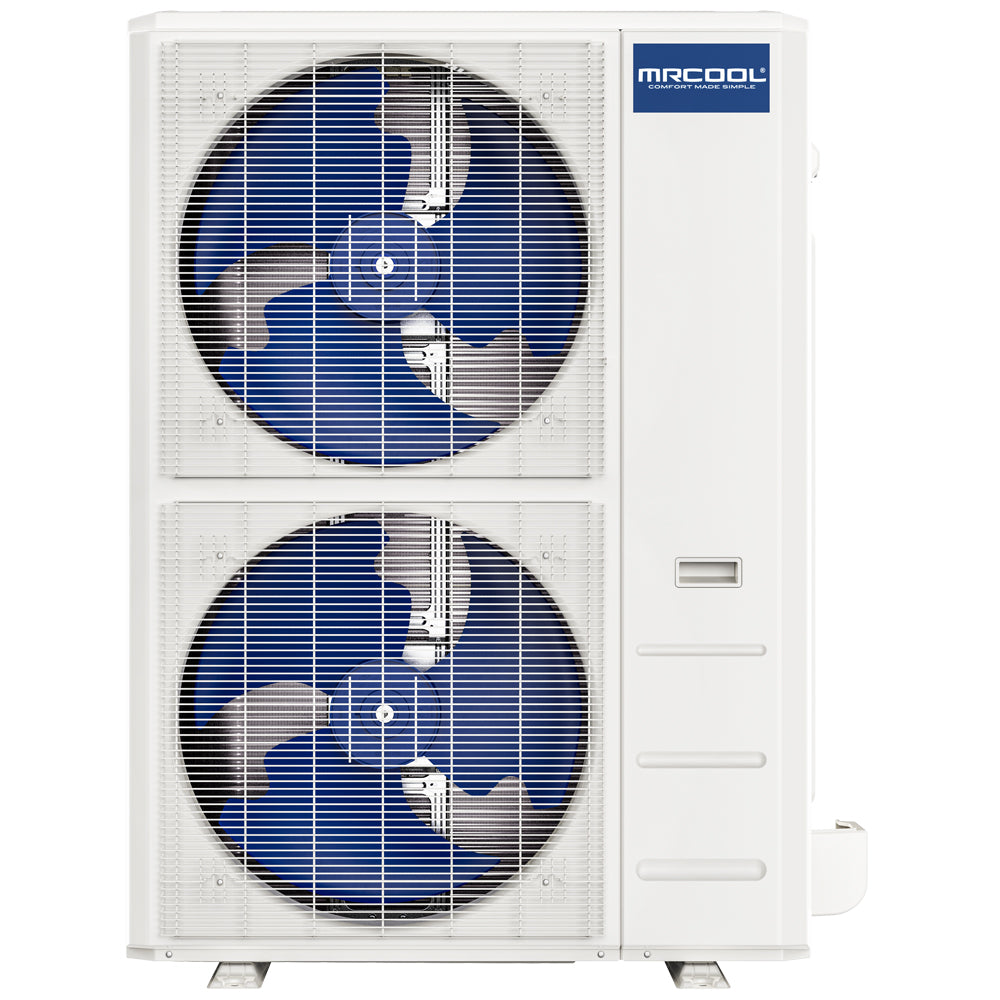

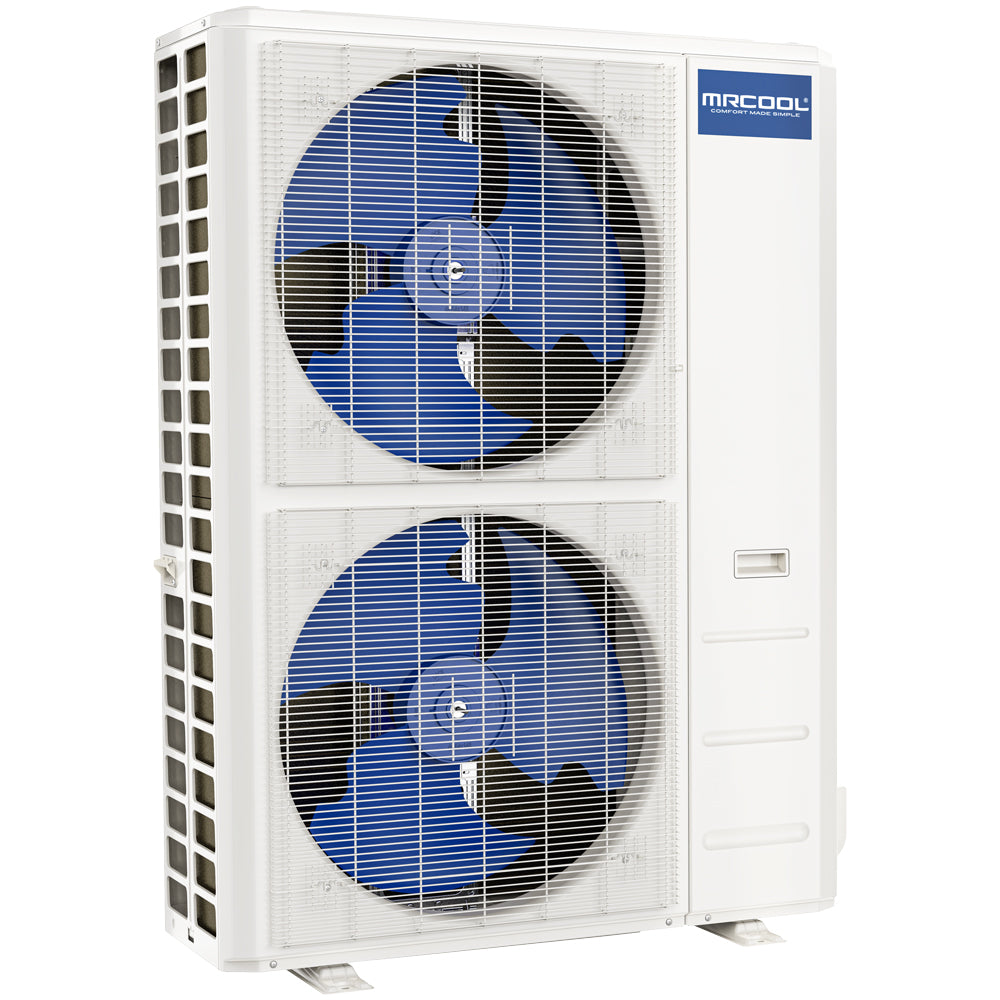

Condenser Dimensions |
52.48 "H x 37.48 "W x 16.34 "D |
Condenser Weight |
217.59 lbs |

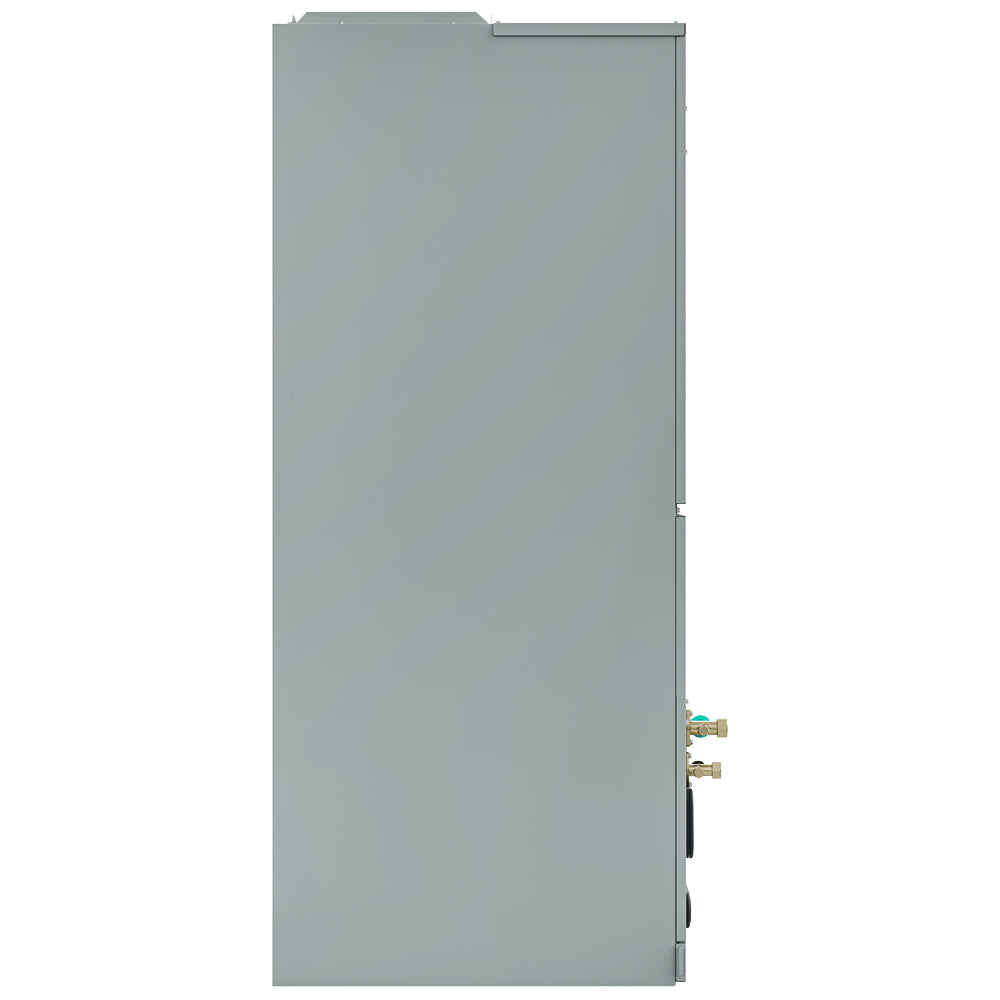

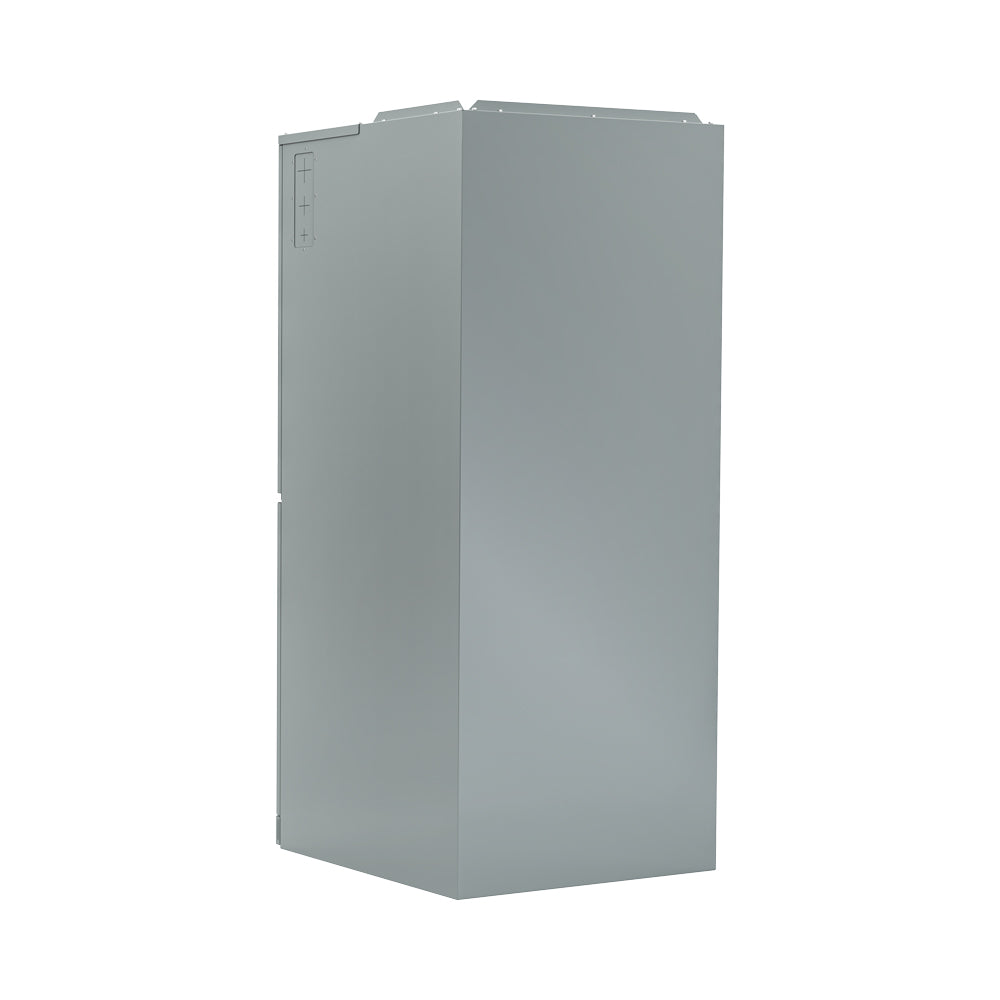

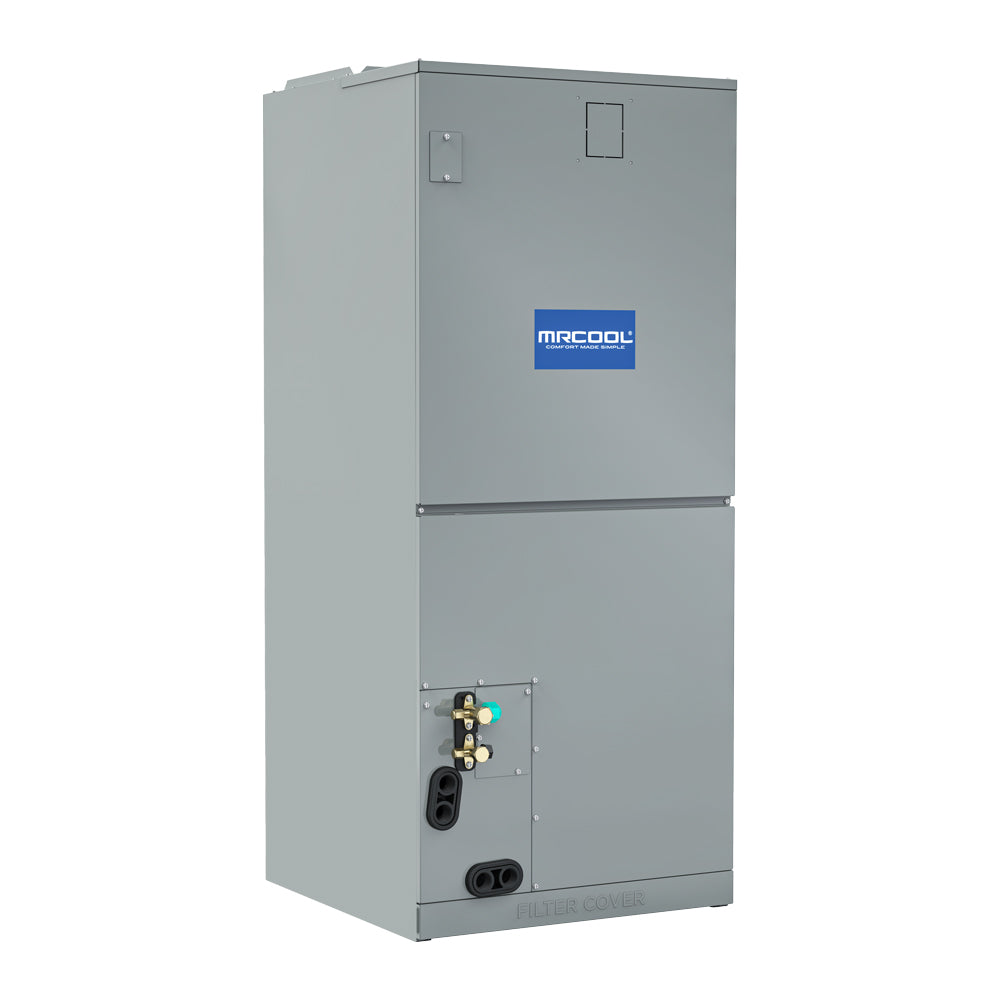

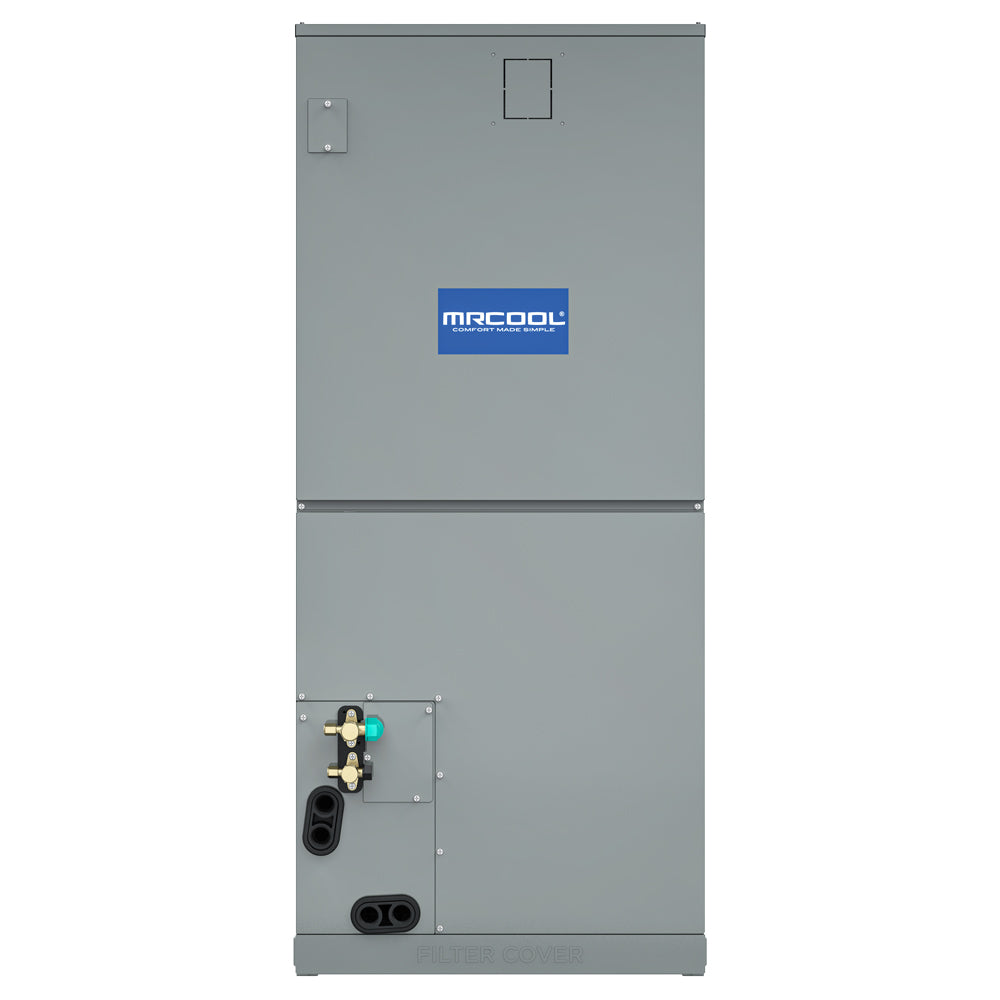

Air Handler Dimensions |
49.02 "H x 21.02 "W x 21.02 "D |
Air Handler Weight |
132.50 lbs |
SEER |
17.3 |
EER |
9.3 |
HSPF |
hspf4/hspf5: 10/8.2 |
CFM |
1282.35/1094.12/905.88 |
Cooling Capacity |
47000 |
Heating Capacity |
55000 |
Voltage |
208/230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
50 |
Min Circuit Capacity |
34 |
Color |
Gray |
Rated Load |
2.4 |
Zone Capacity |
1 |
Refrigerant Type |
R410A |
Refrigerant Volume |
165.79 oz |
Decibal Rating |
53/50/46 |
Decibal Rating Low |
46 |
Decibal Rating High |
53 |
Air Flow Direction |
Multi-position |
Min Ambient Cool |
5~122F |
Min Ambient Heat |
5~75.2F |
Lineset Included |
no |
Liquid Line Size |
3/8in |
Suction Line Size |
3/4in |
Compressor Motor Type |
Rotary |
Condenser Fan Motor RPM |
850/750/650 |
Filter Type |
Replaceable |
Auxiliary Heater Included |
no |
Auxiliary Heater Available |
yes |
Auxiliary Heater Sizes |
8kw,10kw,15kw, 20kw |
Adjustable Thermostat |
yes |
Fan Only Option |
yes |
Sleep Mode |
yes |
Auto Cool |
yes |
App Compatibility |
no |

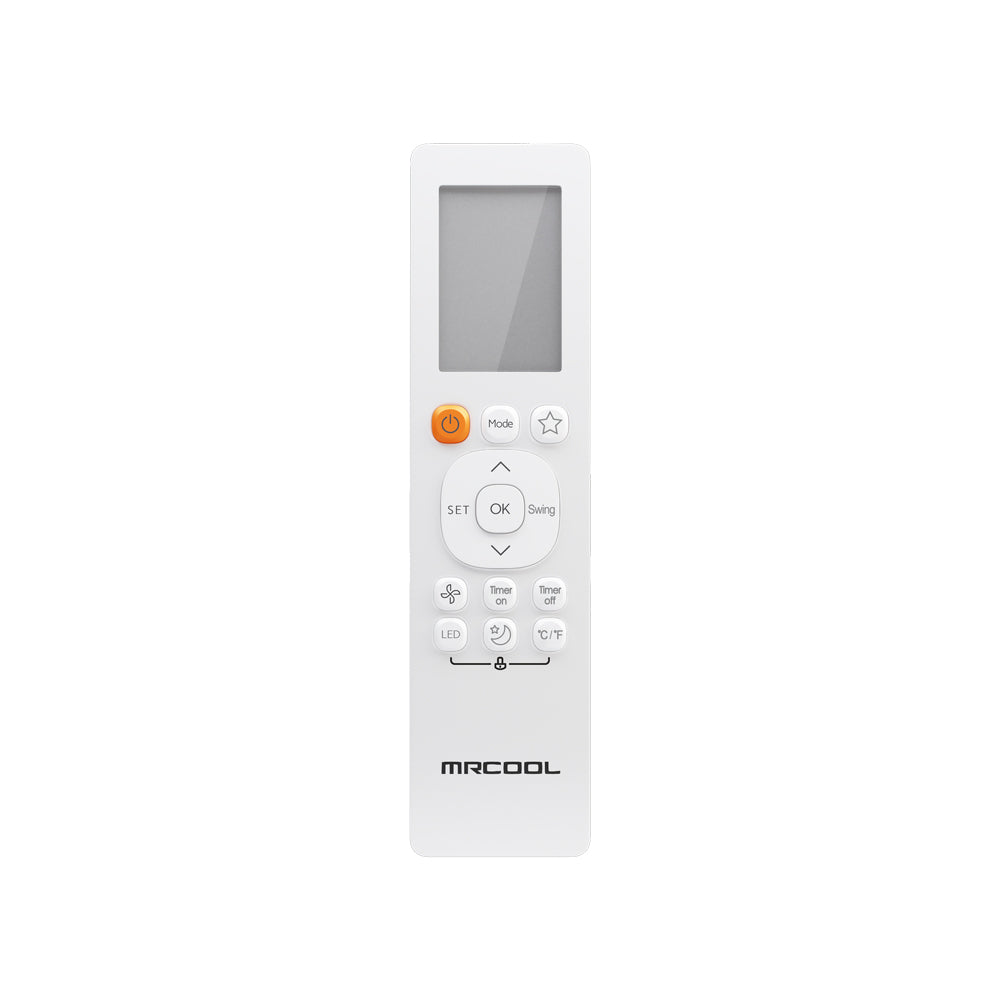

Remote Control Included |
yes |
AHRI Certified |
yes |
Base Warranty |
10 years parts and labor |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsService ManualWarranty DocAccessory Manual RELATED CERTIFICATES
AHRI Certificate
