DESCRIPTION

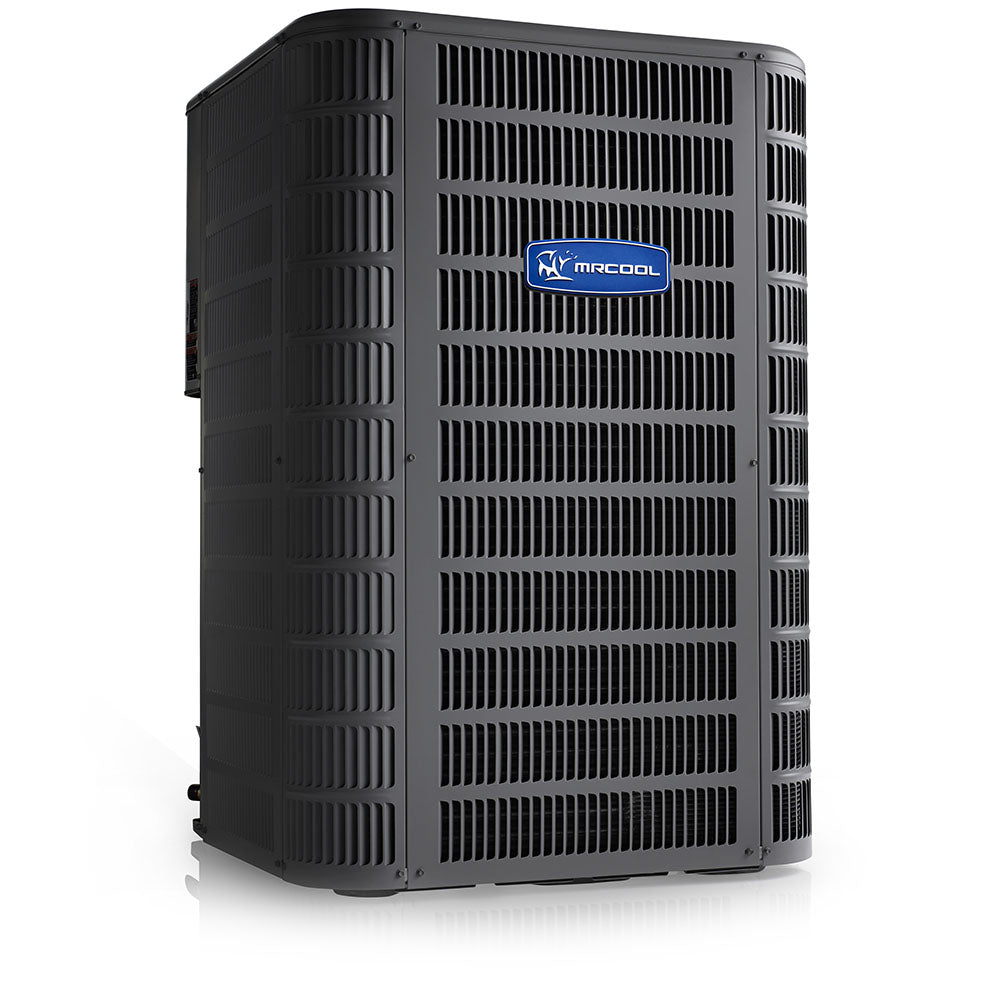

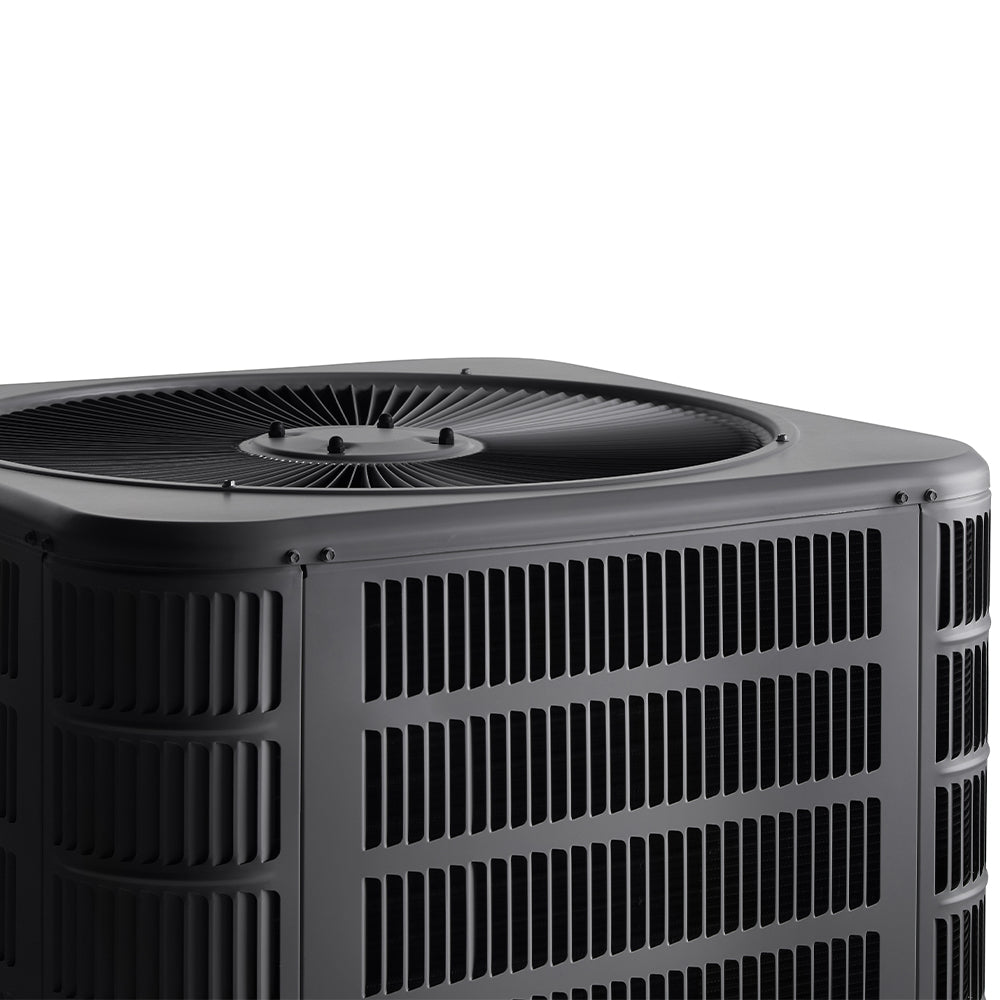

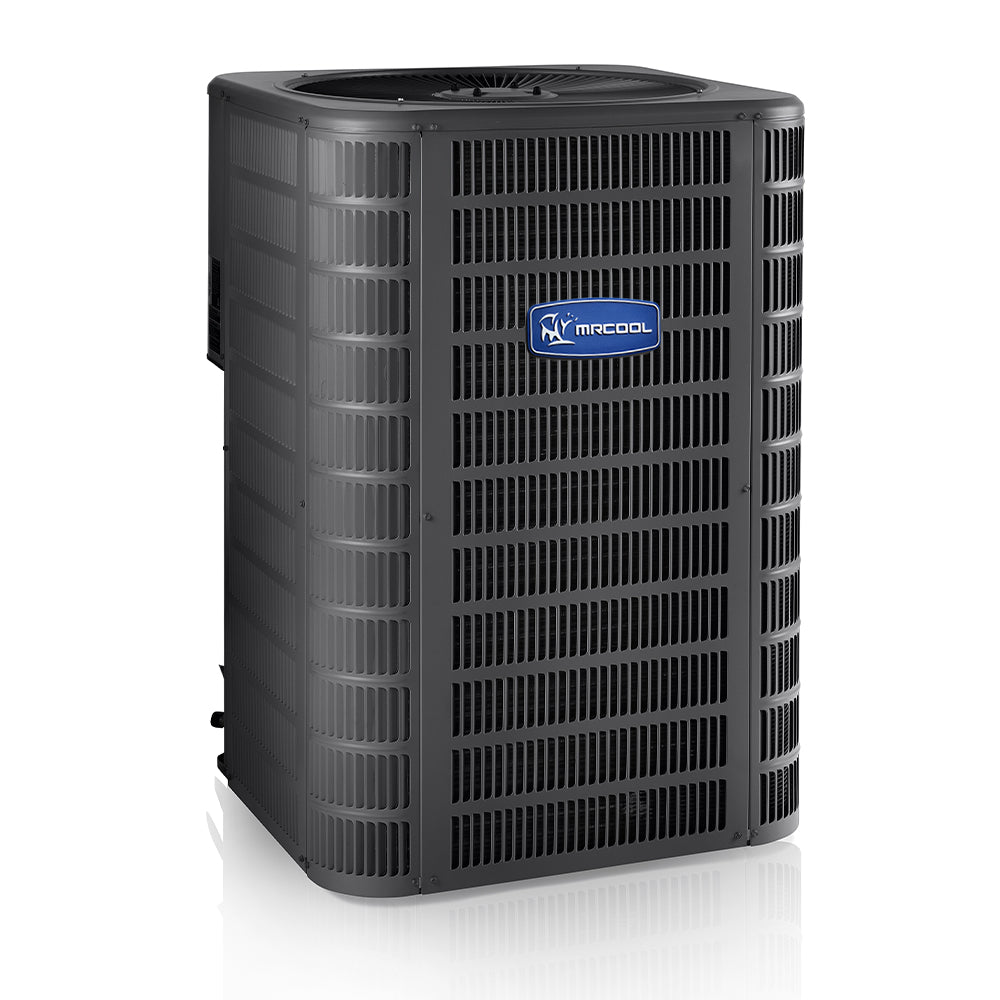

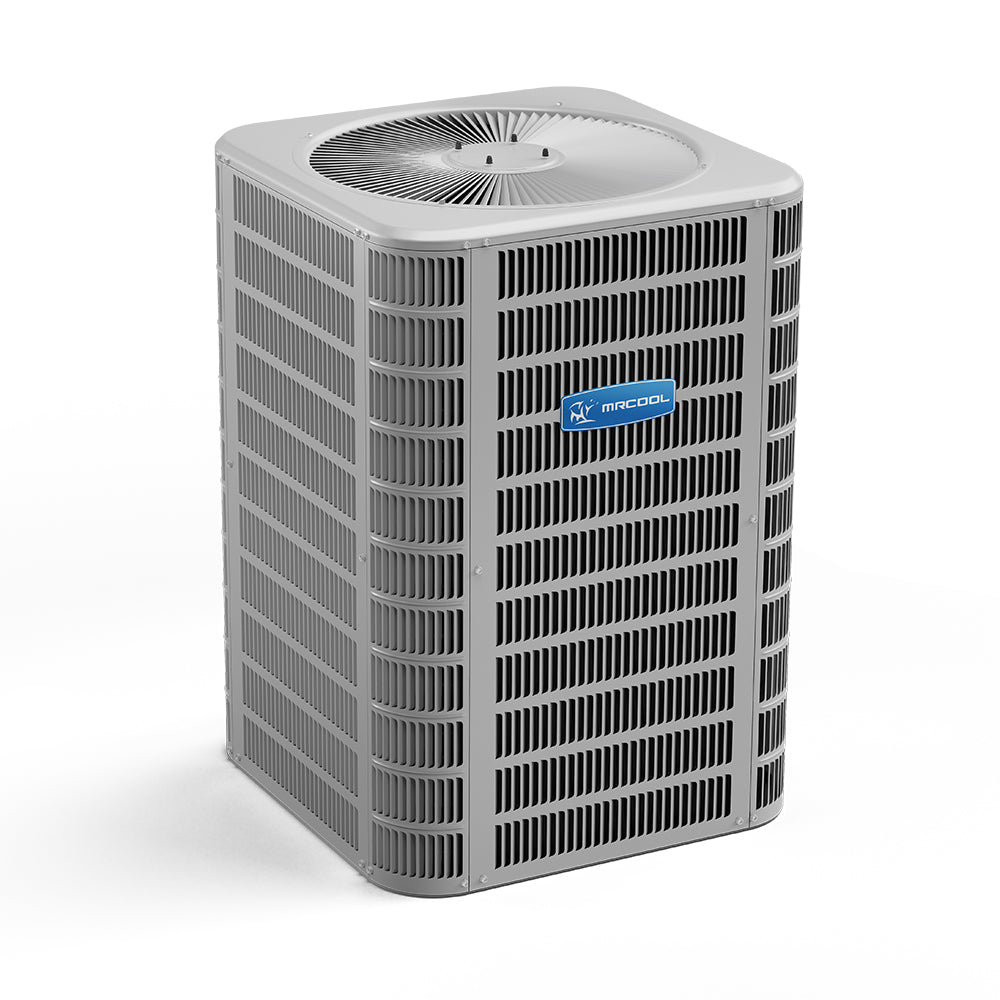

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 4 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).

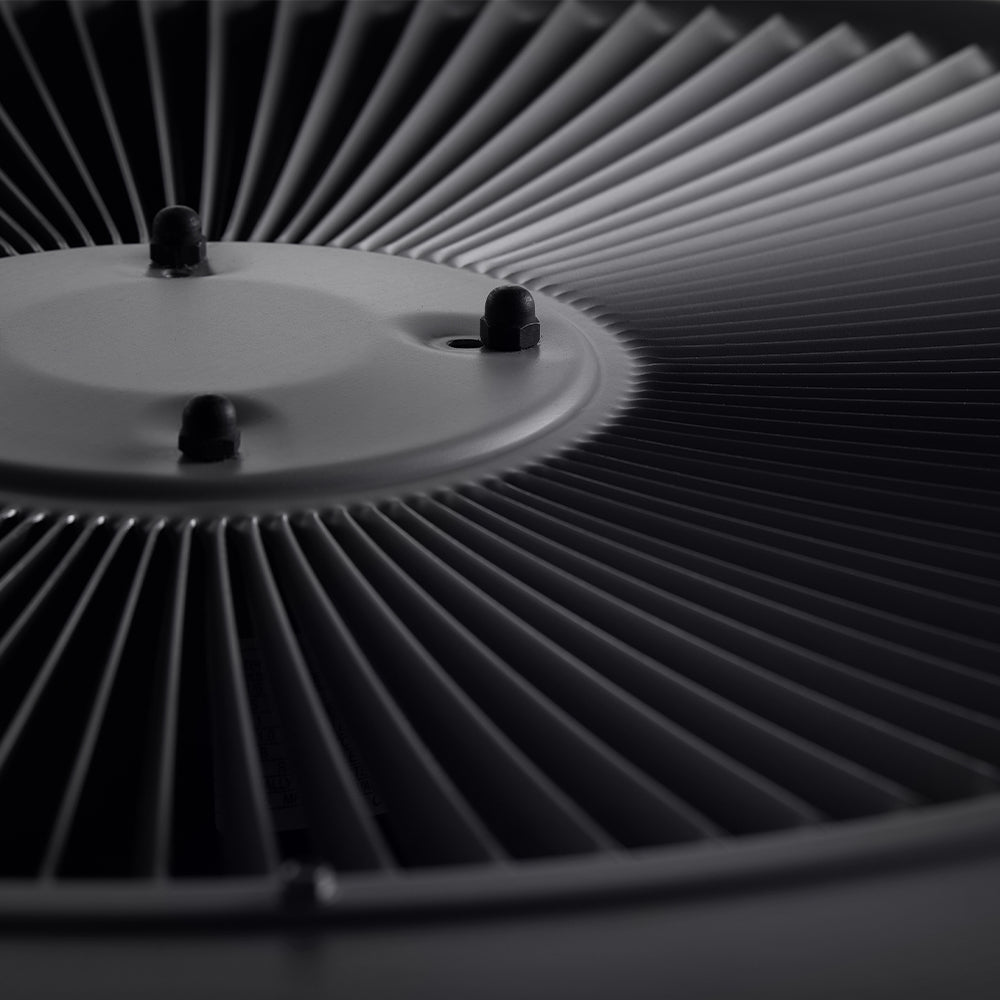

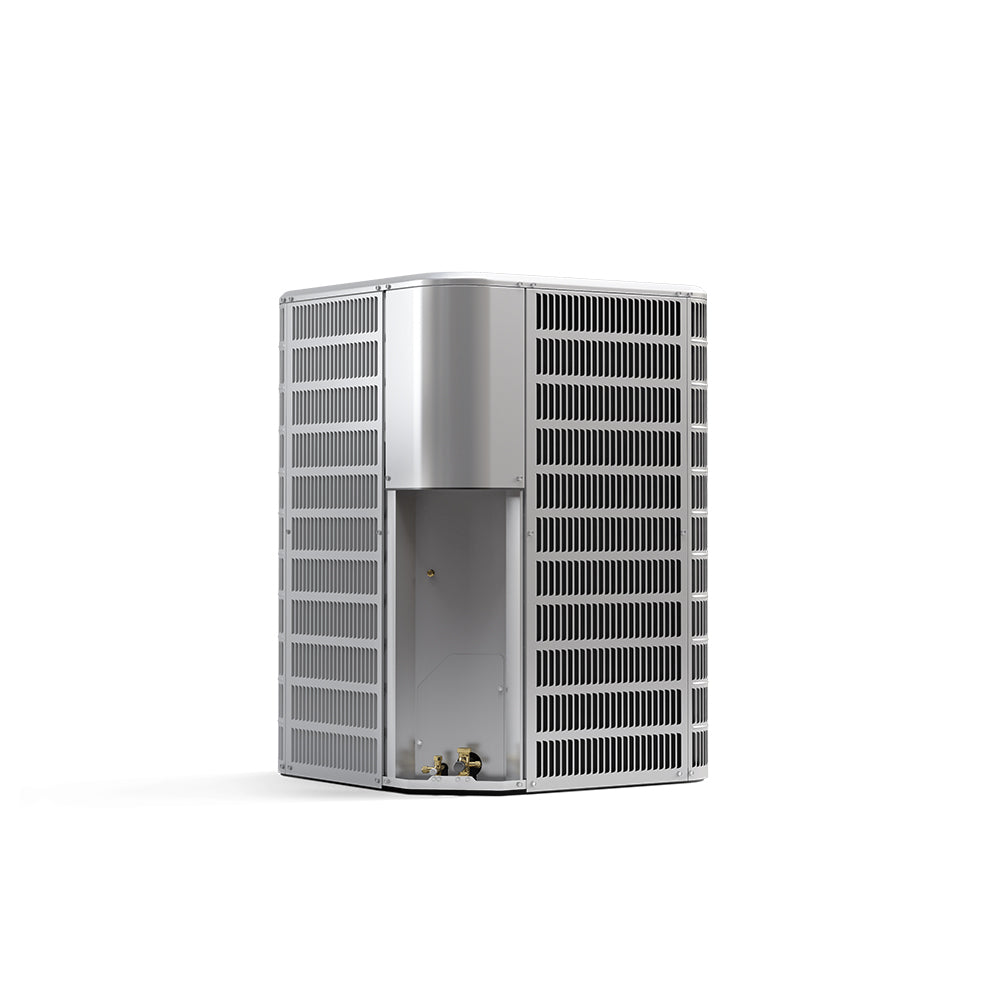

FeaturesCoolGuard total corrosion protection technology designed coilCorner-mounted controls for easy serviceFull metal louvered construction to protect the coil/ hail protectionFactory installed high pressure switchThread-on pressure switches for simple, quick replacement10 year limited warranty on compressorCharged for 15 feet of line setFan orifice for smoother airflow and sound level reductionLanced fins for maximum heat transferEvery coil factory tested for leak proof constructionAll units ETL and ETLC approved and AHRI CertifiedInternally protected against high temperature motor overload conditions
SPECIFICATIONS
Dimensions |
28.25"H x 28.25"W x 37"D |
Weight |
218lbs |
SEER |
up to 16 |
Max SEER |
16 |
EER |
11.7 |
CFM |
1500-1600 |
Tonnage |
4 |
Cooling Capacity |
46500-47500 |
Voltage |
208/230 |
Phase |
1 |
Cycle |
60 |
Stage |
Single |
Max Fuse Breaker |
40 A |
Min Circuit Capacity |
24.2 |
Color |
Gray |
Color Family |
Gray |
Rated Load |
18 |
Maximum Coverage Area |
2000 |
Refrigerant Type |
R-410A |
Refrigerant Volume |
156 |
Decibal Rating |
78 |
Inverter |
No |
Min Ambient Heat |
(-20F) |
Lineset Included |
No |
Lineset Length |
15FT, 25FT, 35FT, 50FT |
Max Lineset Length |
50FT |
Lineset Fitting Type |
Sweat |
Liquid Line Size |
3/8 in |
Suction Line Size |
7/8 |
Compressor Motor Type |
Scroll |
Condenser Fan Motor Type |
Direct Drive |
Condenser Fan Motor HP |
1/4 |
Condenser Fan Motor RPM |
825 |
Metering Device |
TXV |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
7.5kw, 10kw, 15kw, 20kw |
UL Recognized |
No |
UL Listed |
No |
ETL Listed |
yes |
ETL Certified |
no |
LEED Certified |
no |
Energy Star Compliant |
no |
Energy Star Certified |
no |
AHRI Certified |
yes |
Registered Warranty |
10 year registered parts warranty |
Base Warranty |
Standard 5 year limited parts warranty |
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
Base Parts Warranty |
5 Year Parts Warranty |
Has Batteries |
No |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Gross Depth |
31 |
Gross Height |
37.5 |
Gross Width |
30.5 |
Restricted States |
No |
