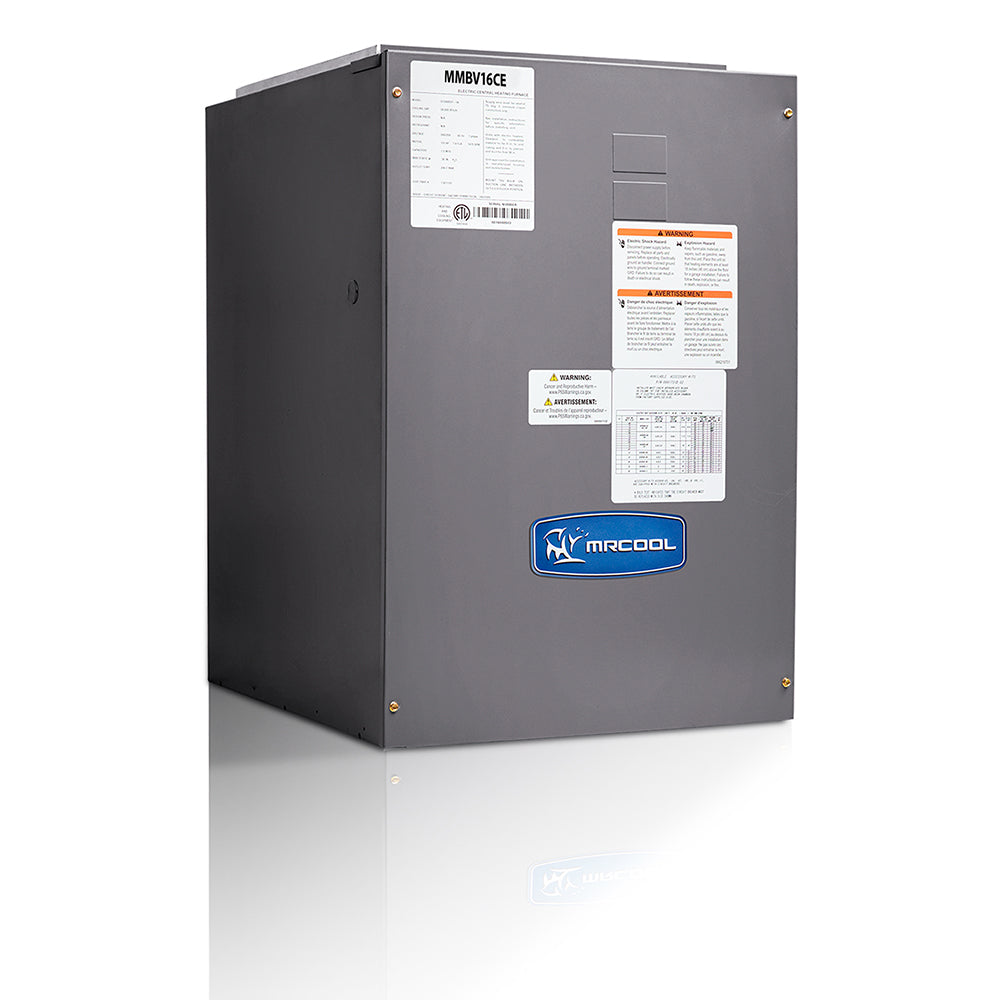

DESCRIPTION
The MRCOOL Multi-Position Modular Blower is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Modular Blower, you can always know that you are being energy and time efficient.
FeaturesCabinet dimensions match standard furnace widthsPainted galvanized cabinetECM variable speed motorsField installed 5-20 kW heat stripsFactory installed fan relays for non-heat strip installations10 year limited parts warrantyETL and ETLC approvedAHRI certifiedVariable speed blower motorUpflow, counterflow, and horizontal configurationsApproved for installation in manufactured housing and mobile homesMade in the USA
SPECIFICATIONS
Dimensions |
26"H x 21"W x 21"D |
Weight |
97lbs |
CFM |
1610 |
Tonnage |
4 |
Cooling Capacity |
400-1610 |
Voltage |
208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
15 |
Min Circuit Capacity |
3.8 |
Color |
Gray |
Color Family |
Gray |
Maximum Coverage Area |
2000 |
Refrigerant Type |
R-410A |
Number of Speeds |
Variable |
Inverter |
No |
Blower Motor Type |
ECM |
Blower Motor HP |
3/4 |
Blower Motor Speeds |
Variable Speed |
Filter Type |
Replaceable |
Filter Size |
20x25(2) |
Auxiliary Heater Sizes |
15kw |
UL Recognized |
No |
UL Listed |
No |
ETL Listed |
Yes |
ETL Certified |
No |
ISO Certified |
No |
LEED Certified |
No |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
10 Year Limited Parts Warranty |
Registered Parts Warranty |
10 Year Limited Parts Warranty |
Has Batteries |
No |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Gross Depth |
23.5 |
Gross Height |
28 |
Gross Width |
24 |
Gross Weight |
97 |
Restricted States |
No |
