DESCRIPTION

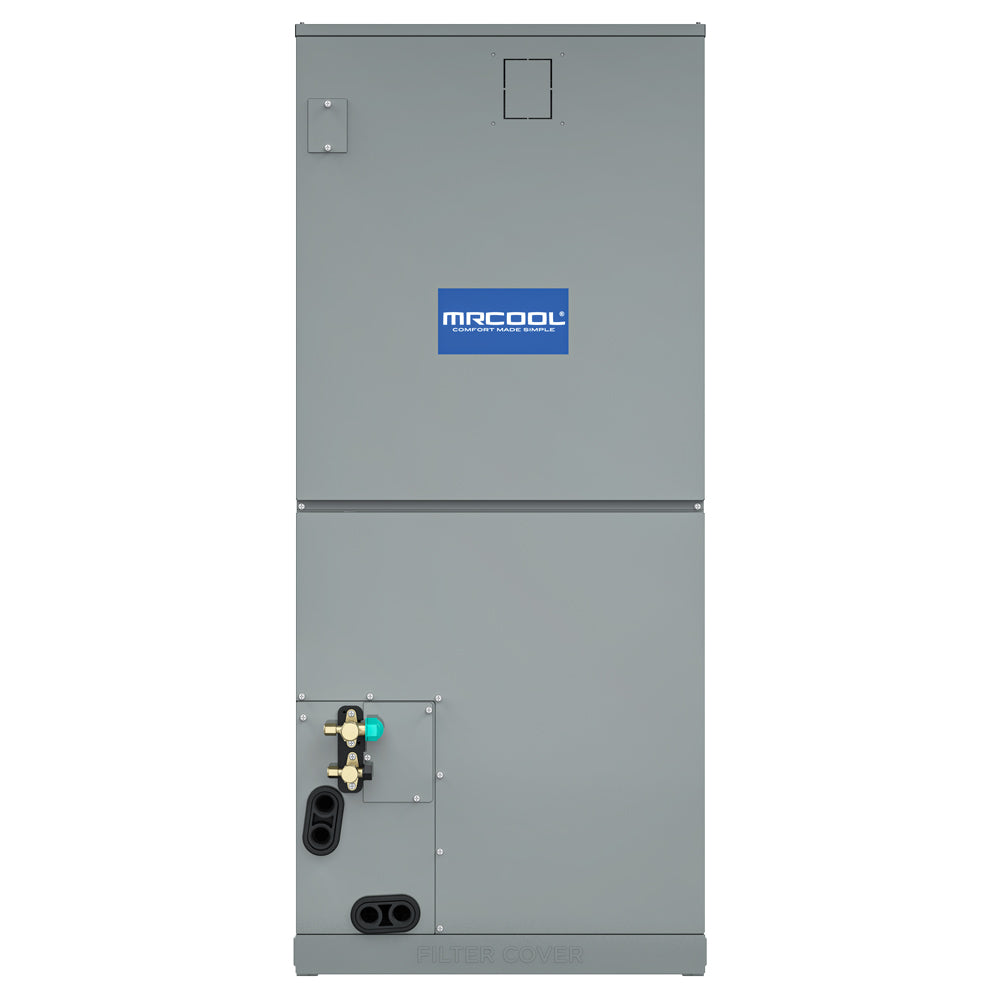

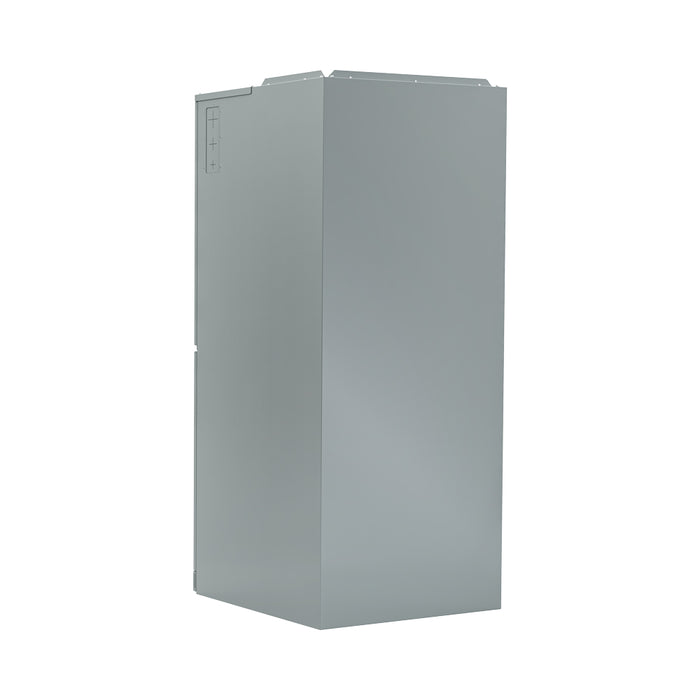

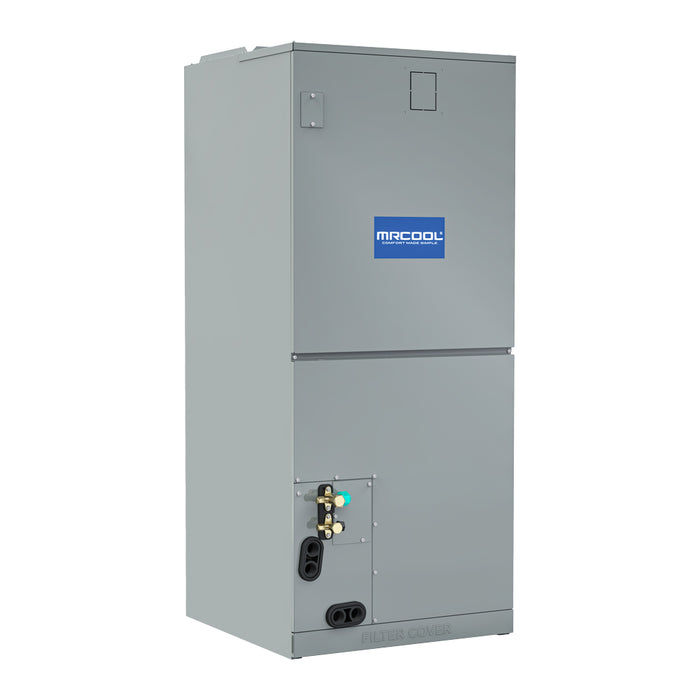

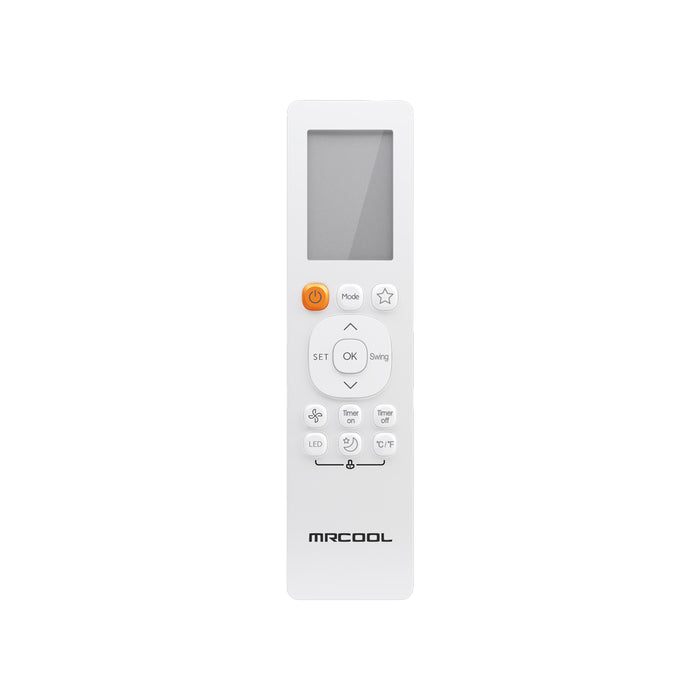

The 36K MRCOOL Hyper Heat Central Ducted Air Handler is a fantastic choice for addressing your home's heating and cooling demands, regardless of external weather conditions. Additionally, its efficiency leads to utility cost savings. It features an impressive SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5, thanks to its enhanced heating capacity. Built with painted galvanized steel, the unit's side-discharge design, slide-out blower, self-diagnostics panel, and removable filters make maintenance simple. Effortless installation is possible by an HVAC technician, as the unit is compatible with the optional MRCOOL No-Vac Quick Connect Line Set. Pre-charged with environmentally friendly R410-A refrigerant, this line set removes the need for vacuuming or flare welding and is kink-resistant. It also provides versatile installation possibilities due to its adaptability to various configurations. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote. In the unlikely event of any operational concerns, the air handler is backed by a reassuring 10-year warranty for parts and labor, offering you peace of mind. Furthermore, registration is not required for the included labor warranty.

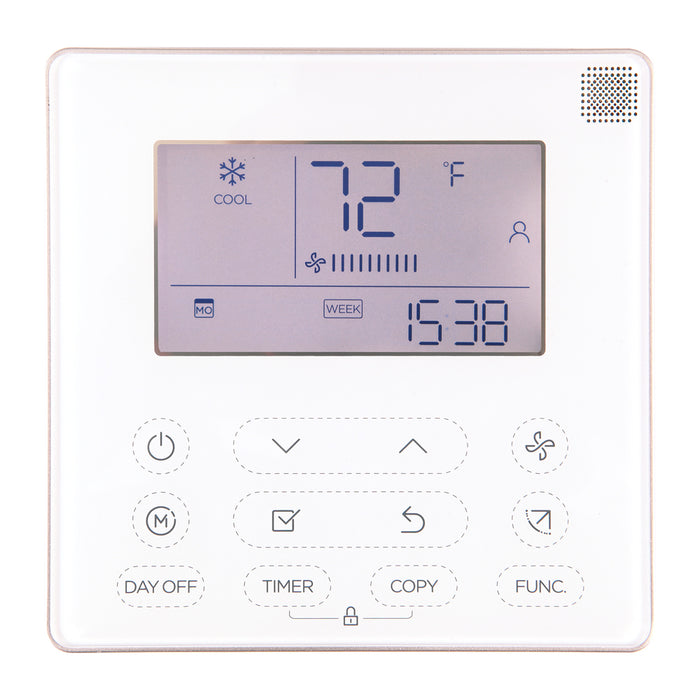

FeaturesUp to 16 SEER2High Static - Mobile Home Compatible - The Central Ducted Air Handler is made to accommodate the high static requirements for manufactured and modular homes.Multi-Positional - Any Way You Want It. This unit is compatible with Upflow, downflow and horizontal configurations.Thermostat Included - Just A Touch Away. The included wired thermostat has a variety of options to keep your home the temperature you want it to be.10-year Warranty on Parts, Labor, and Compressor
SPECIFICATIONS
Weight |
129.63lbs |
CFM |
1188.24/1082.35/970.59/864.71 |
Cooling Capacity |
36000 |
Heating Capacity |
40000 |
Voltage |
208/230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
15 |
Min Circuit Capacity |
5 |
Refrigerant Type |
R410A |
Decibal Rating |
43 |
Decibal Rating Low |
41 |
Decibal Rating High |
45 |
Number of Speeds |
4 |
Inverter |
DC |
Max Lineset Length |
213.25 ft |
Liquid Line Size |
3/8in |
Suction Line Size |
3/4in |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
5kW, 8kW, 10kW, 15kW |
AHRI Certified |
Yes |
Base Warranty |
10yrs Parts and Labor |
Proposition 65 Warning |
Yes |
Gross Depth |
24.41in |
Gross Height |
52.56in |
Gross Width |
26.57in |
Gross Weight |
154.10lbs |
