DESCRIPTION

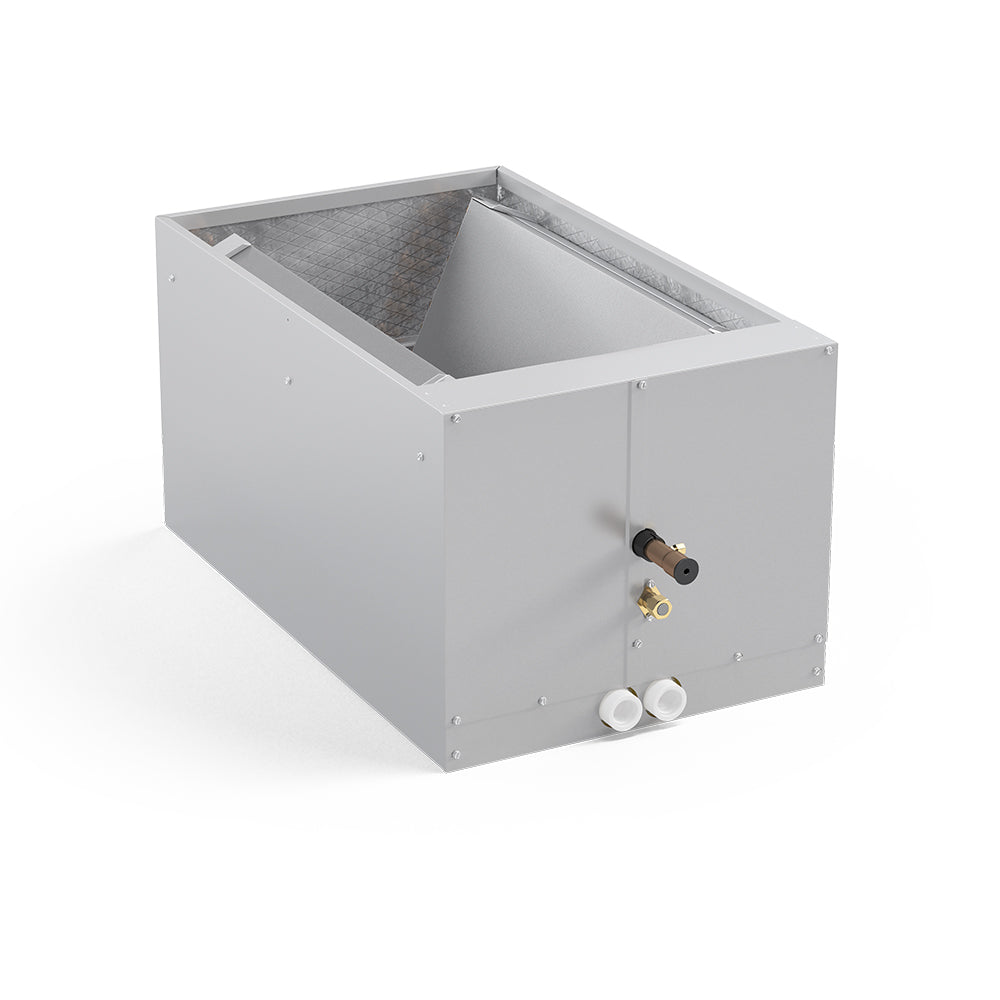

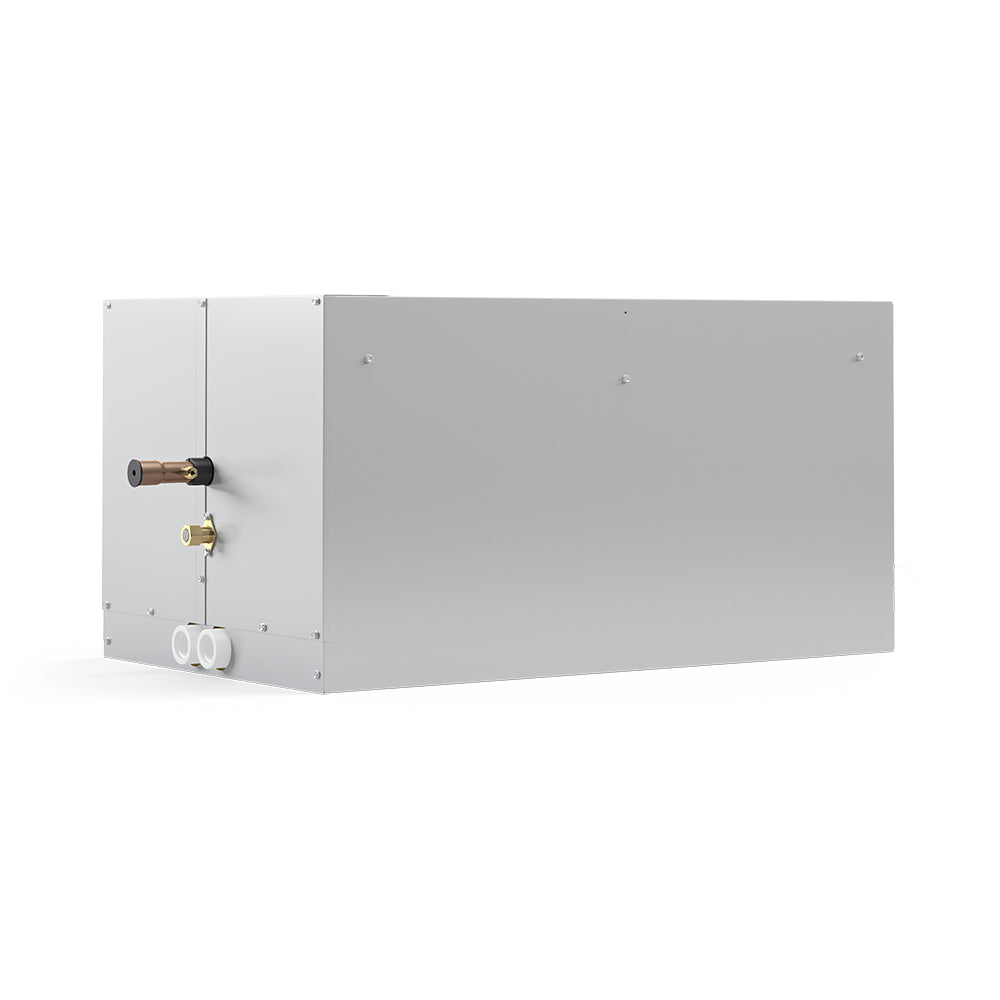

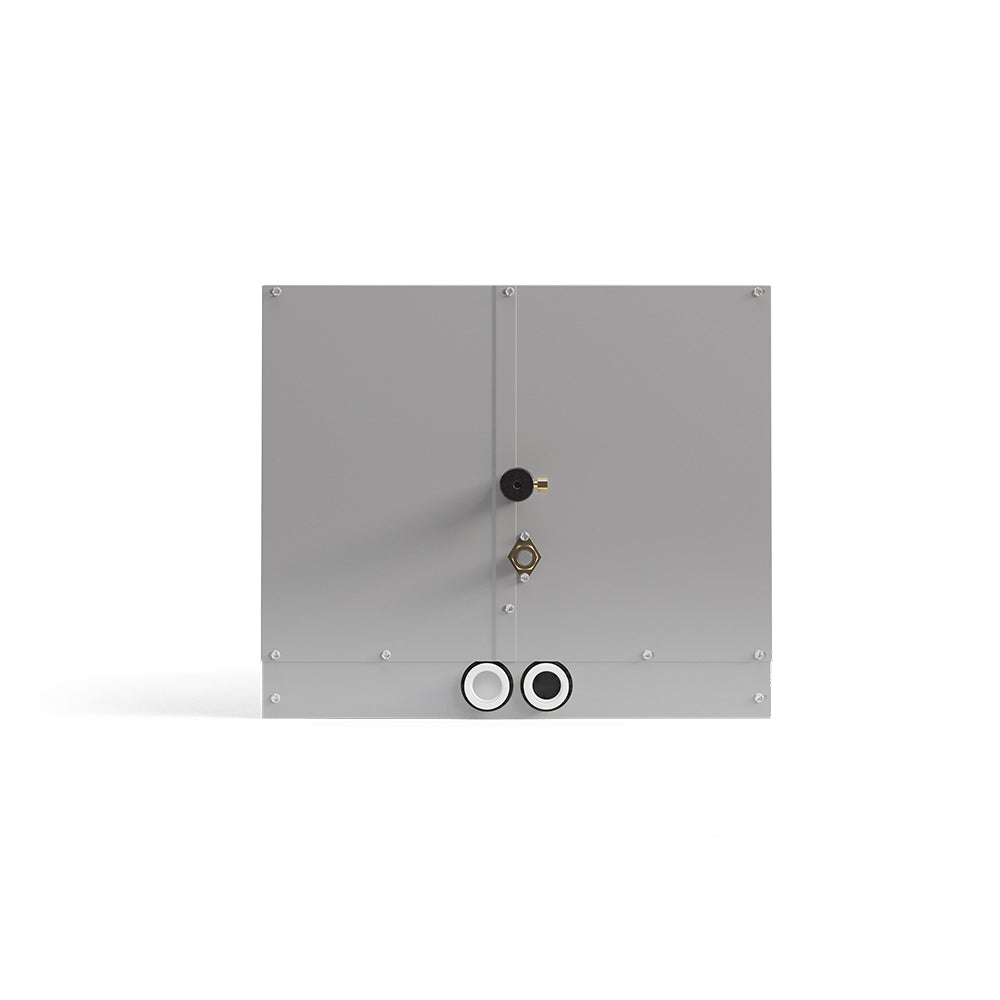

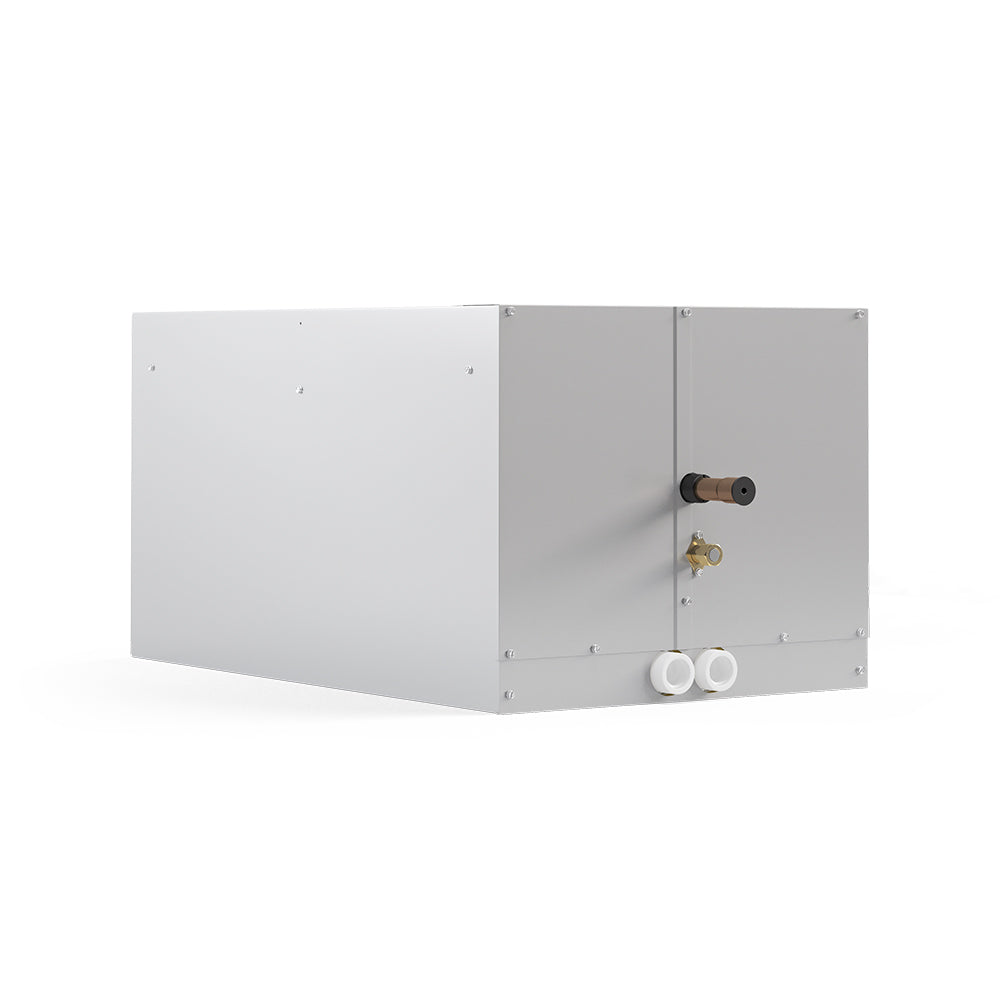

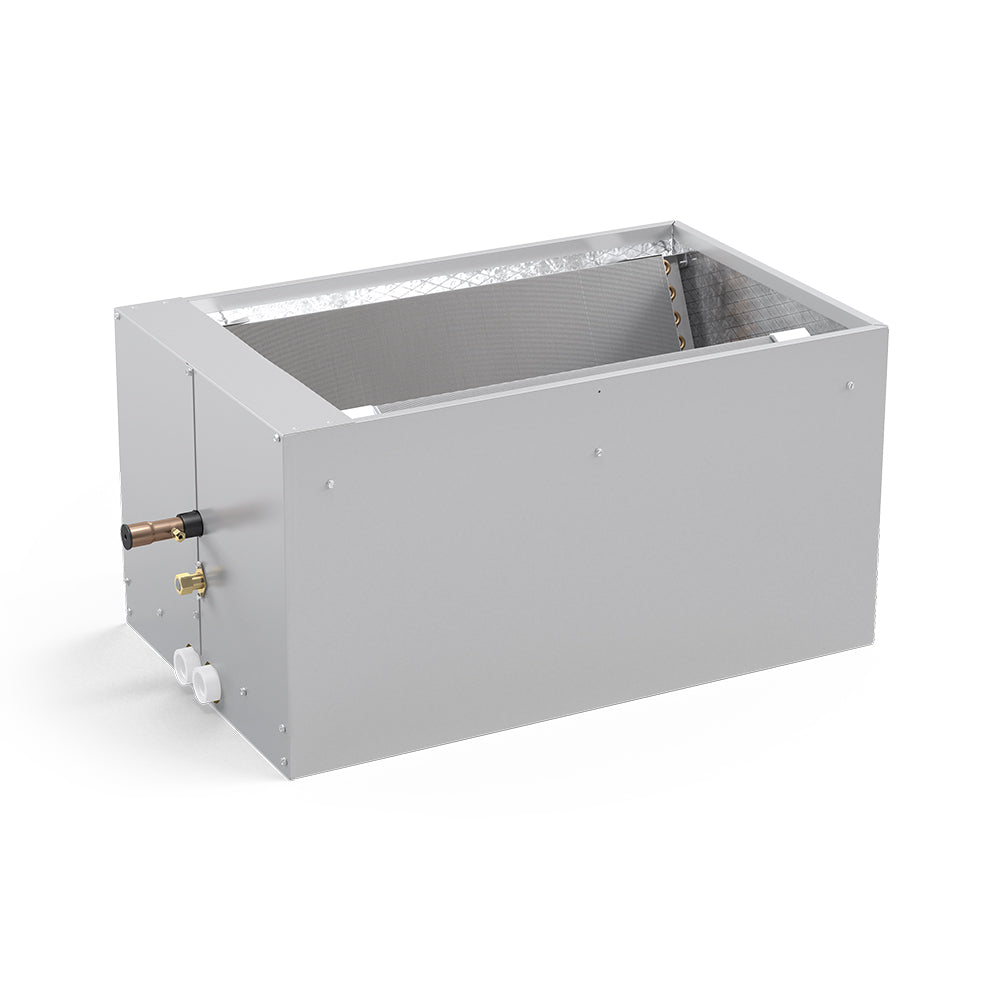

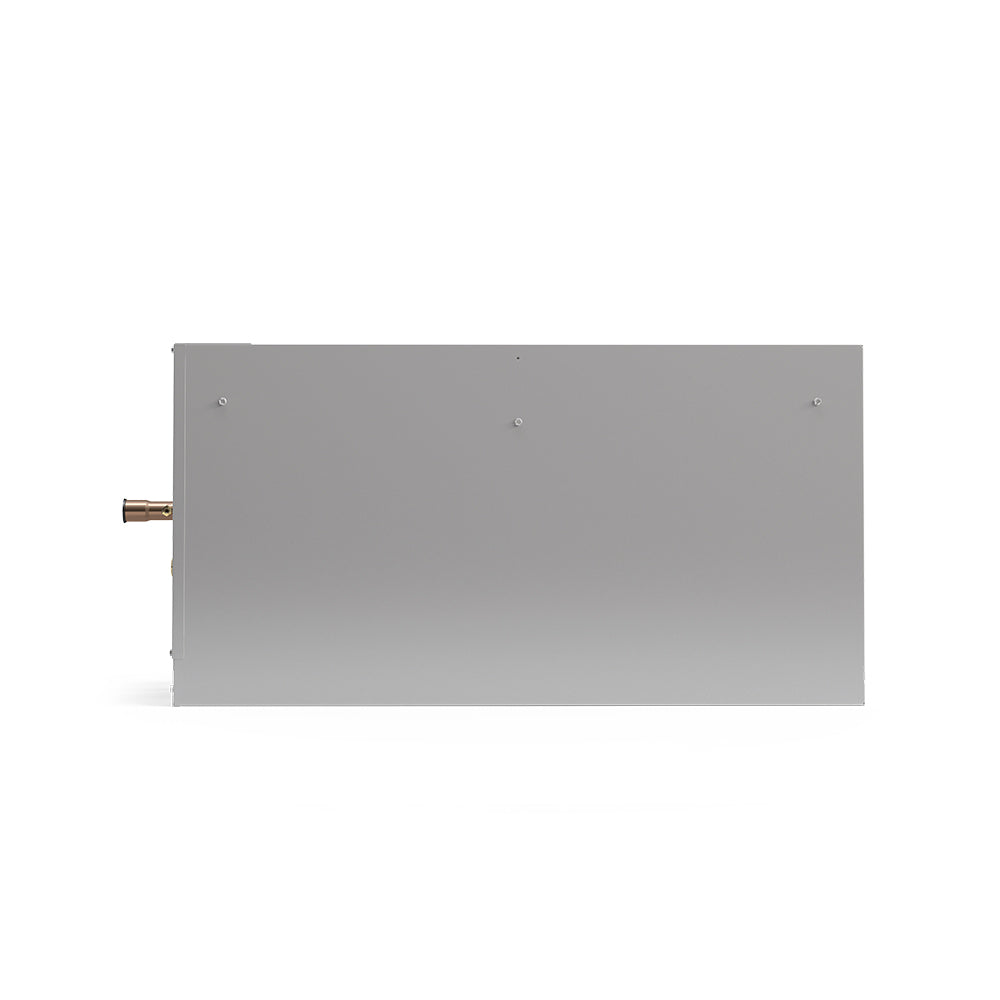

This is a brand new 3 ton, R410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
FeaturesInterlocking door assemblies and snug line sealgrommets to minimize air leakageAll units UL Listed and AHRI CertifiedOne of the lowest water retention drain pans in the industry to minimize mold and mildew growthHeavy-gauge steel constructed cabinet for optimal support of the furnace, no need for additional bracing or structure.Foil-face insulation for easy cleaningAll drain pans are compatible with UV lightsRemovable Cabinet panels for easy coil serviceSuperior service access to components, withtubing located at door split and foil-face insulation10-Year Parts Limited WarrantyAluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.Tubing located at door split for easy coil service or cleaning
SPECIFICATIONS
Dimensions |
17.5"H x 26-1/8"W x 16-1/8"D |
Weight |
57lbs |
Tonnage |
3 |
Cooling Capacity |
36000 |
Color |
Gray |
Color Family |
Gray |
Refrigerant Type |
R-410A |
Drain Connection Size |
3/4 |
Lineset Included |
No |
Lineset Length |
15ft, 25ft, 35ft, 50ft |
Max Lineset Length |
50ft |
Lineset Fitting Type |
Sweat |
Liquid Line Size |
3/8 |
Suction Line Size |
7/8 |
UL Recognized |
yes |
UL Listed |
yes |
Energy Star Compliant |
no |
Energy Star Certified |
no |
AHRI Certified |
yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
Base Parts Warranty |
5 Year Parts Warranty |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Gross Weight |
57 lbs |
Restricted States |
No |
PRODUCT DOCUMENTATION
BrochureSpecsWarranty DocRELATED CERTIFICATES
AHRI Certificate
