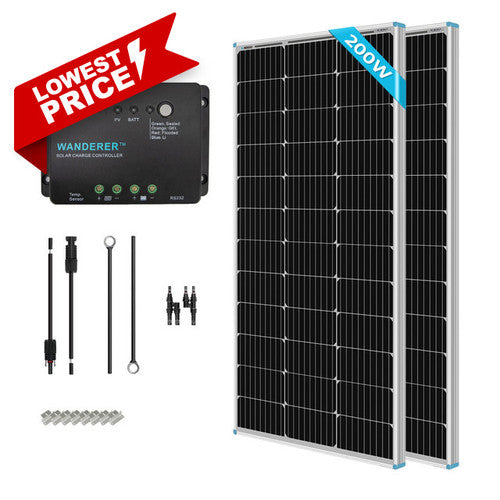

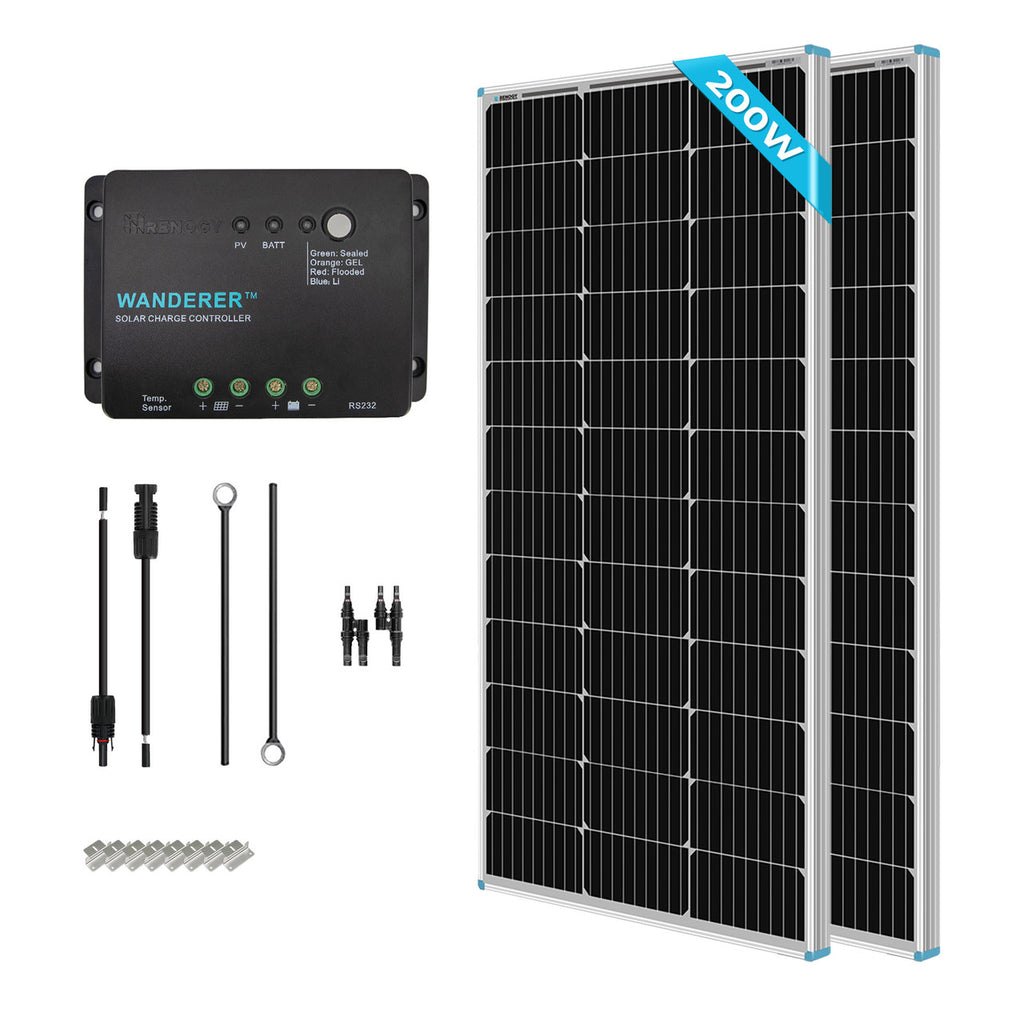

The Renogy 200W Solar Starter Kit is easy for you to install, and it is the most economical choice for solar beginners. This Renogy Solar Kit includes the equipment necessary for building a new system: a solar panel, a charge controller, needed electrical wiring, Solar Y Branch Connectors and Z-brackets, making it an ideal choice for both off-grid and mobile solar power applications.

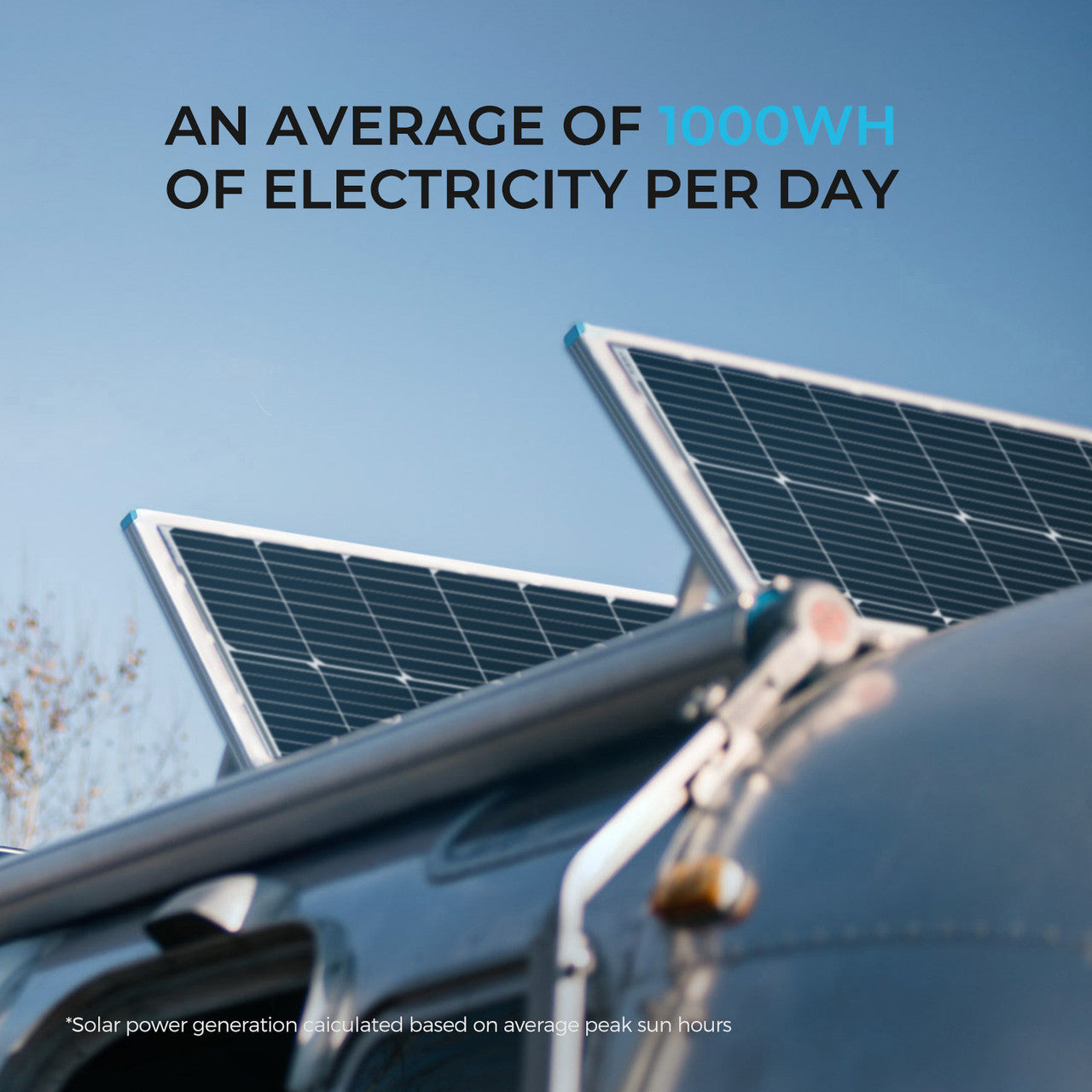

This Starter Kit will produce an average of 1000Wh of electricity per day (Based on 5 hours of direct sunlight conditions). The 100W solar panel doesn't take up much roof space, but its energy can offset loads such as lighting, camera, and projector. With the Wanderer Li 30A PWM Charge Controller, the kit can meet your further power needs by adding more of the same solar panels to expand up to 400W.
The Starter Kit can build a reliable and environmentally friendly power supply, perfect for RVs, campers, boats, sheds, and cabins. It can also be installed as a power supply for outdoor appliances and emergencies, and as a stand-alone power system.
Efficient Performance
The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Cell Efficiency can reach 22%.
Smart 4-stage Charging

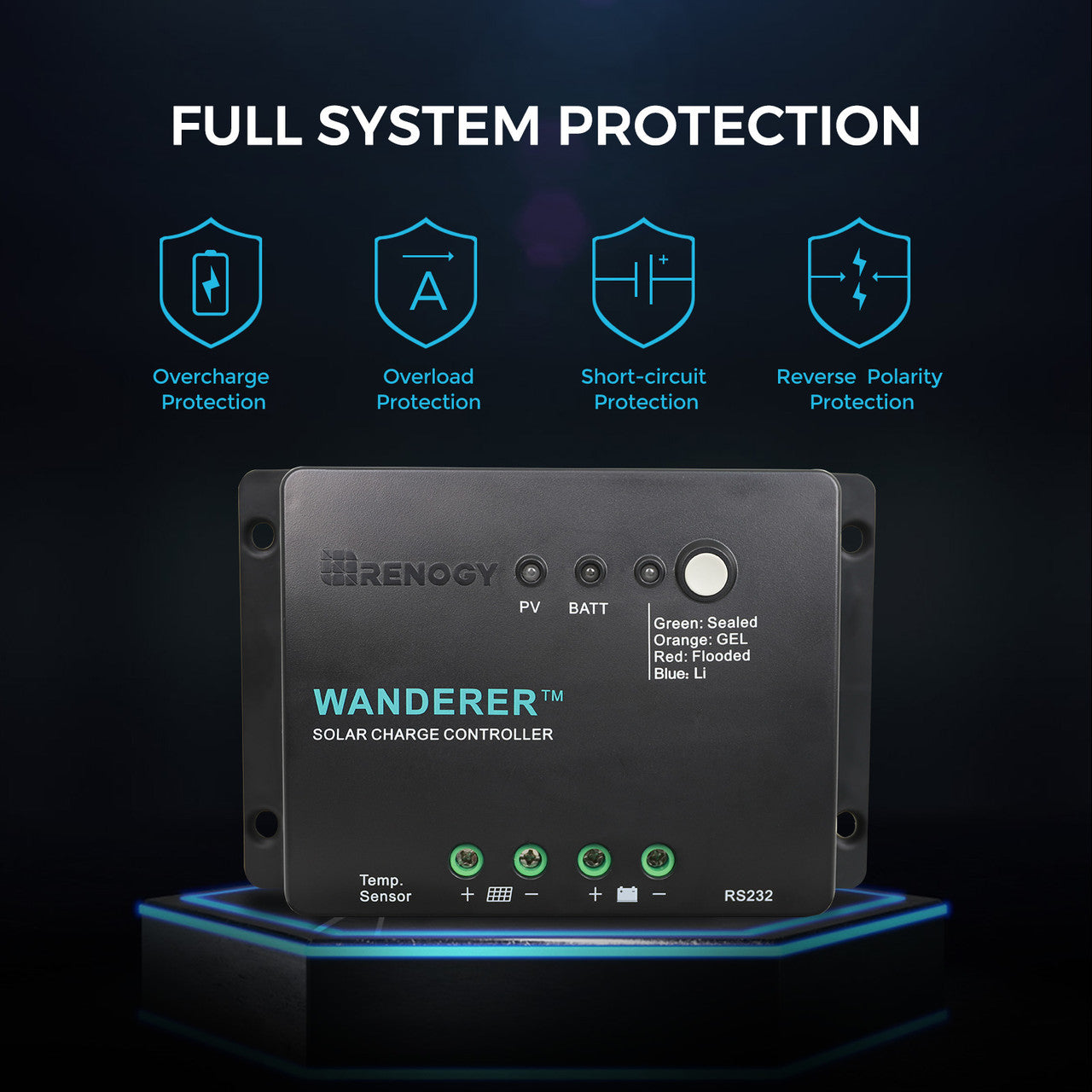

The Wanderer PWM charge controller features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.

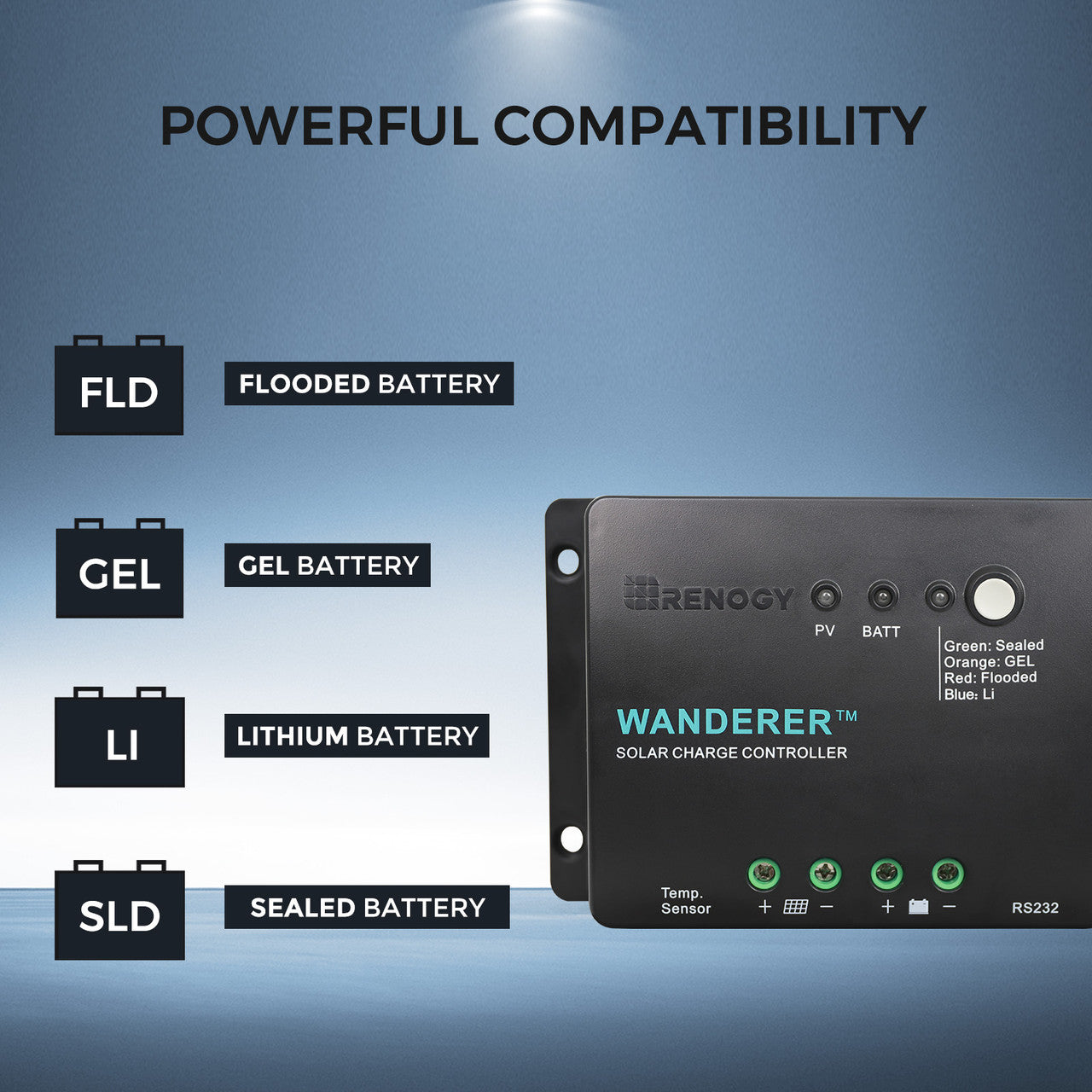

Powerful Compatibility
The Wanderer PWM Charge Controller is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries. Connecting the BT-1 Bluetooth module to the RS232 communication port, you can monitor the system status in real-time through the DC Home app.
Please note the BT1 Bluetooth Module is not included.
Solid Quality

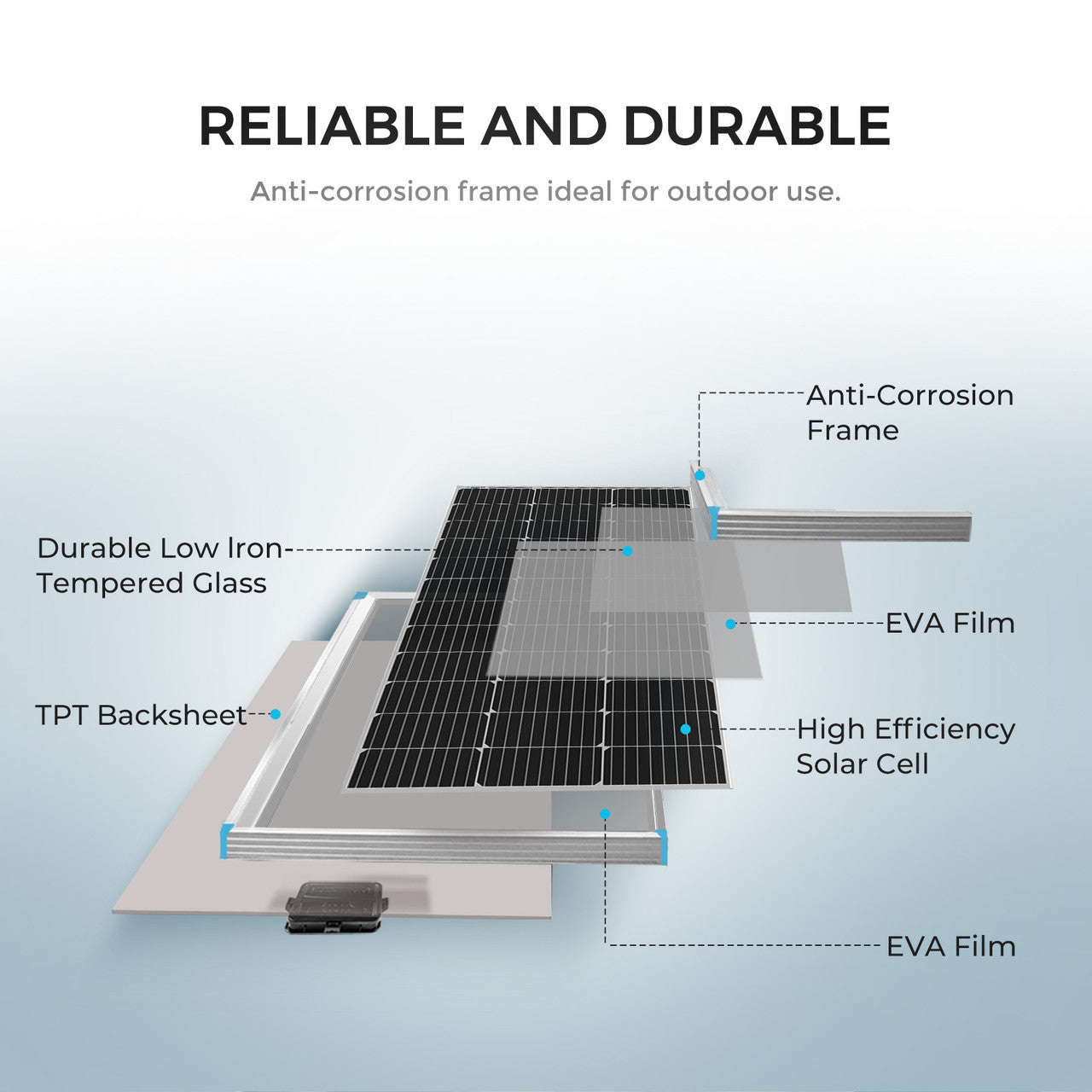

The corrosion-resistant aluminum frame with strong corner braces is designed for long-term outdoor use, giving the panels a long service life.
No Fear of Weather Challenge
The IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.
Ready to Install
This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, Solar Y Branch Connectors and pre-drilled holes on the back frame of the panel allow fast and secure mounting.
SPECIFICATION
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Max Power at STC: 100W
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Operating Temperature: '-40°F to 185°F(-40℃ to +85℃)
Weight: 14.1lb (6.4kg)
Dimensions: 41.8*20.9*1.38in(1062x530x35mm)
WANDERER LI 30A PWM CHARGE CONTROLLER
Nominal Voltage: 12 V
Rated Charge Current: 30A
Max. PV Input Voltage: 25 VDC
Max. PV Input Power: 400W (12V)
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (SET)
Length : 20FT
AWG : 10
Rating Voltage : 600/1000V
Temperature : -40°F to +185°F
RENOGY 8FT 10AWG TRAY CABLES (PAIR)
Length: 8ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY SOLAR Y BRANCH CONNECTORS
Withstanding Voltage: 1000V DC(TUV), 600V(UL)
Protection Degree: IP67, mated
Rated Current: 50A
Temperature: -40°F to +195°F
MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty; 25 year 80% output warranty
Accessories: 1-year material and workmanship warranty
