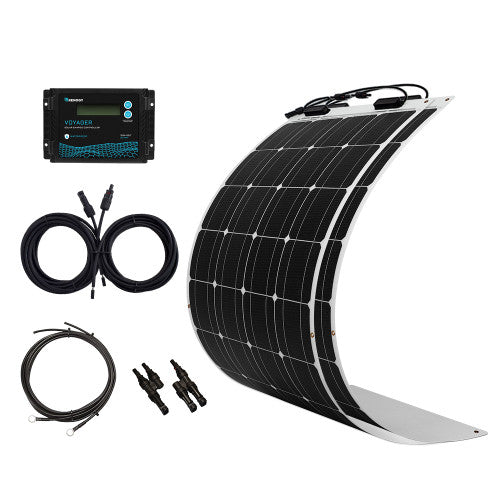

Renogy’s Flexible Kits are back and better than ever! Adding solar to your application is a breeze since we've included the necessary components to get you started on your solar quest to eliminate the burden of dead batteries and maximize your fun under the sun. Unlike traditional gas generators, Renogy’s Flexible Kits will silently charge your batteries and ensure they’re topped off just right. Our new 200W Flexible panels are thin, lightweight and take up minimal space.
The Benefits
Solar Panel
- Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Waterproof charge controller giving you more freedom to install anywhere
- With a flex range of up to 248 degrees, this panel can meet a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an Airstream
Charge Controller
- 12V / 24V Battery Compatibility with Auto Recognition
- Smart 4 Stage PWM charge controller: Bulk, Absorption. Float, and Equalization
- 4 Battery Type Compatiblity – Sealed/AGM, Gel, Flooded, and Lithium batteries (with Lithium Awakening feature)
- Watertight design with Backlit LCD display for system information and error codes
- Multiple protection features for battery, controller, and solar panels (including reverse polarity and more)
SPECIFICATIONS

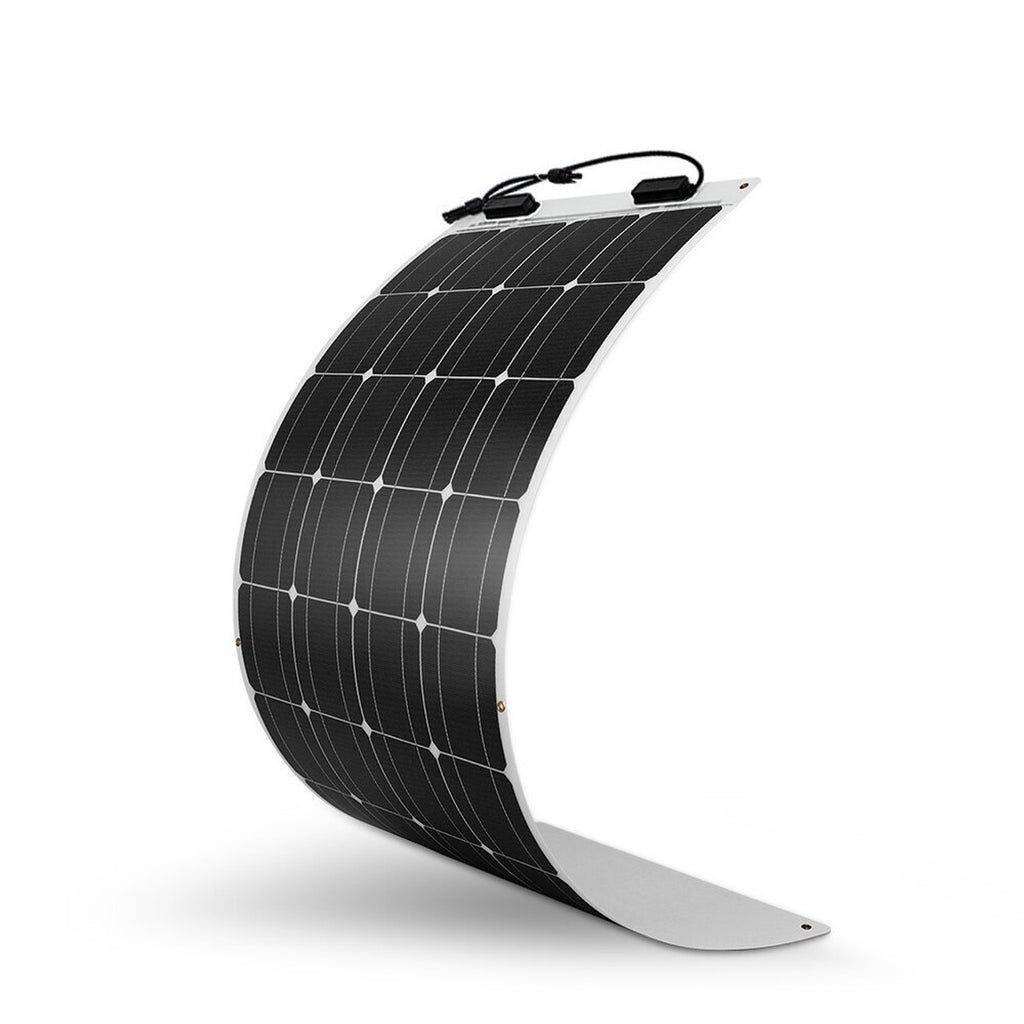

RENOGY 100 W 12 V FLEXIBLE MONOCRYSTALLINE SOLAR PANEL
Maximum Power at STC: 100W
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 18.9V
Open-Circuit Voltage (Voc): 22.5V
Optimum Operating Current (Imp): 5.29 A
Short-Circuit Current (Isc): 5.75 A
Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm)
Weight: 4.2 lbs (1.9 kg)

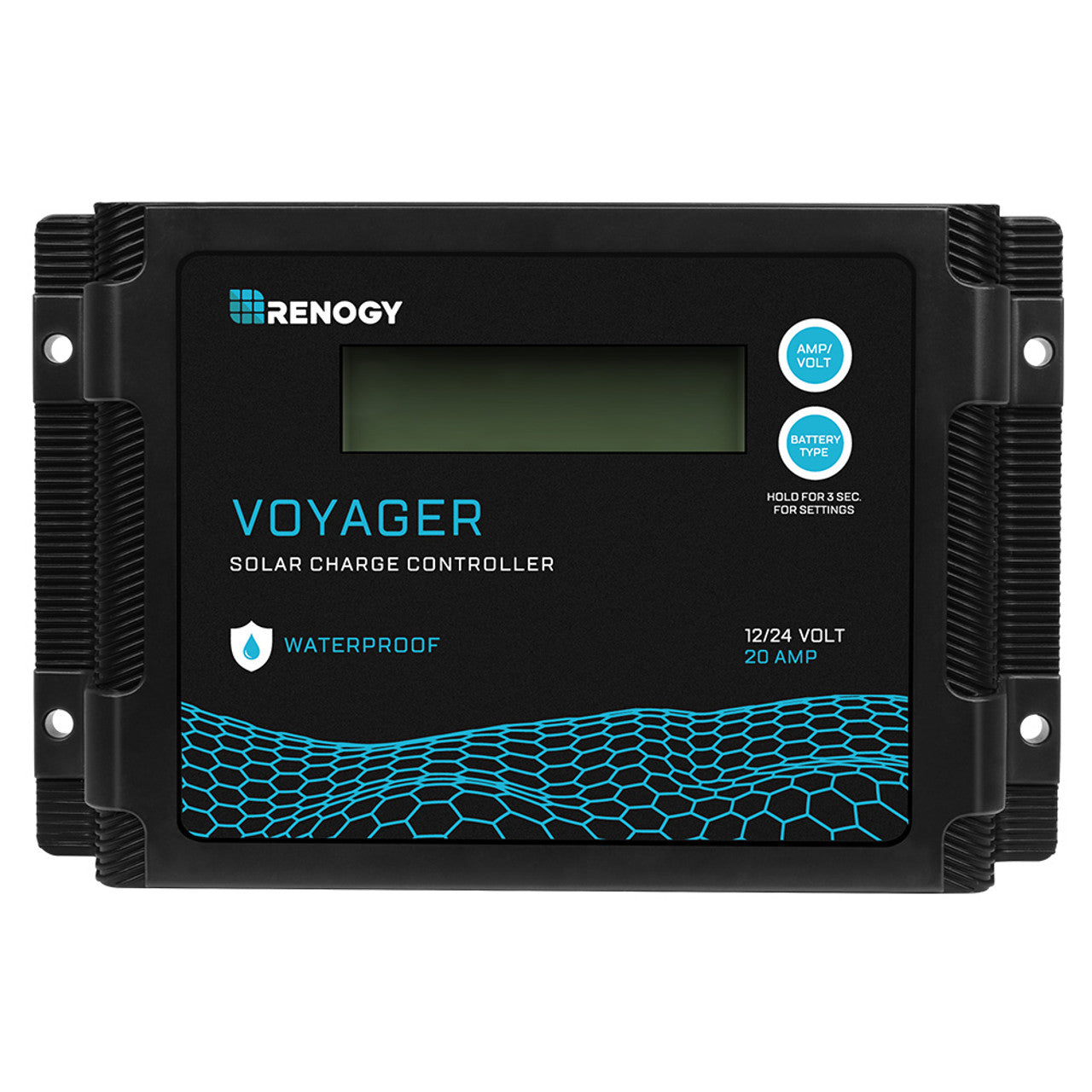

NEW EDITION VOYAGER 20A PWM WATERPROOF SOLAR CHARGE CONTROLLER
Nominal System Voltage: 12/24V Auto-Detection (For Non-Lithium Batteries)
Rated Charge Current: 20A
Max Battery Voltage: 32V
PV Input Voltage Range: 15V-55V
Max. Pv Open Circuit Voltage: 12V/25V 24V/55V
Dimensions: 6.08*3.83*1.40 in
Weight: 0.55Ibs
opc:

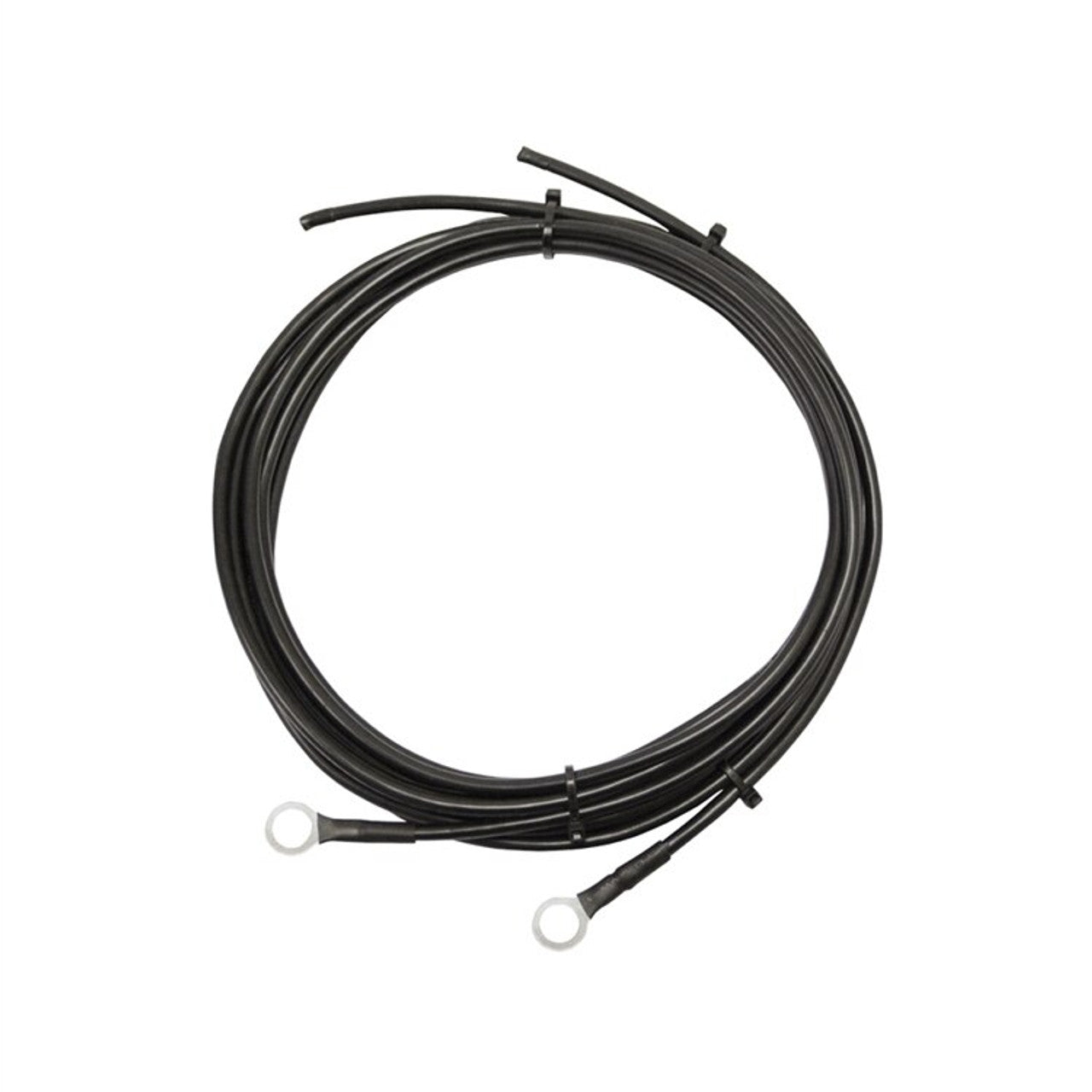

RENOGY 8FT 10AWG WIRE COPPER SOLAR TRAY CABLES FOR CONNECTING CHARGE CONTROLLER TO BATTERY (A PAIR)
Length: 8ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 20FT 10AWG ADAPTOR KIT - CONNECTING SOLAR PANELS TO CHARGE CONTROLLERS (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

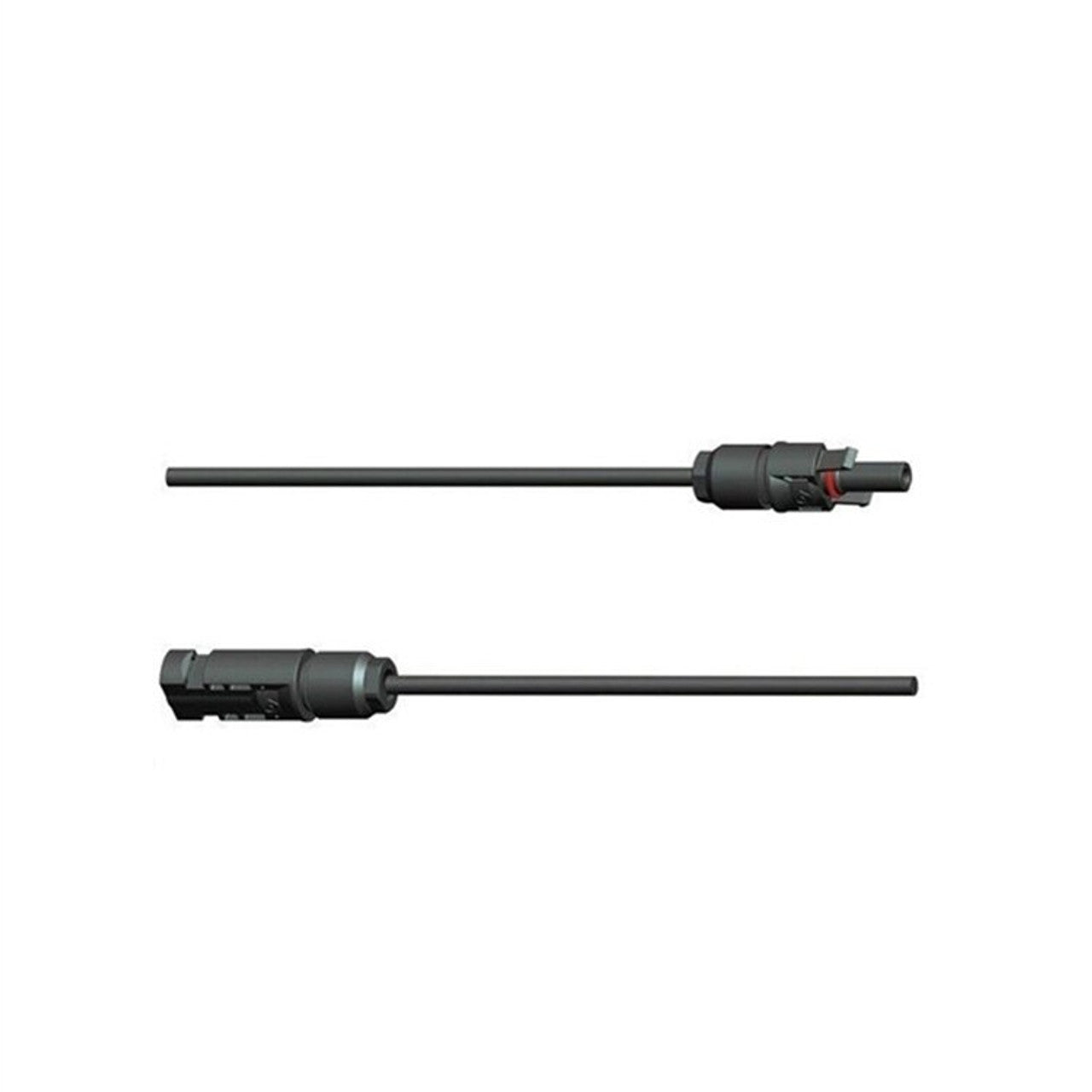

RENOGY 1.5FT 12AWG EXTENSION CABLES FOR SOLAR POWER SYSTEM
Length: 1.5ft
AWG: 12
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

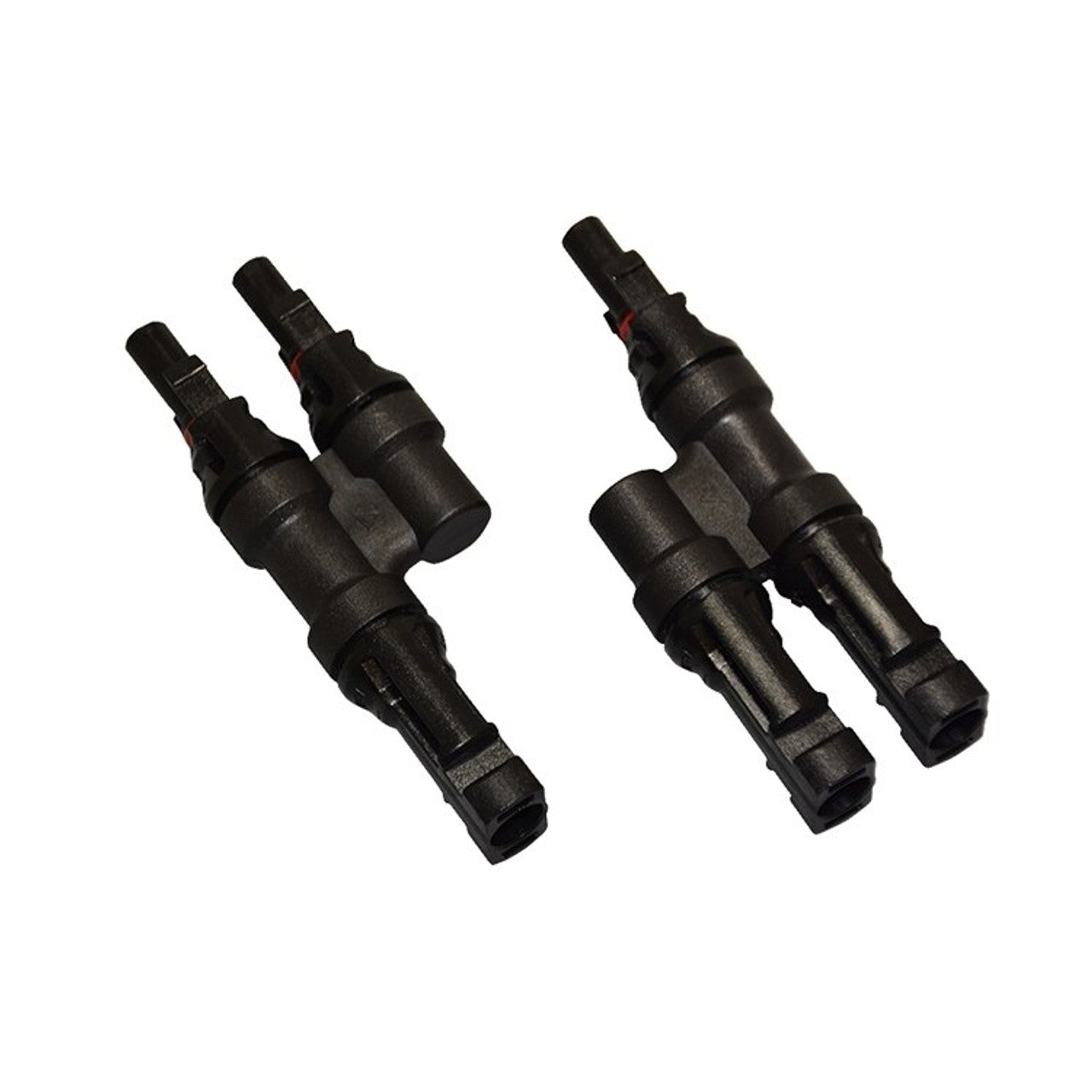

SOLAR Y BRANCH CONNECTORS
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Rated Current: 50A
Protection Degree: IP67, mated
Temperature : -40°F to +194°F
Protection Class: Class II
opc:
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
