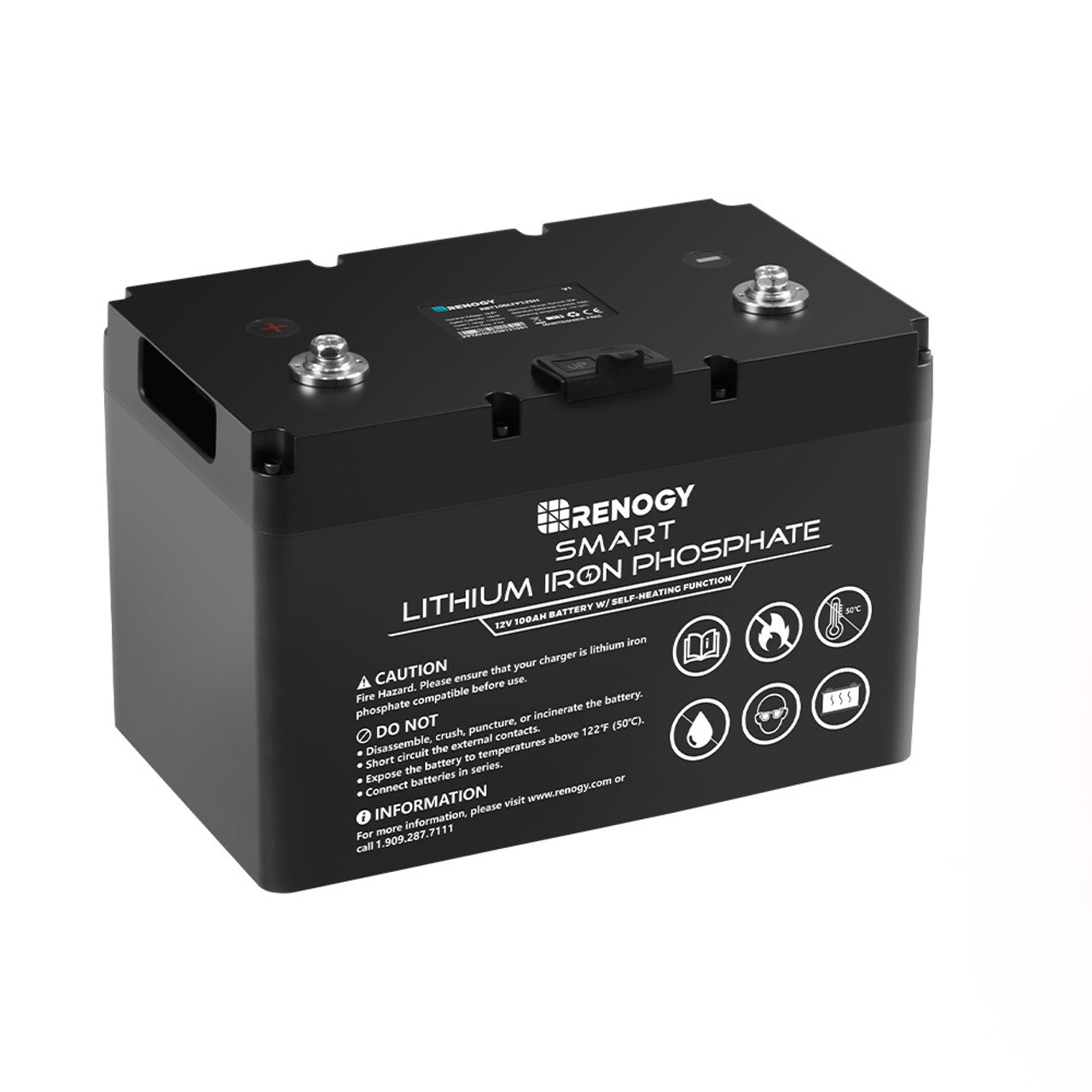

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self-Heating Function RBT100LFP12SH-US

Sale
$949.99
$669.99
SKU RBT100LFP12SH-US
Battery Quantity

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.


Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self-Heating Function RBT100LFP12SH-US


DESCRIPTION

【Self-Heating Function】 The intelligent self-heating function will start operating automatically once the battery’s core temperature drops below 41°F (5°C), effortlessly keeping your battery charged in cold environments. Plus, this function is powered by the Charger/Controller's current instead of the battery itself.

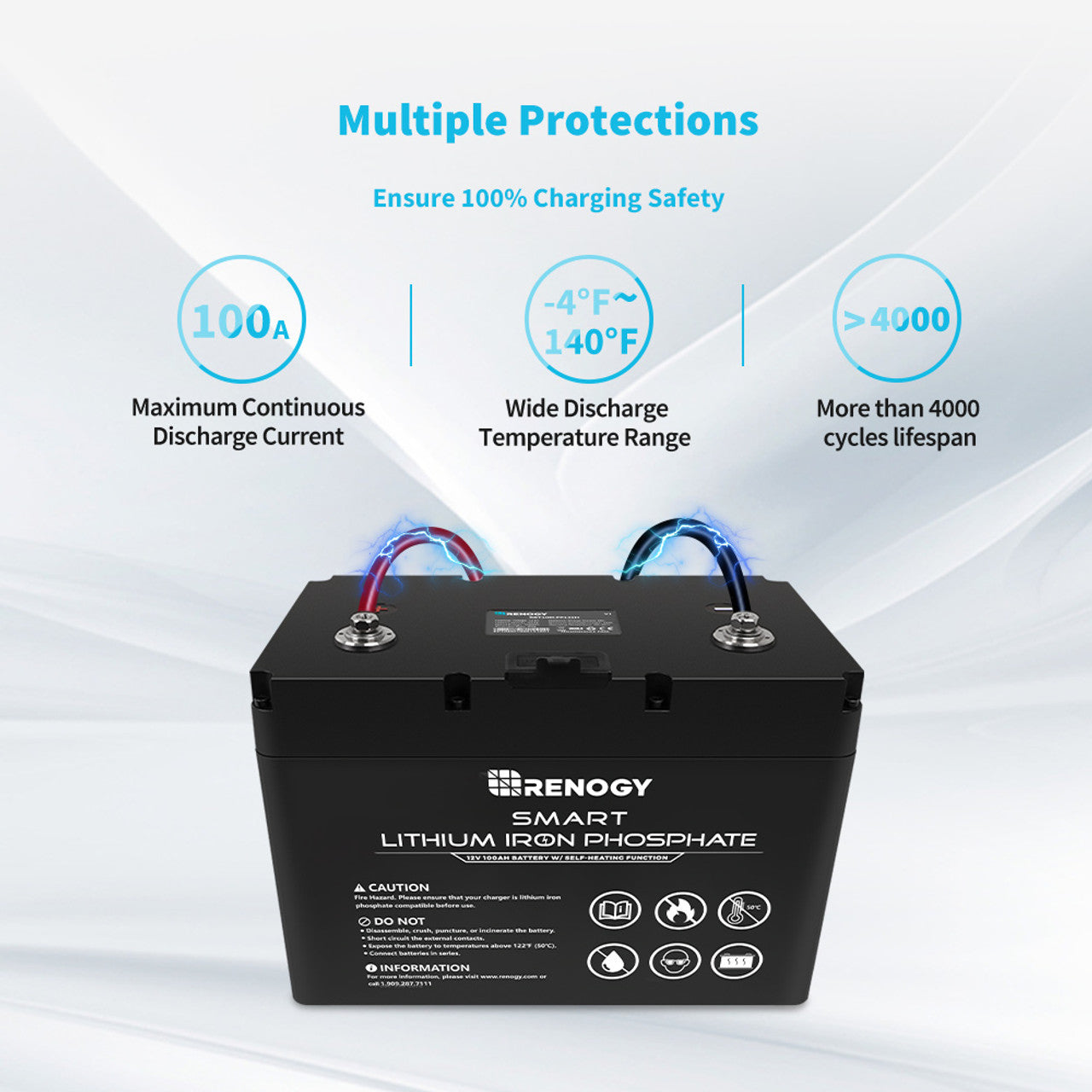

【Premium BMS Circuit】 Incredibly advanced BMS provides over 20 protections designed to allow a peak current of 150A to pass through, deliver up to 1C charging and 1.3C discharging during an emergency. 50% more heat dissipation area will maximize the safety of your off-grid use.
【The Ultimate Quality】 The next-level pouch cells surpass severe high temperature and puncture tests to avoid fire or explosion. The battery cell not only passes the UL1642 but also offers over ten years of lifespan with more than 4,000 cycles (80% DOD).
【Activation Switch】 With the activation switch cable, now for the first time, you can turn on or off multiple batteries in parallel to ensure the safety of installation and use.

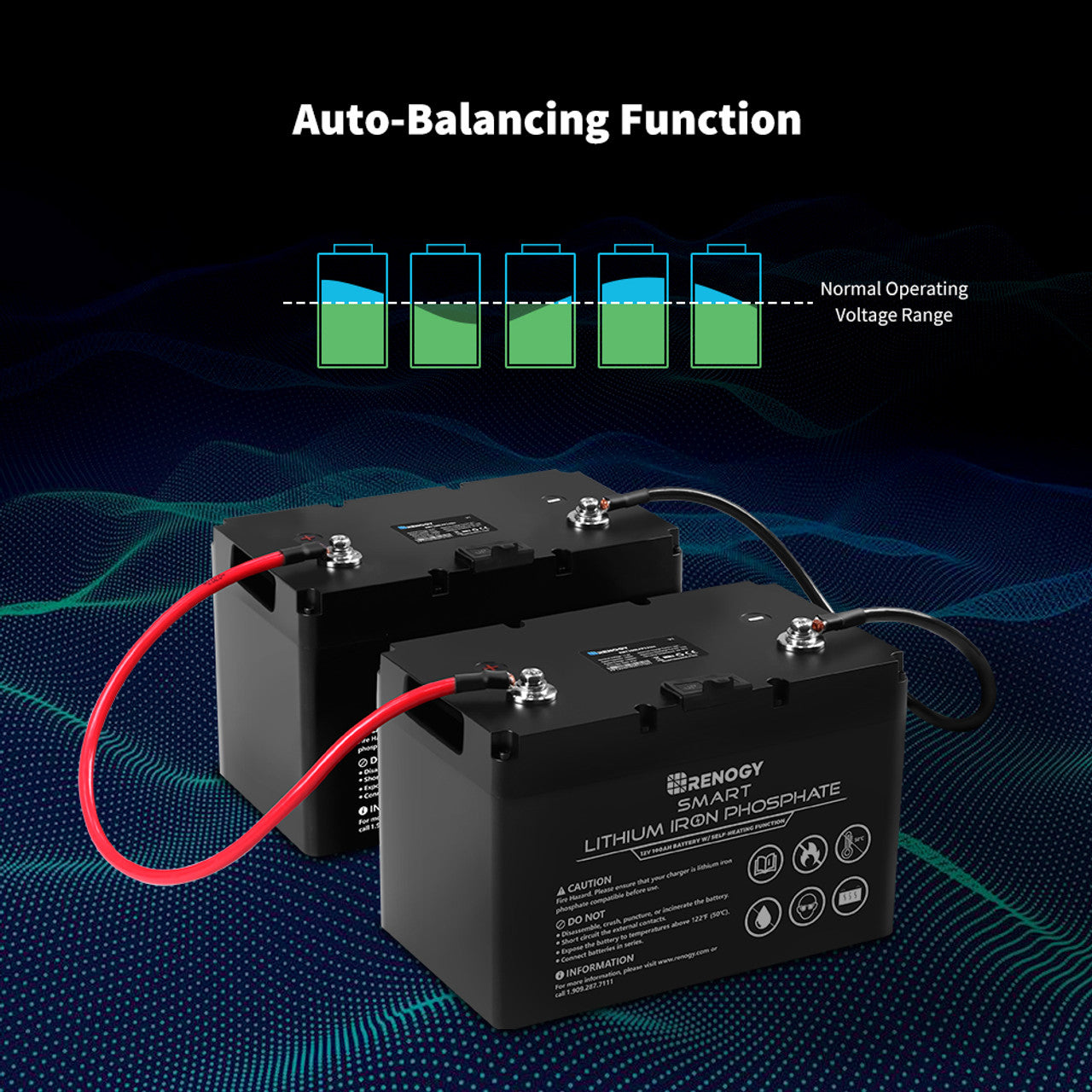

【Auto-balancing Function】 Easily connect multiple batteries in parallel(up to 8)with the auto-balancing function, improving the average charging efficiency for your batteries in the long term.
【Enhanced Ways to Monitor】 You can connect the battery monitor directly via CAT cable without purchasing an additional coulometer. You can also use the BT-2 Bluetooth & DC HOME app to monitor multiple battery states in real-time.

THE BENEFITS

The Renogy Smart Lithium Iron Phosphate Battery enables auto-balance among parallel connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) , state-of-the-art battery cells ,and self-heating function ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect solution for you!

12V 100Ah Smart Lithium Iron Phosphate Battery with Self-Heating Function
Endless possibilities

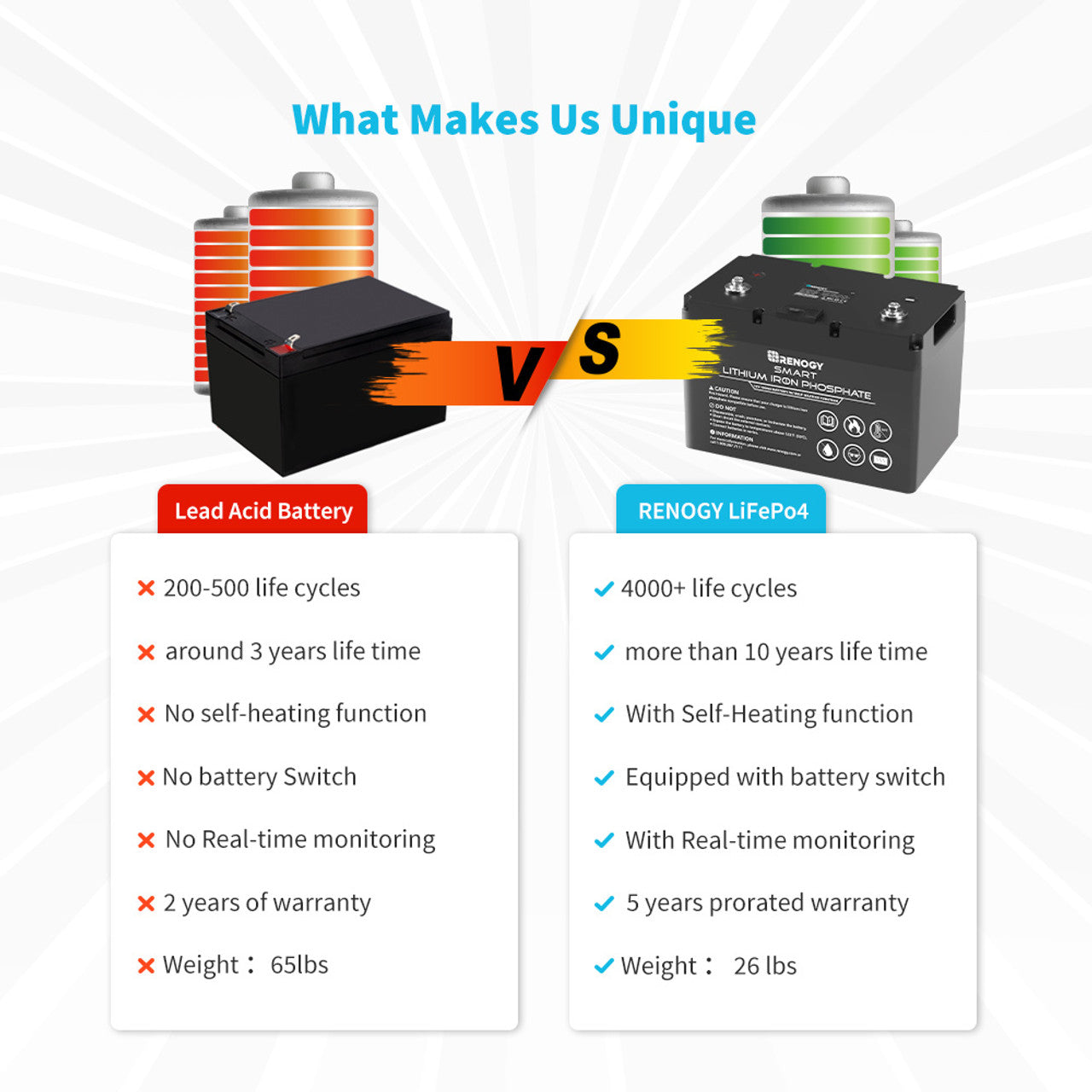

Renogy LiFePO4 battery has a minimum 4000 cycles time which delivers up to 8 times longer than a lead-acid battery. Moreover, with the incredible energy density of the battery, Renogy LiFePO4 battery is thin and light with immense power. There’s no reason to settle for other batteries if you can think 'Big Picture'.

12V 100Ah Smart Lithium Iron Phosphate Battery with Self-Heating Function

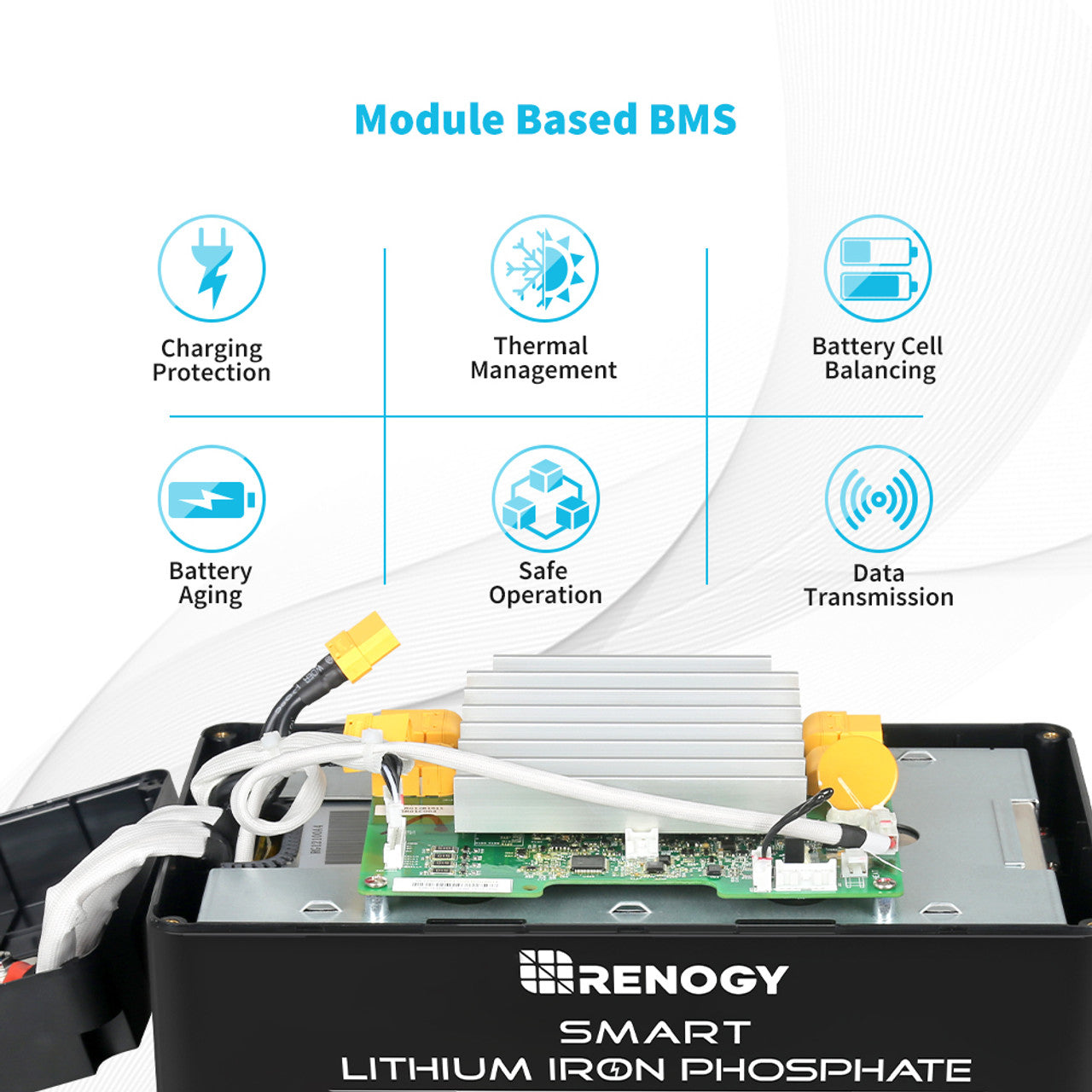

Pro BMS, Precise and Magical.

Powered by an upgraded intelligent BMS circuit, the battery will guarantee balance between each battery cell group,and features the most preceise temperature measurement discrepancy of its kind. This battery will more accuratlet display and protect the battery from over-voltage, under-voltage, over-current, short circuit, high temperature, and low temperature.

12V 100Ah Smart Lithium Iron Phosphate Battery with Self-Heating Function
Eco-Friendly Choice

Regardless of the production, use, or scrap, it does not contain or produce any toxic and harmful heavy metal elements and substances such as lead, mercury, and cadmium. Renogy 100ah LiFePO4 battery is made from 100% safe, nontoxic, and renewable energy.

12V 100Ah Smart Lithium Iron Phosphate Battery with Self-Heating Function
Portable and Powerful

Our LiFePO4 battery is only a third of the weight of Lead Acid while providing a massive boost to performance and capacity so you won't miss a single second of runtime. Renogy‘s LiFePO4 battery is your best choice for RVs, Marine and Off-Grid Applications when towing or mobility is in consideration.

12V 100Ah Smart Lithium Iron Phosphate Battery with Self-Heating Function

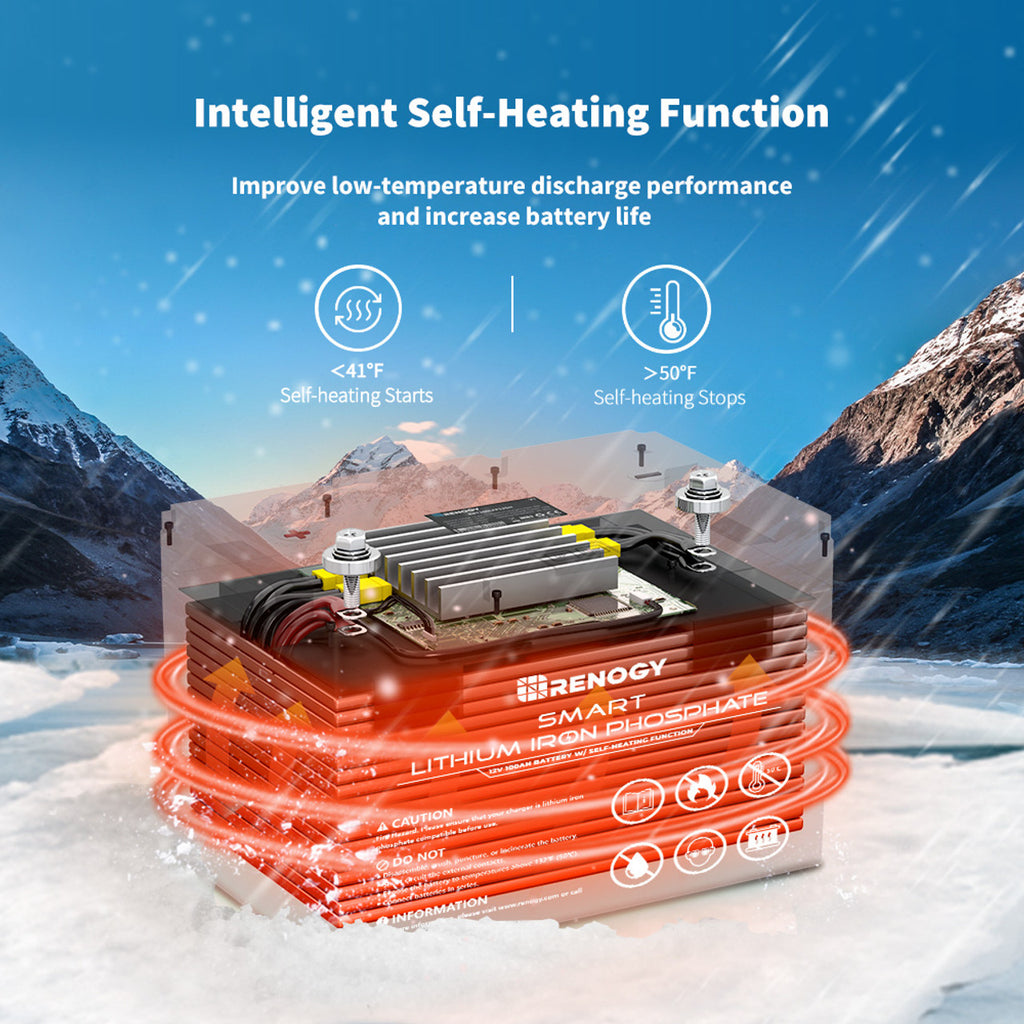

Self-Heating Function

Meet our revolutionary self-heating function. This technology allows you to charge your batteries in cold environments effortlessly. When connected to an input, the self-heating function will start operating automatically once the battery temperature drops below 41°F (5°C).

12V 100Ah Smart Lithium Iron Phosphate Battery with Self-Heating Function

SPECIFICATION


12V 100AH SMART LITHIUM IRON PHOSPHATE BATTERY W/ SELF-HEATING FUNCTION
ELECTRICAL SPECIFICATIONS

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100AH

Nominal Voltage: 12.8 V

Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles

Connection Method: Parallel

Automatically Self-heating Function: Temperature < 41℉(5℃)

MECHANICAL SPECIFICATIONS

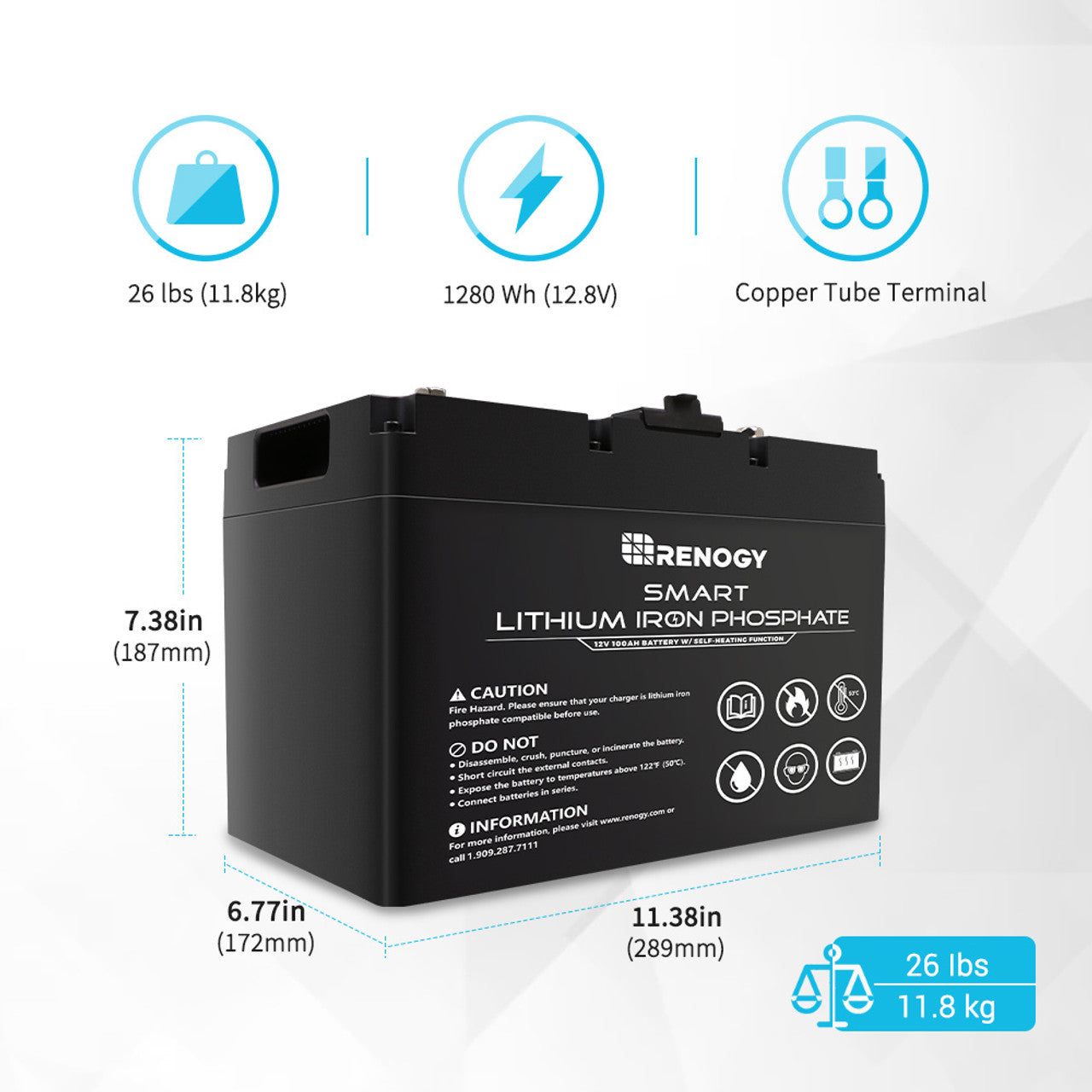

Dimensions: 11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm

Weight: 26 lbs. / 11.8 kg

Protection Rate: IP54

opc:

CHARGING PARAMETERS

Charge Voltage: 14.4V

Maximum Continuous Charging Current: 50 A

DISCHARGING PARAMETERS

Maximum Continuous Discharging Current: 100 A

opc:

TEMPERATURE PARAMETERS

Standard Operation Temperature: 25℃±5℃

Storage Temperature: -13~149℉ / -25~65℃

COMMUNICATION PORT

Built-in Bluetooth: No

Communication Port: RJ45 (RS485 Protocol)

ACCESSORIES

M8 Bolts: x2

Activation switch: x1

WARRANTY

Prorated Warranty: 5-year

opc:

CERTIFICATIONS

UN38.3, MSDS, CE, UL1642 (Battery Cell): Yes

opc:

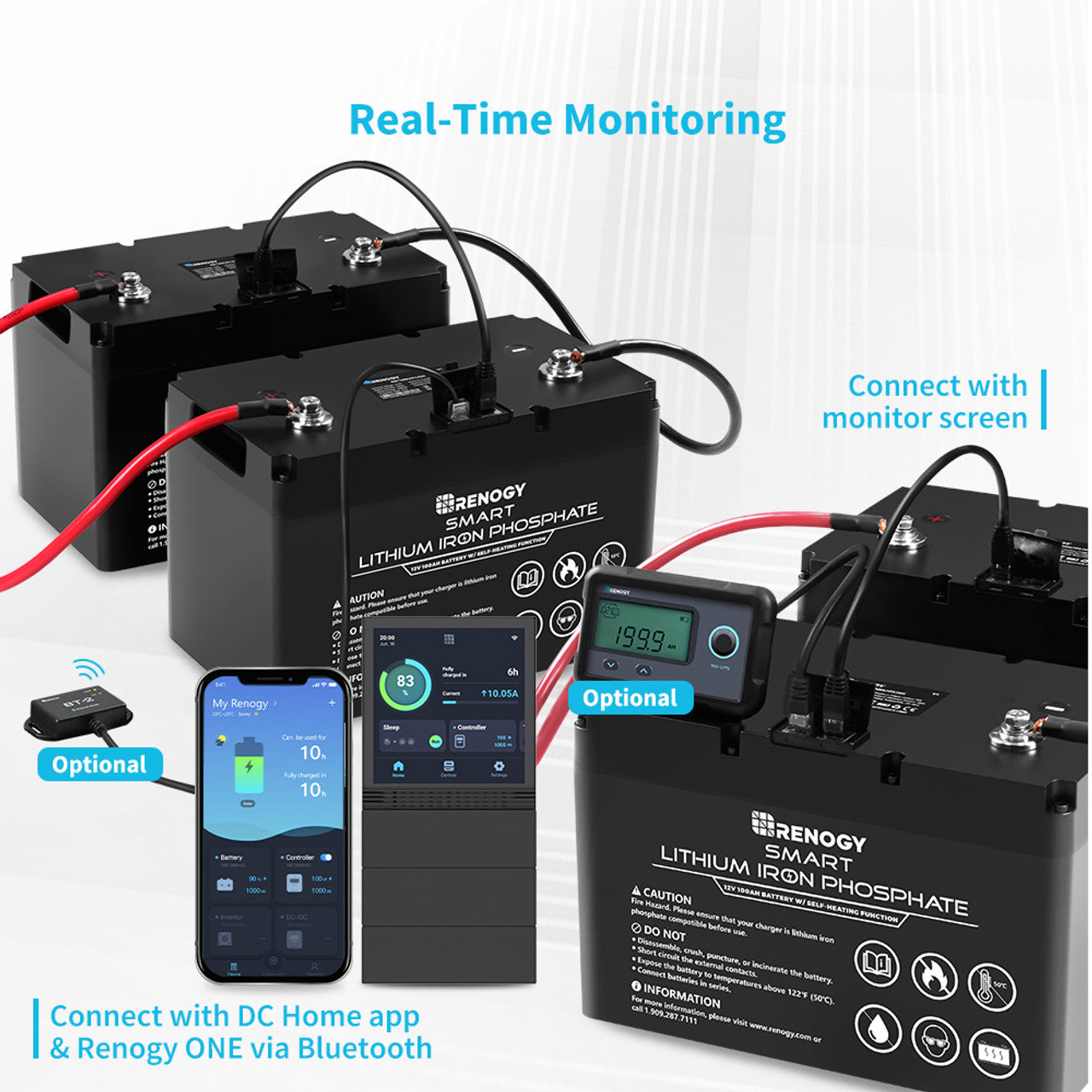

Real-time Monitoring

Plug in a Renogy BT-2 Bluetooth Module and pair it with Renogy ONE M1 to keep track of real-time information of your batteries and stay updated via the DC Home app when you are away. You can also check on the charging status at a glance through a Renogy monitoring screen

NOTE
  • Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
  • DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
  • Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
