Renogy REGO off-grid power system REGORV-5KBN-US

$6,647.99
SKU REGORV-5KBN-US

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.

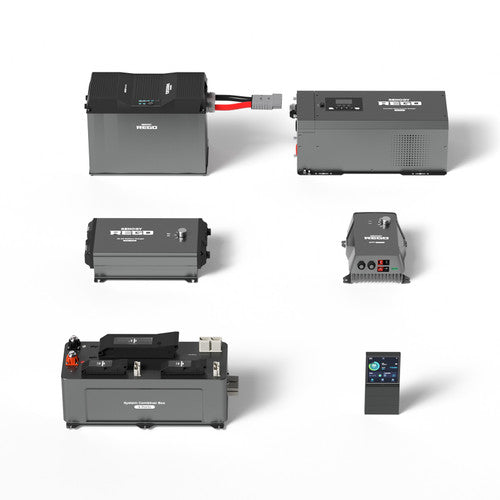

Renogy REGO off-grid power system REGORV-5KBN-US


Description

【Plug&Play Connection and Easy Installation】 The Anderson connectors and intuitive system design significantly reduce the installation and connection time from HOURS TO MINUTES, with no worries about complicated wiring and no more guesswork. Ready to go with REGO, save time to enjoy more adventures and fun.
【Flexible Design with Room to Grow】 Innovative and efficient design of the REGO components provides the smallest footprint possible, saving valuable space in your RV. Up to 800W solar panels can be added to the system based on your need, the REGO charge controller with the most efficient MPPT technology with high tracking efficiency of up to 99%, maximizing the power generated by solar panels. One REGO 12V 400A lithium battery can provide a 5.12kWh massive capacity and can be further expanded effortlessly with the REGO battery combiner box for more energy to back you up at any time.
【3 Ways to Charge】 The REGO off-grid power system provides mobile solar + storage solution that has built-in flexibility to recharge your batteries with your start battery, solar panels, or grid power. You can even use these charging methods together to minimize the charging time.
【All-in-one Monitoring and Management】 Add the Renogy One Command center for total peace of mind. It provides a full view of your energy storage system and connected smart home devices. Remote Bluetooth connectivity provides easy monitoring and control from anywhere from the DC Home App.
【Optimized Off-grid Electricity Experience】 All components in the REGO system are engineered and perfectly matched to work together. When the complete power system designed to exceed the most rigorous quality and performance standards is highly integrated, it will provide your RV solar system and off-grid life maximum energy and comprehensive protection.
THE BENEFITS

REGO by Renogy is an all-in-one solution offering an integrated suite of solar and energy storage products that can handle any off-grid energy needs.

All components are engineered and perfectly matched to work together. When the complete power system designed to exceed the most rigorous quality and performance standards is highly integrated, it will provide your RV solar system and off-grid life maximum energy and comprehensive protection.

The plug&play Anderson connectors and intuitive system design significantly reduce the installation and connection time from HOURS TO MINUTES, enabling you to save time to enjoy more adventures and fun.

Add the Renogy One, the all-in-one energy dashboard to your REGO system. Get rid of cumbersome cables and multiple monitors with the flush-mount command center screen. Monitoring and operation are simple and trouble-free from one screen and feel the peace of mind that comes with knowing the status of your system at all times.

Ready to go with REGO.

REGO 12V 60A MPPT Solar Charge Controller

The REGO charge controller focuses on the simplified installation and comprehensive protections for the whole solar system. Plug-and-play hookups save on installation time, precisely optimize battery charge and accommodate different battery types with the turn of a dial. The integrated high BPU technology achieves the highest protection against battery cell damage and battery failure, safeguarding the entire system.

REGO 12V 60A DC-DC Battery Charger

Exclusive bidirectional charging technology not only provides the most effective way to charge your house batteries from the starter battery on the go but also recharges and maintains your starter battery when the house batteries are full. Guaranteed you will always have power and never get stranded on the go.

REGO 12V 3000W Pure Sine Wave Inverter Charger

The highest output 12V inverter charger on the market provides high-capacity AC power to ensure the stable running of your household appliances and electronic equipment. And also able to charge and maintains a battery bank when connected to shore power. Keeping your power and adventure uninterrupted.

REGO 12V 400A LiFePO4 Battery

The only battery of this size with the built-in BMS and heater. This is the most compact unit with the largest capacity, so you don't have to sacrifice power for space. Advanced BMS provides unprecedented over 60 types of full protections in the market, ensures ultra-reliability and safety, and leads smart batteries to the next era.

REGO System Combiner Box

The "hub" for all REGO components, keep the circuit protection and troubleshooting all in one place. Uniform Anderson connections that simply click in, so no worries about special tools or complicated wiring, allow you to ready for your off-the-grid adventures in minutes instead of hours.

Renogy ONE M1

Add this all-in-one energy dashboard to your REGO system to get rid of cumbersome cables and multiple monitors. Monitor and control every Renogy device and other smart devices in your system from one screen, and feel the peace of mind that comes with knowing the status of your system at all times.

SPECIFICATION


REGO 12V 60A MPPT SOLAR CHARGE CONTROLLER
ELECTRICAL PARAMETERS

Nominal System Voltage: 12 V

Rated Charge Current: 60A

Max. PV Input Power: 800W

MPPT Voltage Range: 15 - 100 VDC /12V

Solar Input Voltage Range (VOC): 100 V

Max Input Current (short-circuit, Isc): 50A

Power Limiting Protection: Up to 800W/12V

Battery Operating Range: 10 -16V

Power Consumption: ≤0.5 W

Ground Type: Common Negative Lug

Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*

Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection

ENVIRONMENTAL DATA

Operating Temperature Range: -20 ℃ - 60℃

Storage Temperature Range: -25 ℃ - 65℃

Operating / Storage Humidity: 0%-90% RH

Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium);'0mV / ℃ / 2V; no compensation (Lithium)

MECHANICAL SPECIFICATIONS

Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm

Weight: 5.07 lbs/ 2.30kg

Terminals Size: Anderson PP75

opc:

CERTIFICATIONS

CE and RoHS compliant: YES

FCC Class B Part 15 Compliant: YES

WARRANTY

Material and workmanship warranty: 5 Year

opc:


REGO 12V 60A DC-DC BATTERY CHARGER
ELECTRICAL PARAMETERS

System Voltage: 12V

Rated Max Charge Current: 60A

Rated Max Charge Power: 800 W

Battery Types: SLD/AGM;FLD;GEL;USER;LI

Self-Consumption: ≤50 mA

Max.Alternator Input Current: 70A

Charge Efficiency: Up to 94%

Max.Alternator Input Power: 800W

Max.Alternator Input Voltage: 16V

Battery Operating Range: 10 -16V

Alternator Input Voltage: Traditional Alternator: 13.5-16VDC

Alternator Input Voltage: Smart Alternator (Euro 6): 12.5-16VDC

Power Limiting Protection: Up to 800W/12V

Grounding Type: Common Negative Lug

Communication: Modebus ; RV-C

opc:

ENVIRONMENTAL DATA

Operating Temperature Range: -20 ℃ - 60℃ / -4 ℉ - 140℉

Storage Temperature Range: -35 ℃ - 65℃/ -31℉ - 149℉

Humidity: 0%-95%, No Condensation

Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)

Temperature Compensation: '0mV / ℃ / 2V; no compensation (Lithium)

opc:

MECHANICAL SPECIFICATIONS

Dimensions (L x W x D): 13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm

Weight: 7 lbs/ 3.12kg

Terminal Size: Anderson PP75

Terminal Range: 8AWG - 6AWG

CERTIFICATIONS

CB: Yes

FCC: Yes

CE: Yes

UKCA: Yes

MIC: Yes

opc:

WARRANTY

Product Warranty: 5 Year

opc:


REGO 12V 400A LITHIUM IRON PHOSPHATE BATTERY
RATED CAPACITY (0.2C)

Nominal Voltage: 12.8V

Energy: 5120Wh

Cycle Life (0.2C, 20±5℃): 3800 Cycles at 80% DOD

Internal Resistance: ≤ 10 mΩ

Minimal Rated Capacity (0.2C): 400Ah

Specific Energy: 100.39Wh/kg

CHARGING PARAMETERS

Charge Voltage: 14.4V

Maximum Charge Current: 300A

Charge Cut-off Voltage: 14.4V

opc:

DISCHARGING PARAMETERS

Maximum Continuous Discharge Current: 350A

Discharge Cut-off Voltage: 10V

ENVIRONMENTAL DATA

Operation Temperature Range: Charge: 32~131℉ / 0~55℃;Discharge: -4~140℉ / -20~60℃;Recommended: 59~86 ℉ / 15~30℃

Storage Temperature Range: Less Than 1 Week: -22°F~140°F (-30°C~60°C); Less Than 6 Months: -4°F~113°F (-20°C~45°C)

MECHANICAL SPECIFICATIONS

Dimension (L x W x H): 18.0 x 13.0 x 10.5 inch /457 x 329 x 267.2 mm

Wiring Length: 23.6 inch/600 mm

Weight: 112.4 lbs/ 51 kg

Housing Material: Die Cast Aluminum/Extruded Aluminum

CERTIFICATIONS

MSDS, UN38.3, FCC,UL1973: Yes

opc:

WARRANTY

Material warranty: 5 Year

opc:


REGO 12V 3000W PURE SINE WAVE INVERTER CHARGER W/ LCD DISPLAY
INVERTER SPECIFICATIONS

Continuous Power: 3000W

Surge Power: 9000W

AC Output Voltage Range: 100~120VAC configurable, 5V interval

Output Frequency (Nominal): 50/60 Hz ± 0.1%

Output Waveform: Pure Sine Wave

Efficiency: > 90%

CHARGER SPECIFICATIONS

Output Current: 5-75A configurable, 5A intervals

Optimal Efficiency: >85%

Nominal Input Voltage: 120 VAC

Input Voltage Range: 90-138 VAC

Input Frenquency Range: 40Hz - 70Hz

Input Wave Form: Sine Wave (Utility or Generator)

TRANSFERSWITCH SPECIFICATIONS

Transfer Time: ~ 10ms

Transfer Rating: 30A Automatic Transfer Switch

GENERAL SPECIFICATIONS

Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER

Noise: <50dB

Operating Temperature: '-20 ~ 40°C / 0 ~ 104°F

Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Storage Temperature: -30 ~ 70°C / -22 ~ 158°F

Weight: 63.5 lbs / 28.8 Kg

Humidity: 0% ~ 95%

opc:

CERTIFICATIONS

FCC Class B Part 15 Compliant: Yes

opc:

WARRANTY

Inverter warranty: 2 Year

Accessoreis warranty: 1 Year
