Original Design with Unmatched Performance
The Hauslane UC-PS60 stands out from any other range hood on the market. Its distinctive angular shape allows for comfortable user interaction, while its unique concave baffle filters capture grease particles, fumes, and odors, ensuring maximum smoke removal. This modern, innovative hood was built to enhance functionality and add a sleek, contemporary touch to the kitchen.
- Angled body for comfortable use
- Unique concave baffle filter design for proficient smoke removal
- Large, bright, energy-saving LED light panel
Versatile Venting, Effortless Installation

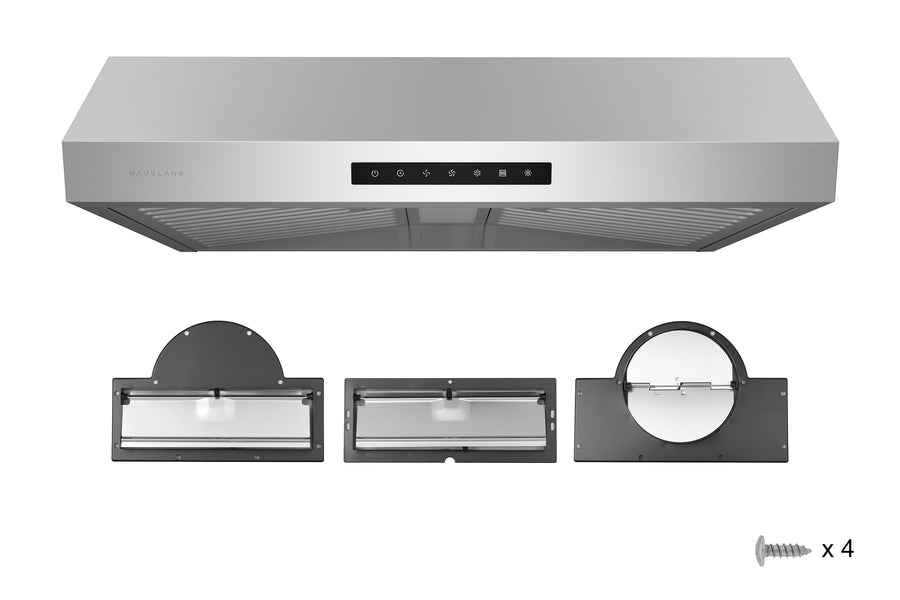

Upgrade your kitchen effortlessly with the UC-PS60 under the cabinet range hood. Its innovative VersaVent System adapts to most kitchen vent openings, making it ideal for simple upgrades and complete kitchen makeovers. Say goodbye to complicated installations and hello to a cleaner, healthier kitchen.
- 6” adapter for round ductwork on top
- 3-1/4” x 10” adapter for rectangular ductwork on top
- 3-1/4” x 10” adapter for rectangular ductwork on the back
A Brand New, Cooking Experience
Create a clean and safe kitchen environment with our top-of-the-line ventilation system. Hauslane range hoods are designed to eliminate hazardous cooking fumes and excess grease, providing a pristine and secure space for all your cooking needs.
Eliminate smoke detector hassles and embrace the joy of cooking and trying out new recipes in the comfort of your home.
- Eliminates harmful pollutants and odors generated while cooking and afterward
- User-friendly cleaning reminder for hassle-free maintenance
Specifications
- Size30"
- StyleUnder Cabinet
- Cleaning FunctionNo
- Noise Level1.5 to 7 Sones
- Light Color Temp.Warm / 3000 Kelvin
- Lumens200
- Light Bulb3W Integrated LED
- Light Intensity2 Levels
- ControlTouch Panel
- Speed Selections3
- Equivalent Airflow (CFM)900
- Laboratory Airflow (CFM)500
- Top Venting6"
- Rear VentingN/A
- ConvertibleNo
- MotorDual
- Wattage120W
- Voltage120v
- ConnectionPlug-in
- Amperage1 Amp

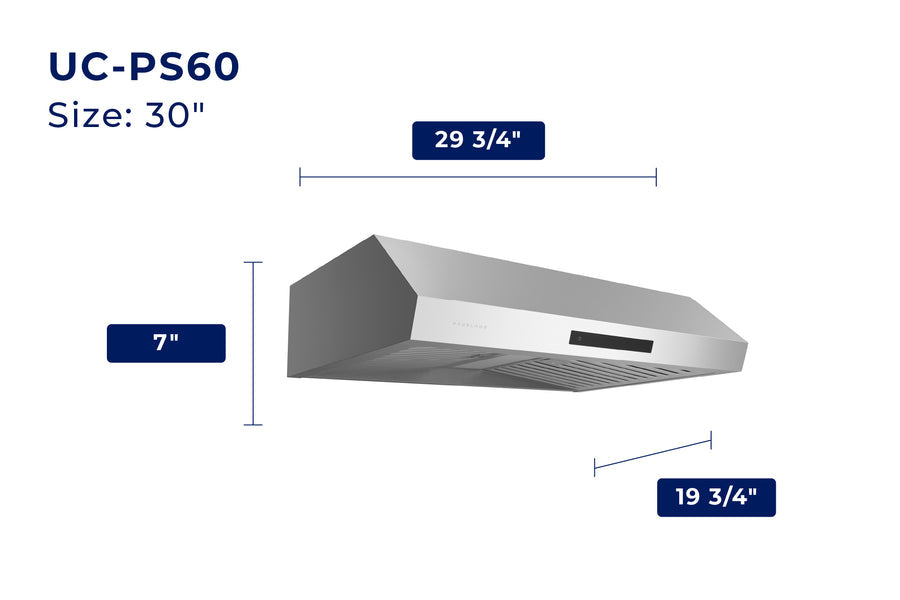

- Dimensions (WxDxH)29-3/4" x 22" x 8" (8-3/4" w/ grease tray)
Features
- Clean, sharp lines and stainless steel body for a professional, timeless look

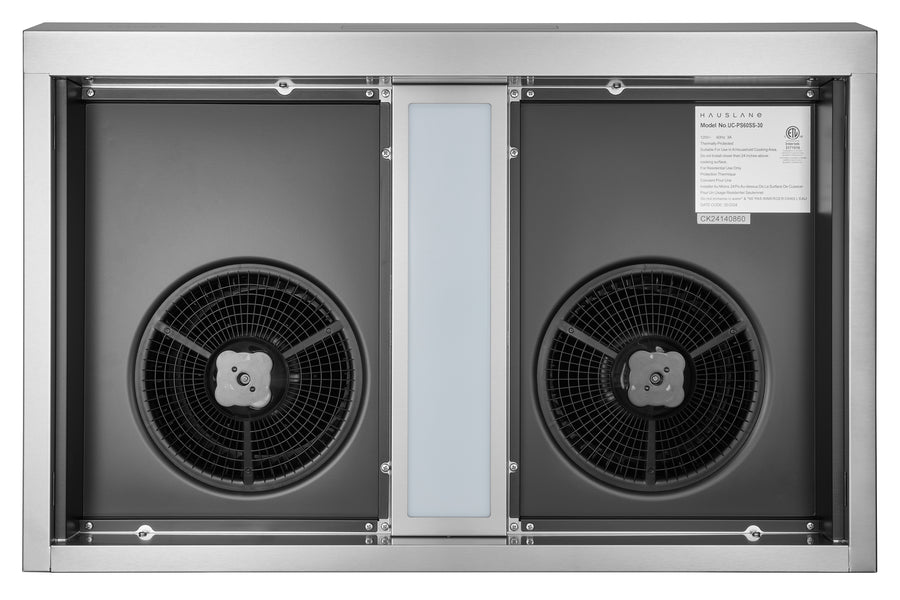

- Powerful dual motors keep things humming and your kitchen smelling fresh, ideal for heavy-duty cooking methods including heat, and smoke; boiling, steaming, poaching, braising, frying, searing, and sauteing
- Variable 3-speed exhaust fan settings with an easy-to-use touch screen

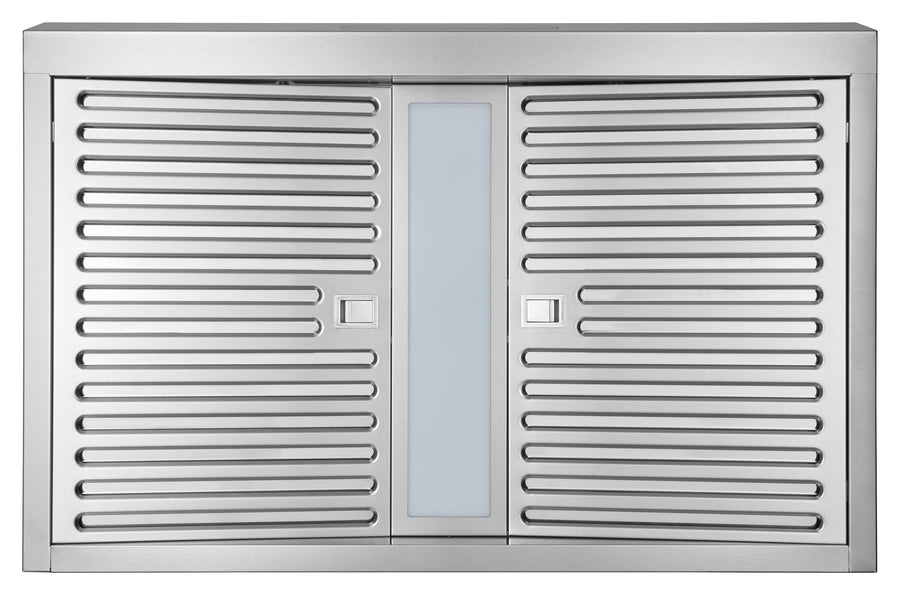

- Dishwasher-safe baffle filters catch grease fast and are easy to clean
- Bright, energy-saving LED lights with two settings, so you always have the ideal amount of light

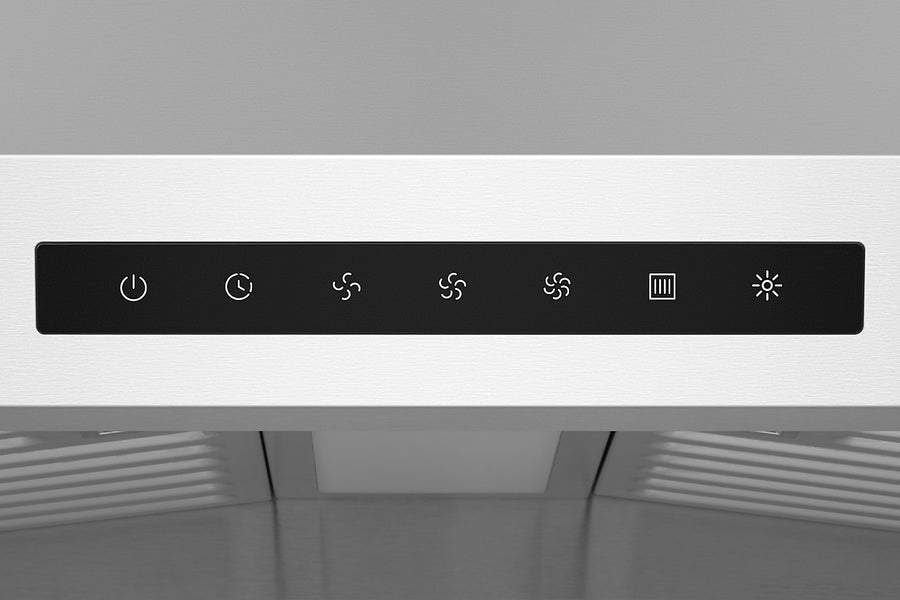

- Touch screen panel for simple maintenance and use
- Delayed auto-shutoff to fully remove all lingering odors and fumes
- Vent hood comes with 6-inch round adapter with dampers
- 2-year limited warranty and lifetime warranty on motors
- Includes: dishwasher-safe baffle filters (3), stainless steel oil tray (1), and 6-inch round exhaust adapter (1)
Manual
Introduction
If you are looking for a vent hood that will make your life easier, you’ll find it in our UC-C400 model. It features an innovative water self-cleaning system to prolong the life of its motors and level of performance. Its grease catcher and oil tray catch the grease before it can drip down onto your food and countertops.
-
1Grease Collector
-
2Grease Catchers
-
1Water Kettle
(1)
-
1Top Rectangular Exhaust Adapter
(Size: 3-¼″ by 10″)
-
1Rear Rectangular Exhaust Adapter
(Size: 3-¼″ by 10″)
-
1Top Round Exhaust Adapter
(Size: 6" Diameter)
