Renogy 100 Watt 12 Volt Solar Starter Kit with 20A/40A MPPT Charge Controller RNG-KIT-STARTER100D-RVR20-US

| Authorized Dealer
SKU : RNG-KIT-STARTER100D-RVR20-US
$293.99
Charge Controller

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.

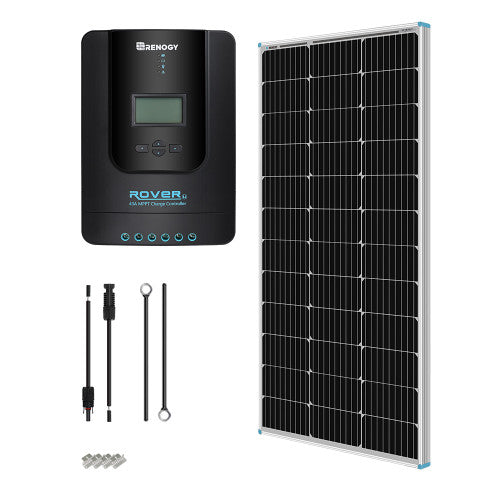

Renogy 100 Watt 12 Volt Solar Starter Kit with 20A/40A MPPT Charge Controller RNG-KIT-STARTER100D-RVR20-US


DESCRIPTION

With a Renogy 100W Monocrystalline Starter Kit MPPT, you won't have to wonder about whether or not you're getting the most out of your system. Designed to draw out your system's potential, this kit includes our 20A MPPT charge controller which uses Maximum Power Point Tracking technology, transferring power up to 30% more efficiently than PWM charge controllers.

Along with upgraded wiring, we've also included the option of choosing a 40A MPPT charge controller instead of our 20A to better suit your future expansion needs. Geared towards providing you with the most efficient system possible, the Renogy Starter Kit MPPT could be the perfect fit for you.

KEY FEATURES

Efficient
  • High solar cell efficiency: Monocrystalline 18.4%
  • Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
  • The included MPPT charge controller has a peak efficiency of 97%
Reliable

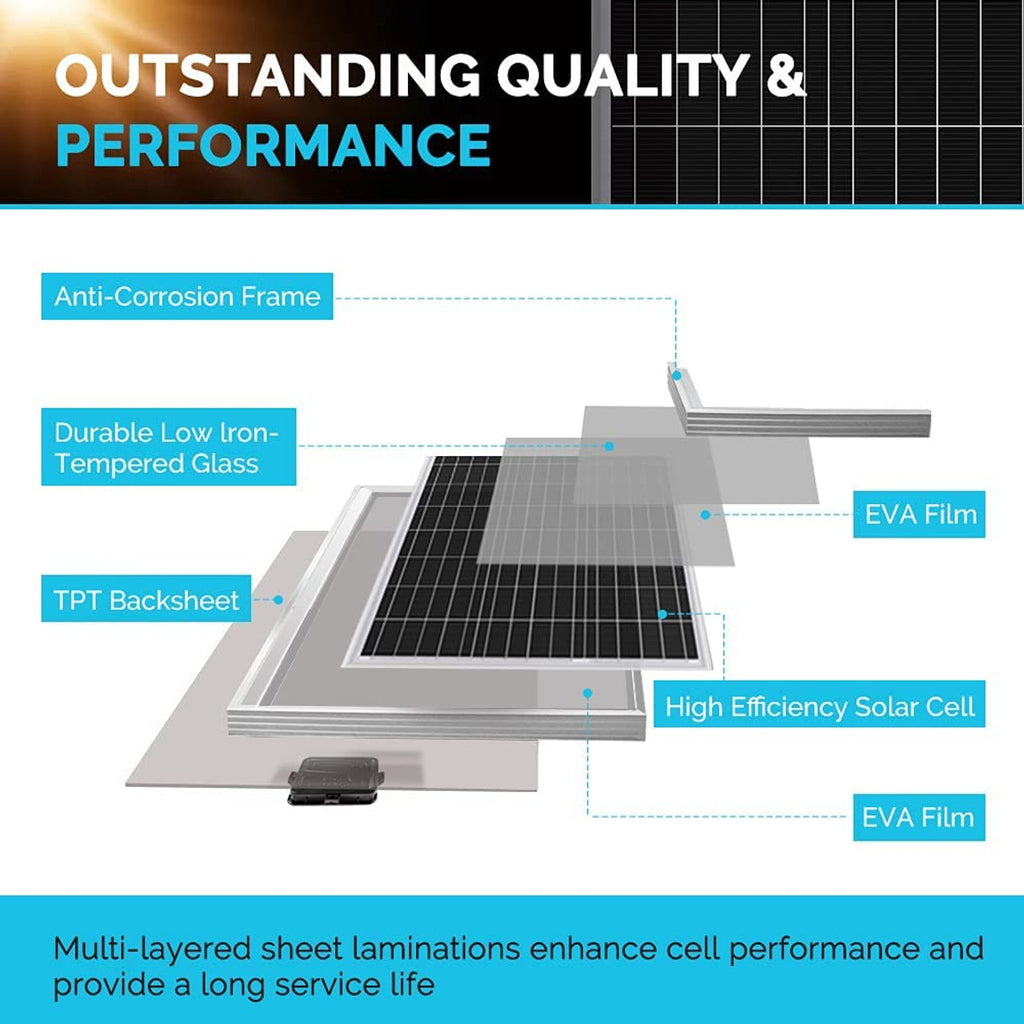

  • EL tested solar modules; no hot-spot heating guaranteed
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
  • TPT back sheet ensures smooth performance over a long period of time
  • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
  • Sealed, Gel and Flooded charging algorithim ready
  • 4-Stage battery charging process for a rapid, efficient, and safe battery charging
  • Timer function with 1-15 hour option
Safe
  • The Renogy 20A/40A MPPT is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
  • Pre-drilled holes on the back of the panel allow for fast and secure mounting
Expandable
  • With a Renogy 20A MPPT Charge Controller, you can expand your system up to a maximum of 200W (12 Volt) or 400W (24 Volt)
  • With a Renogy 40A MPPT Charge Controller, you can expand your system up to a maximum of 400W (12 Volt) or 800W (24 Volt)
  • The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion

Please note:When you add panels to your system, you will need one set of Z brackets for each additional panel. You will also need one pair of branch connectors to expand your system to 600W or 800W

SPECIFICATION

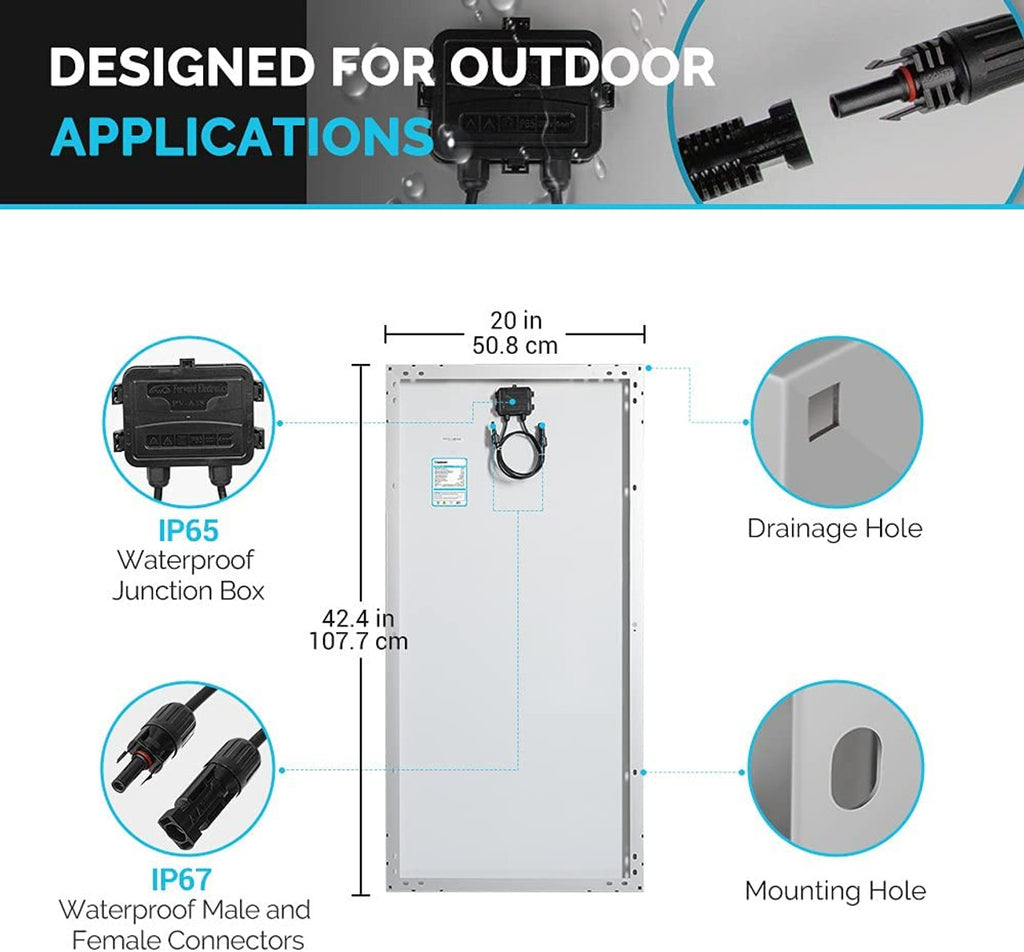

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

Maximum Power:: 100W

Maximum System Voltage: 600V DC (UL): 600V DC (UL)

Optimum Operating Voltage (Vmp):: 18.9V

Open-Circuit Voltage (Voc): 22.5V

Optimum Operating Current (Imp): 5.29A

Short-Circuit Current (Isc): 5.75A

Dimensions: 47.0 X 21.3 X 1.4 inches

Weight: 16.5lbs

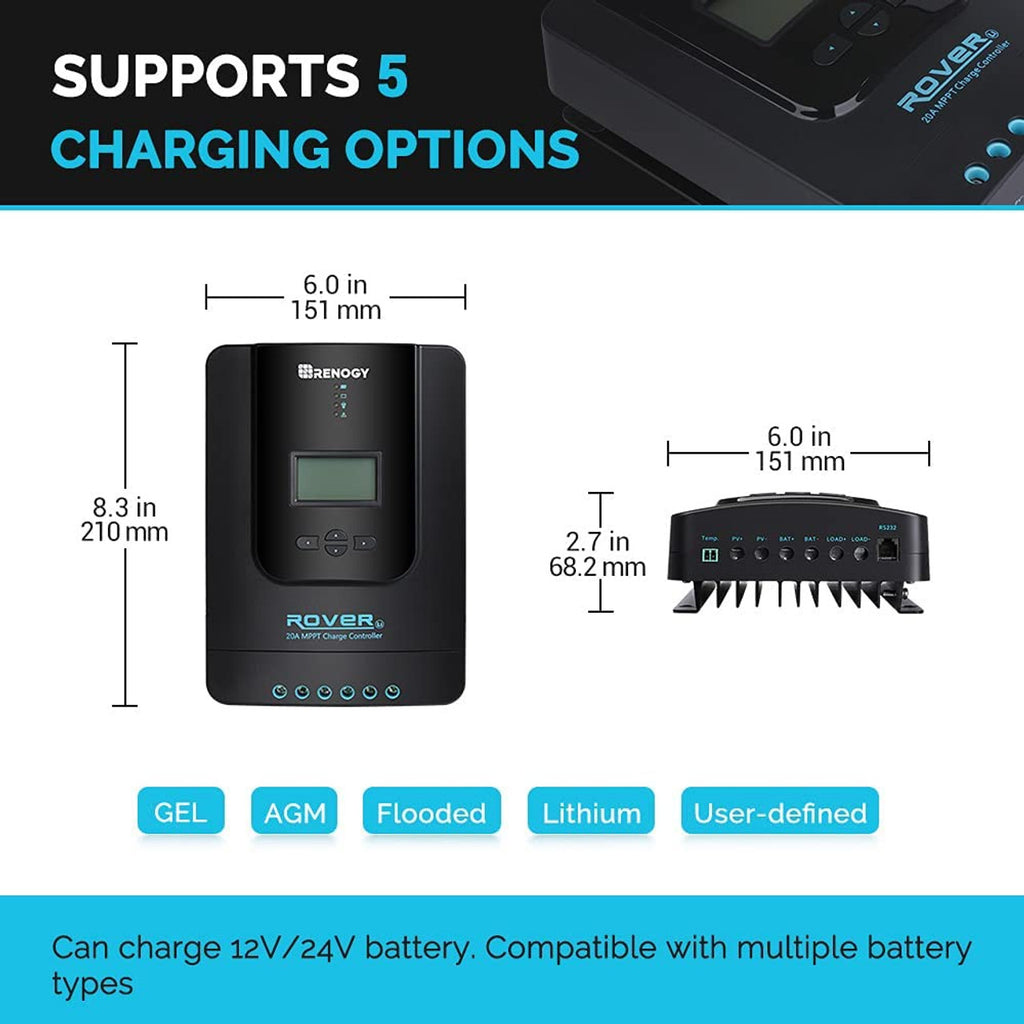

RENOGY ROVER 20A MPPT CHARGE CONTROLLER

Nominal system voltage: 12V/24V Auto Recognition

Rated Battery Current: 20A

Rated Load Current: 20A

Max. PV Input Short Current: 25A

Max. Battery Voltage: 32V

Max Solar Input Voltage: 100 VDC


ROVER 40A MPPT CHARGE CONTROLLER

Rated Battery Current: 40A

Rated Load Current: 20A

Max. PV Input Short Current: 50A

Max. Battery Voltage: 32V

Max Solar Input Voltage :: 100VDC

opc:

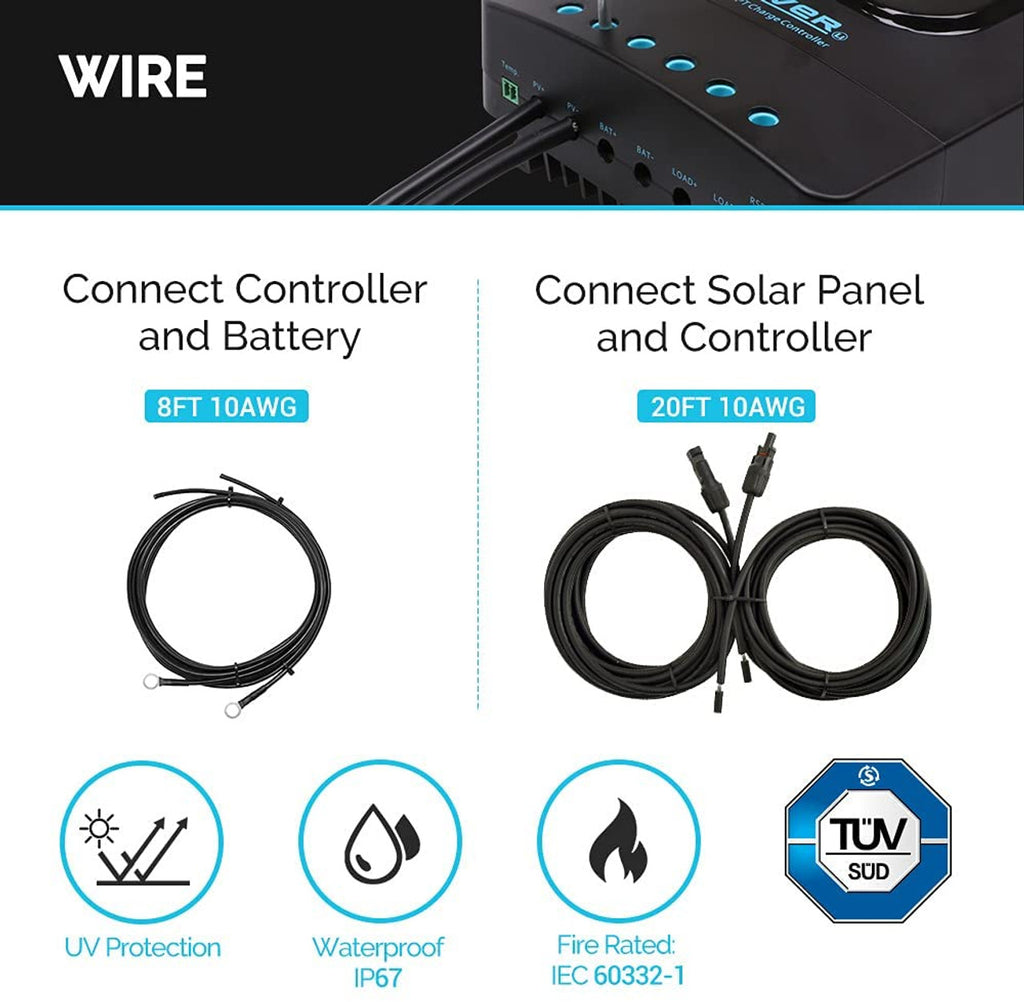

RENOGY 8FT 8AWG OR 10AWG TRAY CABLES (A PAIR)

Length: 8ft

AWG: 8 Or 10

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F


RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR)

Length: 20ft

AWG: 10

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

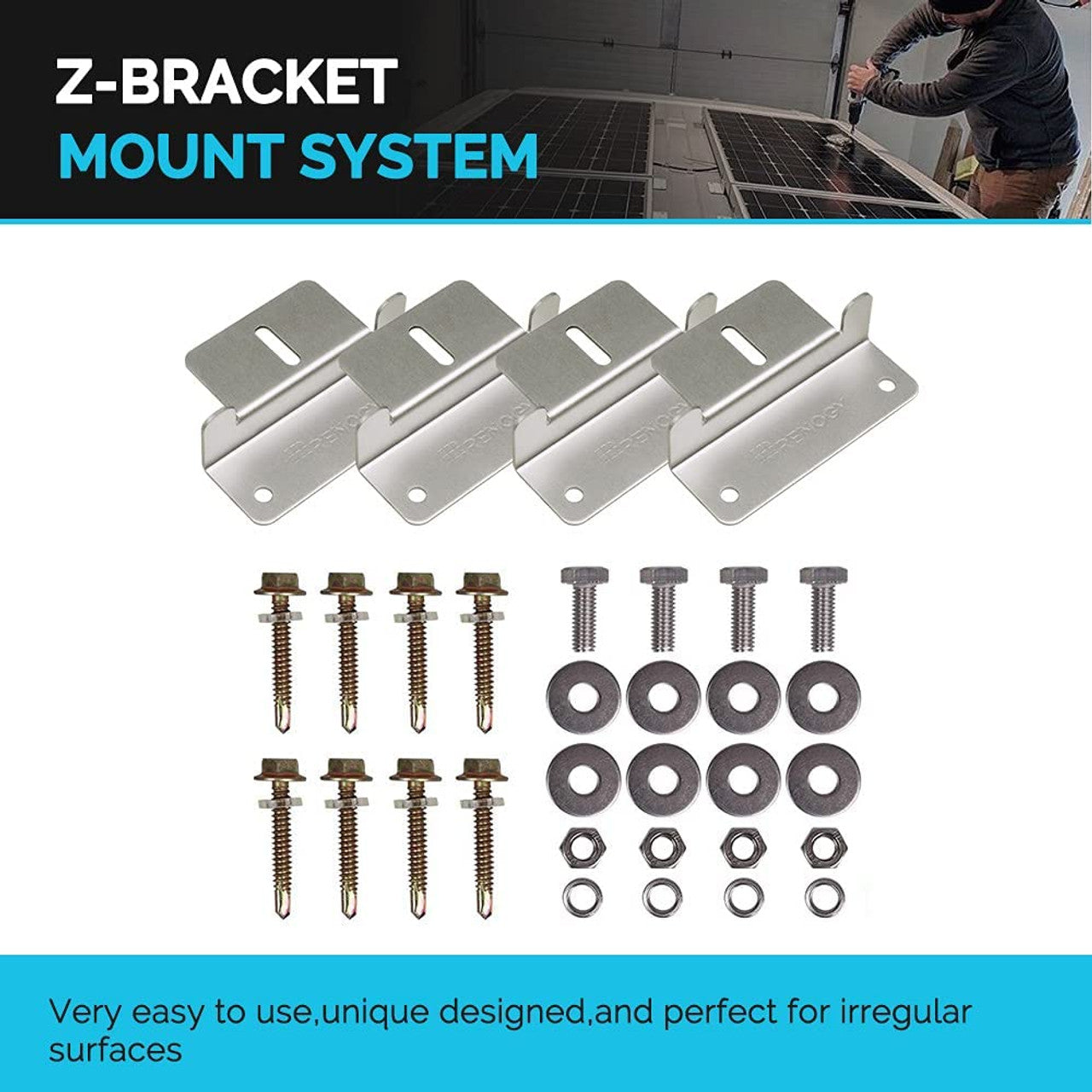

MOUNTING Z BRACKETS (SET)

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts


WARRANTY INFORMATION

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty
