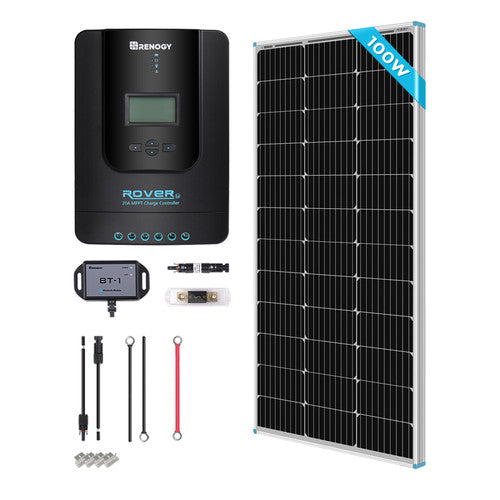

Renogy New 100 Watt 12 Volt Solar Premium Kit RNG-KIT-PREMIUM100D-RVR20-US

$337.99
SKU RNG-KIT-PREMIUM100D-RVR20-US

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.


Renogy New 100 Watt 12 Volt Solar Premium Kit RNG-KIT-PREMIUM100D-RVR20-US


Description

【Efficient Performance】 The Premium Kit will produce an average of 500Wh of electricity per day (depending on sun availability). By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in a low-light environment.
【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. Corrosion-resistant aluminum frame ideal for outdoor use. TPT back sheet dissipates excess heat, ensuring smooth output performance. EL tested; 5-year material and workmanship warranty.
【Ready to Install】 Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.

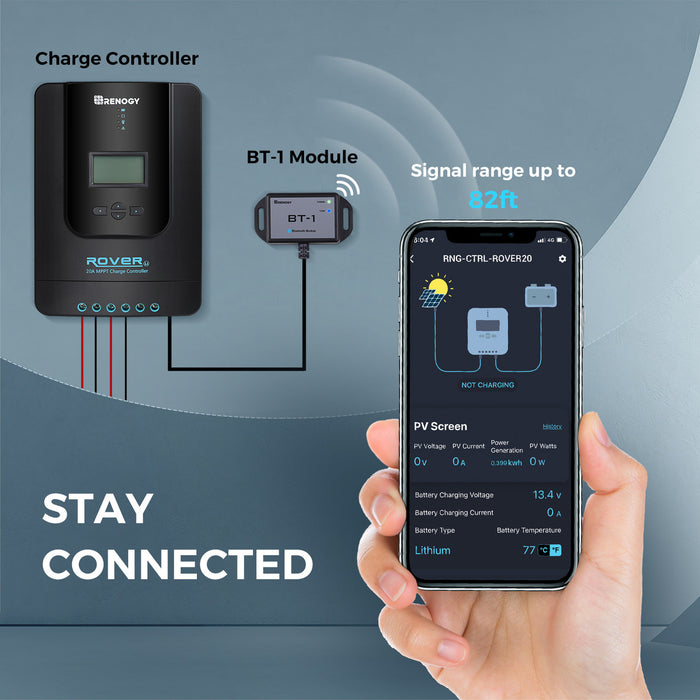

【Stay Connected】 Easily monitor by your phone. The BT1 Bluetooth module can pair with Renogy DC Home App and transmits system operation data directly to your phone, the Bluetooth signal available up to 82ft.
【Full System Protection】 Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current. Equipped with an In-line fuse and ANL fuse components, devised to add overcurrent protection on your charge controller and battery bank.
The Benefits

The Renogy 100W 12V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it ideal for both off-grid and mobile solar power applications.

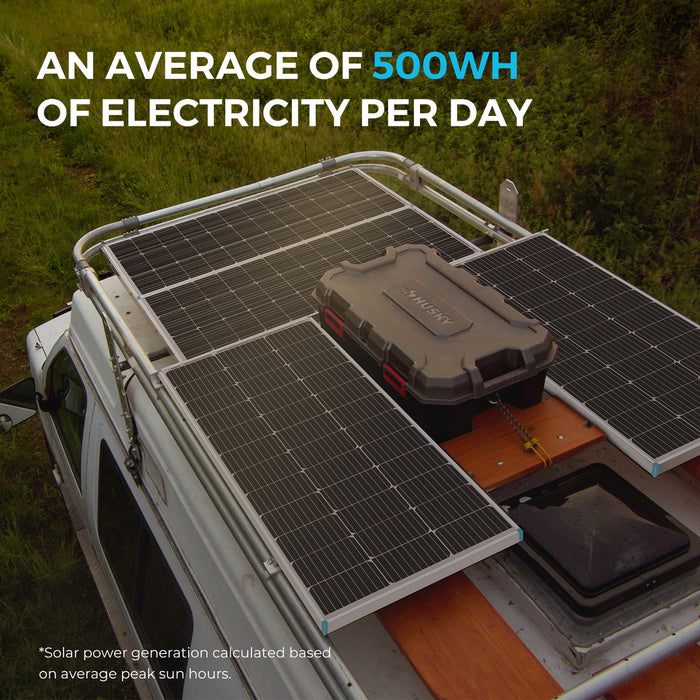

The Premium Kit will produce an average of 500Wh of electricity per day (depending on sun availability). The 100W solar panel doesn't take up much roof space, but their energy can offset small loads such as lighting, cellphone, and laptop.

The Premium Kit can build a reliable and environmentally friendly power supply, perfect for all rooftops, RVs, boats, or campers. It can also be installed in a ground mount system, as a power supply for outdoor appliances, emergencies, and a stand-alone power system.

Efficient Performance

By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in low-light environments.

Full System Protection

Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

Auto Detect and Powerful Compatibility

Automatically detects 12V or 24V DC system voltages, and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.

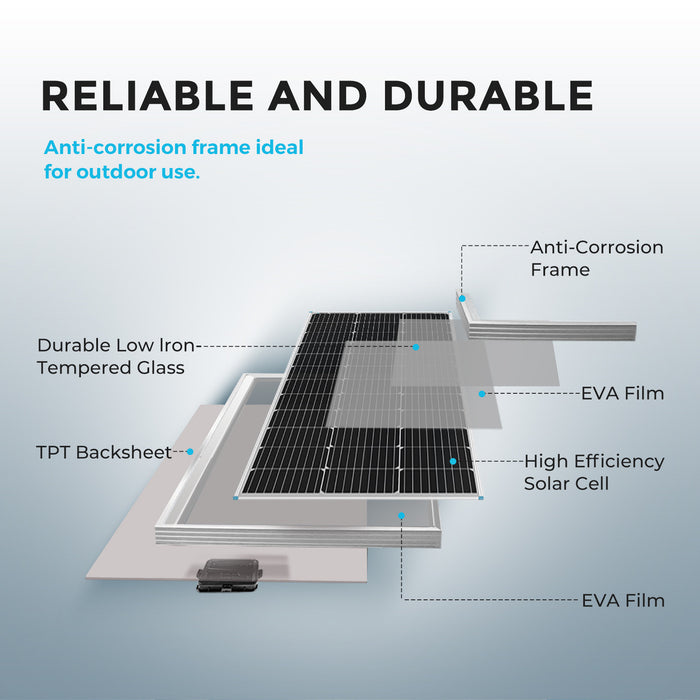

Solid Quality

Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. EL tested, no hot-spot heating is guaranteed.

No Fear of Weather Challenge

The IP65 Junction Box offers complete protection against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.

Ready to Install

Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.

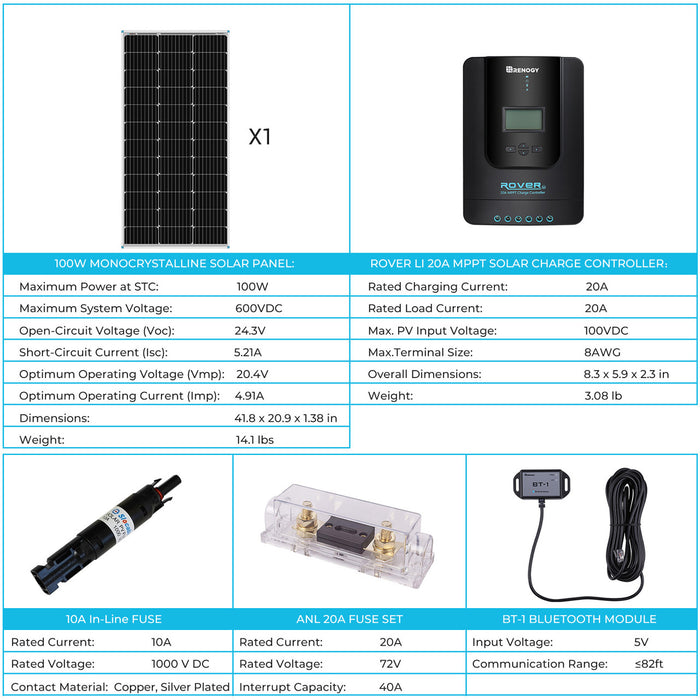

SPECIFICATION


RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Voltage (Vmp): 20.4V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Current (Imp): 4.91A

Dimensions: 41.8 x 20.9 x 1.4 in

Weight: 14.1lbs

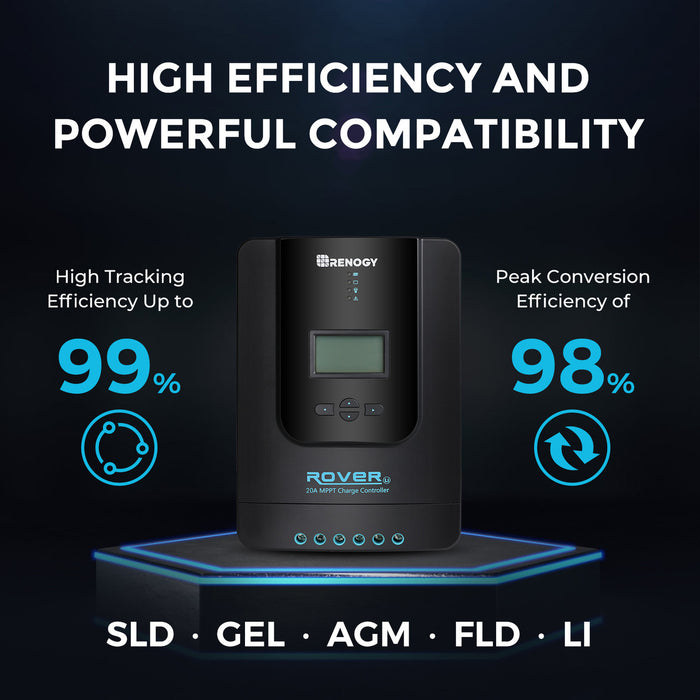

RENOGY ROVER 20A MPPT CHARGE CONTROLLER

Nominal System Voltage: 12V/24V Auto Recognition

Rated Charging Current: 20A

Rated Load Current: 20A

Max. PV Input Power: 260W/12V, 520W/24V

Max. Battery Voltage: 32V

opc:

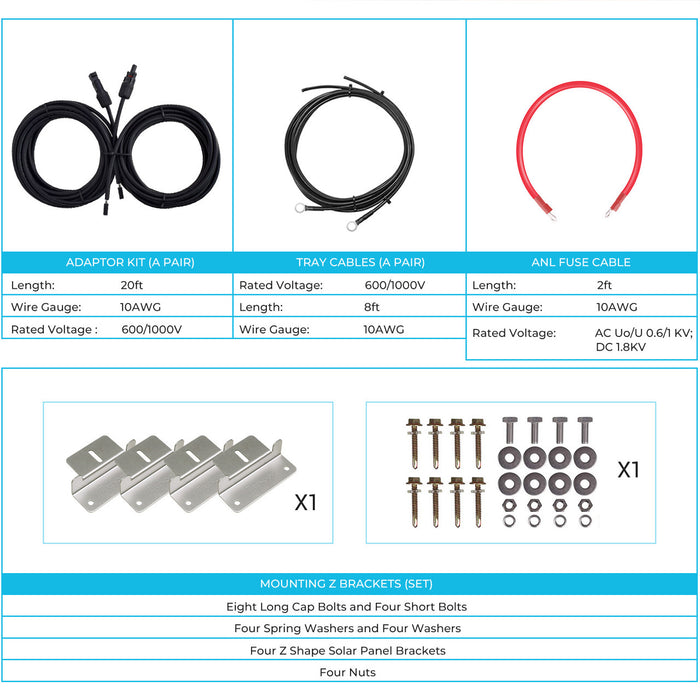

20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)

Length: 20ft

Wire Gauge: 10AWG

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F


RENOGY 8FT 10AWG TRAY CABLES (A PAIR)

Length: 8ft

Wire Gauge: 10AWG

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F


RENOGY 2FT 10AWG ANL FUSE CABLE

Length: 2ft

Wire Gauge: 10AWG

Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV

Temperature: -40°F to +194°F


RENOGY BT-1 BLUETOOTH MODULE

Input Voltage: 5V

Communication Range: ≤82ft

Compatible With: All Renogy Controllers with RJ12 port

Operating Temperature: -20℃~85℃(-4°F to 185°F)


RENOGY 10A IN-LINE FUSE HOLDER W/FUSE

Rated Current: 10A

Rated Voltage: 1000 V DC

Contact Material: Copper, Silver Plated

Replaceable Fuse: Cylindrical PV Fuse (10x38mm)


ANL 20A FUSE SET

Current Rating: 20A

Voltage Rating: 72V

Interrupt Capacity: 40A

opc:


MOUNTING Z BRACKETS (SET)

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts


WARRANTY INFORMATION

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty
