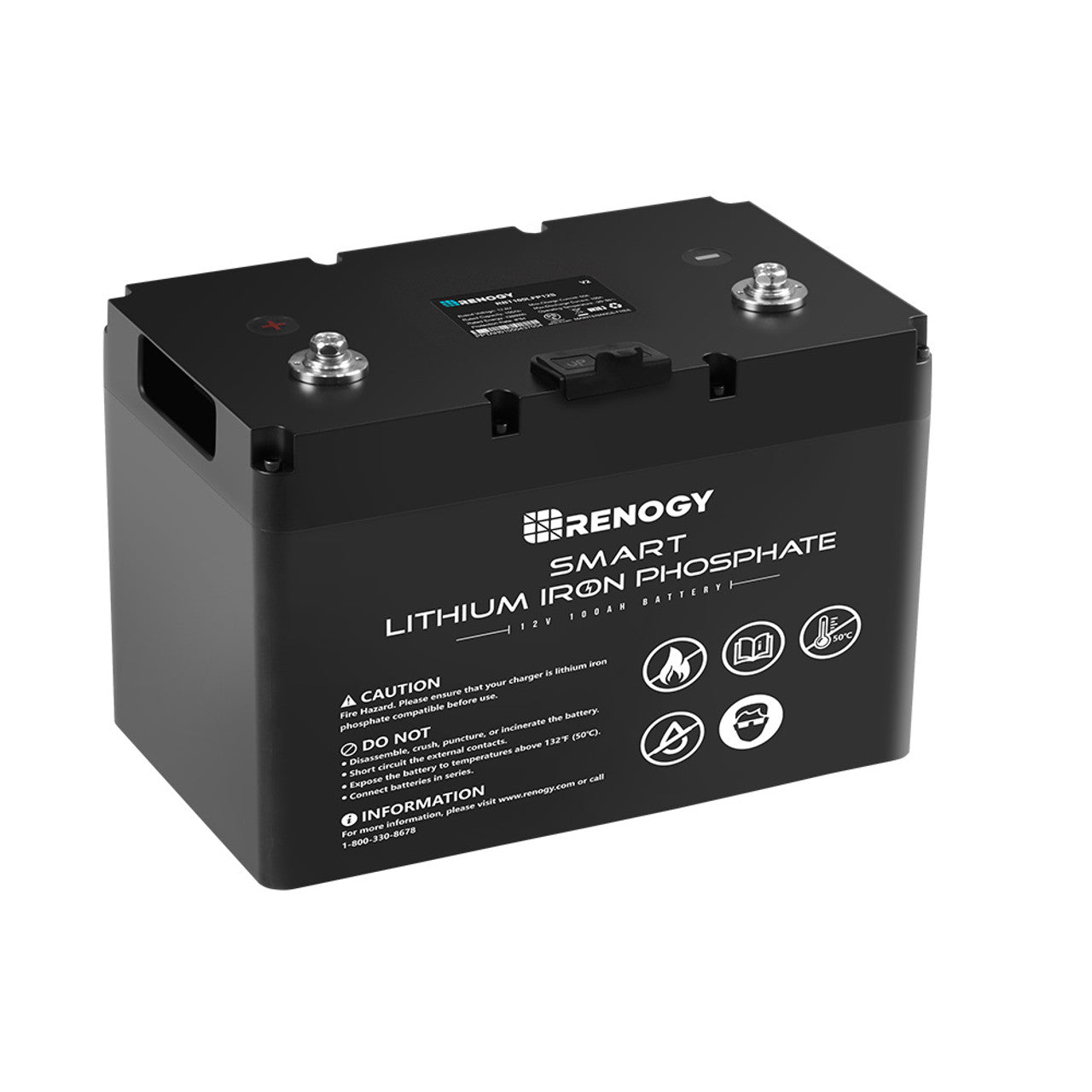

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery RBT100LFP12S-US
DESCRIPTION
Renogy LiFePO4 battery has a minimum 4000 cycles time which delivers up to 8 times longer than a lead-acid battery. Moreover, with the incredible energy density of the battery, Renogy LiFePO4 battery is thin and light with immense power.
There’s no reason to settle for other batteries if you can think 'Big Picture'.

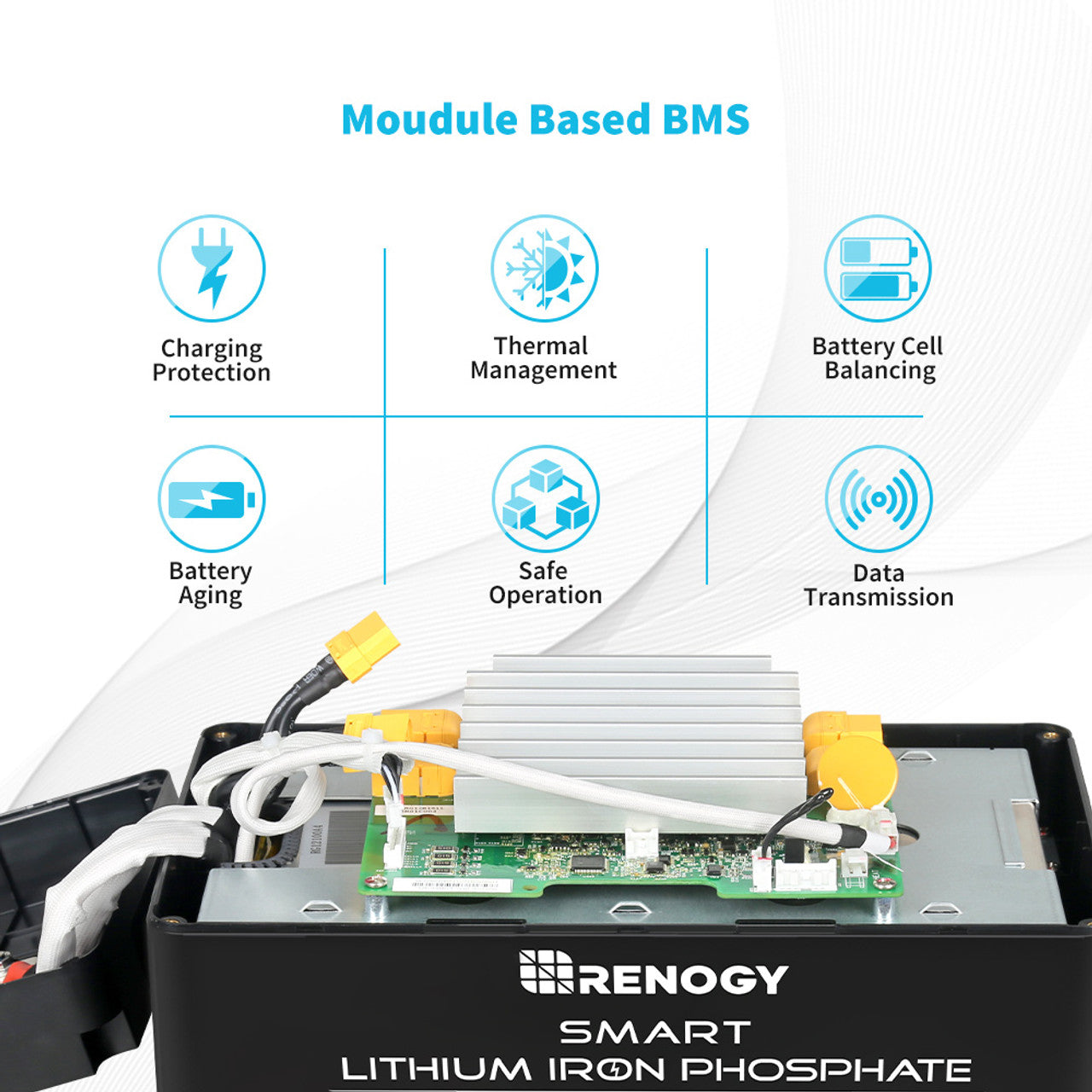

Powered by an upgraded intelligent BMS circuit, the battery will guarantee balance between each battery cell group，and features the most precise temperature measurement discrepancy of its kind. This battery will more accurately display and protect the battery from over-voltage, under-voltage, over-current, short circuit, high temperature, and low temperature.
Regardless of the production, use, or scrap, it does not contain or produce any toxic and harmful heavy metal elements and substances such as lead, mercury, and cadmium. Renogy 100ah LiFePO4 battery is made from 100% safe, nontoxic, and renewable energy.
Our LiFePO4 battery is only a third of the weight of Lead Acid while providing a massive boost to performance and capacity so you won't miss a single second of runtime. Renogy‘s LiFePO4 battery is your best choice for RVs, Marine and Off-Grid Applications when towing or mobility is in consideration.

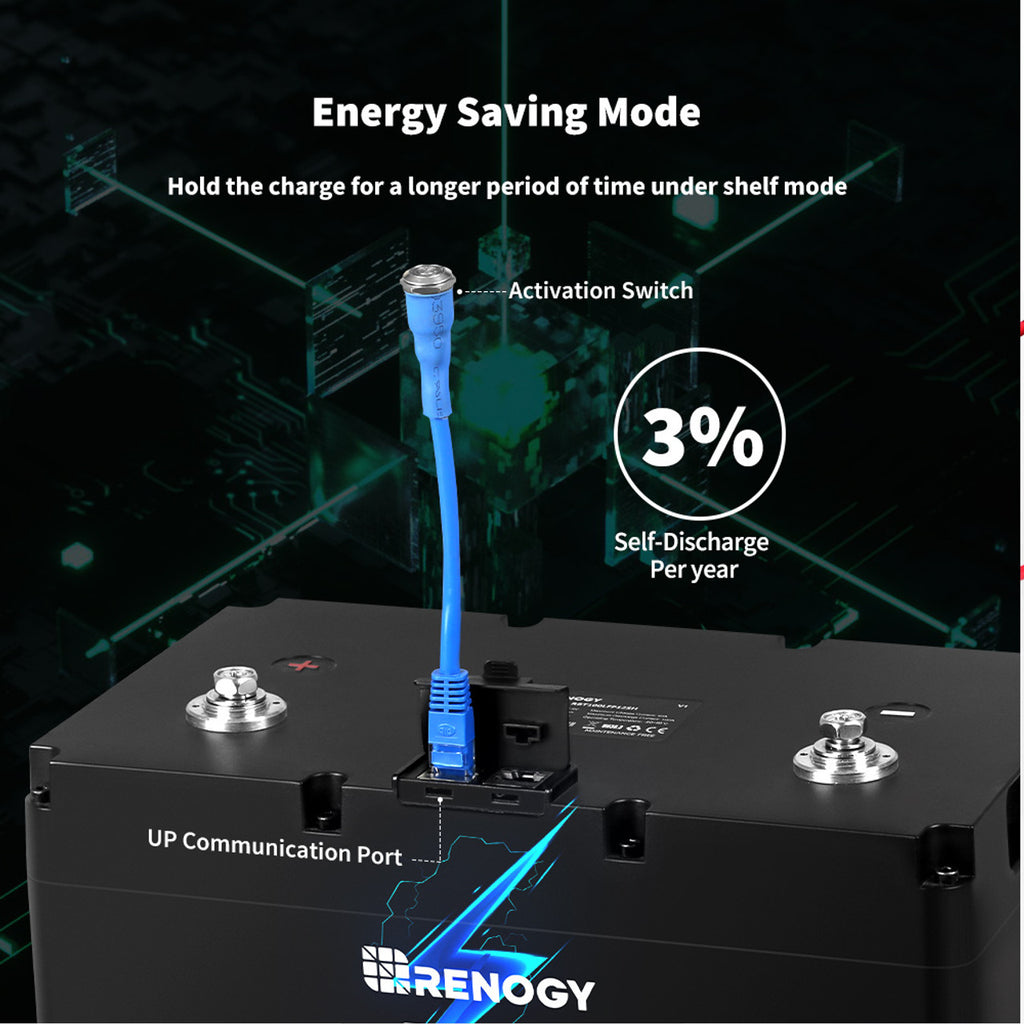

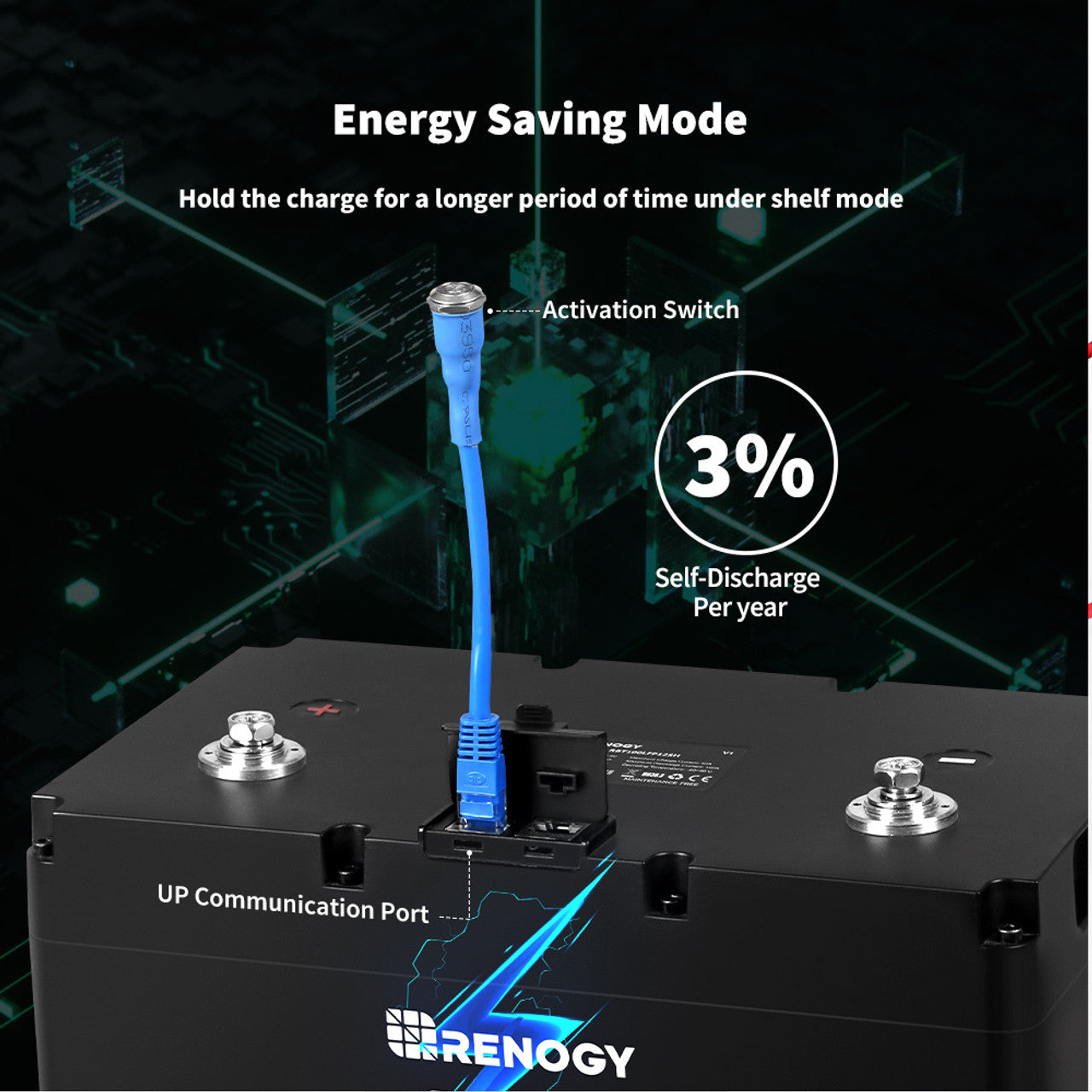

The battery can be switched between active mode and shelf mode with the Activation Switch. Prior to long periods of storage, disconnect the battery from the system, connect the activation switch to the RS485 UP Communication Port of the battery, and long press the Power Button for 3 seconds to switch the battery to shelf mode.

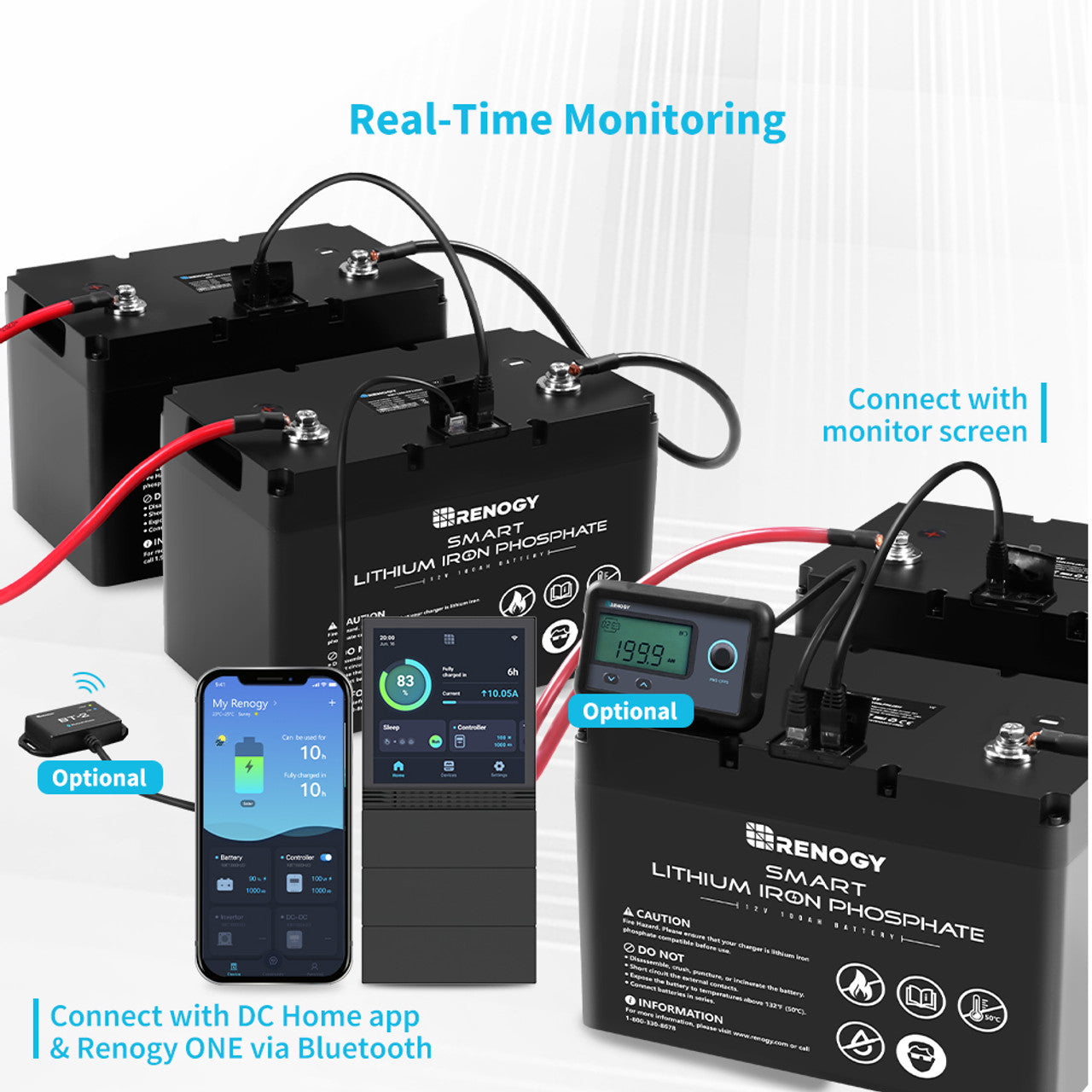

Plug in a Renogy BT-2 Bluetooth Module and pair it with Renogy ONE M1 to keep track of real-time information of your batteries and stay updated via the DC Home app when you are away. You can also check on the charging status at a glance through a Renogy monitoring screen.
- The normal operation of the self-heating function requires a stable charge current greater than 3A.
- Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.

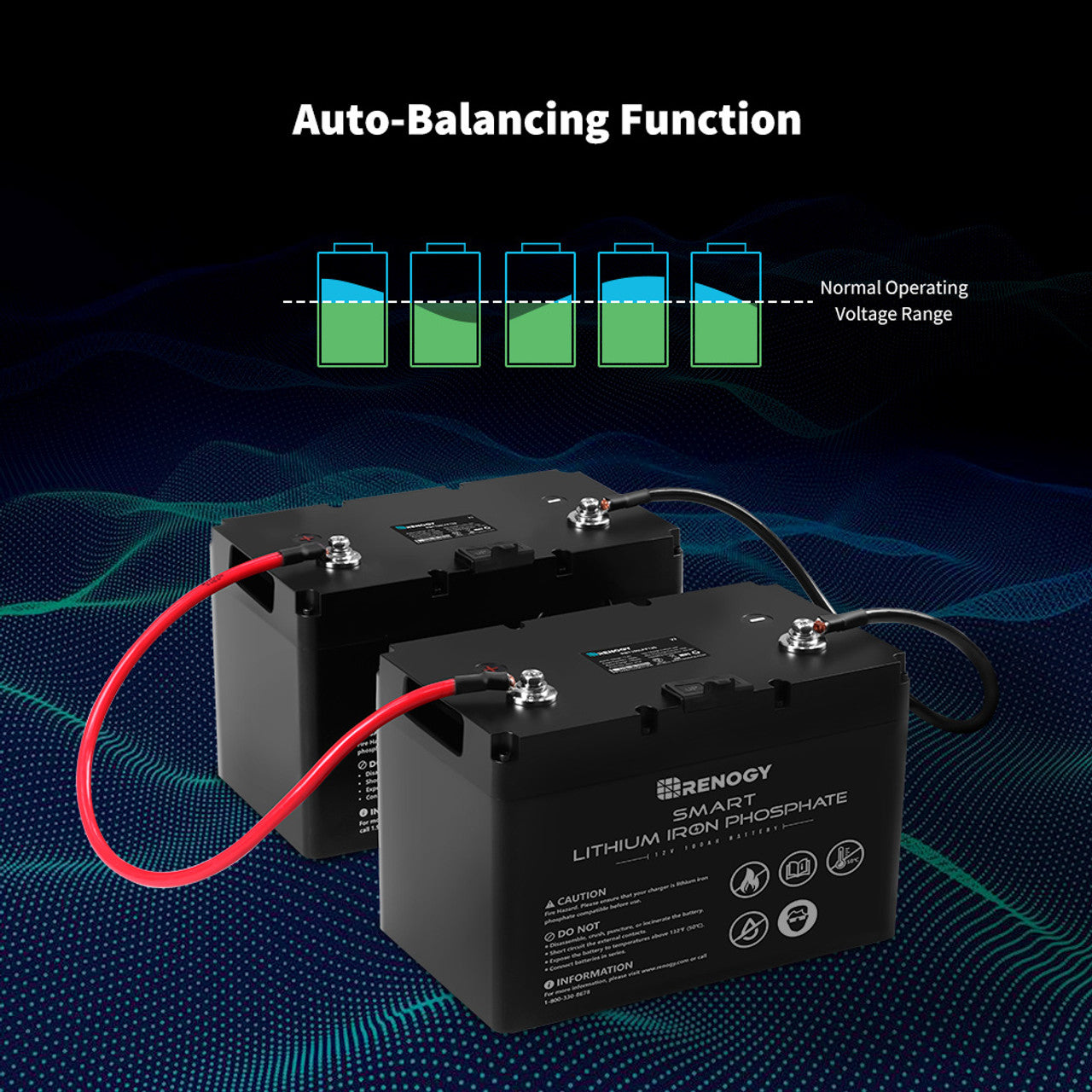

- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
SPECIFICATION
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100AH
Nominal Voltage: 12.8V
Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
Connection Method: Parallel
Automatically Self-heating Function: No

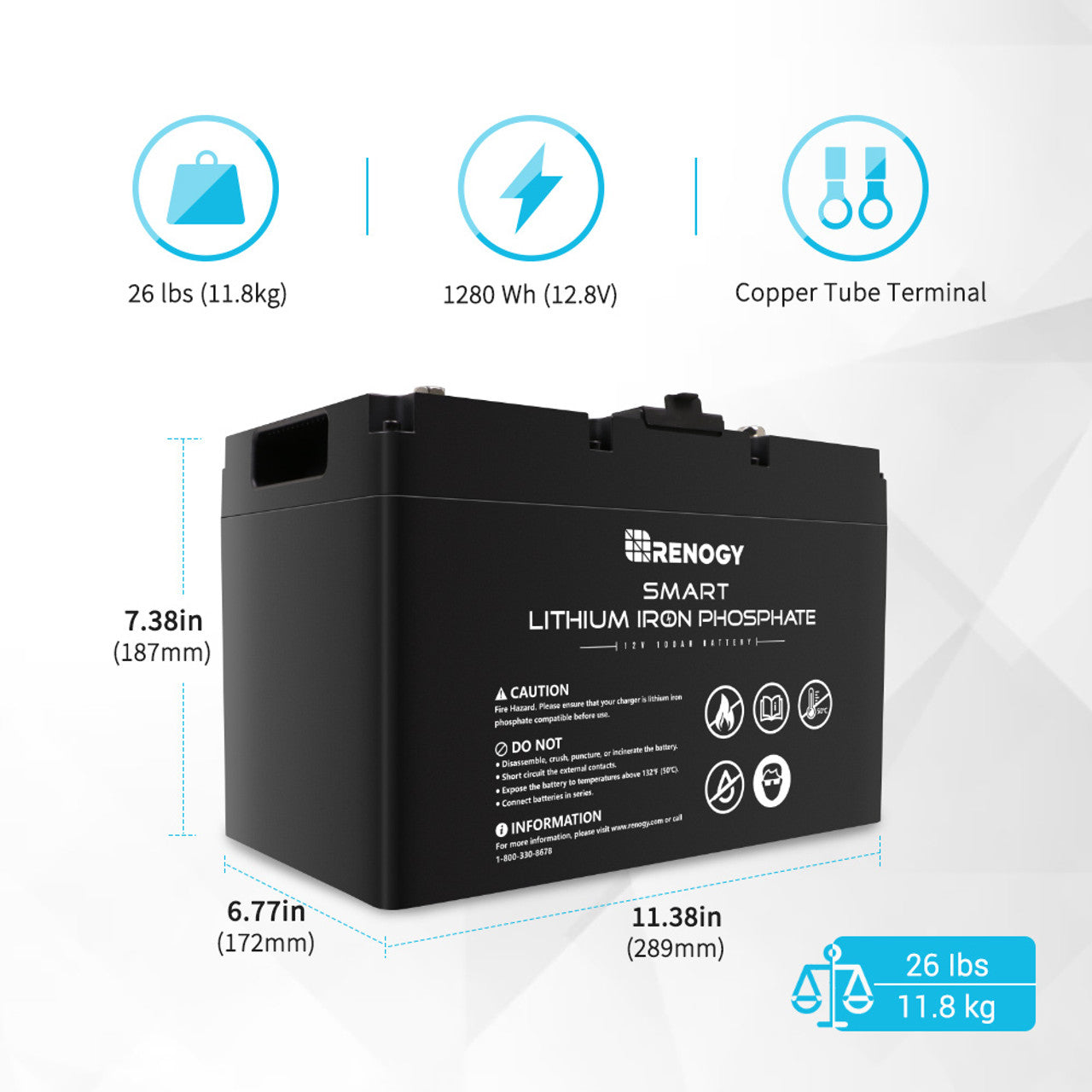

Dimensions: 11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm
Weight: 26 lbs. / 11.8 kg
Protection Rate: IP54
opc:
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
opc:
Standard Operation Temperature: 25℃±5℃
Storage Temperature: -13~149℉ / -25~65℃
Charge Temperature: 32~131°F/ 0~55°C
Discharge Temperature: -4~140°F/ -20~60°C
Built-in Bluetooth: No
Communication Port: RJ45 (RS485 Protocol)
M8 Bolts: x2
Activation switch: x1
Prorated warranty: 5-year
opc:
UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell): Yes
