HPC Fire FPPK Push Button Flame Sensing Gas Fire Pit Kit, Round Flat Pan
Call Us Now to receive the Lowest Prices Online:
(415) 503-9177
Free Shipping. No Sales Tax Outside of CA.
Estimated Handling Time
Product Ships within 1-3 days.
Estimated Shipping Time
Please Allow 5-7 business days.
HPC Fire FPPK Push Button Flame Sensing Gas Fire Pit Kit, Round Flat Pan RFP-FPPK-FLEX-Config
Description

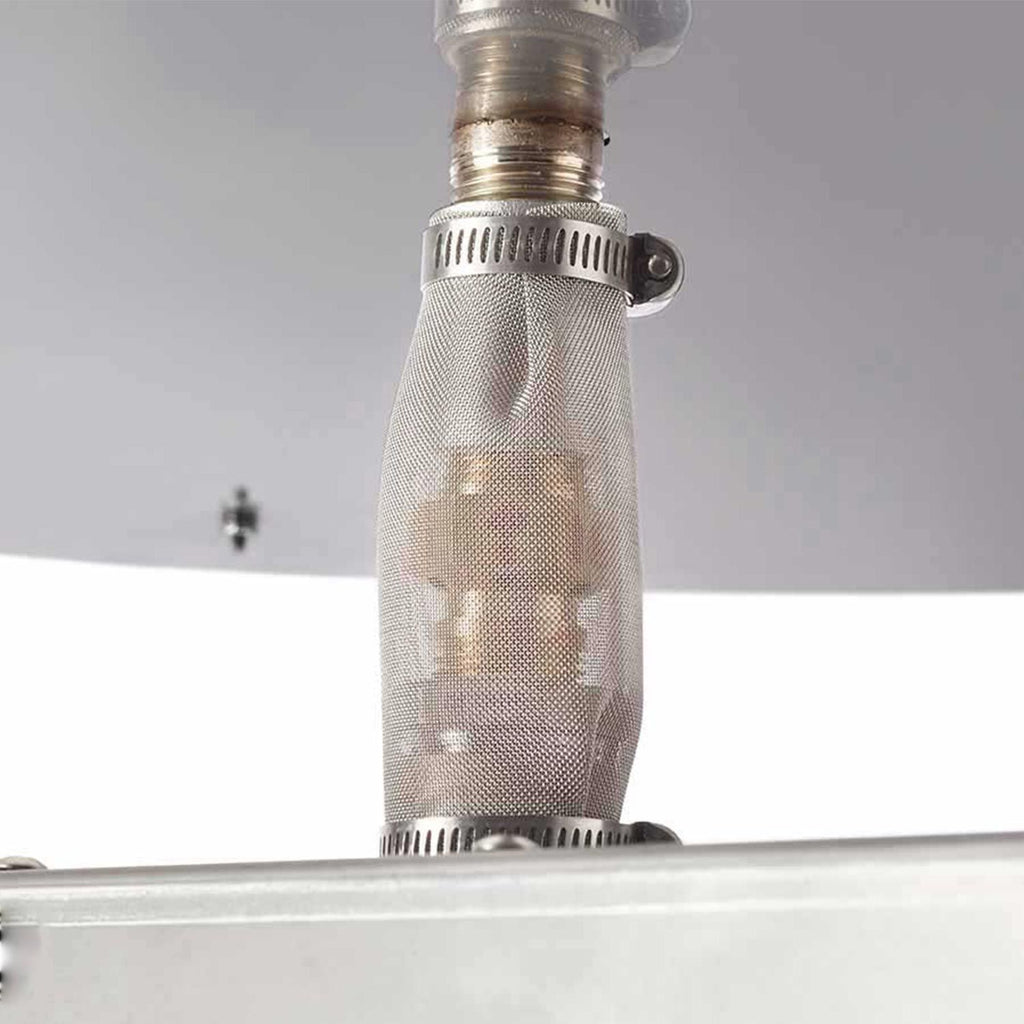

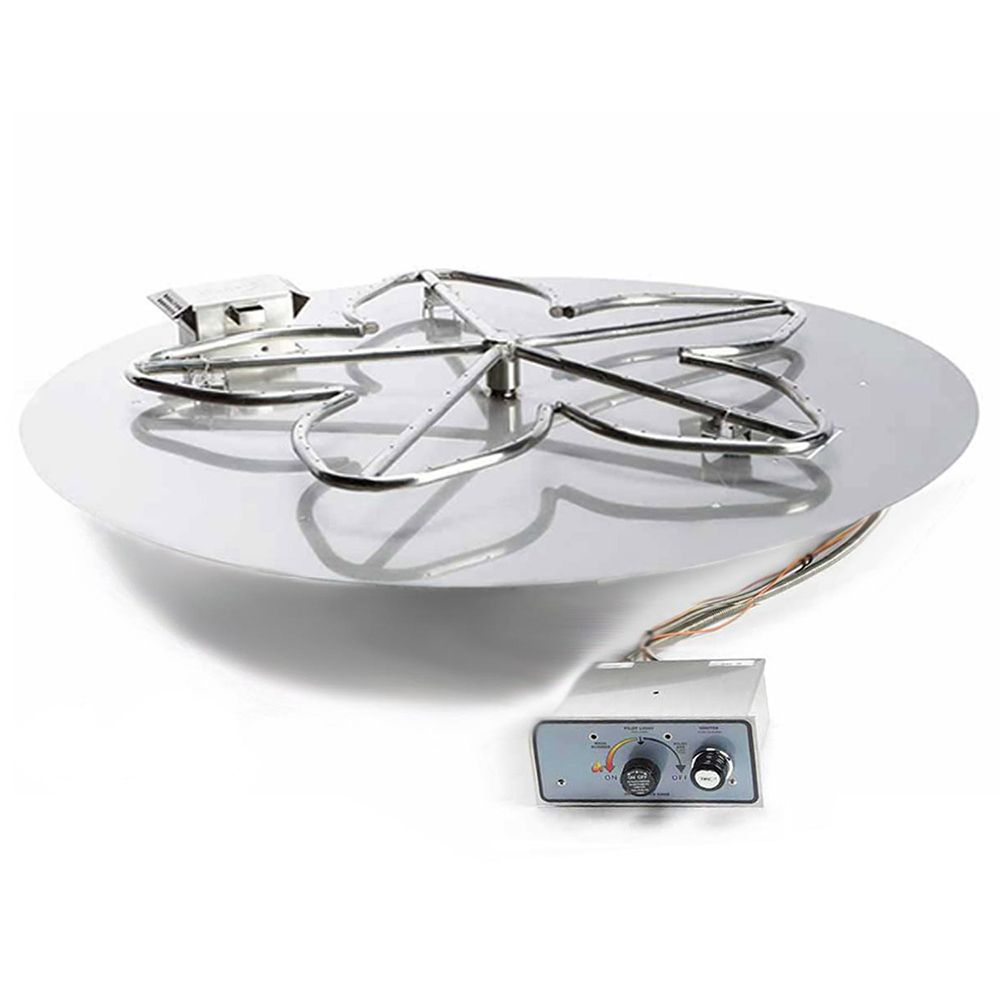

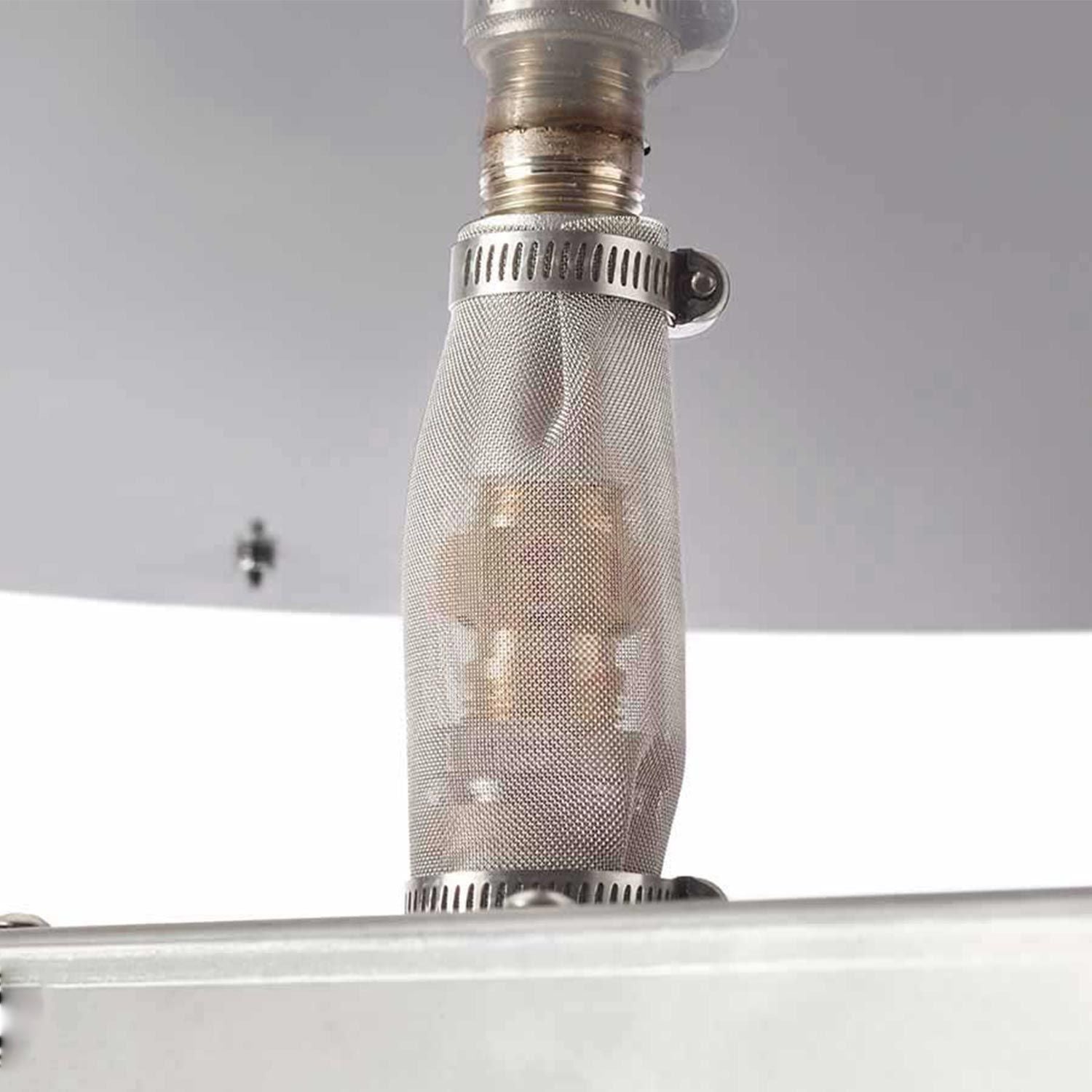

This burner kit is designed for both natural gas and propane applications, the burner will come assembled to the round flat pan. Also assembled will be the necessary fittings for the sealed control box attached with a flexible gas line; propane units will include a wire mesh spider guard to keep spiders from clogging the gas line.
The Small Tank Kit is for use with FPPK models that are rated at 90,000 BTU or fewer. The kit includes a 90° regulator, 48 inch flex hose, 24 inch flex line, L-bracket and fittings for each respective model.
Features
- Stainless Steel Construction - Heavy duty 304 stainless steel burner & pan ensures a long lasting product

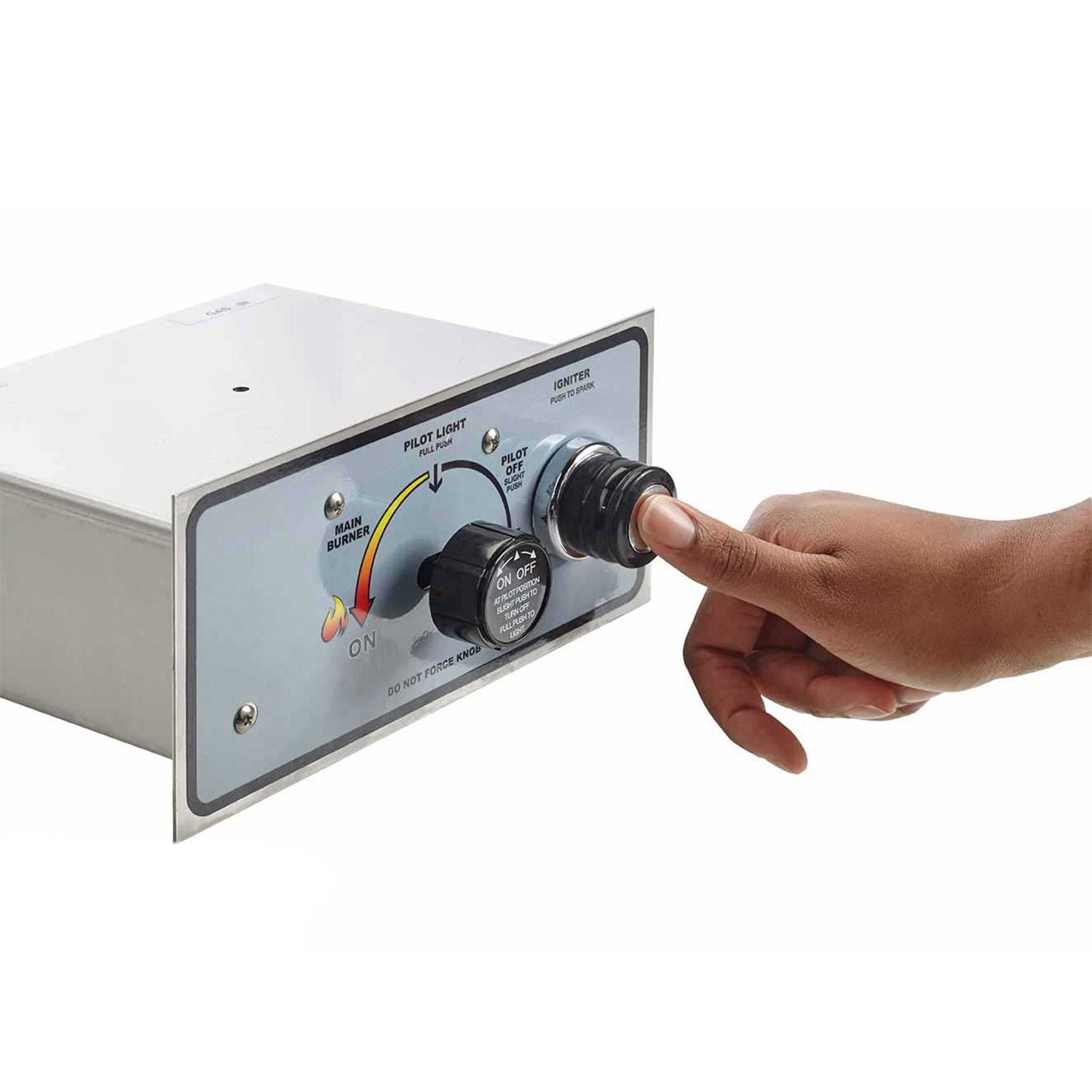

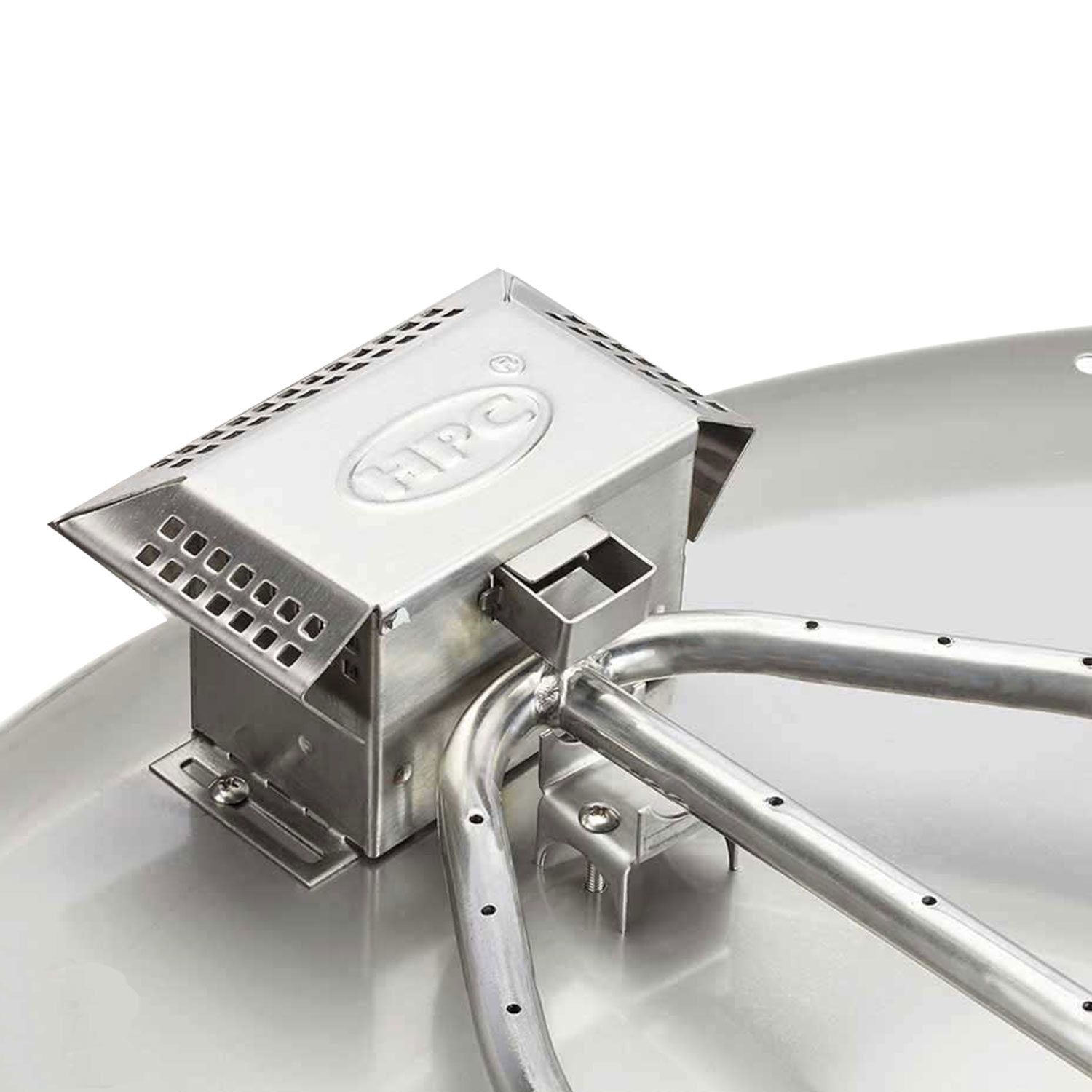

- Spark Ignition Pilot Assembly - Simple battery powered push button ignites the flame using a pilot light and thermocouple
- Flame Sensor - Automatic flame sensor detects the pilot light and closes the gas line if the flames are extinguished
- Flexible Assembly - New flexible gas line allows a more accommodating installation
- Natural Gas or Propane - Burner kit should be specified for natural gas or propane applications
- CSA Certified - Ensuring the highest quality and safety for outdoor gas fire pits
Specification Table
| HPC Manual Spark Flame Sensing Fire Pit Inserts | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Burner | Pan | Media | |||||
| Burner Size | Burner Shape | BTU (max) | Hub Size | Center Flame | Pan OD | Lava Rock* | Fire Glass* | |
| FPPK14-FLEX | 12" | Round | 90k | 1/2" | 18" | 14" | 1 Cu Ft | 20 lbs |
| PENTA18FPPK-FLEX | 12" | Penta | 65k | 1/2" | 23" | 18" | 1 Cu Ft | 40 lbs |
| PENTA24FPPK-FLEX | 18" | Penta | 90k | 1/2" | 21" | 24" | 1 Cu Ft | 70 lbs |
| PENTA30FPPK-FLEX | 24" | Penta | 140k | 1/2" | 15" | 30" | 2 Cu Ft | 110 lbs |
| PENTA36FPPK-FLEX | 30" | Penta | 140k | 3/4" | 22" | 36" | 2 Cu Ft | 160 lbs |
Documents and Downloads
- Installation & Operation Instructions
- Product Drawing
- Product Drawing (Valve Box)
- Product Drawing (Control Box Mounting Sleeve)
- CSA Certification
- HPC Outdoor Catalog
About the Manufacturer
HPC is on the cutting edge of outdoor gas fire pit technology and offers a wide variety of burners to fit the need of any construction or do-it-yourself project. All HPC fire pit rings have staggered burner ports for a more natural-looking flame pattern and presence. Both stainless steel and cold rolled steel burners are available, and both feature ports that are drilled, not punched, for optimal quality; the burner hub is raised above the concentric rings to reduce the risk of water in the valve or gas line.
