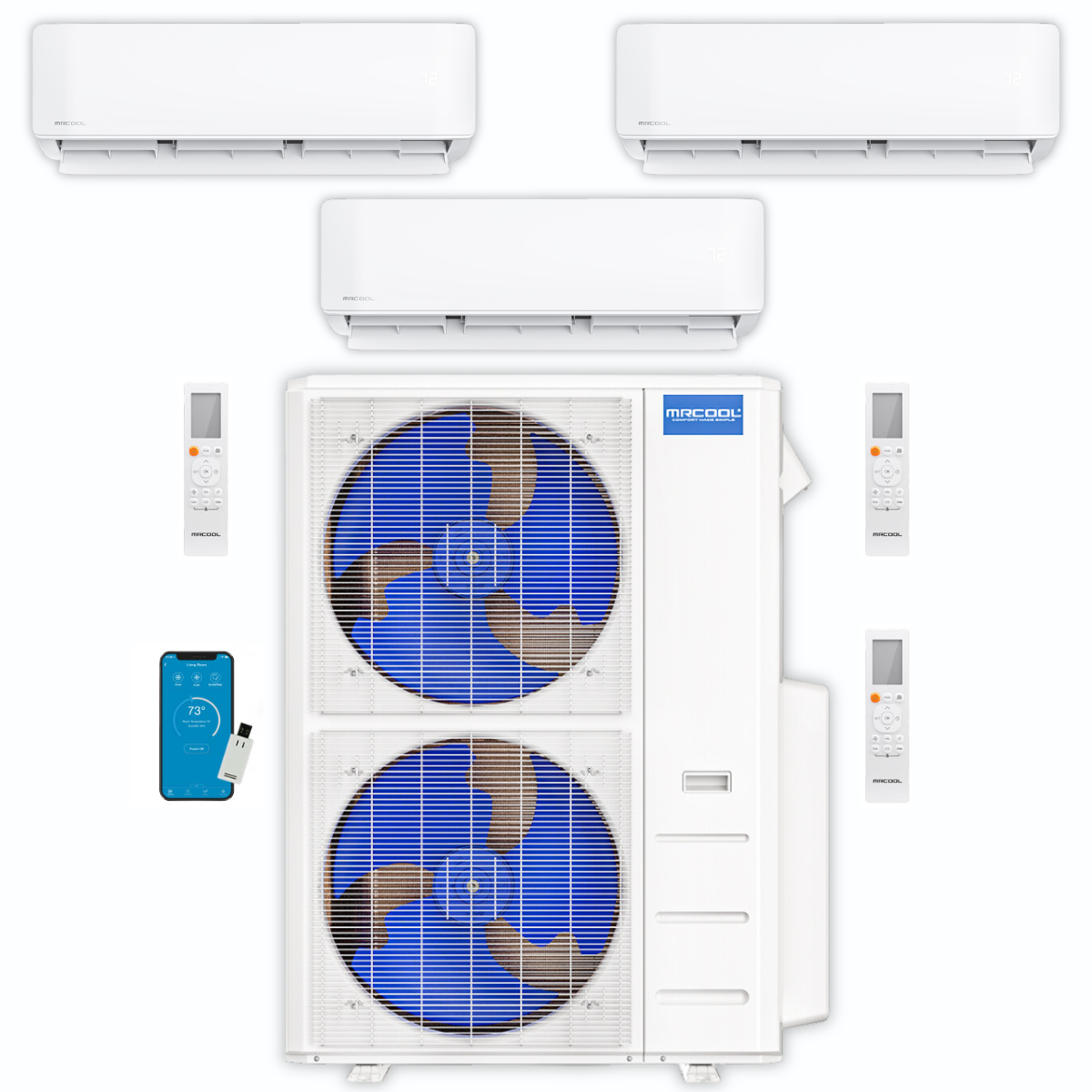

MRCOOL DIY Mini Split - 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP090936

Save $760.04
MRCOOLSKU: DIY-B-348HP090936

⭐ Free Shipping -> Ships out in 1-3 Business Days

⭐ Full Manufacturer Warranty Included

⭐ No Sales Tax Outside of CA

🏅 Authorized Dealer

🏷️ PROMO CODE: MODERN5 Gives you an extra 5% OFF your first order!

Price:
Sale price$6,840.40 Regular price$7,600.44

Checkout Securely

Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Enjoy Free Standard Curbside Shipping.

No Sales Tax Outside of CA.

Estimated Handling Time:

  • Product Ships within 1-3 days.

Estimated Arrival Time:

  • Please Allow 5-7 business days.

Exclusions Apply to the following types of orders:

  • Custom Built Orders
  • Orders Shipping to Hawaii, Puerto Rico, or Alaska

First time purchasing with us? We believe first impressions matter. Here is an extra 5% off your whole order on us:

Use Promo code: MODERN5

How to redeem:

Step 1) Add the item to your cart

Step 2) Proceed to checkout

Step 3) There will be a section in checkout that will allow you to input a promotional code, there you will apply the code MODERN5

Step 4) The code will give you an extra 5% OFF your full order!

Step 5) You get the best possible price online for your brand new items because we also don't charge for shipping and if you're outside of California, you don't pay taxes!

Description

MRCOOL DIY Mini Split - 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP090936


Description

Step into the future of comfort with MRCOOL’s innovative 4th Gen DIY Mini Split, trusted by thousands of satisfied customers! Experience unmatched climate control across your rooms, all with effortless convenience. Perfect for your home, garage, workshop, and beyond. The best part? You can handle the installation yourself!

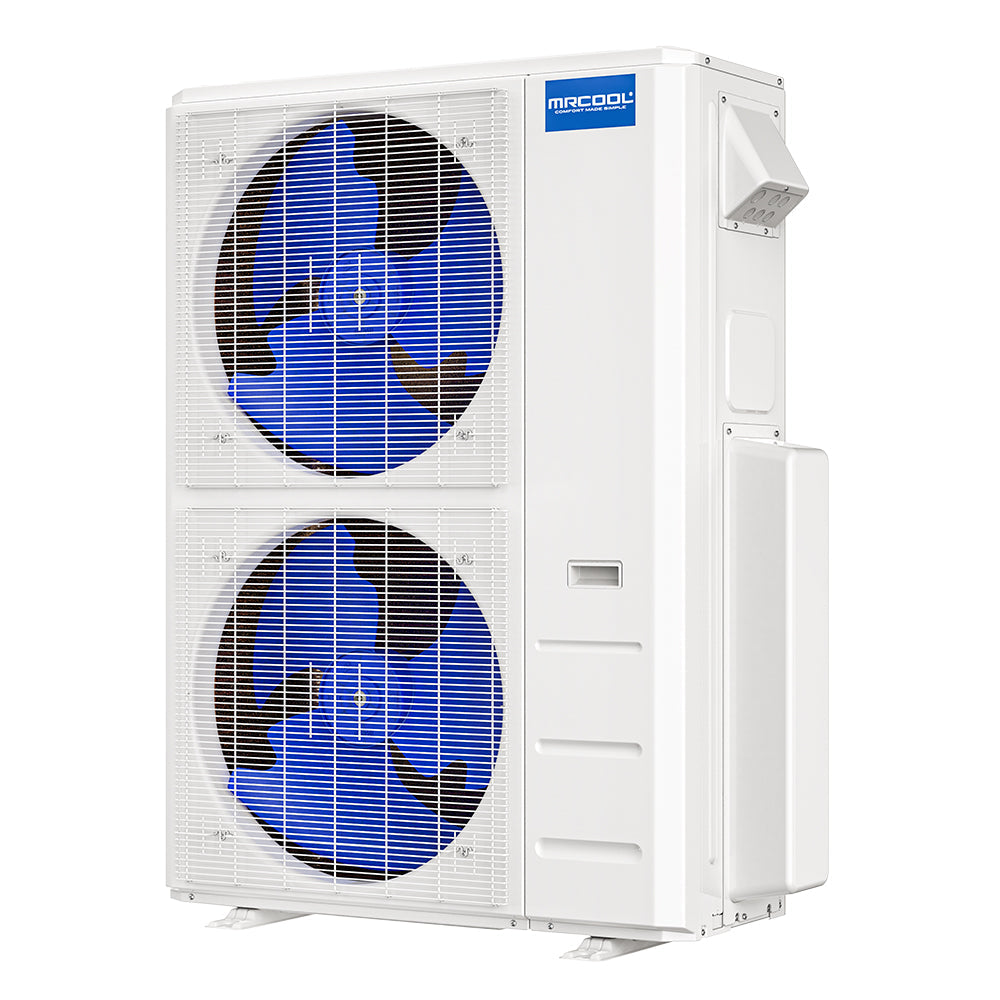

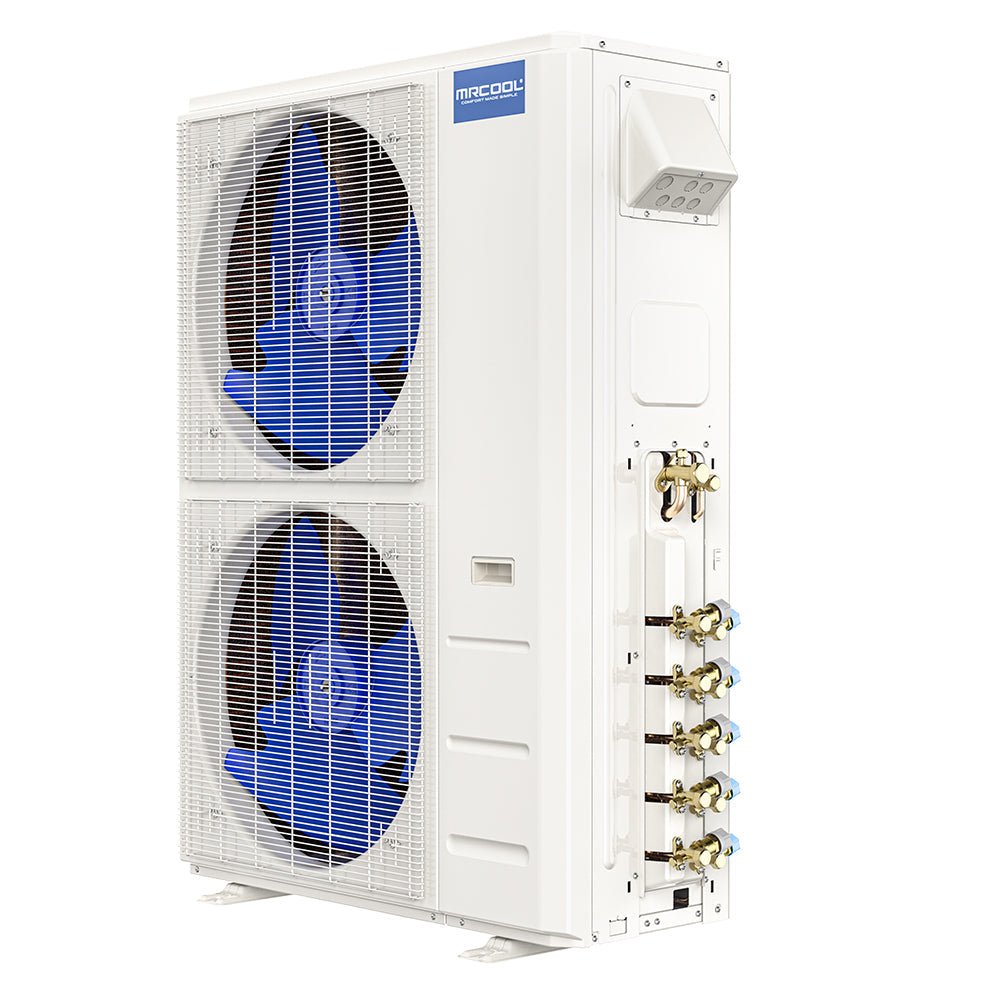

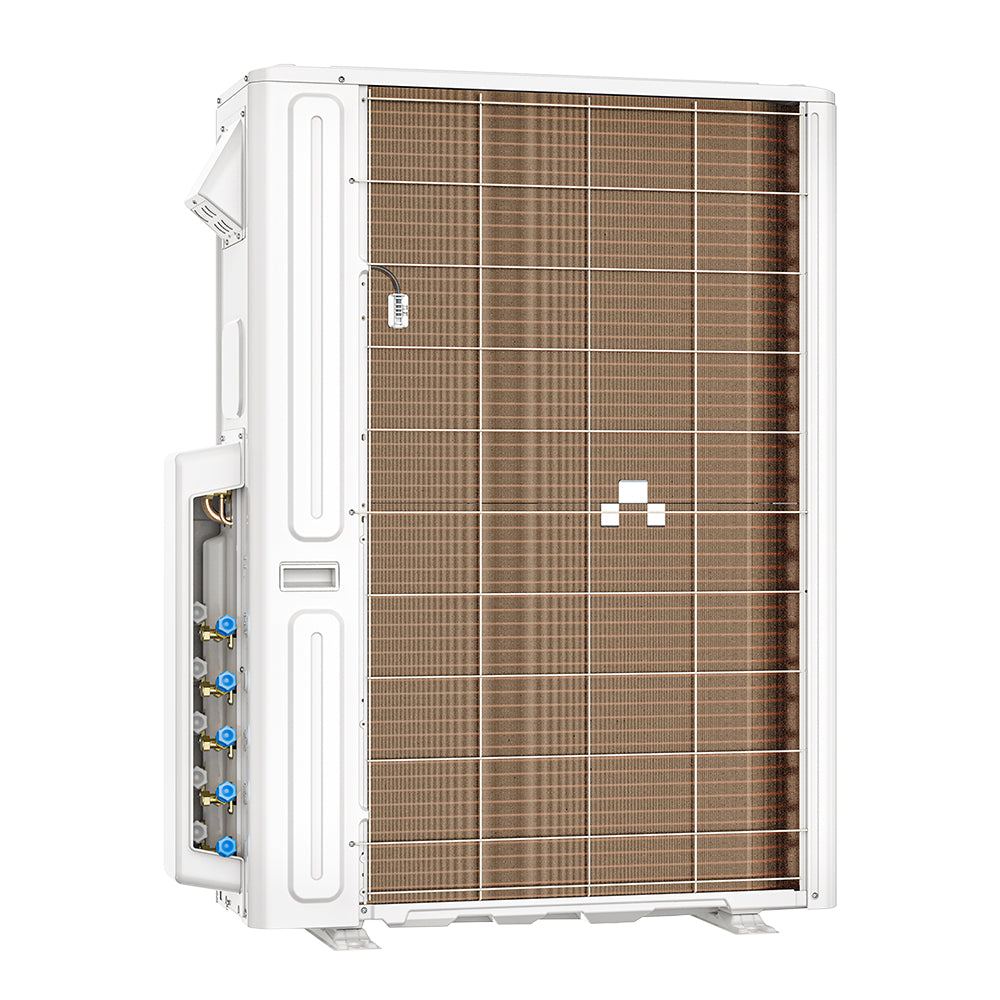

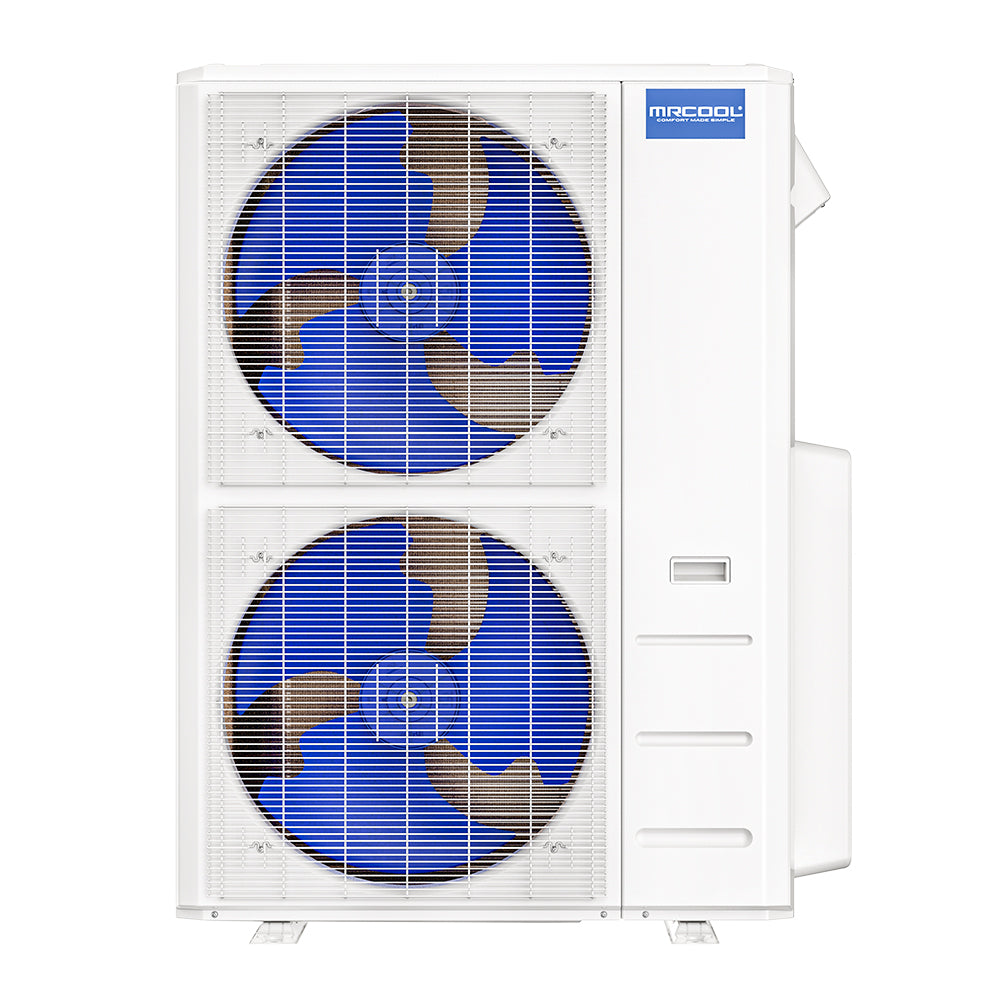

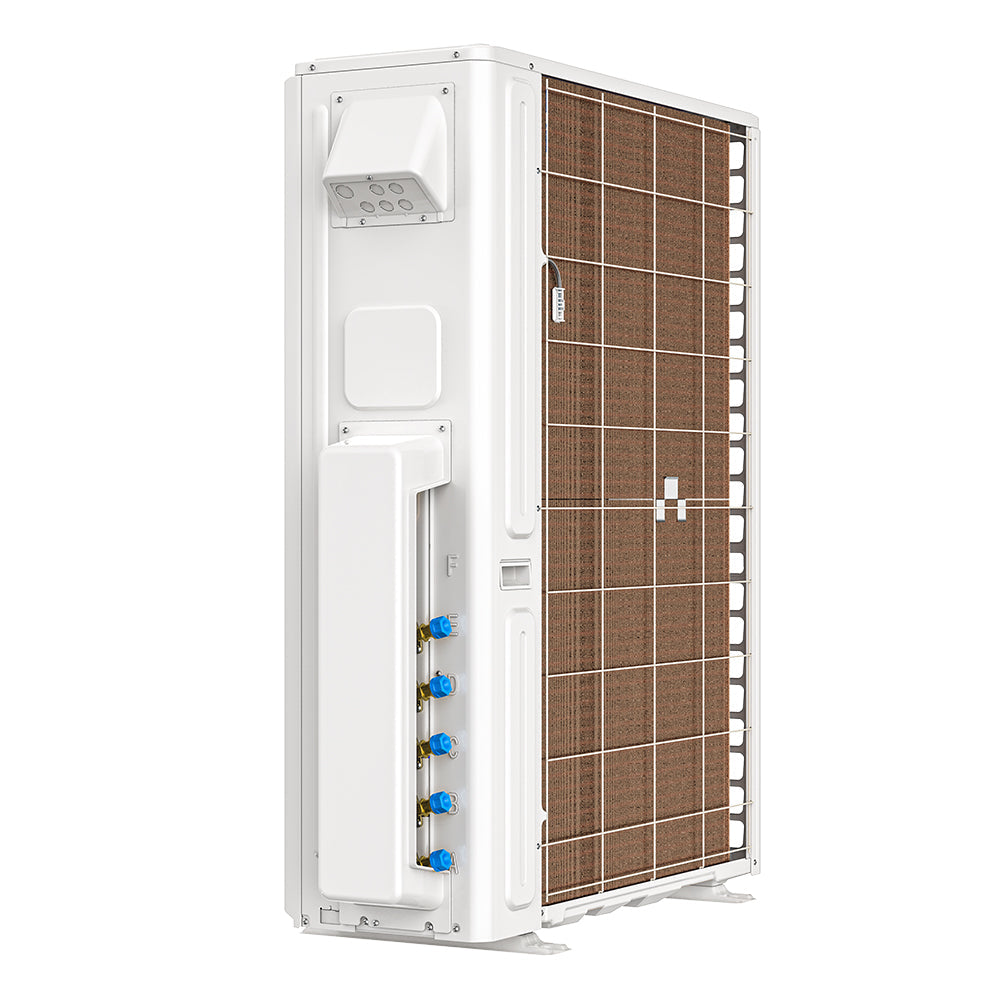

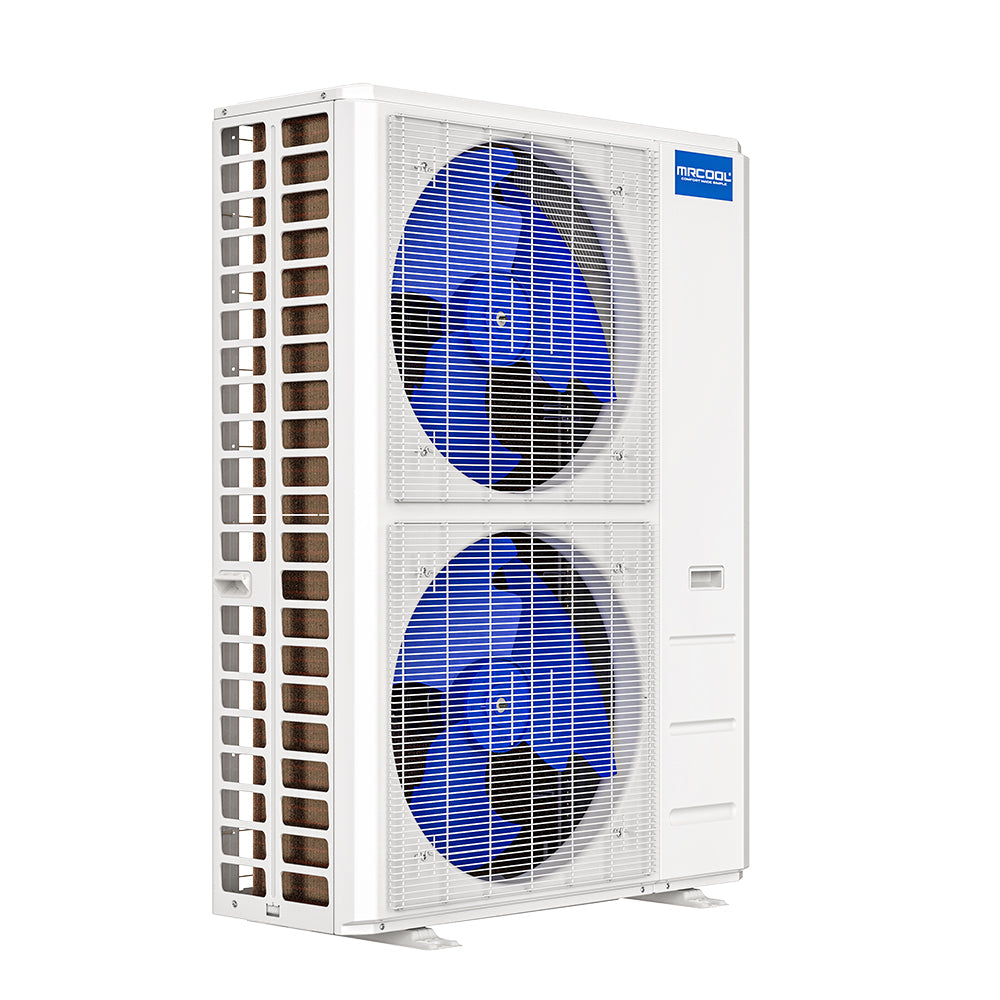

Condenser (48K BTU)

  • Streamlined Installation: Take control with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, making installation a breeze without the need for professional assistance.
  • Resilient Protection: Stay safeguarded against wear with the Gold Fin® condenser coating.
  • Unmatched Efficiency: Enjoy remarkable energy savings with a 20.5 SEER2 and 8.5 HSPF-5 rating.
  • Winter-Ready: Generate warmth reliably, even when outdoor temperatures reach as low as 5°F.
  • Comprehensive Warranty: Benefit from a 7-year compressor warranty and a 5-year parts warranty.

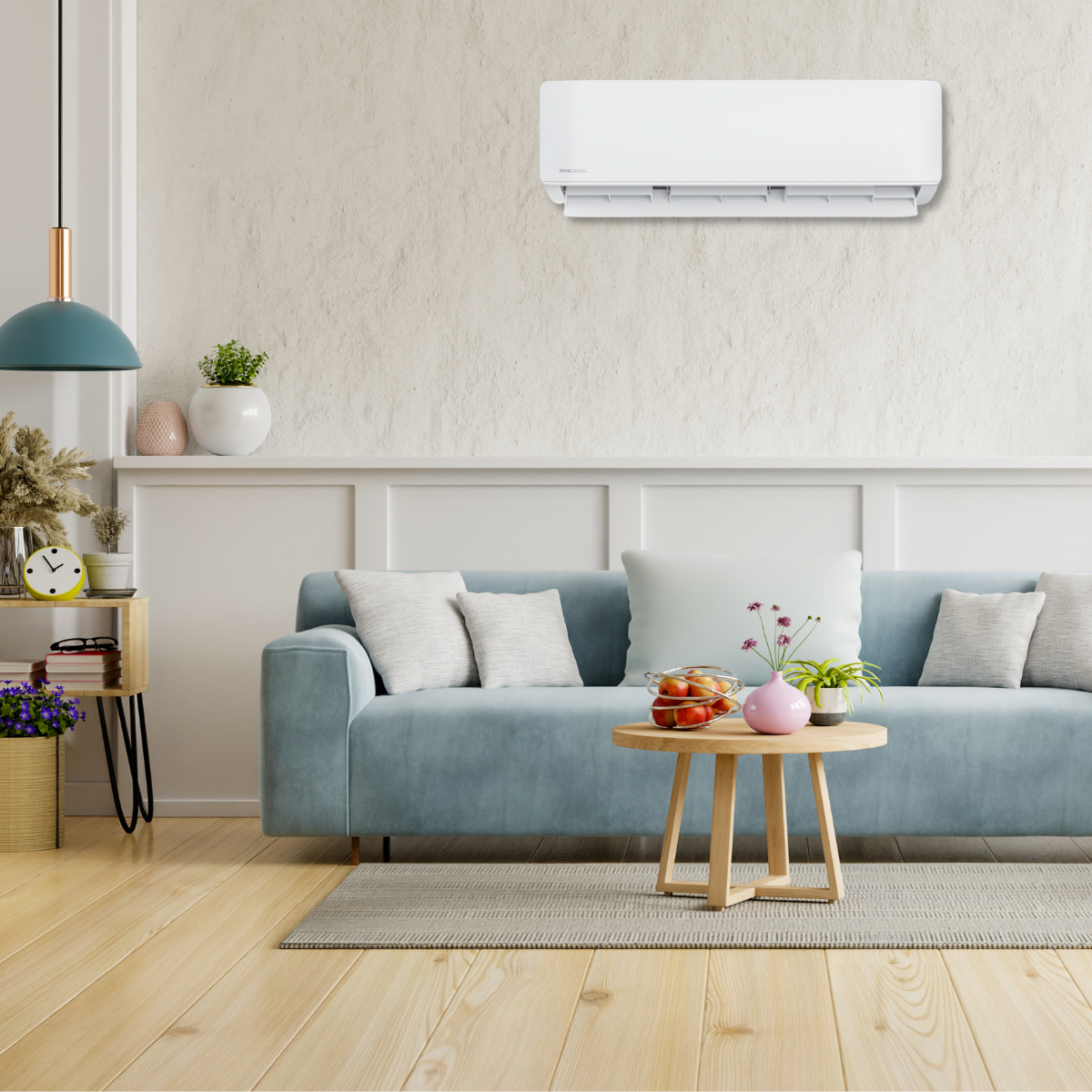

Air Handler (9K BTU)

  • Versatile Climate Control: Whether you're in the mood for COOL, HEAT, AUTO, DRY, or SLEEP, these Air Handlers ensure comfort year-round.
  • Perfect Room Coverage: Optimized for spaces ranging from 180 to 375 square feet, perfect for smaller spaces and cozy corners.
  • Smart Control Anywhere: Take command with SmartHVAC app compatibility, offering fingertip convenience from anywhere on the planet.
  • Effortless Installation: The compact and lightweight design makes mounting quick and simple, minimizing installation efforts.
  • Quick Connect System: With MRCOOL’s Pre-Charged Quick Connect Line Set, you can set up easily—no vacuuming or complex tools required!

Air Handler (36K BTU)

  • Versatile Climate Control: Whether it’s COOL, HEAT, AUTO, DRY, or SLEEP, this Air Handler adapts to deliver optimal performance all year long.
  • Perfect Room Coverage: Designed for large spaces of 1,001 to 1,500 square feet, making it ideal for open-concept or larger rooms.
  • Smart Control Anywhere: Stay in charge with SmartHVAC app compatibility and manage your comfort conveniently.
  • Effortless Installation: The compact and lightweight design minimizes hassle for a quick and smooth installation.
  • Quick Connect System: Say goodbye to complexity with MRCOOL’s Pre-Charged Quick Connect Line Set—installation made simple!

Electrical Requirments

Product Dimensions 37.48"W x 16.34"D x 52.48"H
Cooling Capacity 48,000 BTU
Heating Capacity 48,000 BTU
Zone Capacity 5
Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
SEER 20.5
EER 11
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty 7 Years Replacement on Compressor, 5 Years Parts

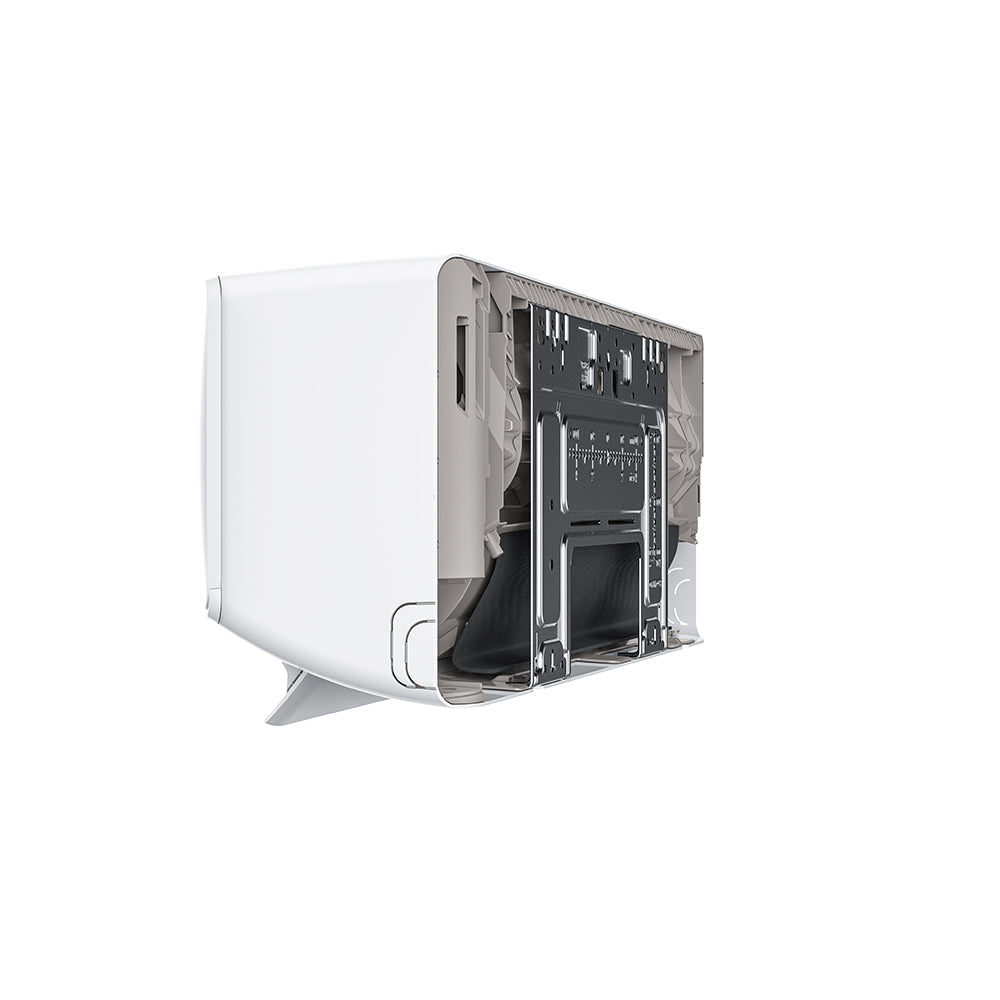

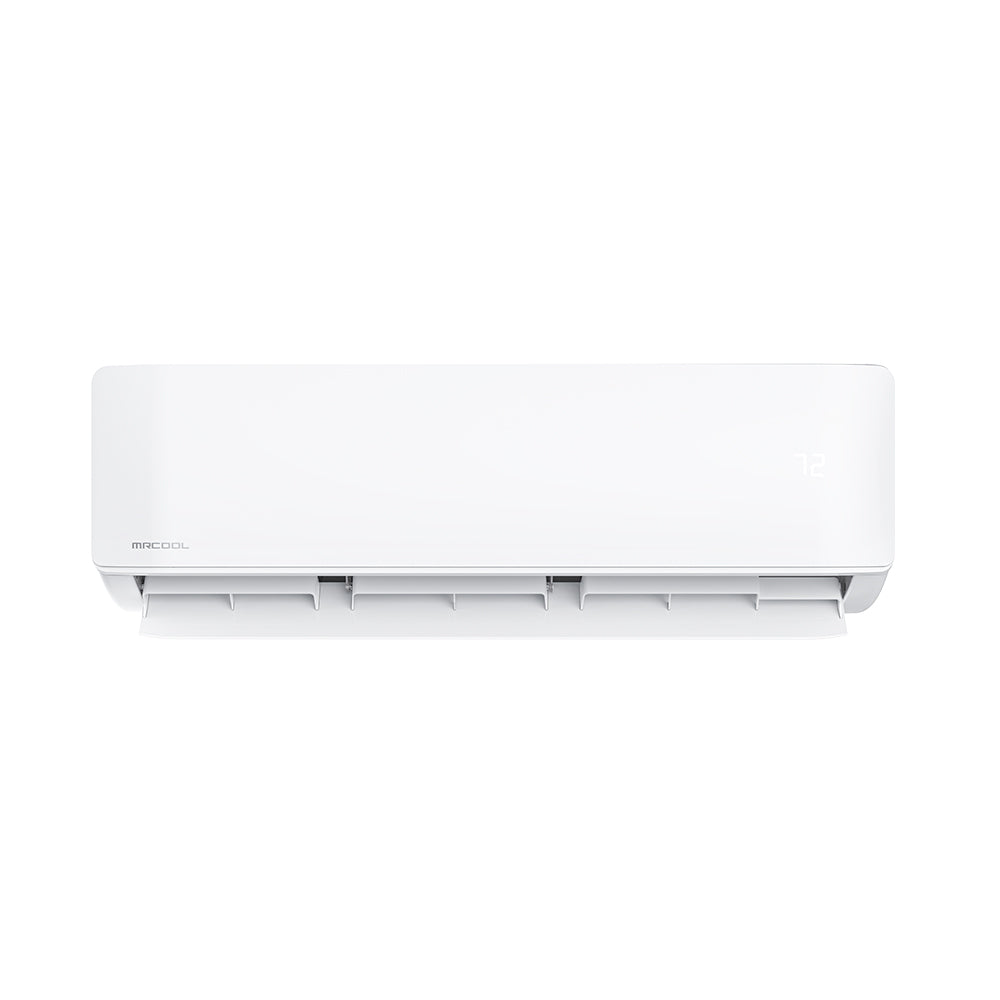

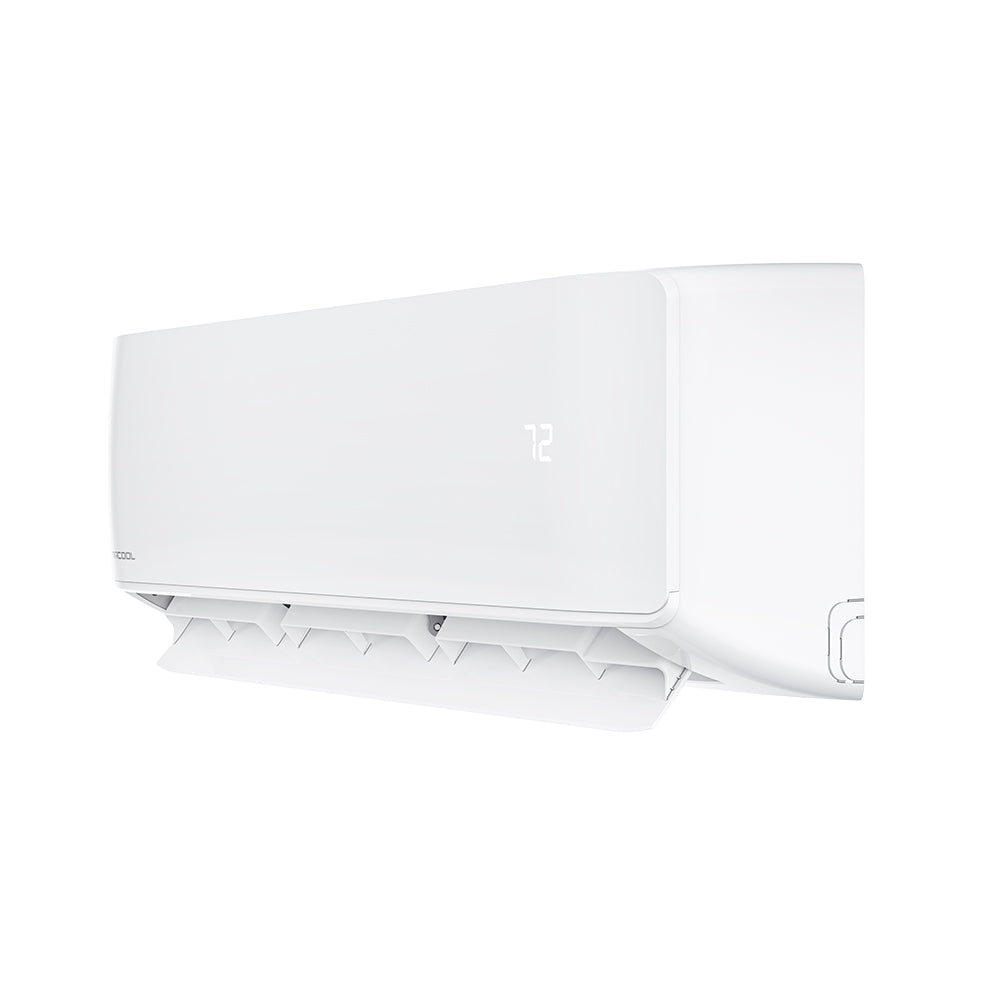

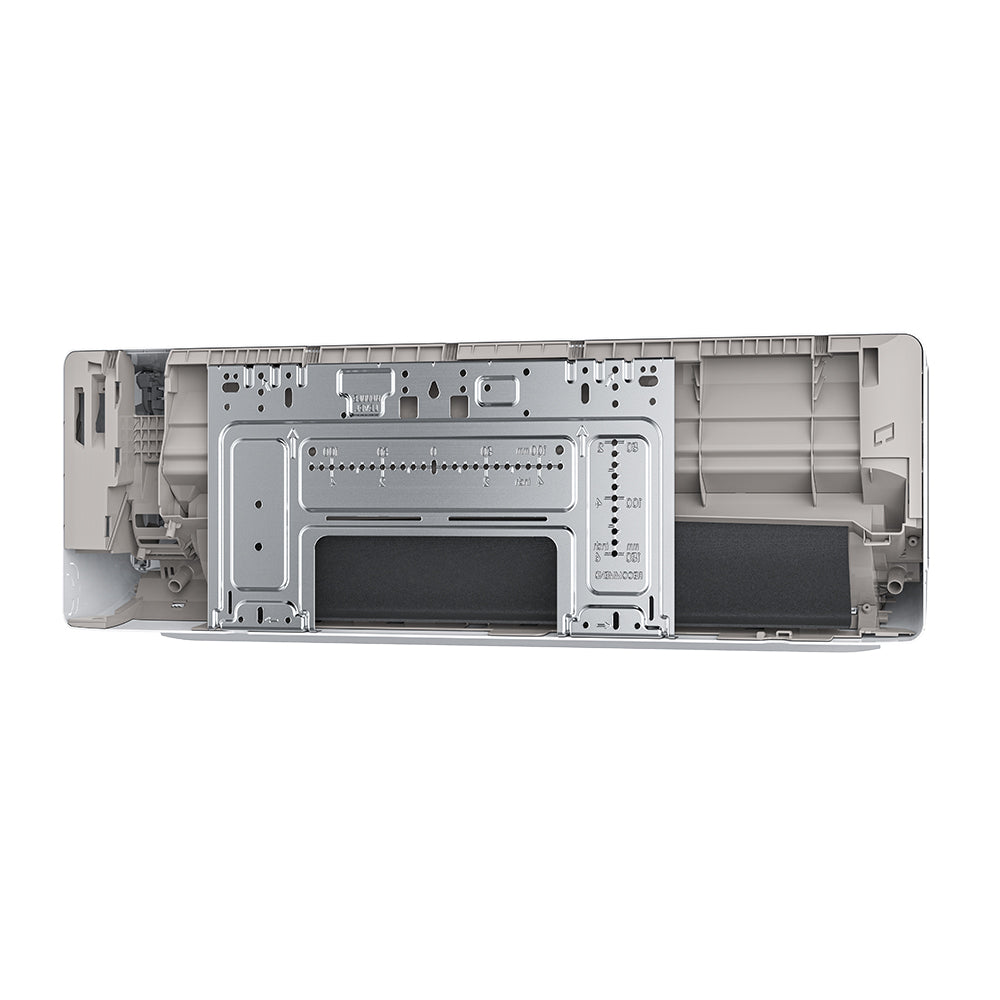

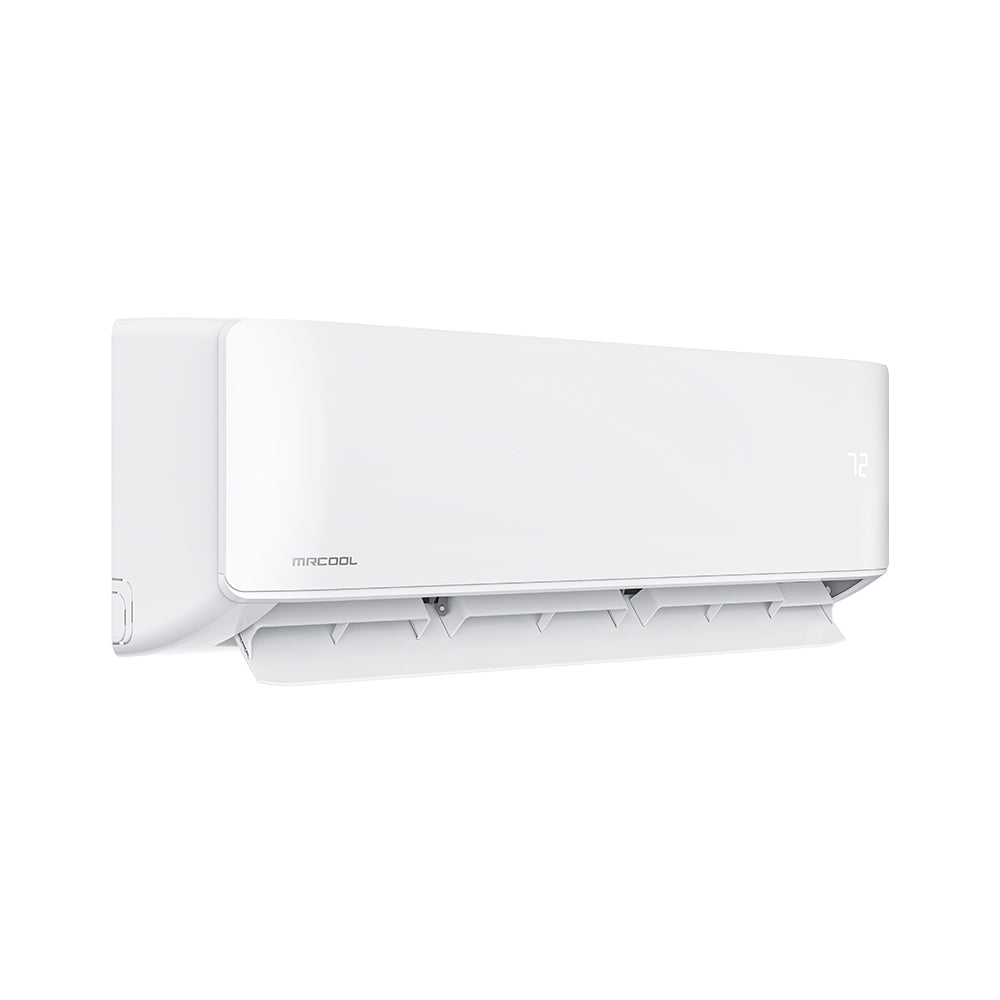

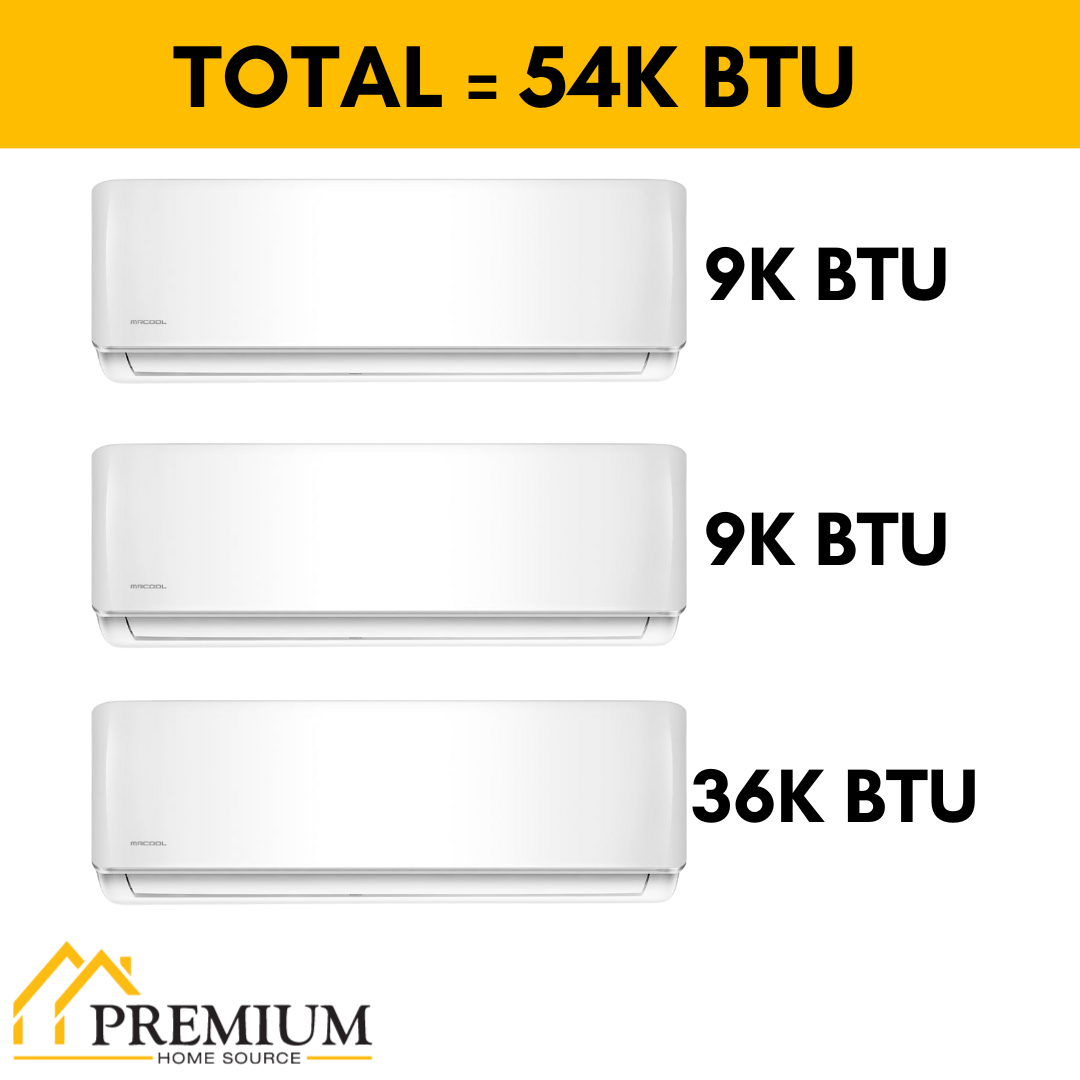

Air Handler 9K BTU
Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep
Air Handler 36K BTU
Product Dimensions 49.57"W x 11.10"D x 14.25"H
Mount Type Wall
Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-OnlyDry - dehumidifyCoolHeatFan OnlyQuietSleep


Manual

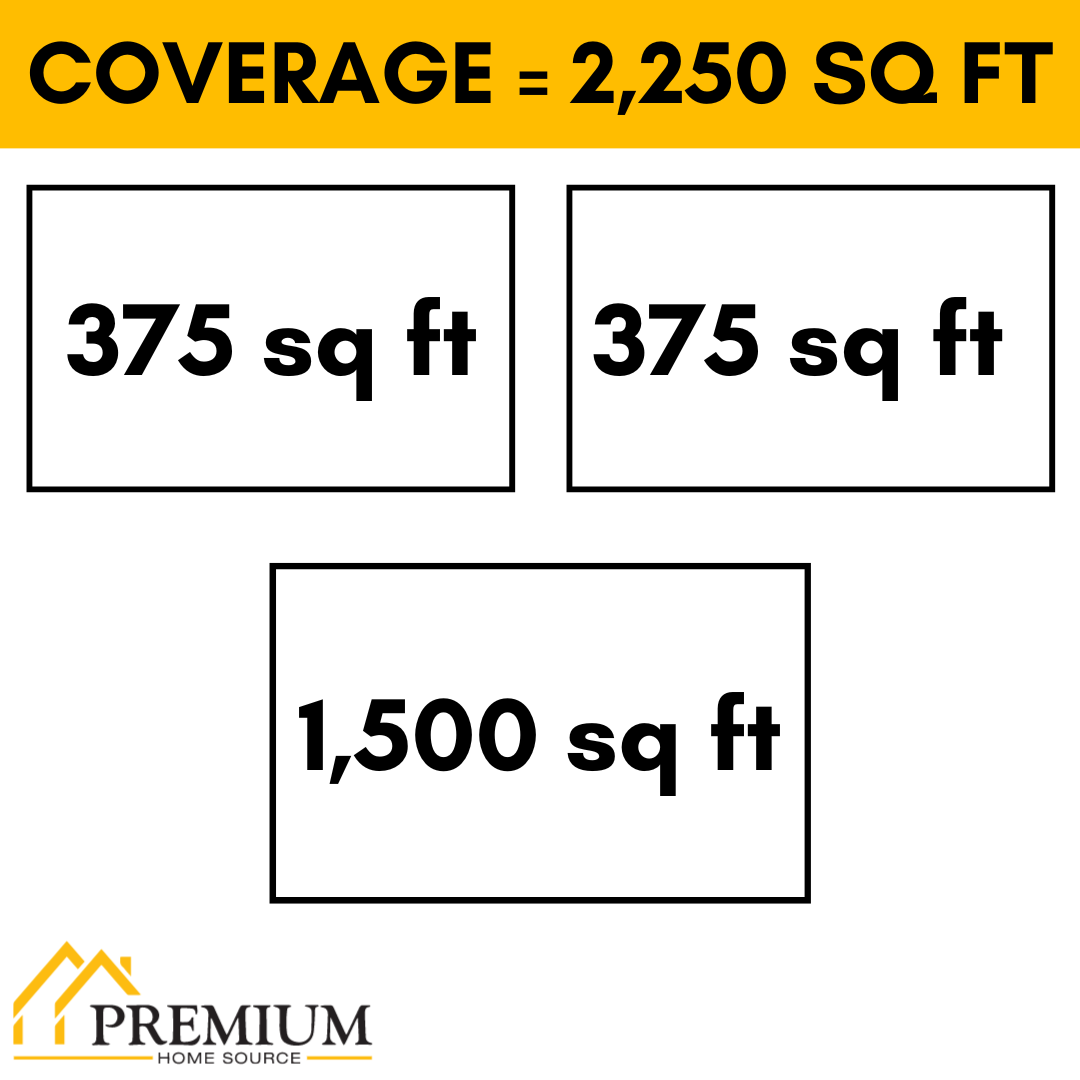

Coverage Area

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room.
