MRCOOL DIY Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen | DIY-12-HP-WM-115C25

by MRCOOL
Sale
$2,499.00
$1,738.00
SKU DIY-12-HP-WM-115C25
BTUS

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.


For the MRCOOL DIY 12K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-12-HP-WM-115C25


Description

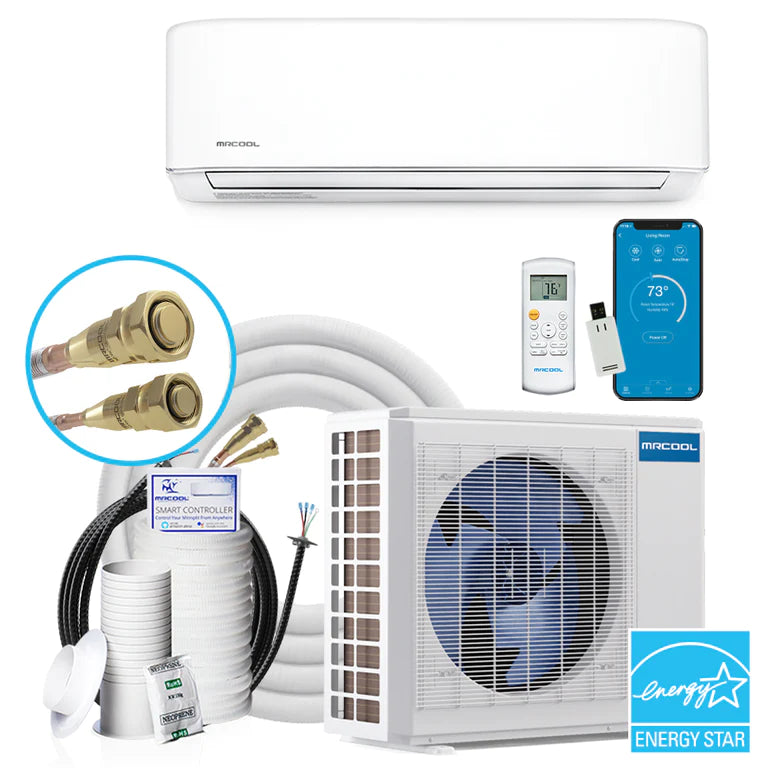

Introducing the latest in home comfort technology, with the 4th Generation MRCOOL DIY 12K BTU, 22 SEER Ductless Heat Pump System. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MRCOOL DIY system also includes many features that make it stand out among its competitors. The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified.

This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MRCOOL mini split is the only system on the market to offer a limited lifetime compressor warranty.

Key Features


-Up to 22 SEER

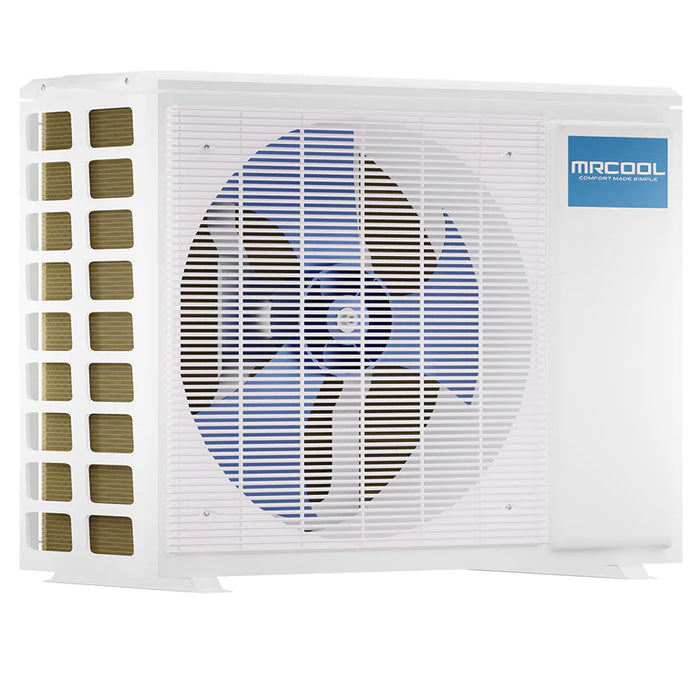

-Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
-Variable-speed DC inverter compressor technology cuts operating costs
R-410A environmentally friendly refrigerant
-Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specification & Dimensions

Condenser Dimensions 30.12"W x 11.93"D x 21.85"H
Condenser Weight 65.70 lbs
Air Handler Dimensions 31.57"W x 7.44"D x 11.69"H
Air Handler Weight 24.03 lbs
SEER 22
EER
12.5
COP 47
3.36
HSPF hspf4/hspf5 : 11.5/9
CFM 305.88/211.76/147.06
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Voltage Requires a minimum of 115V/60HZ/19-25A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 25 A
Min Circuit Ampacity 19 A
Color White
Rate Load 0.53 A
Max Coverage Area Up to 500 sqft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 38.10 oz
Decibel Rating 37/31/23.5
Decibel Rating Low 23.5 dBA
Decibel Rating High 37 dBA
Oscillation 4-W
Inverter Yes
Min Ambient Cool -13F - 122F
Min Ambient Heat -13F - 75F
Line Set Length 25ft
Max Lineset Length 82.02 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 850/600
Blower Motor RPM 1100/850/700
Auxiliary Heater Available No
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications UL Listed
Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI

Information & Guides

Rebates

For information regarding rebates and the product itself, please check out the manufactures website: https://mrcool.com or you can give us a call at (415) 503-9177 and a professional will help you with any of your concerns.
