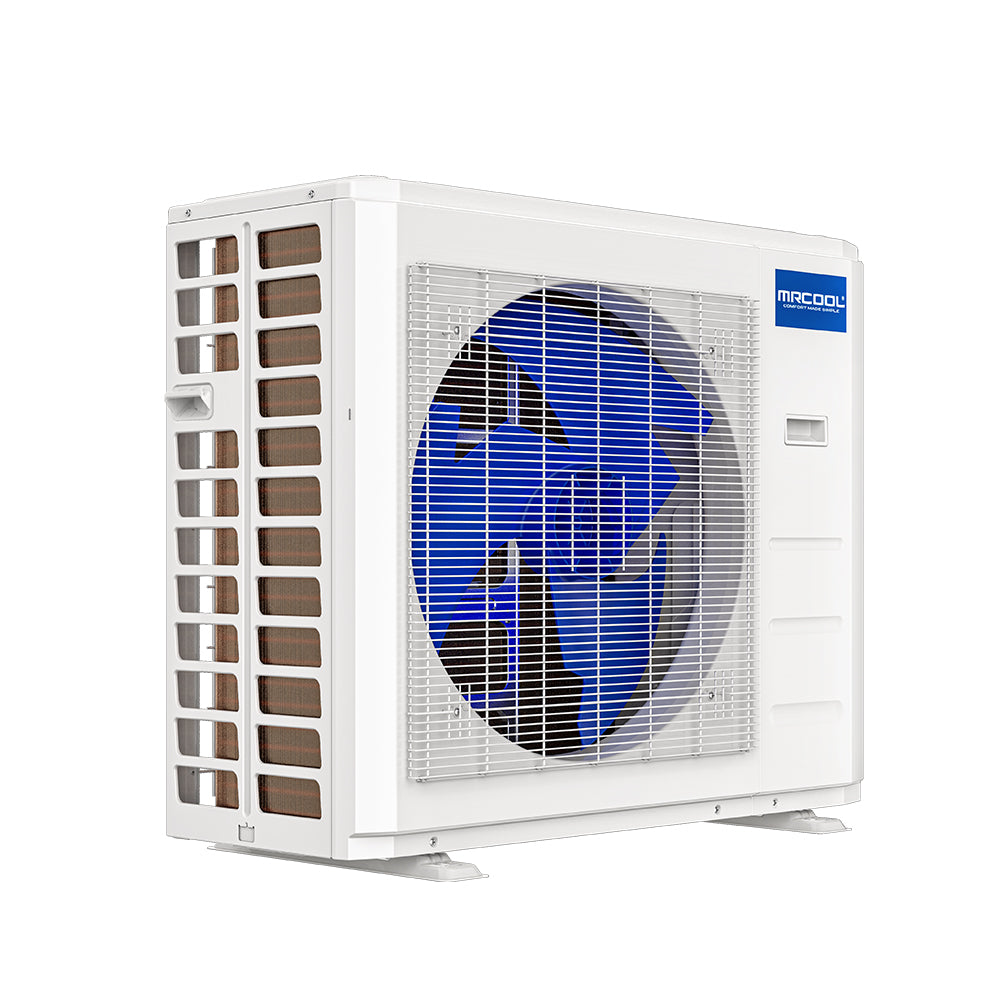

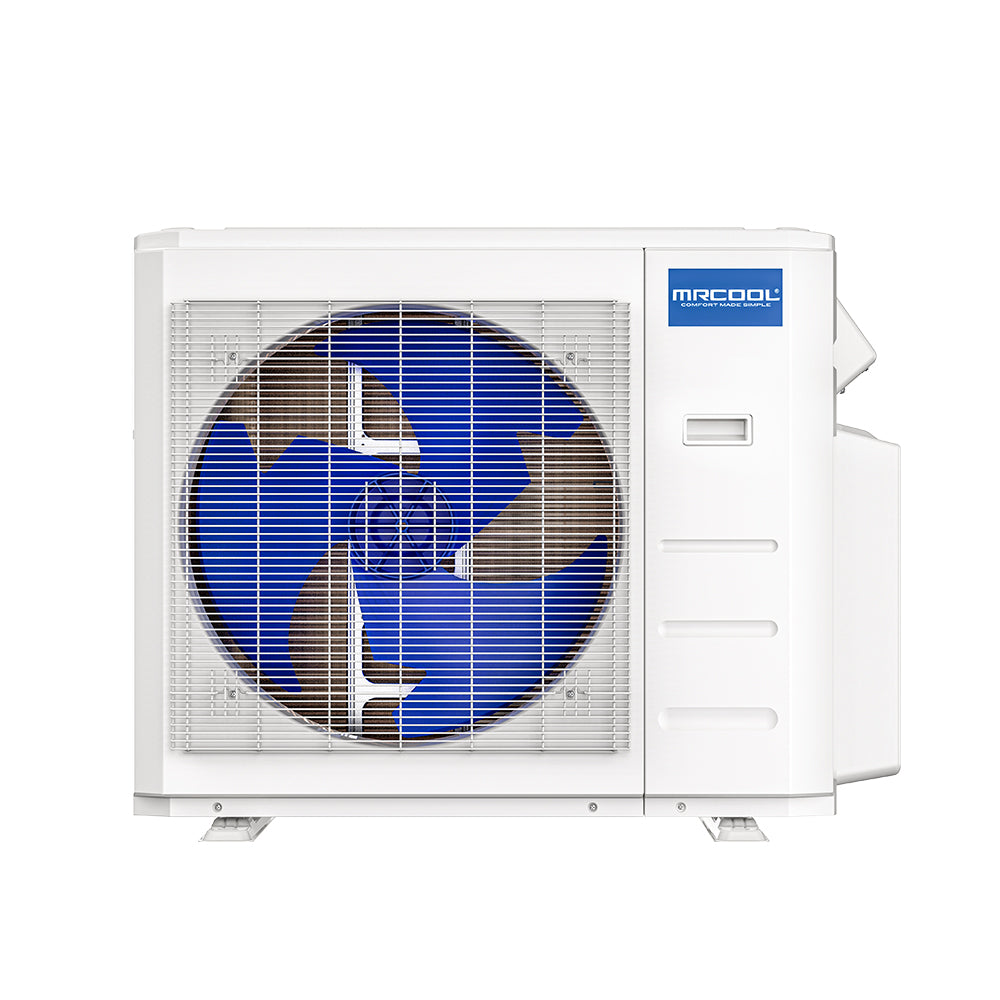

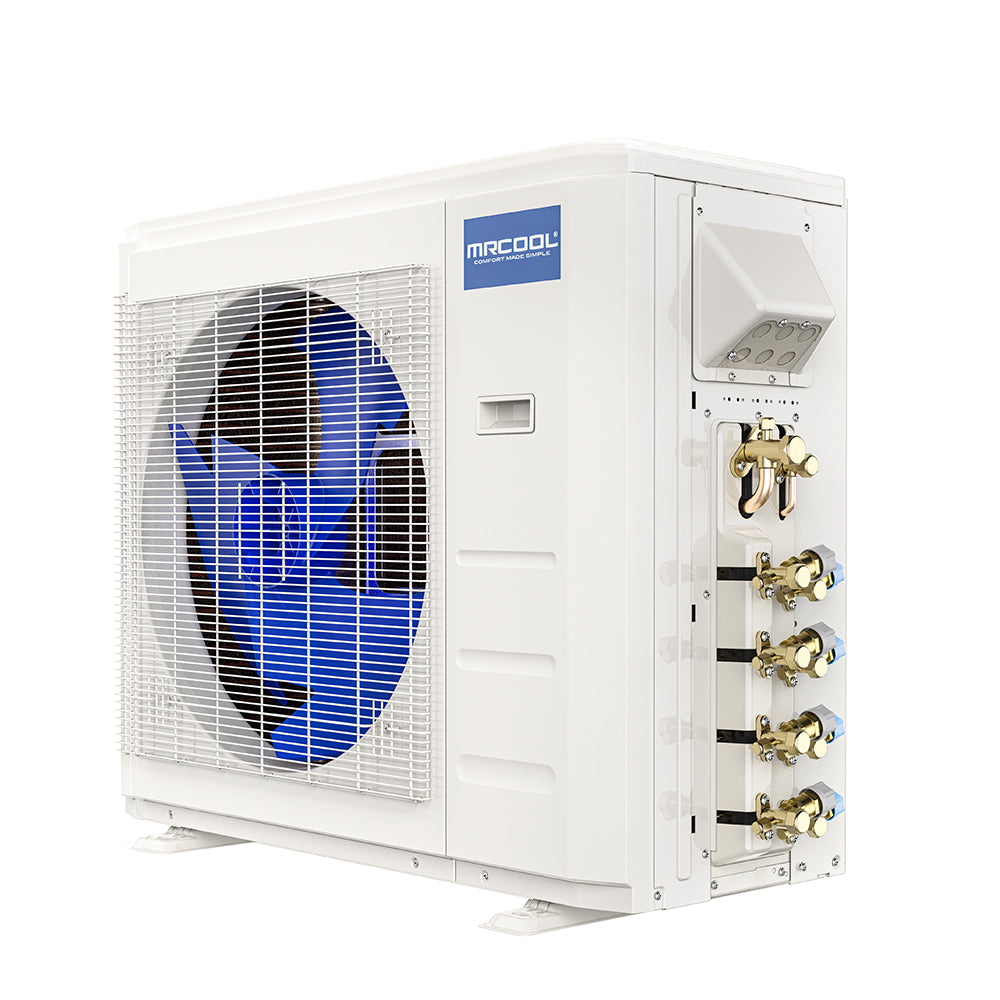

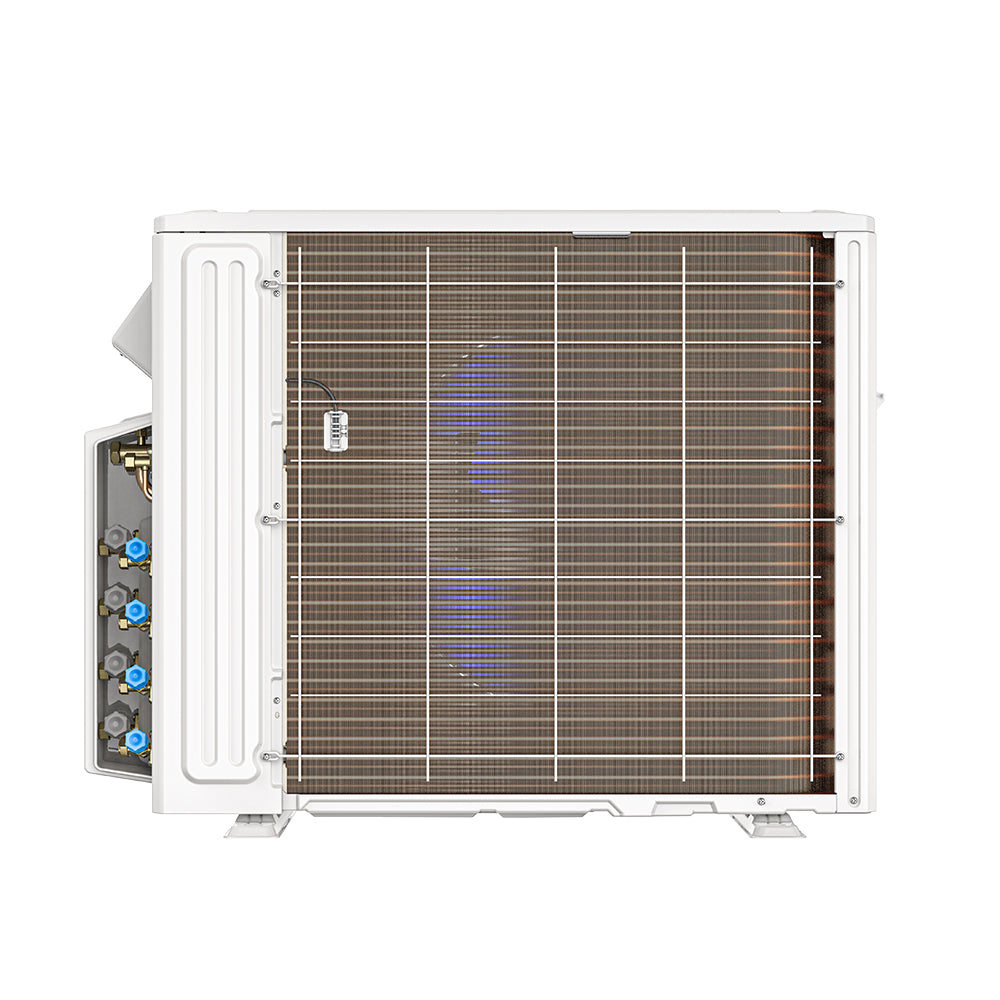

The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MRCOOL air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MRCOOL stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MRCOOLs patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
FeaturesUp to 21.5 SEERGold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosionEnergy Efficient DC InverterR-410A environmentally friendly refrigerantStandard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warrantyLine sizes 1/4", 1/2" & 3/8", 5/8"Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns
SPECIFICATIONS
Dimensions |
31.89 "H x 37.24 "W x 16.14 "D |
Weight |
170.42 lbs |
SEER |
21.5 |
EER |
10.5 |
HSPF |
hspf4/hspf5 : 11/8.5 |
CFM |
2147.06 |
Cooling Capacity |
36000 BTU |
Heating Capacity |
36000 BTU |
Voltage |
208-230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
45 A |
Min Circuit Capacity |
27 A |
Color |
White |
Color Family |
White |
Zone Capacity |
Up to 4 |
Refrigerant Type |
R-410A |
Refrigerant Volume |
134.04 oz |
Decibal Rating |
65 dBA |
Inverter |
Yes |
Min Ambient Cool |
5F ~ 122F |
Min Ambient Heat |
-13F ~ 75.2F |
Max Lineset Length |
221 ft TOTAL |
Liquid Line Size |
1/4in (3/8in w/ adapter) |
Suction Line Size |
1/2in (5/8in w/ adapter) |
Compressor Motor Type |
Rotary |
Condenser Fan Motor RPM |
1000/900/750 |
WiFi Compatibility |
Yes |
App Compatibility |
Yes |
Works with IOS |
Yes |
Works with Android |
Yes |
Registered Warranty |
Limited Lifetime Compressor |
Base Warranty |
5-year Parts/7-year Compressor |
Base Parts Warranty |
5-year Parts |
Registered Compressor Warranty |
Limited Lifetime Compressor |
Base Compressor Warranty |
7-year Compressor |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Gross Depth |
19.88 in |
Gross Height |
35.04 in |
Gross Width |
42.91 in |
Gross Weight |
187.83 lbs |
