MRCOOL DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit| Wall Mount |DIYM336HPW07C28

by MRCOOL
Sale
$6,064.08
$4,594.00
SKU DIYM336HPW07C00
LINE SET LENGTH

Call Us Now to receive the Lowest Prices Online:

(415) 503-9177

Free Shipping. No Sales Tax Outside of CA.

Estimated Handling Time

Product Ships within 1-3 days.

Estimated Shipping Time

Please Allow 5-7 business days.


MRCOOL DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM336HPW07C28


Description

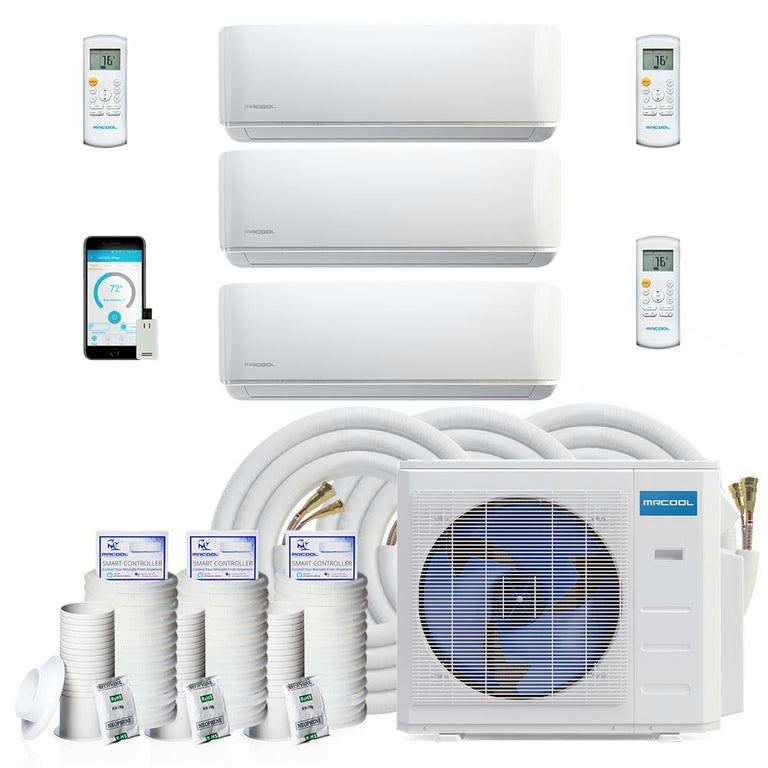

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, three Remotes, and three 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.
Package Includes
MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x2)
MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25
MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x3)
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 36K BTU rating of the Condenser.

Condenser

Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to -13°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 12K BTU, Quantity 2

Large Coverage Area. Handler covers an area up to 500 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 18K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 750 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Line Set 25 ft., Quantity 3

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Additional Line Sets & Coupler

If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

What does this package include?

This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

Specification & Dimensions



Product Dimensions 37.24"W x 16.14"D x 31.89"H
Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Zone Capacity 4
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
SEER 21.5
EER 10.5
Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)

Air Handler 12K BTU
Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Air Handler 18K BTU
Product Dimensions 42.52"W x 8.90"D x 13.19"H
Mount Type Wall
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Line Set

Length 25 Feet
Liquid Line Size 1/4"
Suction Line Size 1/2"

Information & Guides

Rebates

For information regarding rebates and the product itself, please check out the manufactures website: https://mrcool.com or you can give us a call at (415) 503-9177 and a professional will help you with any of your concerns.
