DESCRIPTION
This new 4th generation Advantage series has an improved SEER efficiency rating up to 20.5. It immediately provides high performance comfort upon installation by an HVAC professional and features a competitive price point. This quality combination of condenser and air handler provides a quiet operation, affordability, quality, and efficiency. The condenser uses the environmentally friendly and chlorine-free R-410A refrigerant. This is an excellent choice for you if youre looking for high quality comfort and technology, as this system is WiFi enabled. This speeds up the setup process, improves functionality, and works with the SmartHVAC app, your Amazon Alexa, or Google Assistant.

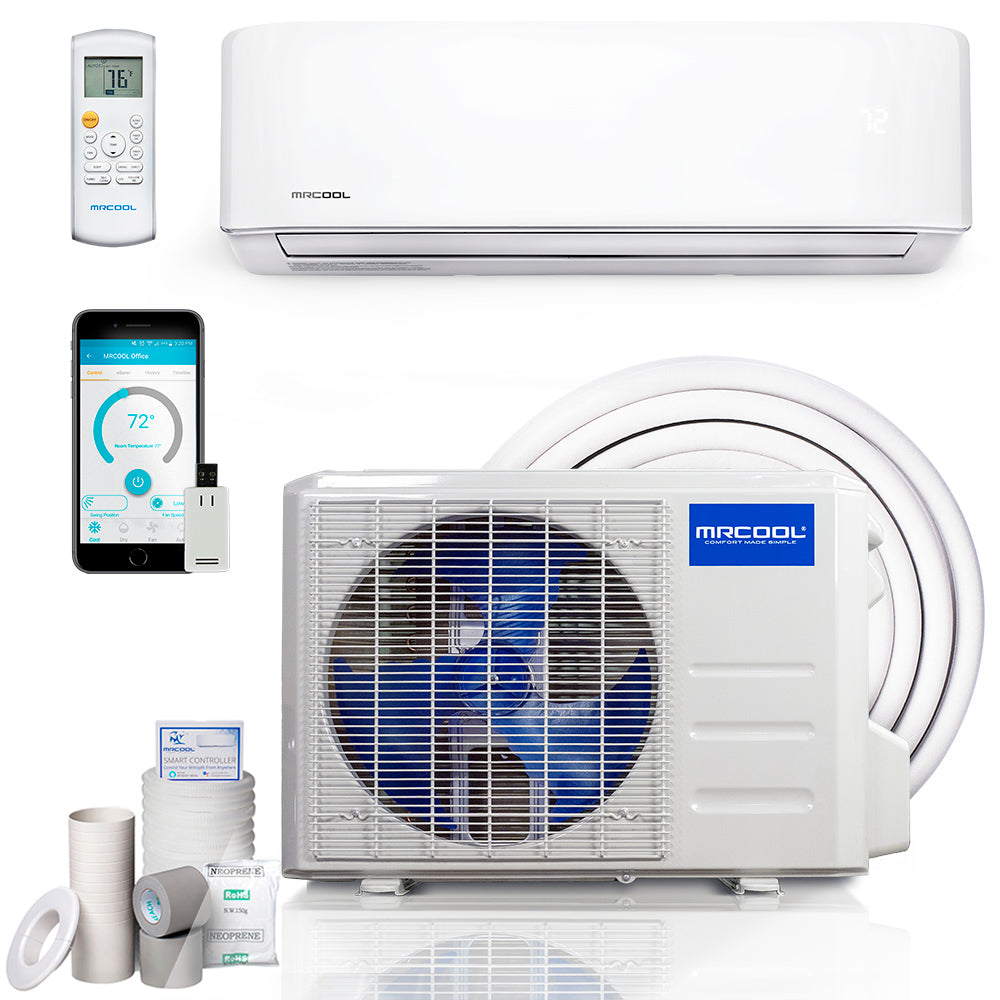

FeaturesInstallation kit includedGold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosionThe new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.Installation by a licensed professional required where applicable1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professionalR-410A environmentally friendly refrigerantSleep mode, louver position memory, and auto restart functionsConvenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
SPECIFICATIONS
Condenser Dimensions |
21.85 "H x 30.12 "W x 11.93 "D |
Condenser Weight |
59.30 lbs |
Air Handler Dimensions |
11.69 "H x 31.57 "W x 7.44 "D |
Air Handler Weight |
18.96 lbs |
SEER |
20.5 |
SEER2 |
21.4 |
EER |
10.8 |
EER2 |
10.8 |
HSPF |
hspf4/hspf5: 10/8 |
HSPF2 |
hspf2-4/hspf2-5: 9.1/6.9 |
Cooling Capacity |
12000 |
Heating Capacity |
12000 |
Voltage |
208/230V |
Phase |
1 |
Cycle |
60Hz |
Max Fuse Breaker |
15 A |
Min Circuit Capacity |
15 A |
Color |
White |
Maximum Coverage Area |
500 sqft |
Zone Capacity |
1 |
Refrigerant Type |
R-410A |
Refrigerant Volume |
28.57oz |
Decibal Rating |
30 dBA |
Decibal Rating Low |
22.5 dBA |
Decibal Rating High |
37 dBA |
Number of Speeds |
3 |
Min Ambient Heat |
5F |
Liquid Line Size |
1/4 in |
Suction Line Size |
1/2 in |
Filter Type |
Washable |
Low Voltage Compensation |
No |
Overload Protection |
Yes |
Adjustable Thermostat |
Yes |
Fan Only Option |
Yes |
Quiet Mode |
Yes |
Sleep Mode |
No |
Auto Cool |
Yes |
WiFi Compatibility |
Yes |
App Compatibility |
Yes |
Works with IOS |
Yes |
Works with Android |
Yes |
Remote Control Included |
Yes |
UL Listed |
Yes |
CSA Listed |
Yes |
ETL Listed |
Yes |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
1-Year Compressor, 2-Year Parts and 1-Year Remote |
Base Warranty |
None |
Registered Parts Warranty |
2-year |
Base Parts Warranty |
None |
Registered Compressor Warranty |
1-year |
Base Compressor Warranty |
None |
Registered Remote Warranty |
1-year |
Base Remote Warranty |
None |
Registered Labor Warranty |
None |
Base Labor Warranty |
None |
Has Batteries |
Yes |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
PRODUCT DOCUMENTATION
BrochureInstall ManualRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
